IDS-39-3
Amphenol
®
H4 PV Panel Connector
Amphenol Industrial Solar Technologies (AIST) offers
products and solutions for all segments of the solar electric
system. AIST understands the need for efficient (low loss)
power transfer, highly reliable, and cost effective solutions
that are required to be competitive in this industry. We can
provide panel manufacturers, installers, and OEM's with
connectivity products for both thin film and crystalline silicon
technologies. Designed for applications that use solar
inverters and combiner boxes. The H4 PV Panel Connector is
dual-rated for UL and TÜV. The connector meets NEC
2008/2011 requirements without the need for extra locking
collars or locking sleeves and is available in four different
gauges including 14 AWG rated at 32A, 12 AWG rated at 40A,
10 AWG rated at 44A and 8 AWG rated at 65A. Amphenol
Industrial can help you power the planet with the sun. The H4
PV Panel Connector is just one product out of many solar
interconnect solutions AIST has to offer.
H4 Features:
• UL and TÜV dual approval
• Fully intermateable with industry standard
• Meets all NEC 2008/2011 requirements
• Quick and easy secure snap lock mating
• Simple unlocking tool meets NEC requirements
• Long-term UV and Ozone resistance
• Highest current rating in industry
• RoHS compliant
• Complete Cable Assemblies available
• Low contact resistance means low loss
• Ready for field assembly
www.amphenol-industrial.com
H4 PV Panel Connector
Technic al D at a
Rated current
Rated voltage
Test voltage
Typical contact resistance
Contact material
Contact system
Insulation material
Locking mechanism
Cable strain relief
Degree of protection
Safety class
Pollution degree
Overvoltage category
Flame class
Ambient temperature range
32A(2.5mm, AWG14), 40A(4.0mm, AWG12), 44A(6.0mm, AWG10), 65A(10.0mm, AWG8)
1000V (IEC/TÜV), 1000V(UL)
6kV for 1 minute, 10kV impulse (1.2/50µS)(IEC)
0.25m
Ω
Copper, tin plated
Machined/Cold Formed or Stamped & Formed with RADSOK
®
insert
PC
Snap-lock, special unlock tool required to un-mate as required by NEC2008
Compression gland with ratcheting gland nut
IP68 (1 meter, 1 hour) mated
II (IEC61140)
2 (IEC60664)
III (IEC60664)
UL94-V0
-40°C to +90°C
R 50157783
E 339277

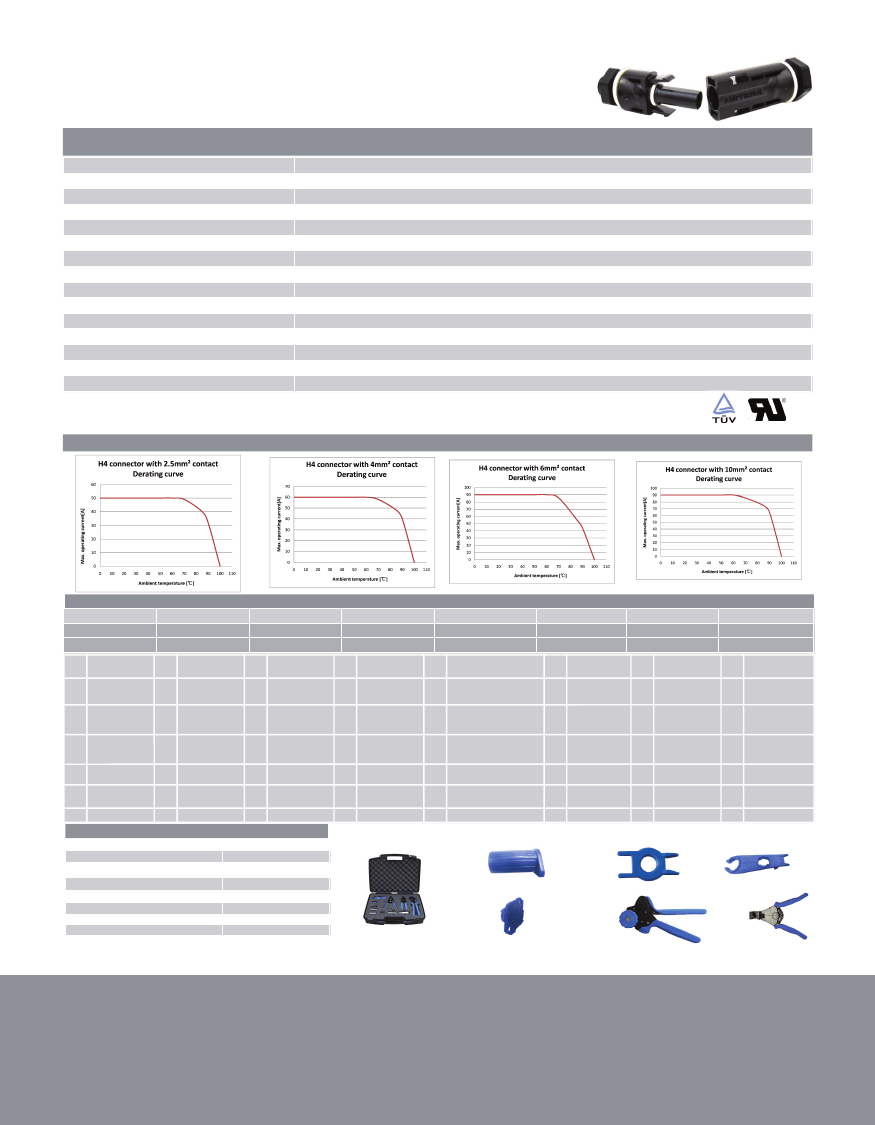

D erat ing c urves
How t o order
1
H4
Product line
H4
H4
C
2
C
Product type
Connector
F
M
P
3
F
Gender
Female +
Male -
Mated Pair
M
N
4
M
Connector Type
PanelM12
Panel M14
1
2
4
5
2
Cable size
1.5- 2.5mm²/ 16-14 AWG
(S & F Contact)
2.5mm²/ 14 AWG
(Machined Contact)
4.0mm²/ 12 AWG
(Machined Contact)
4.0-6.0mm²/ 12-10 AWG
(S & F Contact)
6.0mm²/ 10 AWG
(Machined Contact)
10.0mm²/ 8 AWG
(Machined Contact Only)
Less Contacts
T
U
D
6
D
Approvals
TÜV
UL
Dual
I
C
D
7
I
Packaging
Single
100pcs, Bags
500pcs, Bags
S
8
S
Variations
Leave Blank for
Machined Contact
S & F Contact
(Single Contact)
4
6
8
0
How t o order ac c essories
Description
H4 Sealing Cap Female
H4 Sealing Cap Male
H4 Strip Tool
H4 Crimp Tool (machined contact)
H4 Crimp Tool (S & F contact)
H4 Wrench Tool
H4 Universal Unlocking Tool
H4 Tool-Kit
Ordering code
H4PF
H4PM
H4TS0000
H4TC0001
H4TC0002
H4TW0001
H4TU0000
H4TK0000
H4 Sealing Cap Female
H4 Universal Unlocking Tool
H4 Wrench Tool
H4 Tool-Kit
H4 Sealing Cap Female
H4 Crimp Tool
H4 Strip Tool
