MIL-DTL-83513
Micro-D
507-198

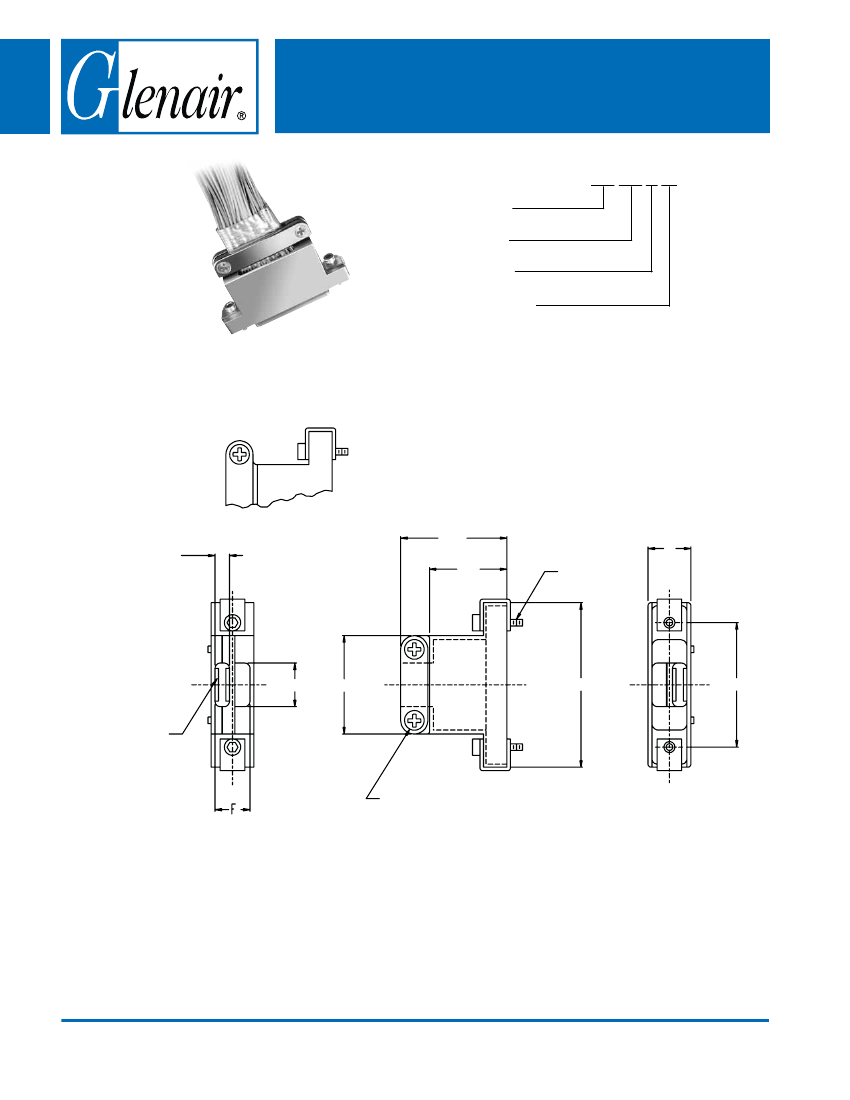

Micro-D Backshell Assembly with strain-Relief
for un-Jacketed Wire Bundles
507-198 M 37
Product Series
For Use with
Un-Jacketed
Wire Bundles
Basic Number
Finish (Table II)
Shell Size (Table I)
Shell Size
09 thru 31
.100 (2.5)
With Saddles
Closed
1.220
(31.0 )
.890
(22.6)
D Thread
E
G
B
A
C
.031 (0.8)
Silicone
Pad
(2 Places)
F
4-40 Flat Head Screw
3/8" long
Metric dimensions (mm) are indicated in parentheses
© 2011 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-34
507-198
Micro D-Backshell Assembly with strain-Relief
for un-Jacketed Wire Bundles
TABLE I: SHELL SIZE & CONNECTOR INTERFACE DIMENSIONS
Shell
Size
09
15
21
25
31
37
51
100
A
Dim
.770 (19.6)
.920 (23.4)
1.070 (27.2)
1.170 (29.7)
1.320 (33.5)
1.470 (37.3)
1.420 (36.1)
2.170 (55.1)
B
Dim
.810 (20.6)
.880 (22.4)
.940 (23.9)
1.000 (25.4)
1.050 (26.7)
1.100 (27.9)
1.050 (26.7)
1.620 (41.1)
C
Dim
.565 (14.4)
.715 (18.2)
.865 (22.0)
.965 (24.5)
1.115 (28.3)
1.265 (32.1)
1.215 (30.9)
1.800 (45.7)
D
Thread
2-56 UNC-2A
2-56 UNC-2A
2-56 UNC-2A
2-56 UNC-2A
2-56 UNC-2A
2-56 UNC-2A
2-56 UNC-2A
2-40 UNC-2A
E
Dia
.400 (10.2)
.400 (10.2)
.400 (10.2)
.400 (10.2)
.400 (10.2)
.400 (10.2)
.450 (11.4)
.490 (12.4)
F
G
Dim
Dim
.310 (7.9) .310 (7.9)
.310 (7.9) .380 (9.7)
.310 (7.9) .440 (11.2)
.310 (7.9) .500 (12.7)
.310 (7.9) .550 (14.0)
.310 (7.9) .600 (15.2)
.360 (9.1) .550 (14.0)
.400 (10.2) 1.000 (25.4)
TABLE III:
FINIsH oPTIoNs
Symbol
B
C*
G*
J
LF
M
N
NC
NF
T
U**
ZN
Finish
Cadmium Plate/Olive Drab
Black Anodize
Anodic Hard Coat
Gold Iridite over Cadmium Plate
over Electroless Nickel
Cadmium Plate/Bright over
Electroless Nickel
Electroless Nickel
Cadmium Plate/Olive Drab over
Electroless Nickel
Zinc Cobalt/Dark Olive Drab
Cadmium Plate/Olive Drab over
Electroless Nickel
Cadmium Plate/Bright over
Electroless Nickel
Cadmium Plate/Black
Zinc-Nickel Alloy/Olive Drab
*Anodize finish is not suitable for EMI shielding or grounding
applications.
**Applicable to corrosion resisting steel backshells and
accessories. Consult factory for other available finishes.
Metric dimensions (mm) are indicated in parentheses
