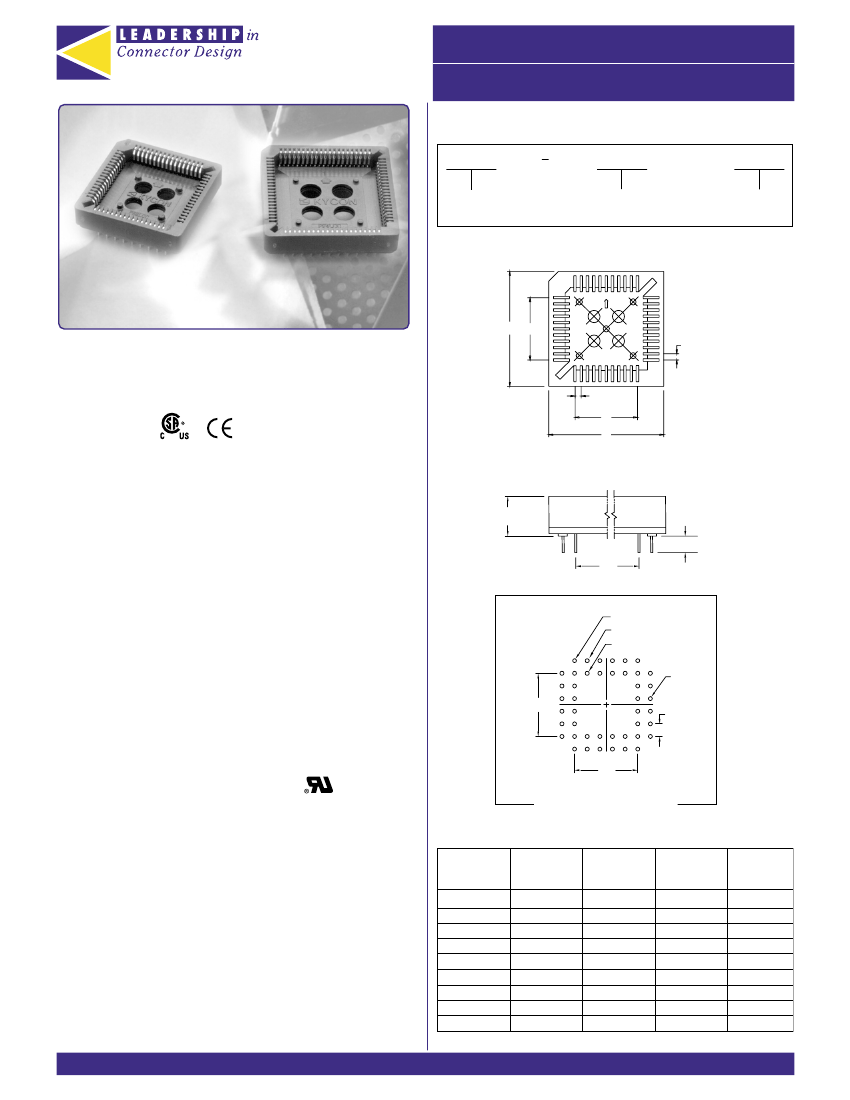

CHIP CARRIER SOCKETS
KYCON
P Series
Ordering Information
P
Series
44
Number of Contacts
LCC
LCC: PBT
LCC-1: PPS
Dimensions
C
A1
1.27 [.050]
P Series
Through Hole
PLCC Socket
Features
LR78160
1.27 [.050]
A
B
• Applications Include All Electronic PC Boards Requiring the
Conversion of a .050" Pitch Chip Carrier to a .100" x .100" Grid
Through Board Application
• Accepts Molded Plastic Chip Carriers Conforming to JEDEC
Specification MO-047 for Square and MO-052 for Rectangular
Configuration
• Visual and Mechanical Polarization for PLCC Insertion
• Closed Bottom for Excellent Protection from Solder Wicking
Into Contact Area
• Molded-In Stand-Offs Allow Easy Removal of Flux Residue
• Extraction Tool Slots*
• Open Top Design for Cooler Running Chip Carrier
• Automatic Insertion Machine Compatible
• CSA/NRTL Certified File No. LR78160
8.40
[.331]
3.30 [.130]
A
1
3
2
Ø0.8
A1
2.54 [.100]
Performance Specifications
Materials and Finish
Body
LCC: PBT Thermoplastic, 30% Glass Filled,
UL94V-0 Rated, Black Color
LCC-1: PPS Thermoplastic, 40% Glass Filled,
UL94V-0 Rated, Brown Color
Contact Material
Phosphor Bronze
Contact Finish
Copper Alloy, Tin Plated
A
(Top View)
Recommended PCB Layout
Dimensions in mm [In]
Number of
Contacts
20
28
32
44
52
68 - PBT
68 - PPS
84 - PBT
84 - PPS
A
±0.1
5.08
7.62
7.62
12.70
15.24
20.32
20.32
25.40
25.40
A1
±0.1
5.08
7.62
10.16
12.70
15.24
20.32
20.32
25.40
25.40
B
±0.2
15.56
17.78
18.10
23.58
25.72
31.80
31.10
36.70
36.00
C
±0.2
15.56
17.78
20.64
23.58
25.72
31.80
31.10
36.70
36.00
Electrical Characteristics
Contact Current Rating:
1 Amp
Contact Resistance:
30 Milliohms Max.
Dielectric Withstanding Voltage:
500V AC Min. for 1 Minute
Insulation Resistance:
1000 Megohms Min.
Temperature Rating:
-55°C to +105°C
* PLCC Extraction Tool P/N TLP-PLCC
2002
KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
