LA5002M datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LA5002M

Preview

LA5002M: Description2 TO 10V 60MA LOW SATURATION VOLTAGE REGULATORS; CategoryPower/power management The power supply circuit; File Size225KB，6 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

LA5002M Overview

2 TO 10V 60MA LOW SATURATION VOLTAGE REGULATORS

LA5002M Parametric

Parameter Name	Attribute value
Maker	SANYO
Parts packaging code	SOIC
package instruction	LSOP, SOP8,.25
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Adjustability	FIXED
Maximum drop-back voltage 1	0.3 V
Nominal dropback voltage 1	0.2 V
Maximum absolute input voltage	12 V
Maximum input voltage	8 V
Minimum input voltage	2.5 V
JESD-30 code	R-PDSO-G8
length	5 mm
Maximum grid adjustment rate	0.05%
Maximum load regulation	0.025%
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Maximum output current 1	0.05 A
Maximum output voltage 1	2.15 V
Minimum output voltage 1	1.85 V
Nominal output voltage 1	2 V
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.7 mm
surface mount	YES
technology	BIPOLAR
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum voltage tolerance	7.5%
width	4.4 mm

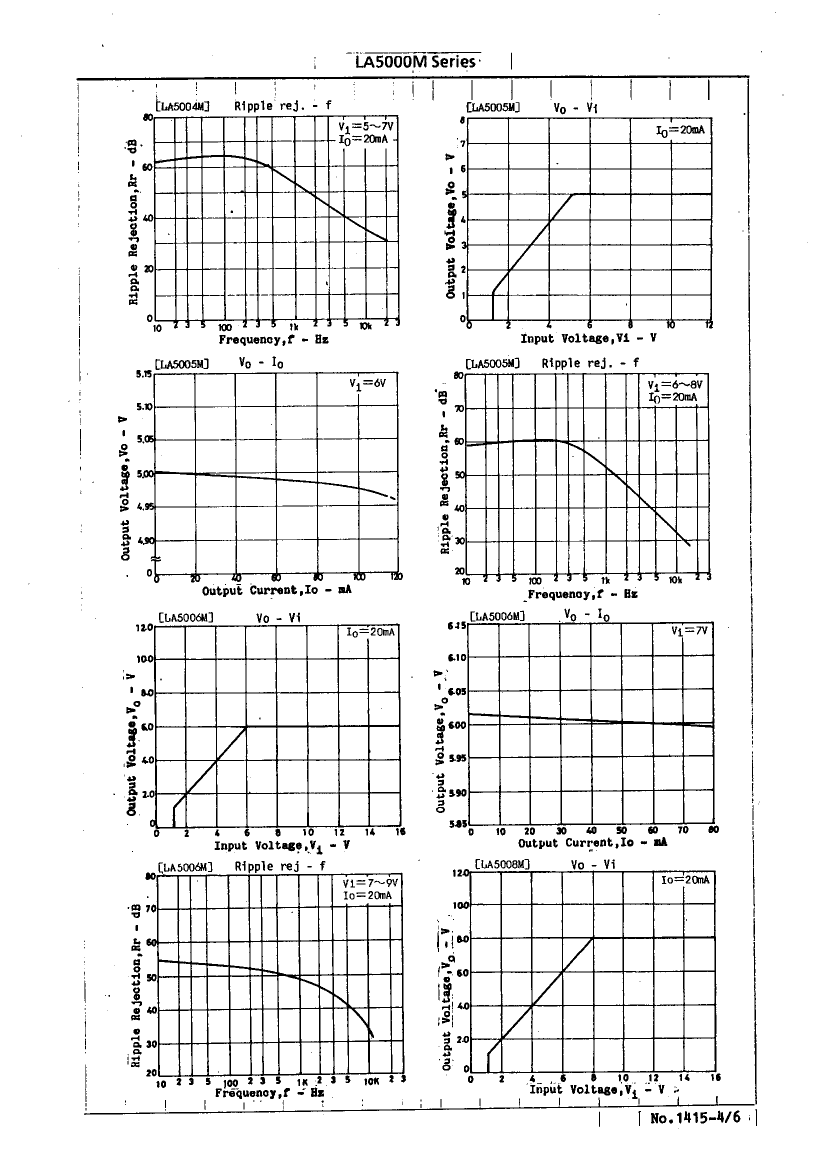

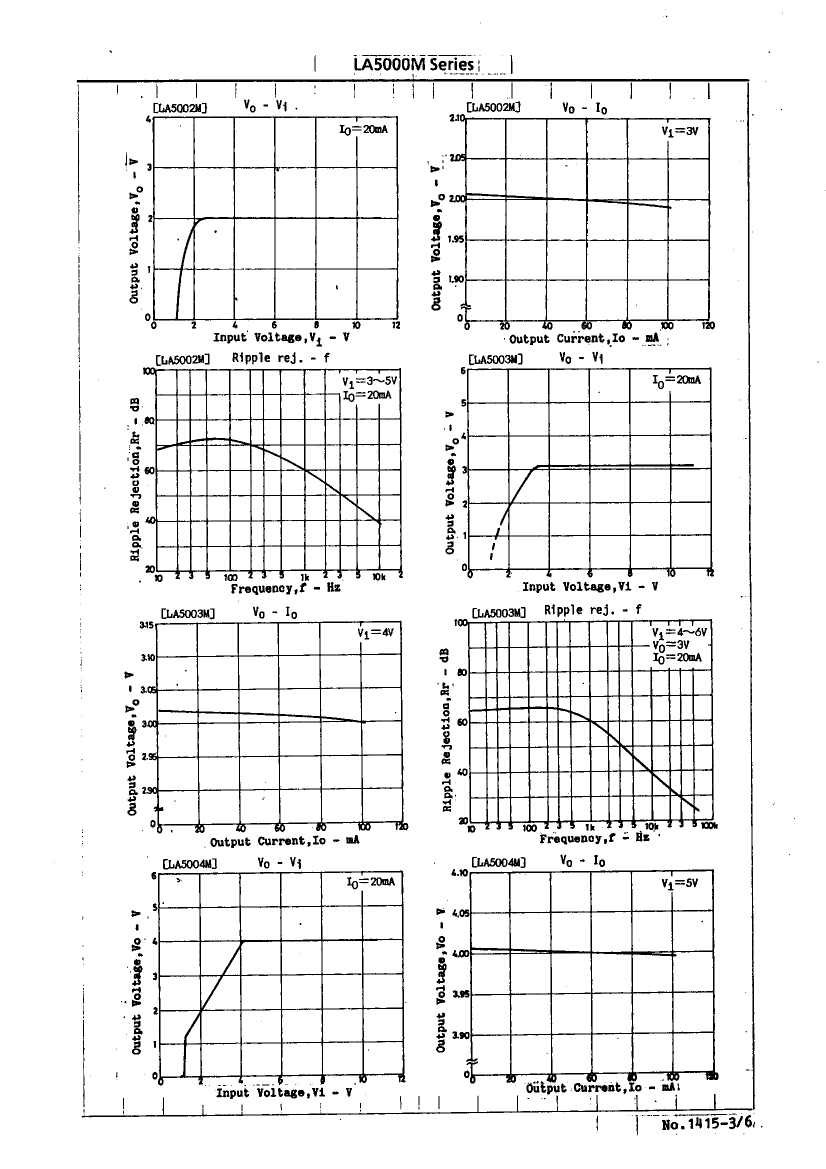

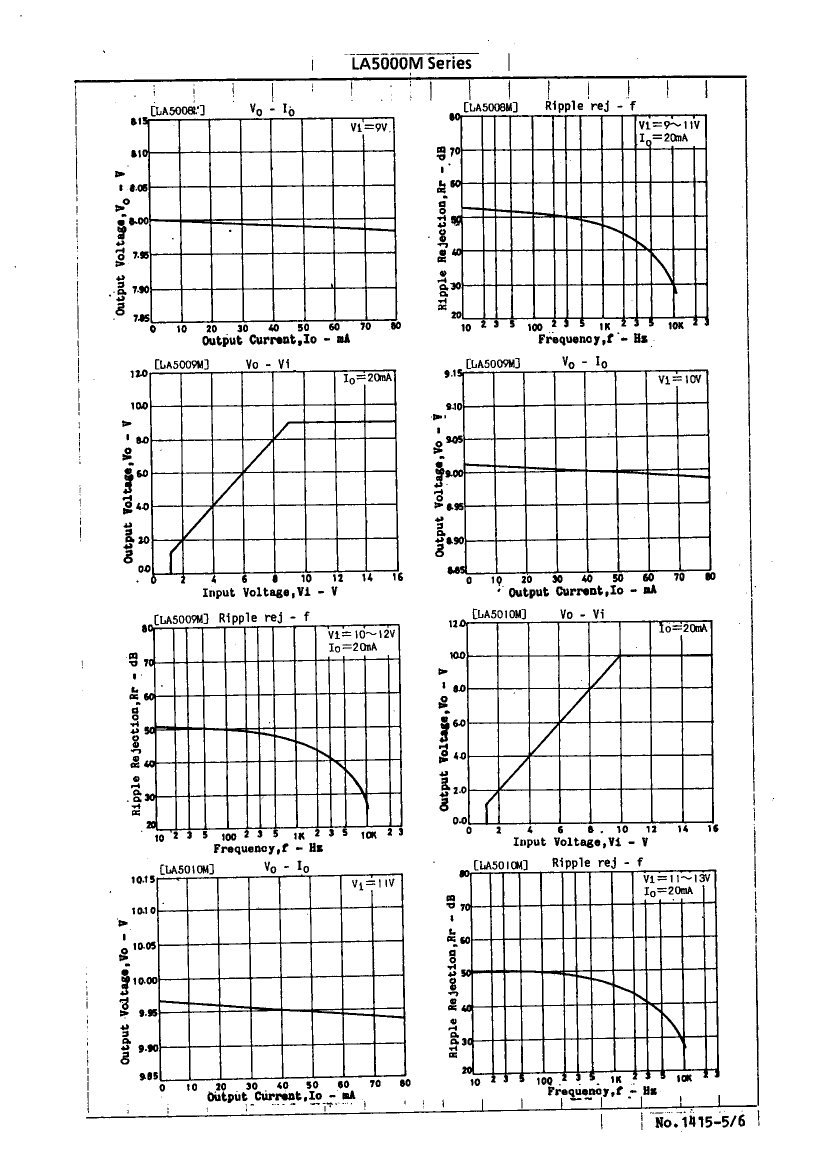

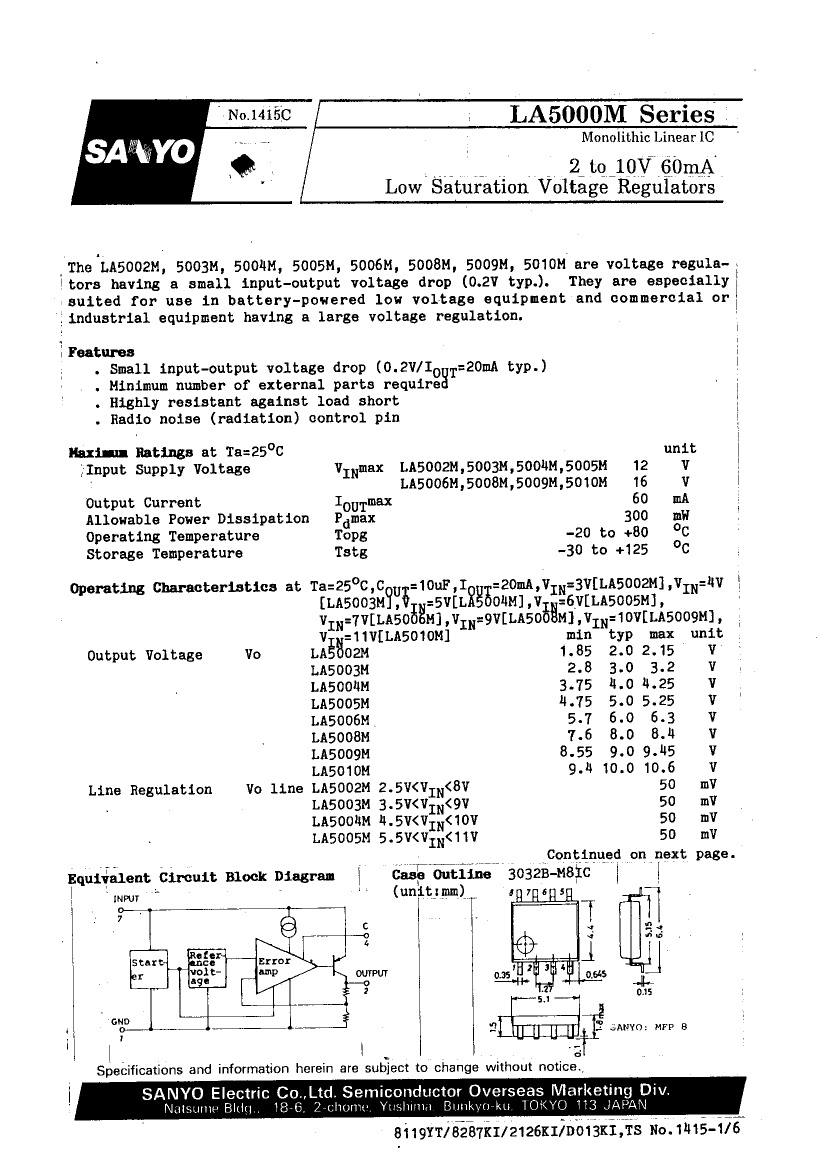

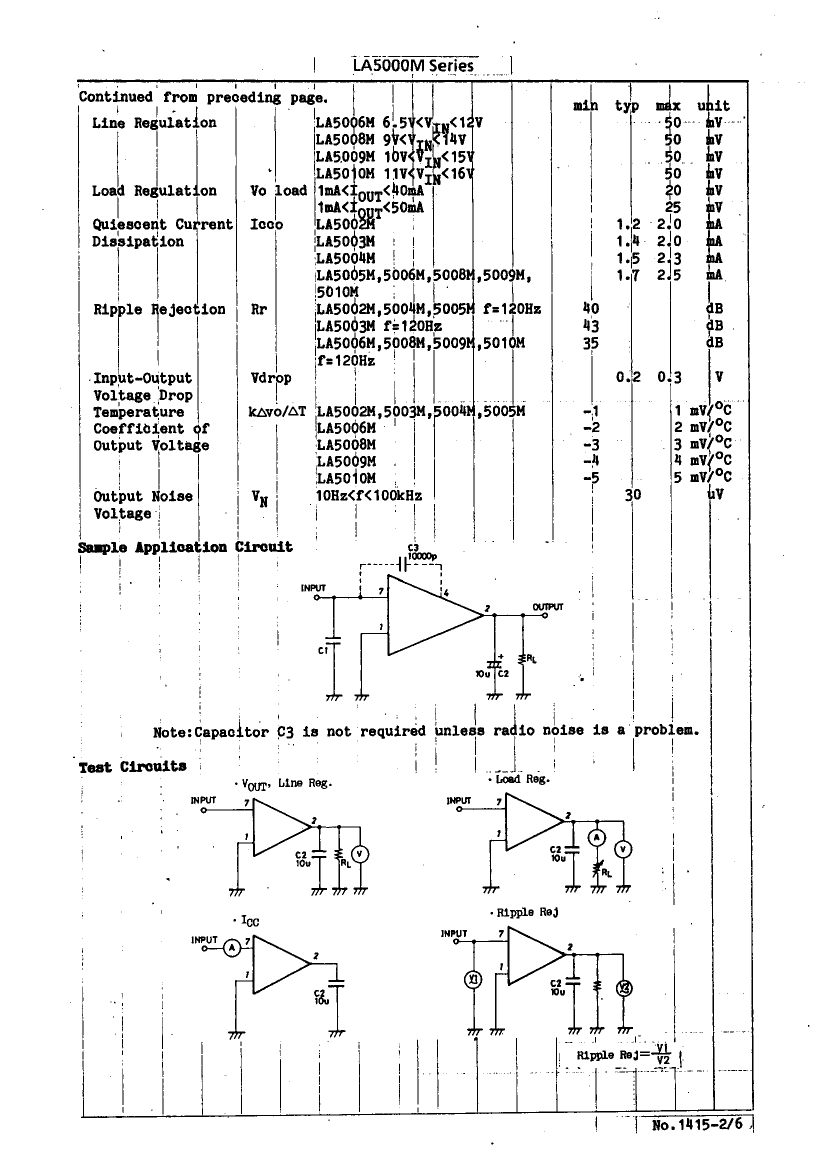

LA5002M Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

LA5002M Related Products

	LA5002M	LA5000M	LA5003M	LA5004M	LA5009M	LA5010M	LA5005M	LA5008M	LA5006M
Description	2 TO 10V 60MA LOW SATURATION VOLTAGE REGULATORS	2 TO 10V 60MA LOW SATURATION VOLTAGE REGULATORS	2 TO 10V 60MA LOW SATURATION VOLTAGE REGULATORS	2 TO 10V 60MA LOW SATURATION VOLTAGE REGULATORS	2 TO 10V 60MA LOW SATURATION VOLTAGE REGULATORS	2 TO 10V 60MA LOW SATURATION VOLTAGE REGULATORS	2 TO 10V 60MA LOW SATURATION VOLTAGE REGULATORS	Fixed Positive LDO Regulator, 8V, 0.3V Dropout, BIPolar, PDSO8, 0.225 INCH, MFP-8	2 TO 10V 60MA LOW SATURATION VOLTAGE REGULATORS
Maker	SANYO	-	SANYO	SANYO	-	SANYO	SANYO	-	-
Parts packaging code	SOIC	-	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	-
package instruction	LSOP, SOP8,.25	-	0.225 INCH, MFP-8	LSOP, SOP8,.25	LSOP, SOP8,.25	LSOP, SOP8,.25	0.225 INCH, MFP-8	LSOP, SOP8,.25	-
Contacts	8	-	8	8	8	8	8	8	-
Reach Compliance Code	unknown	-	unknown	unknow	unknow	unknow	unknow	unknown	-
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Adjustability	FIXED	-	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	-
Maximum drop-back voltage 1	0.3 V	-	0.3 V	0.3 V	0.3 V	0.3 V	0.3 V	0.3 V	-
Nominal dropback voltage 1	0.2 V	-	0.2 V	0.2 V	0.2 V	0.2 V	0.2 V	0.2 V	-
Maximum absolute input voltage	12 V	-	12 V	12 V	16 V	16 V	12 V	16 V	-
Maximum input voltage	8 V	-	9 V	10 V	15 V	16 V	11 V	14 V	-
Minimum input voltage	2.5 V	-	3.5 V	4.5 V	10 V	11 V	5.5 V	9 V	-
JESD-30 code	R-PDSO-G8	-	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	-
length	5 mm	-	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	-
Maximum grid adjustment rate	0.05%	-	0.05%	0.05%	0.05%	0.05%	0.05%	0.05%	-
Maximum load regulation	0.025%	-	0.025%	0.025%	0.025%	0.025%	0.025%	0.025%	-
Number of functions	1	-	1	1	1	1	1	1	-
Output times	1	-	1	1	1	1	1	1	-
Number of terminals	8	-	8	8	8	8	8	8	-
Maximum operating temperature	80 °C	-	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	-
Minimum operating temperature	-20 °C	-	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-
Maximum output current 1	0.05 A	-	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	-
Maximum output voltage 1	2.15 V	-	3.2 V	4.25 V	9.45 V	10.6 V	5.25 V	8.4 V	-
Minimum output voltage 1	1.85 V	-	2.8 V	3.75 V	8.55 V	9.4 V	4.75 V	7.6 V	-
Nominal output voltage 1	2 V	-	3 V	4 V	9 V	10 V	5 V	8 V	-
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	LSOP	-	LSOP	LSOP	LSOP	LSOP	LSOP	LSOP	-
Encapsulate equivalent code	SOP8,.25	-	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25	-
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE, LOW PROFILE	-	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	-
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	-	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	-
Maximum seat height	1.7 mm	-	1.7 mm	1.7 mm	1.7 mm	1.7 mm	1.7 mm	1.7 mm	-
surface mount	YES	-	YES	YES	YES	YES	YES	YES	-
technology	BIPOLAR	-	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	-
Terminal form	GULL WING	-	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	-
Terminal pitch	1.27 mm	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	-
Terminal location	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	-
Maximum voltage tolerance	7.5%	-	6.7%	6.25%	5%	6%	5%	5%	-
width	4.4 mm	-	4.4 mm	4.4 mm	4.4 mm	4.4 mm	4.4 mm	4.4 mm	-
