VS9M: ANALOG MULTIPLIED LVPECL SERIES: ULTRA HF VCXO, LVPECL, +3.3 VDC

DESCRIPTION: A crystal controlled, high frequency, highly stable oscillator, adhering to Low Voltage Differential Signaling

(LVPECL) Standards. The output can be Tri-stated to facilitate testing or combined multiple clocks. The device is contained in

a sub-miniature, very low profile, leadless ceramic SMD package with 6 gold contact pads. This miniature oscillator is ideal for

today's automated assembly environments.

APPLICATIONS AND FEATURES:

Infiniband; Fiber Channel; SATA; 10GbE; Network Processors; SOHO Routing; Switches;

Common Frequencies: 150 MHz; 156.25 MHz; 155.52 MHz; 161.1328 MHz; 212.5MHz; 312.5MHz, 622.080 MHz

+3.3 VDC LVPECL

Frequency Range from 750KHz to 800MHz

Low Phase Noise Analog Multiplication

Miniature Ceramic SMD Package Available on Tape and Reel

Lead Free and ROHS Compliant

SYMBOL

T(stg)

Vcc

SYMB

Vcc

VALUE

-40…+85

-55…+90

+4.6

Vss-0.5…Vcc+0.5

TEST CONDITIONS

UNIT

°C

VDC

ABSOLUTE MAXIMUM RATINGS:

PARAMETER

Operating temperature range

Storage temperature range

Supply voltage

Maximum Input Voltage

Maximum Output Voltage

ELECTRICAL PARAMETERS:

PARAMETER

VALUE

0.75 to 800

+3.3

±5%

100.0 MAX

LVPECL

Vcc-1.025

Vcc-1.620

40/60 to 60/40 or 45/55 to 55/45

0.7 TYP 1.0 MAX

±50

*(note 7)

0.3 TYP**

6 TYP **

18 TYP **

2.5 TYP **

2.5 TYP**

30 TYP**

43 TYP**

-65

-95

-125

-140

-145

-148

-50

-35

0 to +3.3

+1.65

0.25

10 MIN

0.7•Vcc MIN

0.3•Vcc MAX

0.7•Vcc MIN

0.3•Vcc MAX

UNIT

MHz

VDC

Ω

VDC

ppm

dBc/Hz

dBc

VDC

ppm

KΩ

KHz

VDC

Nominal Frequency

Supply Voltage

Supply Current

Output Logic Type

Load

Output Voltage Levels

Duty Cycle

Rise / Fall Time

Frequency Stability

Voh

Vol

tr / tf

Connected between each output and Vcc – 2.0 VDC

min

max

Measured at 50% of output voltage swing

Measured at 20/80% and 80/20% output voltage swing

Overall conditions

Integrated Phase tji RMS, Fj = 12 kHz…20 MHz

Deterministic period Jitter Dj using

wavecrest analyzer

Random period Jitter Rj using

wavecrest analyzer

Acumm. Peak to Peak Jitter Tp-p using

wavecrest analyzer

Fo<320MHz.

Fo>320MHz.

Fo<320MHz.

Fo>320MHz.

Fo<320MHz.

Fo>320MHz.

∆f=10

∆f=100

∆f=1

KHz

∆f=10

KHz

∆f=100

KHz

∆f>1M

Fo<320MHz.

Fo>320MHz.

Integrated Phase RMS ti offset frequency 50KHz to 80MHz

0.5 TYP**

Jitter

Phase Noise,TYP

£(∆f)

typ. @212.5MHz

Sub Harmonics, TYP

Control Voltage Range

Settability

Absolute Pull Range

Input Impedance

Modulation Bandwidth

Enable High Option;

Pin 2

Output Enabled

Output Disabled

Enable Low Option;

Pin 2

Output Disabled

Output Enabled

f_sub Load, nom, Supply nom

Vfo

APR

Zin

Dis

Positive slope; 10% linearity MAX

Minimum guaranteed freq. pull over

∆f/fc,

over all conditions See Part Numbering

-3 dB

High Voltage or No Connect

Ground

High Voltage

Ground or No Connect

RALTRON ELECTRONICS CORP.

10651 N.W . 19

Miami, Florida 33172

U.S.A.

phone: (305) 593-6033

fax: (305) 594-3973

e-mail: sales@raltron.com

WEB: http://www.raltron.com

VCXO

Page 2 of 3

*1 Test Conditions Unless Stated Otherwise: Nominal Vcc, Nominal Load, +25

±3°C

*2 Frequency Dependent

*3 May not be Available With All Temperature Ranges or Frequencies — Please Consult Factory

4 Measured with Wavecrest SIA-3000A 10,000, Cycles no filtering

*5 Calculated from Agilent 5500 phase noise measurements

*6 Measured with Agilent 5500

Tighter stabilities maybe available upon request – please consult factory

PART NUMBERING SYSTEM:

SERIES

SYMMETRY

A: 40/60 to 60/40%

T: 45/55 to 55/45%

TEMPERATURE

RANGE (°C)

0…+50

0…+70

-20…+70

-40…+85

ABSOLUTE PULL

RANGE

±20

ppm

±25

ppm

±32

ppm

±50

ppm

±80

ppm

±100

ppm*(note 3)

FREQUENCY

(MHz)

0.75…800.000

Enable/Disable

Enable High – standard (Omit Suffix)

EL; Enable Low

VS9M: UHF +3.3Vdc

VCXO with LVPECL

Comp. Output

EXAMPLE:

VS9MASH

-155.520

VCXO, 7x5mm Package, +3.3 VDC Supply Voltage, LVPECL Output, Standard Symmetry, 0…+70°C Operating

Temperature Range,

±50

ppm APR, 25 ppm stability, 155.520 MHz

MECHANICAL PARAMETERS:

INDICATES PIN 1.

.197 ±.008

5.0 ±0.2

OUTLINE TOLERANCE:

±0.006” / 0.15mm

(Unless otherwise specified)

PIN FUNCTIONS:

[1] VOLTAGE CONTROL

[2] ENABLE/ DISABLE, OR NO CONNECT

[3] CASE GROUND

[4] OUTPUT

[5] COMP. OUTPUT

[6] SUPPLY VOLTAGE

MARKING:

VS9MASH

155.52

RAL D/C

*0.01µF external by-pass

.276 ±.008

7.0 ±0.2

.079 MAX.

2.00 MAX.

.200

5.08

.100

2.54

.050

1.27

.079 TYP.

2.00 TYP.

.150

3.81

.087

2.20

.055 TYP.

1.40

.071

1.80

.100

2.54

filter is recommended as seen on solder

pattern.

SOLDER PATTERN

RALTRON ELECTRONICS CORP.

10651 N.W . 19

Miami, Florida 33172

U.S.A.

phone: (305) 593-6033

fax: (305) 594-3973

e-mail: sales@raltron.com

WEB: http://www.raltron.com

VCXO

Page 3 of 3

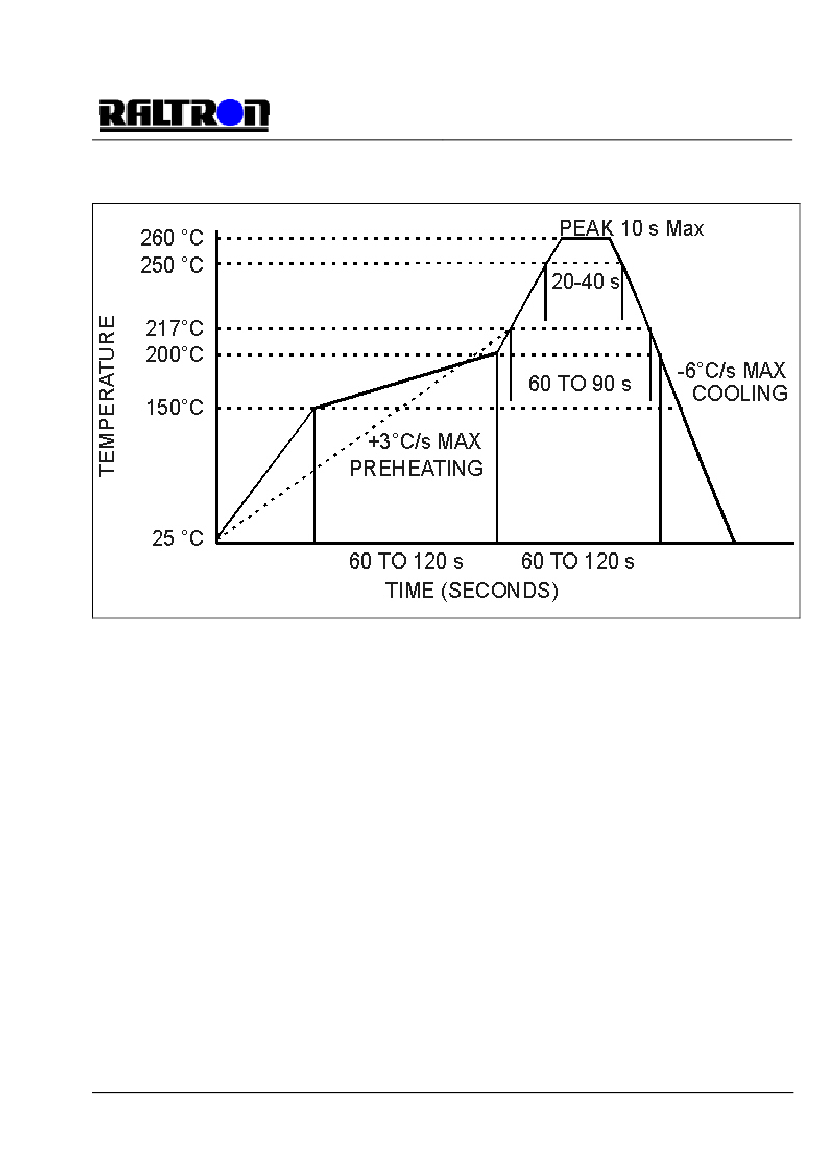

REFLOW PROFILE:

**ROHS COMPLIANT**

RALTRON ELECTRONICS CORP.

10651 N.W . 19

Miami, Florida 33172

U.S.A.

phone: (305) 593-6033

fax: (305) 594-3973

e-mail: sales@raltron.com

WEB: http://www.raltron.com
