1744109-4 datasheet, PDF - EEWORLD Datasheet

1744109-4: Description3.96 EP Hdr Assy, 9P, Omitted #8, Blue; CategoryThe connector; File Size56KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1744109-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1744109-4	-	-	View	Buy Now

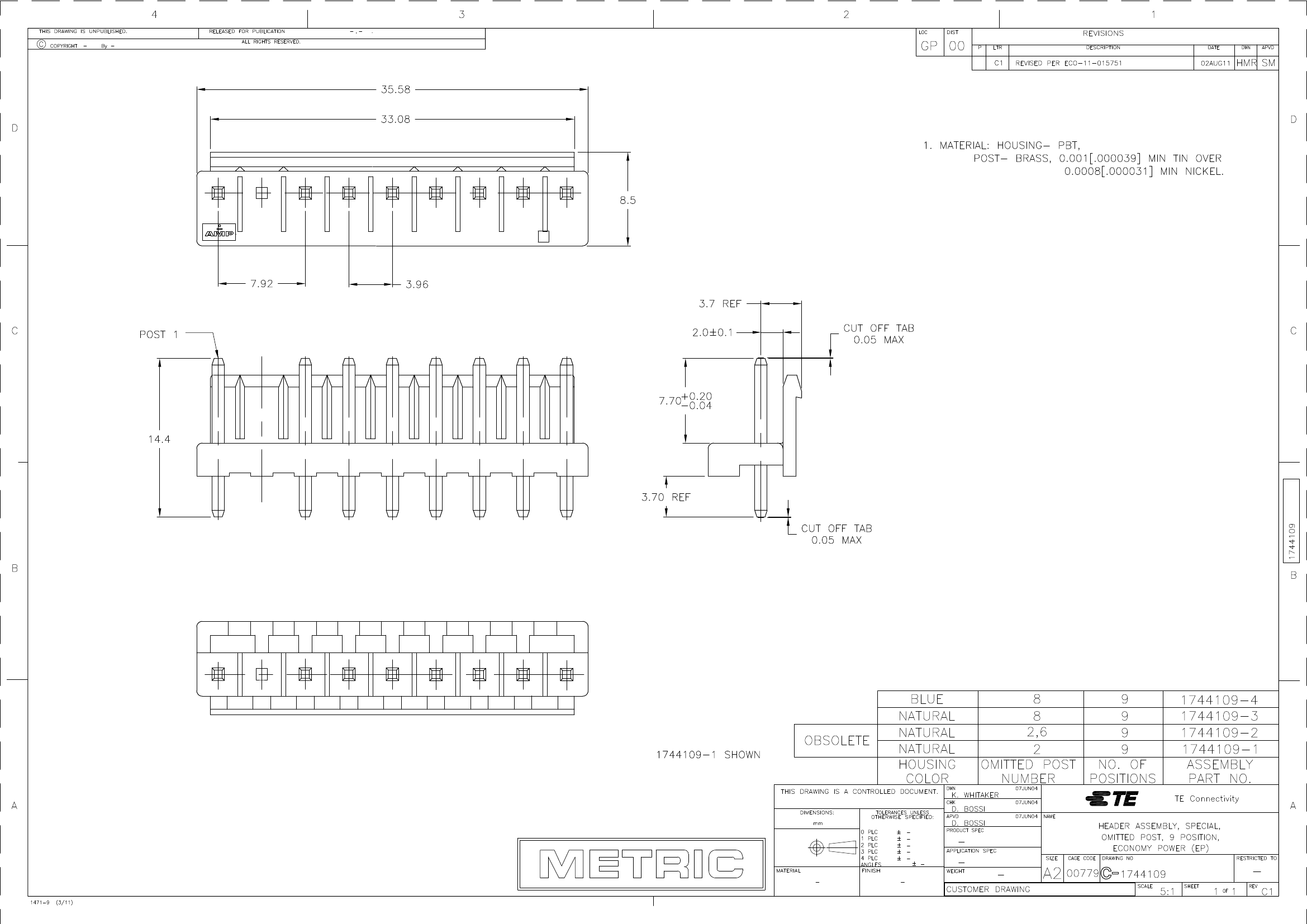

3.96 EP Hdr Assy, 9P, Omitted #8, Blue

Parameter Name	Attribute value
Connector type	without hood
Housing type	plug
Connector System	wire to board
Sealable	no
Connectors and terminals terminate to	A printed circuit board
Terminal type	Public end
Number of Positions	9
PCB mounting direction	vertical
Number of power supply locations	9
Rows	1
Backwall/Post Interruptions	Without
Operating voltage (VAC)	250
Operating voltage (VDC)	250
Terminal base material	brass
Contact Current Rating (Max) (A)	8
Terminal retention	Without
Terminal termination area plating material	tin
Terminal contact plating material	tin
Plating thickness of terminal contact parts	39.36 µm [ 1 µin ]
Plating thickness of terminal termination area	1 µm [ 39.36 µin ]
Terminal layout	Direct plug-in
PCB Termination Methods	Through Hole - Solder
Termination post and tail length	3.7 mm [ .145 in ]
PCB installation and fixation	Without
Panel mount features	Without
PCB mounting alignment	Without
Connector mounting type	board mounting
joint alignment	Without
stress relief	Without
joint fixation	with
Joint fixation type	latch
Centerline (Pitch)	3.96 mm [ .156 in ]
UL fire rating	UL 94V-0
Shell color	blue
Shell material	PBT
length	35.58 mm [ 1.4 in ]
Joint post length	7.7 mm [ .303 in ]
width	8.5 mm [ .334 in ]
Working group temperature range	-25 – 105 °C [ -13 – 221 °F ]
Circuit Application	Power
Glow Wire Ratings	Standard parts - non-glow wire
Encapsulation method	Package
Applicable to	female end sheath
