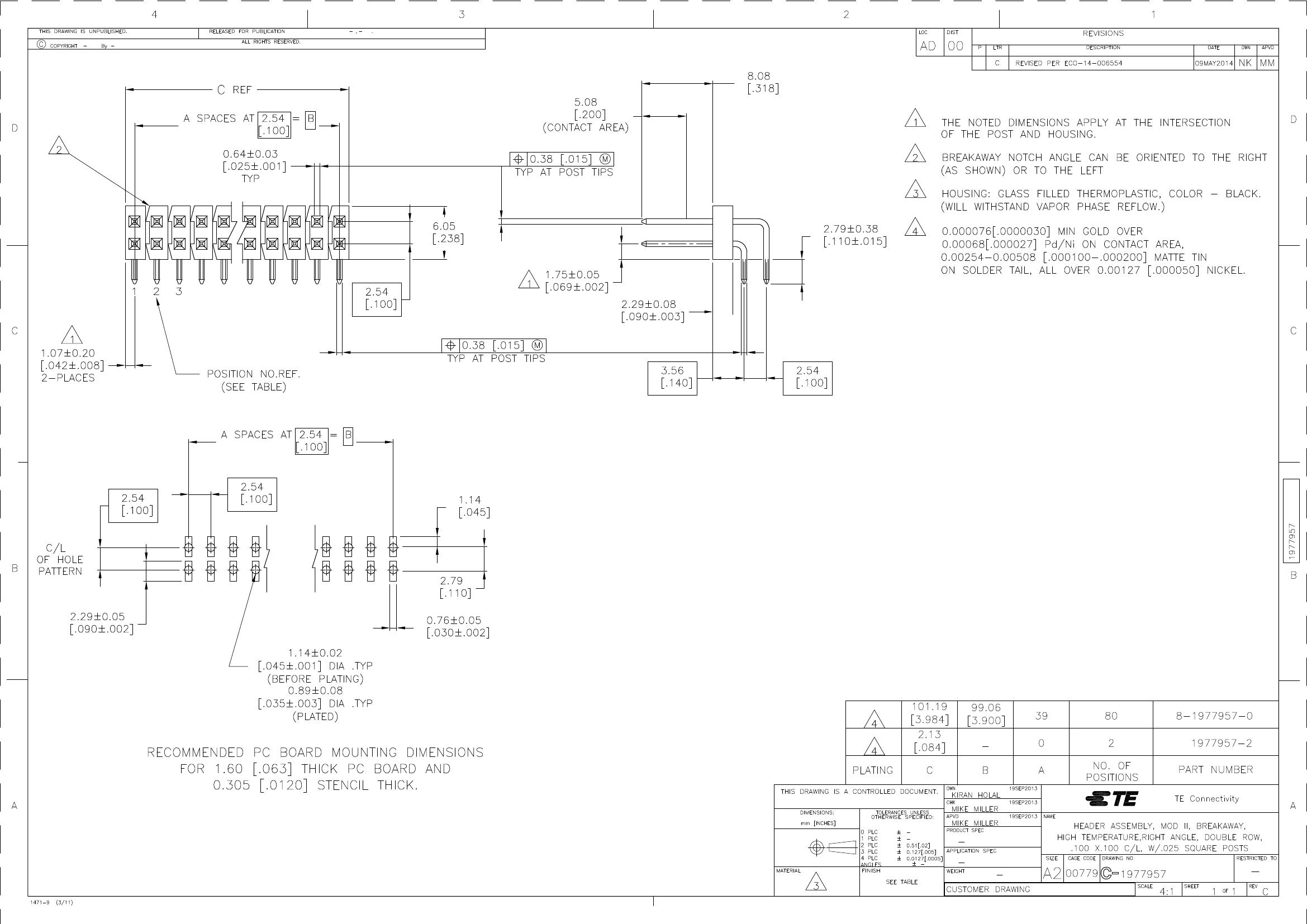

80 MODII HDR DRRA B/A PD/NI .100CL
| Parameter Name | Attribute value |
| PCB Connector Component Types | PCB mounting header |
| Connectors and terminals terminate to | A printed circuit board |
| Connector type | separation |
| Line spacing | 2.54 mm [ .1 in ] |
| sealing ring | Without |
| stabilizing device | Without |
| plate support | Without |
| stress relief | Without |
| Connector terminal load status | Fully loaded |
| PCB mounting direction | right angle |
| Number of Positions | 80 |
| Rows | 2 |
| keying | no |
| Cylinder size | .64 mm [ .025 in ] |
| Terminal base material | Phosphor bronze |
| PCB terminal termination area plating materials | tin |
| Solder tail terminal plating material surface coating | Tin: matte |
| Terminal base material | nickel |
| Terminal protection | Without |
| Terminal shape | square |
| Terminal type | Pin |
| Terminal contact plating thickness (µm) | .076 |
| Terminal contact plating material | Palladium nickel base gold plating |
| PCB Termination Methods | through hole - solder, through hole |
| Termination cylinder length | 2.79 mm [ .11 in ] |
| Terminal plating materials | tin |
| Terminal plating thickness (µm) | 2.54 – 5.08 |
| PCB installation and fixation | Without |
| Panel mount features | Without |
| Engage connector latch | Without |
| PCB installation method | Through hole |
| joint alignment | Without |
| Centerline (Pitch) | 2.54 mm [ .1 in ] |
| Shell material | thermoplastic |
| Shell color | black |
| high | 6.05 mm [ .238 in ] |
| PCB thickness (recommended) (mm) | .3 |
| PCB thickness (recommended) (in) | .012, .063 |
| Joint post length | 8.08 mm [ .318 in ] |
| High temperature compatible | yes |
| High temperature shell | yes |
| Applicable to | Match female end |
| High speed serial data connector | no |
| approved standards | CSA LR7189, UL E28476 |
| UL flammability rating | UL 94V-0 |
| Package quantity | 5 |
| Encapsulation method | boxes and trays, tubes |
