30A01C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 30A01C

30A01C: DescriptionLow-Frequency General-Purpose Amplifier Applications; CategoryDiscrete semiconductor The transistor; File Size29KB，4 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

30A01C Overview

Low-Frequency General-Purpose Amplifier Applications

30A01C Parametric

Parameter Name	Attribute value
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	0.3 A
Collector-emitter maximum voltage	30 V
Configuration	SINGLE
Minimum DC current gain (hFE)	200
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.3 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	520 MHz
Base Number Matches	1

30A01C Preview

Ordering number : ENN7509

30A01C

PNP Epitaxial Planar Silicon Transistor

30A01C

Low-Frequency

General-Purpose Amplifier Applications

Applications

•

Package Dimensions

unit : mm

2018B

[30A01C]

0.4

Low-frequency power amplifier, muting circuit.

Features

•

Large current capacity.

Low collector-to-emitter saturation voltage (resistance).

RCE(sat) typ=0.67Ω[IC=0.3A, IB=15mA].

Ultrasmall package facilitates miniaturization in end

products.

Small ON-resistance (Ron).

0.5

0.16

0 to 0.1

0.95 0.95

1.9

2.9

0.5

1.5

2.5

0.8

1.1

Conditions

1 : Base

2 : Emitter

3 : Collector

SANYO : CP

Specifications

Absolute Maximum Ratings

at Ta=25°C

Parameter

Collector-to-Base Voltage

Collector-to-Emitter Voltage

Emitter-to-Base Voltage

Collector Current

Collector Current (Pulse)

Collector Dissipation

Junction Temperature

Storage Temperature

Symbol

VCBO

VCEO

VEBO

ICP

Tstg

Mounted on a glass epoxy board (20!30!1.6mm).

Ratings

--30

--5

--300

--600

300

150

--55 to +150

Unit

°C

Electrical Characteristics

at Ta=25°C

Parameter

Collector Cutoff Current

Emitter Cutoff Current

DC Current Gain

Gain-Bandwidth Product

Output Capacitance

Collector-to-Emitter Saturation Voltage

Base-to-Emitter Saturation Voltage

Symbol

ICBO

IEBO

hFE

Cob

VCE(sat)

VBE(sat)

Conditions

VCB=-

-30V, IE=0

VEB=-

-4V, IC=0

VCE=-

-2V, IC=--10mA

VCE=-

-10V, IC=--50mA

VCB=-

-10V, f=1MHz

IC=--100mA, IB=--5mA

200

520

--110

--0.9

--220

--1.2

Ratings

min

typ

max

--0.1

500

MHz

Unit

µA

Marking : XQ

Continued on next page.

Any and all SANYO products described or contained herein do not have specifications that can handle

applications that require extremely high levels of reliability, such as life-support systems, aircraft's

control systems, or other applications whose failure can be reasonably expected to result in serious

physical and/or material damage. Consult with your SANYO representative nearest you before using

any SANYO products described or contained herein in such applications.

SANYO assumes no responsibility for equipment failures that result from using products at values that

exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other

parameters) listed in products specifications of any and all SANYO products described or contained

herein.

SANYO Electric Co.,Ltd. Semiconductor Company

TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN

O3003 TS IM TA-100648 No.7509-1/4

30A01C

Continued from preceding page.

Parameter

Collector-to-Base Breakdown Voltage

Collector-to-Emitter Breakdown Voltage

Emitter-to-Base Breakdown Voltage

Turn-ON Time

Storage Time

Fall Time

Symbol

V(BR)CBO

V(BR)CEO

V(BR)EBO

ton

tstg

Conditions

IC=--10µA, IE=0

IC=--1mA, RBE=∞

IE=--10µA, IC=0

See specified Test Circuit.

Ratings

min

--30

--5

200

typ

max

Unit

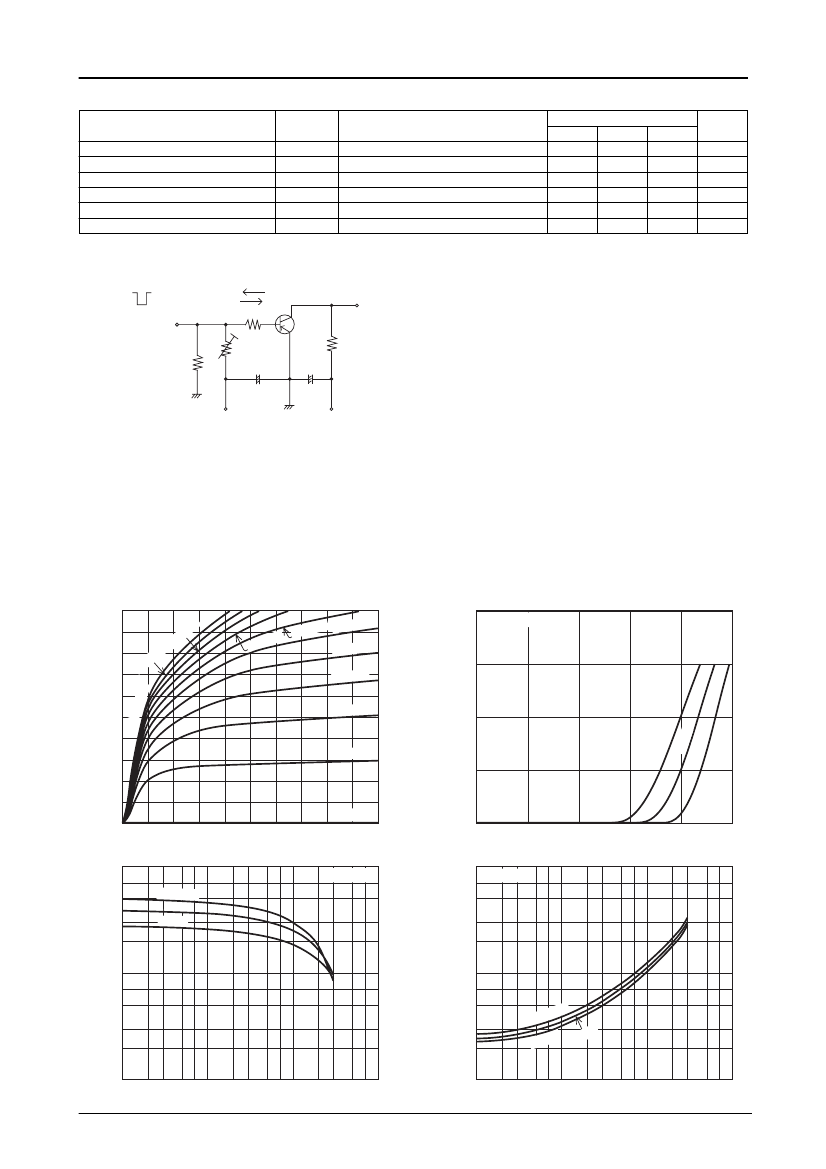

Switching Time Test Circuit

PW=20µs

D.C.≤1%

INPUT

IB1

OUTPUT

IB2

50Ω

470µF

VCC= --12V

220µF

VBE=5V

IC=20IB1= --20IB2= --100mA

--200

--180

IC -- VCE

1.6

--400

IC -- VBE

VCE= --2V

Collector Current, IC -- mA

--140

--120

--100

--80

--60

--40

--20

--1

--2.0

Collector Current, IC -- mA

--160

1.0mA

--1.2m

--1.4

--0.8mA

--300

--0.6mA

--0.4mA

--200

--100

--0.2

--0.4

--0.6

--0.8

--0.2mA

IB=0

--0.2

--0.4

--0.6

--0.8

--1.0

--1.2

--1.4

--1.6

--1.8

--2.0

Ta=

--25

--1.0

IT04097

5 7--1000

IT04099

Collector-to-Emitter Voltage, VCE -- V

1000

IT04096

--1000

hFE -- IC

Base-to-Emitter Voltage, VBE -- V

VCE(sat) -- IC

VCE= --2V

DC Current Gain, hFE

Ta=75°C

25°C

--25°C

Collector-to-Emitter

Saturation Voltage, VCE(sat) -- mV

IC / IB=20

100

--100

Ta=7

--25

--1.0

5 7 --10

5 7 --100

Collector Current, IC -- mA

5 7--1000

IT04098

--10

--1.0

5 7 --10

5 7 --100

Collector Current, IC -- mA

No.7509-2/4

30A01C

VBE(sat) -- IC

IC / IB=20

Gain-Bandwidth Product, f T -- MHz

1000

fT -- IC

VCE= --10V

Base-to-Emitter

Saturation Voltage, VBE(sat) -- mV

--1000

Ta=

--25

°C

100

--1.0

5 7 --10

5 7 --100

Collector Current, IC -- mA

5 7--1000

IT04100

5 7 --10

5 7 --100

Cob -- VCB

Collector Current, IC -- mA

100

1.0

5 7--1000

IT04101

Ron -- IB

f=1MHz

1kΩ

OUT

Output Capacitance, Cob -- pF

ON Resistance, Ron --

Ω

1.0

--0.1

5 7 --1.0

5 7 --10

5 7 --100

IT04102

0.1

--0.1

--1.0

Collector-to-Base Voltage, VCB -- V

350

PC -- Ta

Base Current, IB -- mA

7 --10

IT06066

Collector Dissipation, PC -- mW

300

250

200

las

s-e

150

100

120

)

160

140

Ambient Temperature, Ta --

°C

IT05521

No.7509-3/4

30A01C

Specifications of any and all SANYO products described or contained herein stipulate the performance,

characteristics, and functions of the described products in the independent state, and are not guarantees

of the performance, characteristics, and functions of the described products as mounted in the customer's

products or equipment. To verify symptoms and states that cannot be evaluated in an independent device,

the customer should always evaluate and test devices mounted in the customer's products or equipment.

SANYO Electric Co., Ltd. strives to supply high-quality high-reliability products. However, any and all

semiconductor products fail with some probability. It is possible that these probabilistic failures could

give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire,

or that could cause damage to other property. When designing equipment, adopt safety measures so

that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective

circuits and error prevention circuits for safe design, redundant design, and structural design.

In the event that any or all SANYO products(including technical data,services) described or

contained herein are controlled under any of applicable local export control laws and regulations,

such products must not be expor ted without obtaining the expor t license from the authorities

concerned in accordance with the above law.

No part of this publication may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying and recording, or any information storage or retrieval system,

or otherwise, without the prior written permission of SANYO Electric Co., Ltd.

Any and all information described or contained herein are subject to change without notice due to

product/technology improvement, etc. When designing equipment, refer to the "Delivery Specification"

for the SANYO product that you intend to use.

Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not

guaranteed for volume production. SANYO believes information herein is accurate and reliable, but

no guarantees are made or implied regarding its use or any infringements of intellectual property rights

or other rights of third parties.

This catalog provides information as of October, 2003. Specifications and information herein are subject

to change without notice.

PS No.7509-4/4
