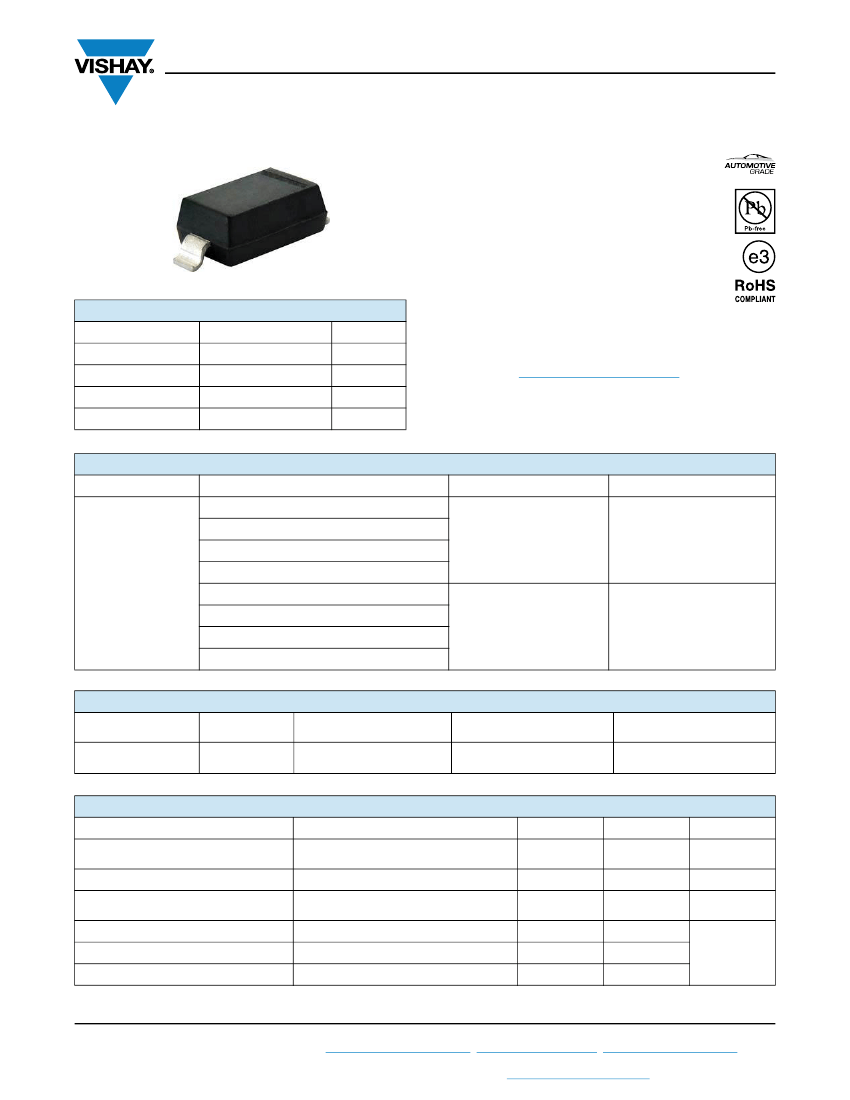

MMSZ5225 to MMSZ5267

www.vishay.com

Vishay Semiconductors

Small Signal Zener Diodes

FEATURES

• Silicon planar Zener diodes

• Standard Zener voltage tolerance is ± 5 %

with a “B” suffix (e.g.: MMSZ5225B), suffix “C”

is ± 2 % tolerance

• AEC-Q101 qualified available

• ESD capability according to AEC-Q101:

Human body model > 8 kV

Machine model > 800 V

Available

PRIMARY CHARACTERISTICS

PARAMETER

V

Z

range nom.

Test current I

ZT

V

Z

specification

Int. construction

VALUE

3.3 to 75

1.7 to 20

Thermal equilibrium

Single

UNIT

V

mA

• Base P/N-E3 - RoHS-compliant, commercial grade

• Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

ORDERING INFORMATION

DEVICE NAME

ORDERING CODE

MMSZ5225B-E3-08 to MMSZ5267B-E3-08

MMSZ5225C-E3-08 to MMSZ5267C-E3-08

3000 (8 mm tape on 7" reel)

MMSZ5225B-HE3-08 to MMSZ5267B-HE3-08

MMSZ5225 to

MMSZ5267

MMSZ5225C-HE3-08 to MMSZ5267C-HE3-08

MMSZ5225B-E3-18 to MMSZ5267B-E3-18

MMSZ5225C-E3-18 to MMSZ5267C-E3-18

10 000 (8 mm tape on 13" reel)

MMSZ5225B-HE3-18 to MMSZ5267B-HE3-18

MMSZ5225C-HE3-18 to MMSZ5267C-HE3-18

10 000/box

15 000/box

TAPED UNITS PER REEL

MINIMUM ORDER QUANTITY

PACKAGE

PACKAGE NAME

SOD-123

WEIGHT

10.3 mg

MOLDING COMPOUND

FLAMMABILITY RATING

UL 94 V-0

MOISTURE SENSITIVITY

LEVEL

MSL level 1

(according J-STD-020)

SOLDERING CONDITIONS

260 °C/10 s at terminals

ABSOLUTE MAXIMUM RATINGS

(T

amb

= 25 °C, unless otherwise specified)

PARAMETER

Power dissipation

Zener current

Thermal resistance junction to ambient air

Junction temperature

Storage temperature range

Operating temperature range

TEST CONDITION

T

L

= 75 °C, on FR - 4 or FR - 5 board with

minimum recommended solder pad layout

See table “Electrical Characteristics”

On FR - 4 or FR - 5

board

with minimum

recommended solder pad layout

R

thJA

T

j

T

stg

T

op

340

150

-65 to +150

-55 to +150

°C

K/W

SYMBOL

P

tot

VALUE

500

UNIT

mW

Rev. 2.0, 08-Nov-16

Document Number: 85774

1

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

MMSZ5225 to MMSZ5267

www.vishay.com

Vishay Semiconductors

REVERSE

LEAKAGE

CURRENT

I

R

at V

R

μA

MAX.

V

MAX.

ELECTRICAL CHARACTERISTICS

(T

amb

= 25 °C, unless otherwise specified)

ZENER VOLTAGE

RANGE

(1)

PART NUMBER

MARKING

CODE

V

Z

at I

ZT1

V

NOM.

TEST

CURRENT

I

ZT1

mA

I

ZT2

DYNAMIC

RESISTANCE

(2)

Z

at I

ZT1

Z

ZK

at I

ZT2



MAX.

TEMPERATURE

COEFFICIENT



VZ

%/°C

TYP.

MMSZ5225

C5

3

20

0.25

50

1

30

1600

-0.075

MMSZ5226

D1

3.3

20

0.25

25

1

28

1600

-0.07

MMSZ5227

D2

3.6

20

0.25

15

1

24

1700

-0.065

MMSZ5228

D3

3.9

20

0.25

10

1

23

1900

-0.06

MMSZ5229

D4

4.3

20

0.25

5

1

22

2000

-0.055

MMSZ5230

D5

4.7

20

0.25

5

2

19

1900

± 0.030

MMSZ5231

E1

5.1

20

0.25

5

2

17

1600

± 0.030

MMSZ5232

E2

5.6

20

0.25

5

3

11

1600

0.038

MMSZ5233

E3

6

20

0.25

5

3.5

7

1600

0.038

MMSZ5234

E4

6.2

20

0.25

5

4

7

1000

0.045

MMSZ5235

E5

6.8

20

0.25

3

5

750

0.05

MMSZ5236

F1

7.5

20

0.25

3

6

500

0.058

MMSZ5237

F2

8.2

20

0.25

3

6.5

8

500

0.062

MMSZ5238

F3

8.7

20

0.25

3

6.5

8

600

0.065

MMSZ5239

F4

9.1

20

0.25

3

7

10

600

0.068

MMSZ5240

F5

10

20

0.25

3

8

17

600

0.075

MMSZ5241

H1

11

20

0.25

2

8.4

22

600

0.076

MMSZ5242

H2

12

20

0.25

1

9.1

30

600

0.077

MMSZ5243

H3

13

9.5

0.25

0.5

9.9

13

600

0.079

MMSZ5244

H4

14

9

0.25

0.1

10

15

600

0.082

MMSZ5245

H5

15

8.5

0.25

0.1

11

16

600

0.082

MMSZ5246

J1

16

7.8

0.25

0.1

12

17

600

0.083

MMSZ5247

J2

17

7.4

0.25

0.1

13

19

600

0.084

MMSZ5248

J3

18

7

0.25

0.1

14

21

600

0.085

MMSZ5249

J4

19

6.6

0.25

0.1

14

23

600

0.086

MMSZ5250

J5

20

6.2

0.25

0.1

15

25

600

0.086

MMSZ5251

K1

22

5.6

0.25

0.1

17

29

600

0.087

MMSZ5252

K2

24

5.2

0.25

0.1

18

33

600

0.087

MMSZ5253

K3

25

5

0.25

0.1

19

35

600

0.089

MMSZ5254

K4

27

4.6

0.25

0.1

21

41

600

0.09

MMSZ5255

K5

28

4.5

0.25

0.1

21

44

600

0.091

MMSZ5256

M1

30

4.2

0.25

0.1

23

49

600

0.091

MMSZ5257

M2

33

3.8

0.25

0.1

25

58

700

0.092

MMSZ5258

M3

36

3.4

0.25

0.1

27

70

700

0.093

MMSZ5259

M4

39

3.2

0.25

0.1

30

80

800

0.094

MMSZ5260

M5

43

3

0.25

0.1

33

93

900

0.095

MMSZ5261

N1

47

2.7

0.25

0.1

36

105

1000

0.095

MMSZ5262

N2

51

2.5

0.25

0.1

39

125

1100

0.096

MMSZ5263

N3

56

2.2

0.25

0.1

43

150

1300

0.096

MMSZ5264

N4

60

2.1

0.25

0.1

46

170

1400

0.097

MMSZ5265

N5

62

2

0.25

0.1

47

185

1400

0.097

MMSZ5266

P1

68

1.8

0.25

0.1

52

230

1600

0.097

MMSZ5267

P2

75

1.7

0.25

0.1

56

270

1700

0.098

Notes

• Maximum V

F

= 0.9 V, at I

F

= 10 mA

(1)

Measured with device junction in thermal equilibrium

(2)

The Zener Impedance is derived from the 1 kHz AC voltage which results when an AC current having an RMS value equal to 10 % of the

Zener current (I

ZT1

or I

ZT2

) is superimposed on I

ZT1

or I

ZT2

. Zener Impedance is measured at two points to insure a sharp knee on the

breakdown curve and to eliminate unstable units

Rev. 2.0, 08-Nov-16

Document Number: 85774

2

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

MMSZ5225 to MMSZ5267

www.vishay.com

Vishay Semiconductors

Axis Title

10000

50

45

40

1000

1st line

2nd line

I

Z

(mA)

35

30

25

20

15

10

5

MMSZ5240

MMSZ5241

MMSZ5242

MMSZ5243

MMSZ5244

MMSZ5245

MMSZ5246

Axis Title

10

9

8

7

2nd line

I

Z

(mA)

6

5

4

3

2

1

0

20

40

60

80

100

10

MMSZ5264

MMSZ5265

MMSZ5266

MMSZ5262

MMSZ5263

10000

1000

1st line

2nd line

100

10

V

Z

(V)

2nd line

15

20

Axis Title

10000

1000

100

10

4

V

Z

(V)

2nd line

6

8

10

Axis Title

10000

1000

1st line

2nd line

100

10

3

V

Z

(V)

2nd line

4

5

6

2

1st line

2nd line

100

MMSZ5267

0

5

V

Z

(V)

2nd line

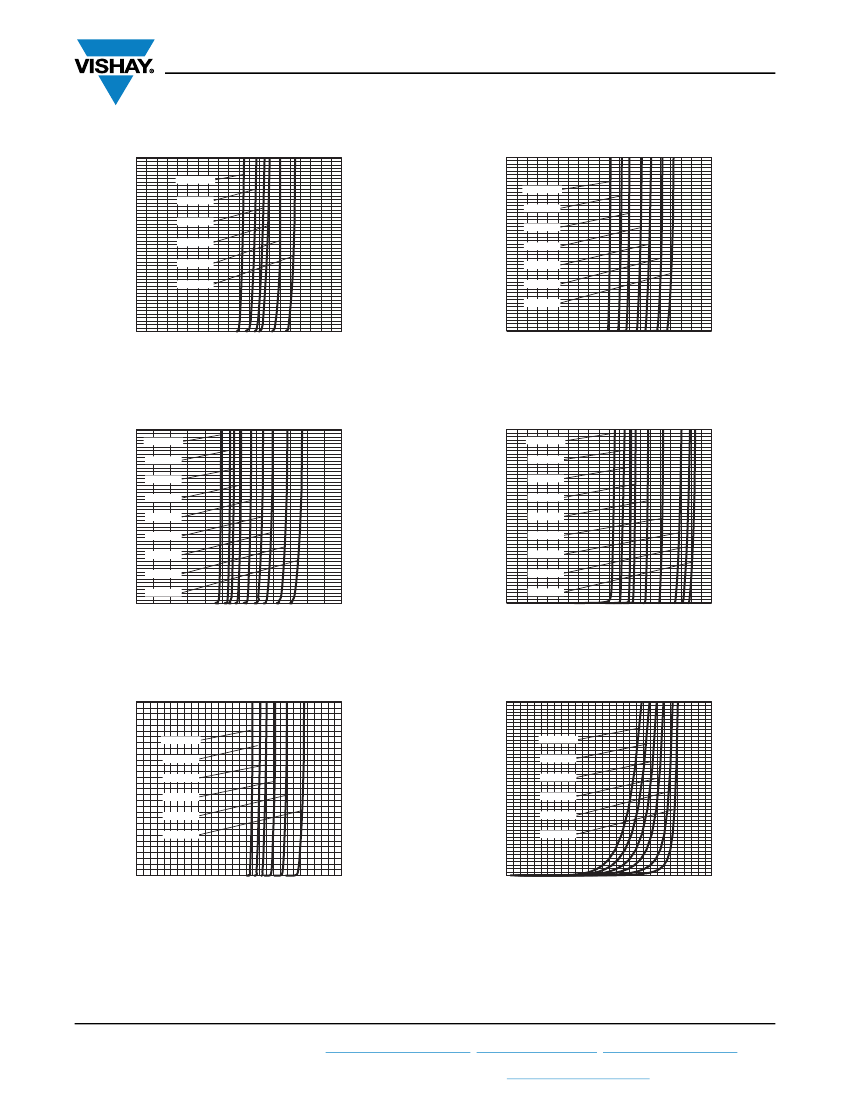

Fig. 1 - Breakdown Characteristics

Axis Title

20

18

16

14

2nd line

I

Z

(mA)

12

10

8

6

4

2

0

20

V

Z

(V)

2nd line

40

60

MMSZ5253

MMSZ5254

MMSZ5255

MMSZ5256

MMSZ5257

MMSZ5258

Fig. 4 - Breakdown Characteristics

10000

100

90

80

MMSZ5231

MMSZ5232

MMSZ5233

MMSZ5234

MMSZ5235

MMSZ5236

MMSZ5237

MMSZ5238

MMSZ5239

1000

1st line

2nd line

I

Z

(mA)

70

60

50

40

30

20

10

100

MMSZ5259

MMSZ5260

MMSZ5261

10

0

2

Fig. 2 - Breakdown Characteristics

Axis Title

30

25

MMSZ5247

Fig. 5 - Breakdown Characteristics

10000

200

180

160

MMSZ5225

MMSZ5226

MMSZ5227

MMSZ5228

MMSZ5229

MMSZ5230

20

2nd line

I

Z

(mA)

15

10

5

0

MMSZ5248

MMSZ5249

MMSZ5250

MMSZ5251

MMSZ5252

1000

1st line

2nd line

I

Z

(mA)

140

120

100

80

60

40

20

100

10

5

10

15

V

Z

(V)

2nd line

20

25

30

0

1

Fig. 3 - Breakdown Characteristics

Fig. 6 - Breakdown Characteristics

Rev. 2.0, 08-Nov-16

Document Number: 85774

3

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

MMSZ5225 to MMSZ5267

www.vishay.com

PACKAGE DIMENSIONS

in millimeters (inches):

SOD-123

0.1 (0.004) max.

Vishay Semiconductors

1.35 (0.053)

8°

0.45 (0.018)

0.25 (0.010)

0.5 (0.020) ref.

Cathode bar

2.85 (0.112)

2.55 (0.100)

0.15 (0.006)

0.10 (0.004)

1 (0.039)

0.2 (0.008)

0° to

Mounting Pad Layout

0.85 (0.033)

0.65 (0.026)

0.45 (0.018)

3.85 (0.152)

3.55 (0.140)

1.40 (0.055)

1.7 (0.067)

2.5 (0.098)

Rev. 4 - Date: 24. Sep. 2009

Document no.: S8-V-3910.01-001 (4)

17432

Rev. 2.0, 08-Nov-16

Document Number: 85774

4

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

0.85 (0.033)

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17

1

Document Number: 91000

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	R-PDSO-G2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	80 Ω
JESD-30 code	R-PDSO-G2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Guideline	AEC-Q101
Nominal reference voltage	39 V
surface mount	YES
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Maximum voltage tolerance	2%
Working test current	3.2 mA
Base Number Matches	1

MMSZ5259C-HE3-18

MMSZ5259C-HE3-18 Online Shopping

MMSZ5259C-HE3-18 Overview

MMSZ5259C-HE3-18 Parametric

Preview

Recommended Resources
