VS-VSKV250-04PBF

Description
SCR Modules 400volt 250amp
CategoryAnalog mixed-signal IC    Trigger device
File Size286KB,12 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

VS-VSKV250-04PBF Online Shopping

Suppliers Part Number Price MOQ In stock
VS-VSKV250-04PBF - - View Buy Now

VS-VSKV250-04PBF Overview

SCR Modules 400volt 250amp

VS-VSKV250-04PBF Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time18 weeks
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger device typeSCR

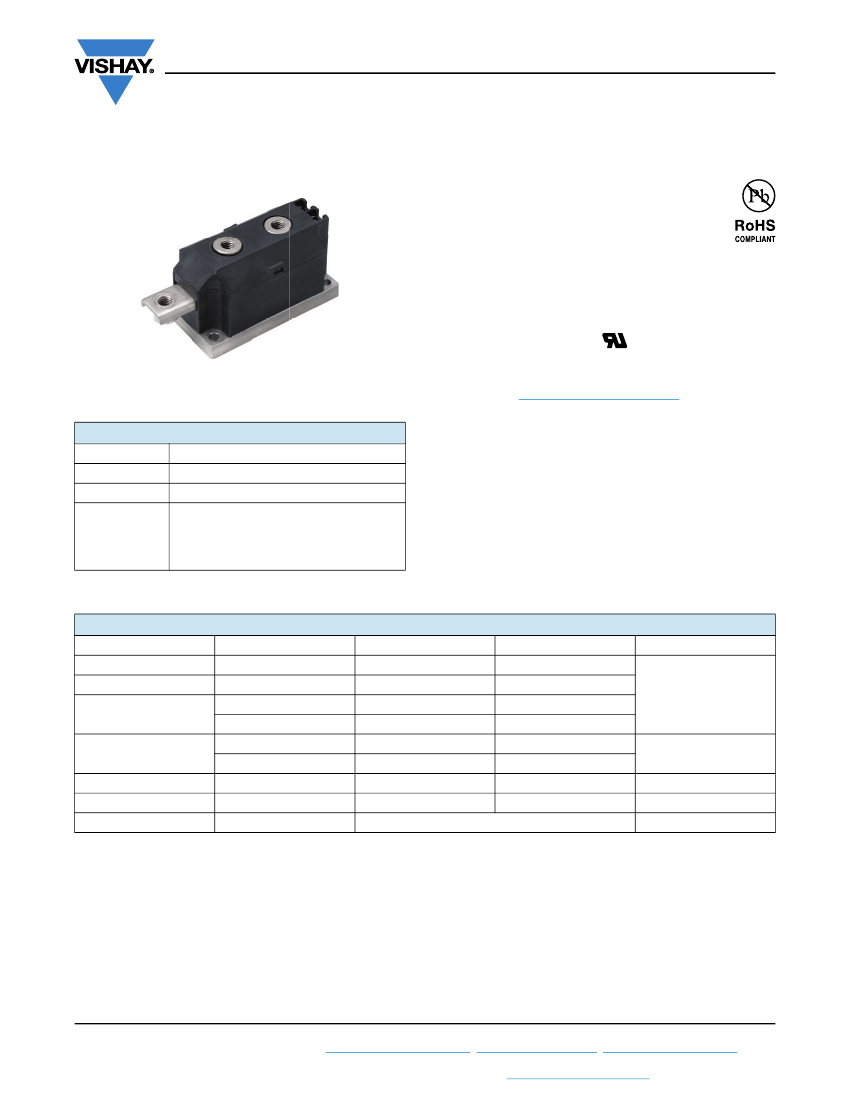

VS-VSK.170PbF, VS-VSK.250PbF Series
www.vishay.com
Vishay Semiconductors
SCR / SCR and SCR / Diode
(MAGN-A-PAK Power Modules), 170 A, 250 A
FEATURES
• High voltage
• Electrically isolated base plate
• 3500 V
RMS
isolating voltage
• Industrial standard package
• Simplified mechanical designs, rapid assembly
• High surge capability
• Large creepage distances
• UL approved file E78996
MAGN-A-PAK
• Designed and qualified for industrial level
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
PRODUCT SUMMARY
I
T(AV)
Type
Package tz
Circuit
configuration
170 A, 250 A
Modules - thyristor, standard
MAGN-A-PAK
Two SCRs doubler circuit,
SCR / diode doubler circuit, positive control,
SCR / diode doubler circuit, negative control,
two SCRs common cathodes,
two SCRs common anodes
DESCRIPTION
This VSK series of MAGN-A-PAK modules uses high voltage
power thyristor / thyristor and thyristor / diode in seven
basic configurations. The semiconductors are electrically
isolated from the metal base, allowing common heatsinks
and compact assemblies to be built. They can be
interconnected to form single phase or three phase bridges
or as AC-switches when modules are connected in
anti-parallel mode. These modules are intended for general
purpose applications such as battery chargers, welders,
motor drives, UPS, etc.
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
I
T(AV)
I
T(RMS)
I
TSM
I
2
t
I
2
√t
V
DRM
/V
RRM
T
J
Range
50 Hz
60 Hz
50 Hz
60 Hz
CHARACTERISTICS
85 °C
VSK.170..
170
377
5100
5350
131
119
1310
400 to 1600
-40 to +130
VSK.250..
250
555
8500
8900
361
330
3610
400 to 2000
kA
2
s
kA
2
√s
V
°C
A
UNITS
Revision: 28-Apr-17
Document Number: 94417
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
