SD1526-01
RF & MICROWAVE TRANSISTORS
AVIONICS APPLICATIONS
Features
•
•
•
•
•
•
•
GOLD METALLIZATION
960 - 1215 MHz
P
OUT
= 5.0 WATTS
G
P
= 9.5 dB MINIMUM
EMITTER BALLASTED
INFINITE VSWR CAPABILITY @ RATED CONDITIONS
INPUT MATCHED, COMMON BASE CONFIGURATION
DESCRIPTION:
The SD1526-01 is a gold metallized, silicon NPN power transistor
designed for pulsed applications with low duty cycles such as IFF,
DME, and TACAN. Internal impedance matching is utilized for
broadband performance and simplified external matching.
ABSOLUTE MAXIMUM RATINGS
(Tcase = 25° C)
°
Symbol
V
CBO
V
CES
V
EBO
I
C
P
DISS
T
STG
T
J
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Device Current
Power Dissipation
Storage Temperature
Junction Temperature
Value
45
45
3.5
1
21.9
-65 to +150
200
Unit
V
V
V
A
W
º
C
º
C
Thermal Data
R
TH(J-C)
Thermal Resistance Junction-case
8.0
°
C/W
Advanced Power Technology reserves the right to change, without notice, the specifications and information contained herein
Visit our website at
WWW.ADVANCEDPOWER.COM
or contact our factory direct.
140 COMMERCE DRIVE
MONTGOMERYVILLE, PA
18936-1013
PHONE: (215) 631-9840
FAX: (215) 631-9855
SD1526-01
STATIC
ELECTRICAL SPECIFICATIONS (Tcase = 25° C)
25
°
Symbol
BV
CBO
BV
CES
BV
EBO
I
CES
I
C
= 10 mA
I
C
= 25 mA
I
E
= 10 mA
V
CE
= 28 V
Test Conditions
I
B
= 0
V
BE
= 0
I
C
= 0
V
BE
= 0
Value
Min.
45
45
3.5
---
Typ.
---
---
---
---
Max.
---
---
---
1.0
Unit
V
V
V
mA
DYNAMIC
Symbol
P
OUT
* *
G
P
P
OUT
* *
G
P
P
OUT
* * *
G
P
**
f = 1090 MHz
f = 1090 MHz
f = 1025–1150 MHz
f = 1025–1150 MHz
f = 960–1215 MHz
f = 960–1215 MHz
Test Conditions
V
CC
= 28 V
V
CC
= 28 V
V
CC
= 28 V
V
CC
= 28 V
V
CC
= 28 V
V
CC
= 28 V
Value
Min.
---
---
5.0
9.5
---
---
Typ.
6.0
9.5
---
---
4.0
9.0
Max.
---
---
---
---
---
---
Unit
W
dB
W
dB
W
dB
Pulse width 10
µ
Sec, duty cycle 1%.
* * * Pulse width 10
µ
Sec, duty cycle 10%.
IMPEDANCE DATA
Frequency
1025 MHz
1090 MHz
1150 MHz
Z
IN
(Ω )
Ω
11.0+ j 11.6
12.5+ j 12.0
12.2+ j 8.2
Z
CL
(Ω )
Ω
15 + j 22.0
19 + j 19.5
16 + j 20.5
Advanced Power Technology reserves the right to change, without notice, the specifications and information contained herein
Visit our website at
WWW.ADVANCEDPOWER.COM
or contact our factory direct.
140 COMMERCE DRIVE
MONTGOMERYVILLE, PA
18936-1013
PHONE: (215) 631-9840
FAX: (215) 631-9855
SD1526-01

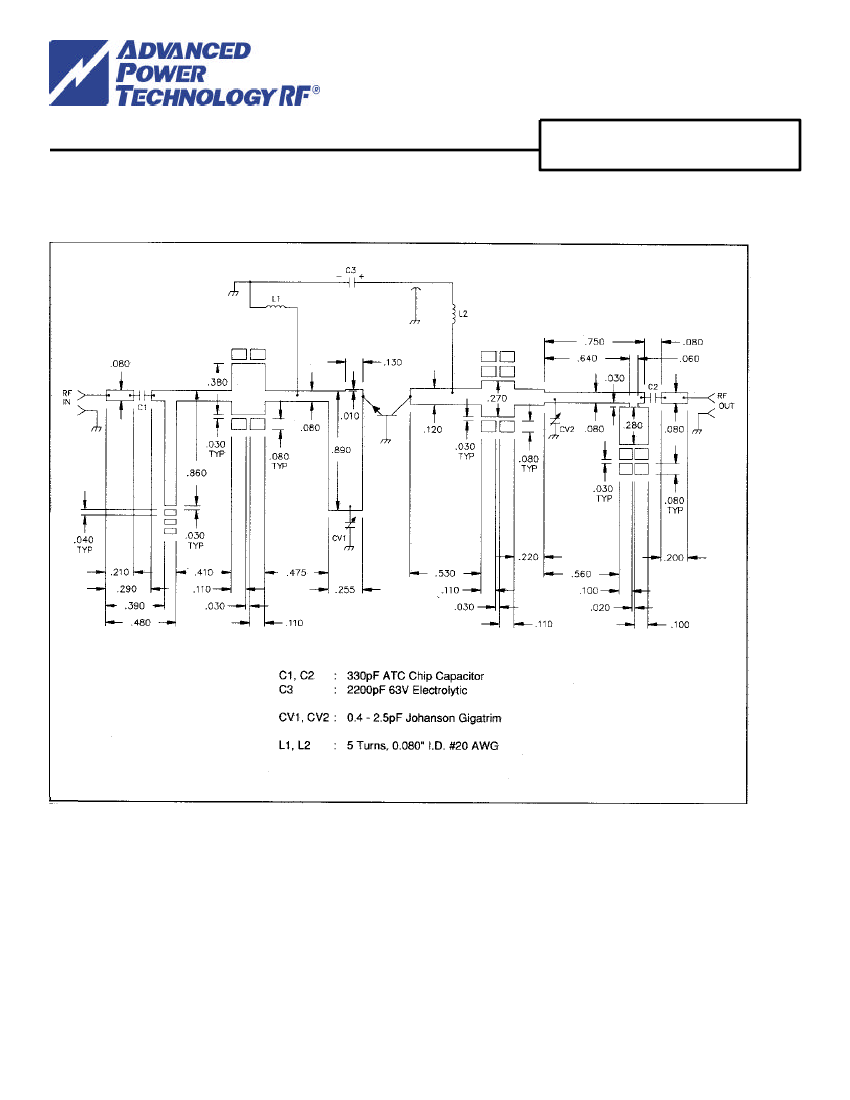

TEST CIRCUIT
Advanced Power Technology reserves the right to change, without notice, the specifications and information contained herein
Visit our website at
WWW.ADVANCEDPOWER.COM
or contact our factory direct.
140 COMMERCE DRIVE
MONTGOMERYVILLE, PA
18936-1013
PHONE: (215) 631-9840
FAX: (215) 631-9855
SD1526-01

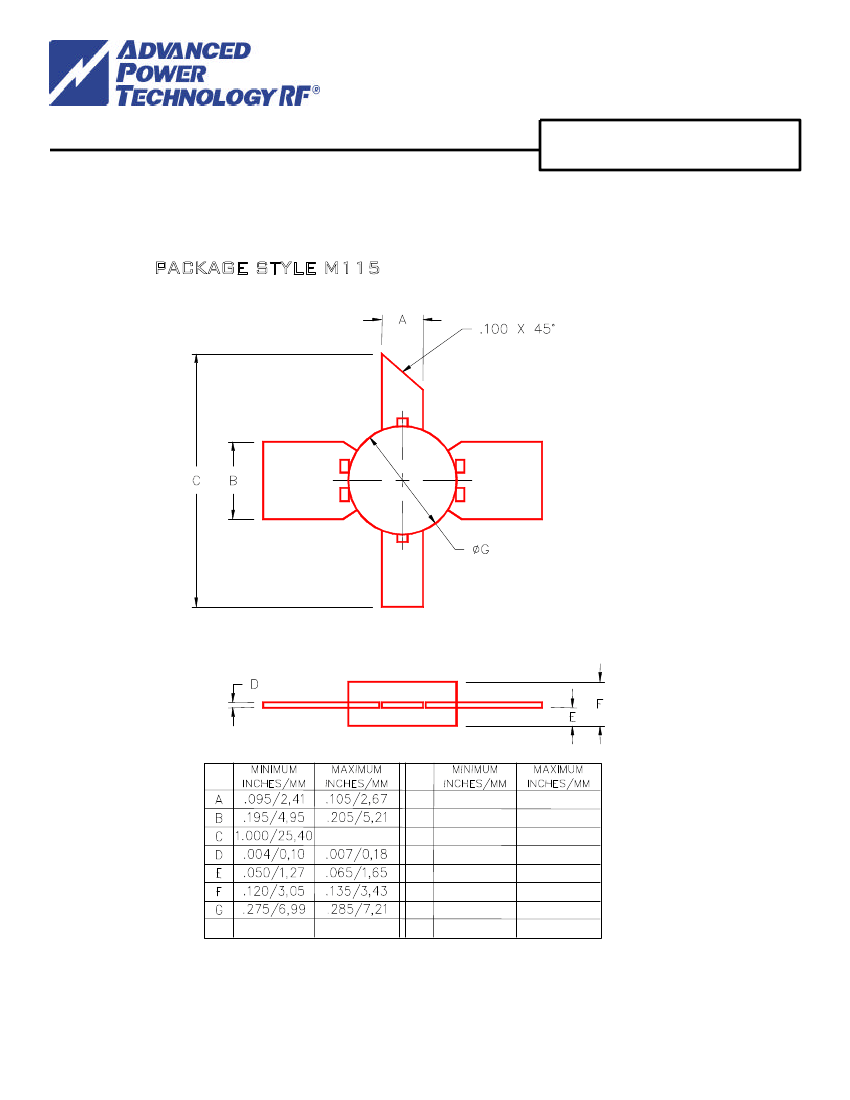

PACKAGE MECHANICAL DATA
Advanced Power Technology reserves the right to change, without notice, the specifications and information contained herein
Visit our website at
WWW.ADVANCEDPOWER.COM
or contact our factory direct.
