ATMEGA8515-16AC datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> ATMEGA8515-16AC

ATMEGA8515-16AC: Description8-bit Microcontrollers - MCU AVR 8K FLASH 512B EE SPI/UART/TWI 5V; CategoryThe embedded processor and controller Microcontrollers and processors; File Size216KB，22 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

ATMEGA8515-16AC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ATMEGA8515-16AC	-	-	View	Buy Now

ATMEGA8515-16AC Overview

8-bit Microcontrollers - MCU AVR 8K FLASH 512B EE SPI/UART/TWI 5V

ATMEGA8515-16AC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Atmel (Microchip)
Parts packaging code	QFP
package instruction	TQFP, TQFP44,.47SQ,32
Contacts	44
Reach Compliance Code	compliant
Has ADC	NO
Address bus width	16
bit size	8
CPU series	AVR RISC
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-PQFP-G44
JESD-609 code	e0
length	10 mm
Number of I/O lines	35
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	TQFP
Encapsulate equivalent code	TQFP44,.47SQ,32
Package shape	SQUARE
Package form	FLATPACK, THIN PROFILE
Peak Reflow Temperature (Celsius)	240
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	512
rom(word)	4096
ROM programmability	FLASH
Maximum seat height	1.2 mm
speed	16 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC

Preview

Download Datasheet

View All

Features

•

High-performance, Low-power AVR

8-bit Microcontroller

•

RISC Architecture

– 130 Powerful Instructions – Most Single Clock Cycle Execution

– 32 x 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16 MIPS Throughput at 16 MHz

– On-chip 2-cycle Multiplier

Nonvolatile Program and Data Memories

– 8K Bytes of In-System Self-programmable Flash

Endurance: 10,000 Write/Erase Cycles

– Optional Boot Code Section with Independent Lock bits

In-System Programming by On-chip Boot Program

True Read-While-Write Operation

– 512 Bytes EEPROM

Endurance: 100,000 Write/Erase Cycles

– 512 Bytes Internal SRAM

– Up to 64K Bytes Optional External Memory Space

– Programming Lock for Software Security

Peripheral Features

– One 8-bit Timer/Counter with Separate Prescaler and Compare Mode

– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture

Mode

– Three PWM Channels

– Programmable Serial USART

– Master/Slave SPI Serial Interface

– Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated RC Oscillator

– External and Internal Interrupt Sources

– Three Sleep Modes: Idle, Power-down and Standby

I/O and Packages

– 35 Programmable I/O Lines

– 40-pin PDIP, 44-lead TQFP, 44-lead PLCC, and 44-pad QFN/MLF

Operating Voltages

– 2.7 - 5.5V for ATmega8515L

– 4.5 - 5.5V for ATmega8515

Speed Grades

– 0 - 8 MHz for ATmega8515L

– 0 - 16 MHz for ATmega8515

•

8-bit

Microcontroller

with 8K Bytes

In-System

Programmable

Flash

ATmega8515

ATmega8515L

Summary

•

2512JS–AVR–10/06

Note: This is a summary document. A complete document

is available on our Web site at www.atmel.com.

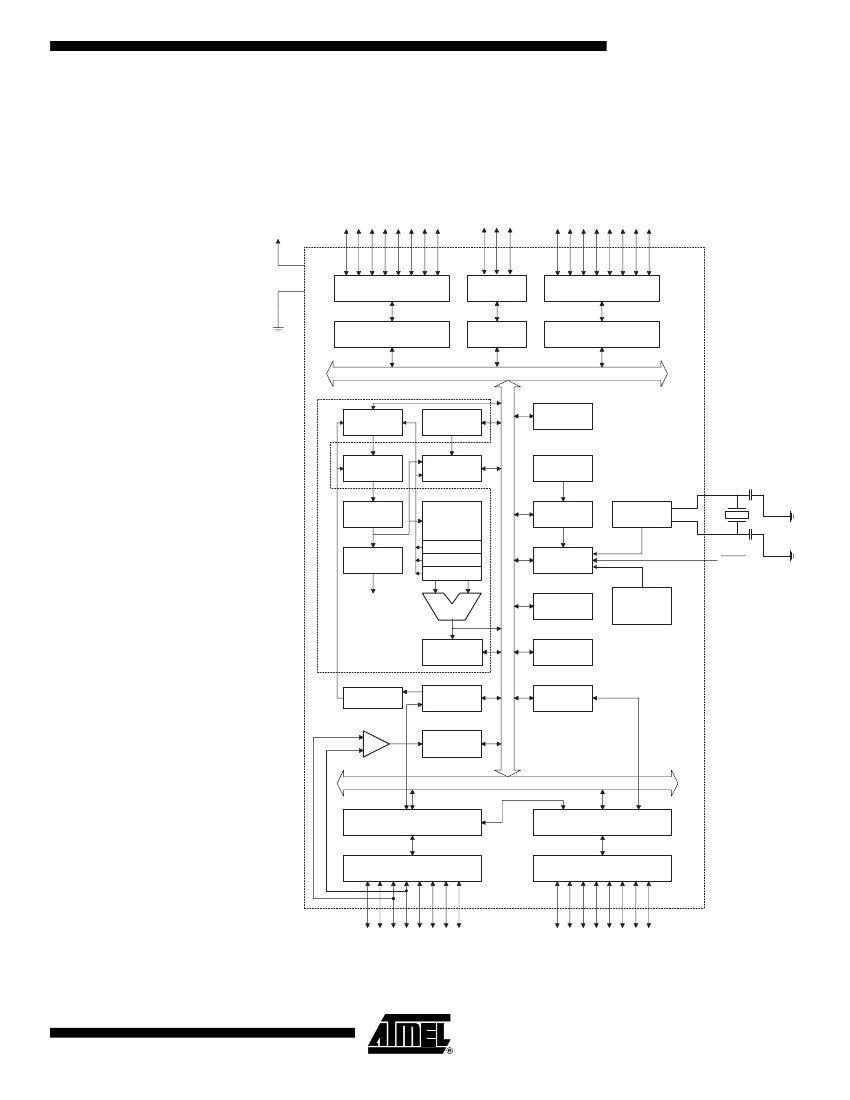

The AVR core combines a rich instruction set with 32 general purpose working registers.

All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing

two independent registers to be accessed in one single instruction executed in one clock

cycle. The resulting architecture is more code efficient while achieving throughputs up to

ten times faster than conventional CISC microcontrollers.

The ATmega8515 provides the following features: 8K bytes of In-System Programmable

Flash with Read-While-Write capabilities, 512 bytes EEPROM, 512 bytes SRAM, an

External memory interface, 35 general purpose I/O lines, 32 general purpose working

registers, two flexible Timer/Counters with compare modes, Internal and External inter-

rupts, a Serial Programmable USART, a programmable Watchdog Timer with internal

Oscillator, a SPI serial port, and three software selectable power saving modes. The Idle

mode stops the CPU while allowing the SRAM, Timer/Counters, SPI port, and Interrupt

system to continue functioning. The Power-down mode saves the Register contents but

freezes the Oscillator, disabling all other chip functions until the next interrupt or hard-

ware reset. In Standby mode, the crystal/resonator Oscillator is running while the rest of

the device is sleeping. This allows very fast start-up combined with low-power

consumption.

The device is manufactured using Atmel’s high density nonvolatile memory technology.

The On-chip ISP Flash allows the Program memory to be reprogrammed In-System

through an SPI serial interface, by a conventional nonvolatile memory programmer, or

by an On-chip Boot program running on the AVR core. The boot program can use any

interface to download the application program in the Application Flash memory. Soft-

ware in the Boot Flash section will continue to run while the Application Flash section is

updated, providing true Read-While-Write operation. By combining an 8-bit RISC CPU

with In-System Self-programmable Flash on a monolithic chip, the Atmel ATmega8515

is a powerful microcontroller that provides a highly flexible and cost effective solution to

many embedded control applications.

The ATmega8515 is supported with a full suite of program and system development

tools including: C Compilers, Macro assemblers, Program debugger/simulators, In-cir-

cuit Emulators, and Evaluation kits.

Disclaimer

Typical values contained in this datasheet are based on simulations and characteriza-

tion of other AVR microcontrollers manufactured on the same process technology. Min

and Max values will be available after the device is characterized.

The ATmega8515 provides all the features of the AT90S4414/8515. In addition, several

n e w f e a t u r e s a r e a d d e d . T h e A T m e g a 8 5 1 5 i s b a c k w a r d c o m p a t i b l e w i th

AT90S4414/8515 in most cases. However, some incompatibilities between the two

microcontrollers exist. To solve this problem, an AT90S4414/8515 compatibility mode

can be selected by programming the S8515C Fuse. ATmega8515 is 100% pin compati-

ble with AT90S4414/8515, and can replace the AT90S4414/8515 on current printed

circuit boards. However, the location of Fuse bits and the electrical characteristics dif-

fers between the two devices.

Programming the S8515C Fuse will change the following functionality:

•

The timed sequence for changing the Watchdog Time-out period is disabled. See

“Timed Sequences for Changing the Configuration of the Watchdog Timer” on page

53 for details.

The double buffering of the USART Receive Registers is disabled. See “AVR

USART vs. AVR UART – Compatibility” on page 137 for details.

PORTE(2:1) will be set as output, and PORTE0 will be set as input.

AT90S4414/8515 and

ATmega8515

Compatibility

AT90S4414/8515 Compatibility

Mode

•

ATmega8515(L)

2512JS–AVR–10/06

ATmega8515(L)

Pin Descriptions

VCC

GND

Port A (PA7..PA0)

Digital supply voltage.

Ground.

Port A is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port A output buffers have symmetrical drive characteristics with both high sink

and source capability. When pins PA0 to PA7 are used as inputs and are externally

pulled low, they will source current if the internal pull-up resistors are activated. The Port

A pins are tri-stated when a reset condition becomes active, even if the clock is not

running.

Port A also serves the functions of various special features of the ATmega8515 as listed

on page 67.

Port B (PB7..PB0)

Port B is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port B output buffers have symmetrical drive characteristics with both high sink

and source capability. As inputs, Port B pins that are externally pulled low will source

current if the pull-up resistors are activated. The Port B pins are tri-stated when a reset

condition becomes active, even if the clock is not running.

Port B also serves the functions of various special features of the ATmega8515 as listed

on page 67.

Port C (PC7..PC0)

Port C is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port C output buffers have symmetrical drive characteristics with both high sink

and source capability. As inputs, Port C pins that are externally pulled low will source

current if the pull-up resistors are activated. The Port C pins are tri-stated when a reset

condition becomes active, even if the clock is not running.

Port D is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port D output buffers have symmetrical drive characteristics with both high sink

and source capability. As inputs, Port D pins that are externally pulled low will source

current if the pull-up resistors are activated. The Port D pins are tri-stated when a reset

condition becomes active, even if the clock is not running.

Port D also serves the functions of various special features of the ATmega8515 as listed

on page 72.

Port E(PE2..PE0)

Port E is an 3-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port E output buffers have symmetrical drive characteristics with both high sink

and source capability. As inputs, Port E pins that are externally pulled low will source

current if the pull-up resistors are activated. The Port E pins are tri-stated when a reset

condition becomes active, even if the clock is not running.

Port E also serves the functions of various special features of the ATmega8515 as listed

on page 74.

RESET

Reset input. A low level on this pin for longer than the minimum pulse length will gener-

ate a reset, even if the clock is not running. The minimum pulse length is given in Table

18 on page 46. Shorter pulses are not guaranteed to generate a reset.

Input to the inverting Oscillator amplifier and input to the internal clock operating circuit.

Output from the inverting Oscillator amplifier.

2512JS–AVR–10/06

Port D (PD7..PD0)

XTAL1

XTAL2

ATMEGA8515-16AC Related Products

	ATMEGA8515-16AC	ATmega8515L-8MC	ATMEGA8515L-8AI
Description	8-bit Microcontrollers - MCU AVR 8K FLASH 512B EE SPI/UART/TWI 5V	8-bit Microcontrollers - MCU AVR 8K FLASH 512B EE 3V-8MHZ	8-bit Microcontrollers - MCU AVR 8K FLASH 512B EE 3V-8MHZ
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)
Parts packaging code	QFP	QFN	QFP
package instruction	TQFP, TQFP44,.47SQ,32	HVQCCN, LCC44,.28SQ,20	TQFP, TQFP44,.47SQ,32
Contacts	44	44	44
Reach Compliance Code	compliant	compliant	compliant
Has ADC	NO	NO	NO
Address bus width	16	16	16
bit size	8	8	8
CPU series	AVR RISC	AVR RISC	AVR RISC
maximum clock frequency	16 MHz	8 MHz	8 MHz
DAC channel	NO	NO	NO
DMA channel	NO	NO	NO
External data bus width	8	8	8
JESD-30 code	S-PQFP-G44	S-PQCC-N44	S-PQFP-G44
JESD-609 code	e0	e0	e0
length	10 mm	7 mm	10 mm
Number of I/O lines	35	35	35
Number of terminals	44	44	44
Maximum operating temperature	70 °C	70 °C	85 °C
PWM channel	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TQFP	HVQCCN	TQFP
Encapsulate equivalent code	TQFP44,.47SQ,32	LCC44,.28SQ,20	TQFP44,.47SQ,32
Package shape	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, THIN PROFILE	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	FLATPACK, THIN PROFILE
Peak Reflow Temperature (Celsius)	240	240	240
power supply	5 V	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	512	512	512
rom(word)	4096	4096	4096
ROM programmability	FLASH	FLASH	FLASH
Maximum seat height	1.2 mm	1 mm	1.2 mm
speed	16 MHz	8 MHz	8 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	2.7 V	2.7 V
Nominal supply voltage	5 V	3 V	3 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	NO LEAD	GULL WING
Terminal pitch	0.8 mm	0.5 mm	0.8 mm
Terminal location	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	30	30	30
width	10 mm	7 mm	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC	MICROCONTROLLER, RISC	MICROCONTROLLER, RISC
Other features	-	ALSO OPERATES AT 5 V NOMINAL	ALSO OPERATES AT 5 V NOMINAL

Recommended Resources

Voltage peak incremental automatic charging circuit

Cold storage incandescent lamp voltage delay switch circuit

microphone preamplifier

Control input start charging circuit diagram a

555 carrier signal processing and control circuit

Voltage source three-phase inverter structure diagram

Key points and exercises of combinational logic design: Key points and exercises of combinational logic design...; zxopenljx FPGA/CPLD

Send a circuit and flowchart drawing software used in Ubuntu: It can replace MS Visio, it is very powerful, supports UML, flow charts, circuit diagrams, component libraries, and is easy to install: sudo apt-get install dia...; leo121 Linux and Android

【Atmel Creative Competition Work Submission】Smart Home Project Submission: [align=center][font=宋体][size=7]Smart Home[/size][/font][/align][align=left][font=宋体][b][size=6]I. Project Introduction[/size][/b][/font][/align][align=left] [size=5] The reduction of hardware costs an...; 574433742 Microchip MCU

How high is the threshold for using STM8 and STM32? Those who are familiar with it can tell us: 1. Is it easy to buy samples? (You can apply for them, but those few dollars are far from enough)2. How much does the programmer cost? How much does the emulator cost?3. Are there any pirated versions...; s_jnwen stm32/stm8

The third batch received: I received the launchpad this afternoon. Thank you to the administrator, moderators and everyone! Thank you very much. I will always support eeworld and it. I will definitely study hard....; 572412907 Microcontroller MCU

Speed 2000 Manual.pdf.: Speed 2000 Manual.pdf....; fighting FPGA/CPLD

Shortcut: 00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components
