MBRF40045

Description
Schottky Diodes & Rectifiers Schottky Rectifier - 45 V - 400 A - TO-244AB
CategoryDiscrete semiconductor    diode
File Size454KB，3 Pages
ManufacturerGeneSiC
Websitehttp://www.genesicsemi.com/
Download Datasheet Parametric Compare View All

MBRF40045 Online Shopping

Suppliers Part Number Price MOQ In stock
MBRF40045 - - View Buy Now

MBRF40045 Overview

Schottky Diodes & Rectifiers Schottky Rectifier - 45 V - 400 A - TO-244AB

MBRF40045 Parametric

Parameter NameAttribute value
MakerGeneSiC
Reach Compliance Codecompliant
applicationPOWER
Shell connectionCATHODE
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.7 V
JEDEC-95 codeTO-244AB
JESD-30 codeR-PUFM-X2
Maximum non-repetitive peak forward current3000 A
Number of components2
Phase1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Maximum output current200 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Maximum repetitive peak reverse voltage45 V
Maximum reverse current1000 µA
surface mountNO
technologySCHOTTKY
Terminal formUNSPECIFIED
Terminal locationUPPER
Base Number Matches1

Preview

Download Datasheet

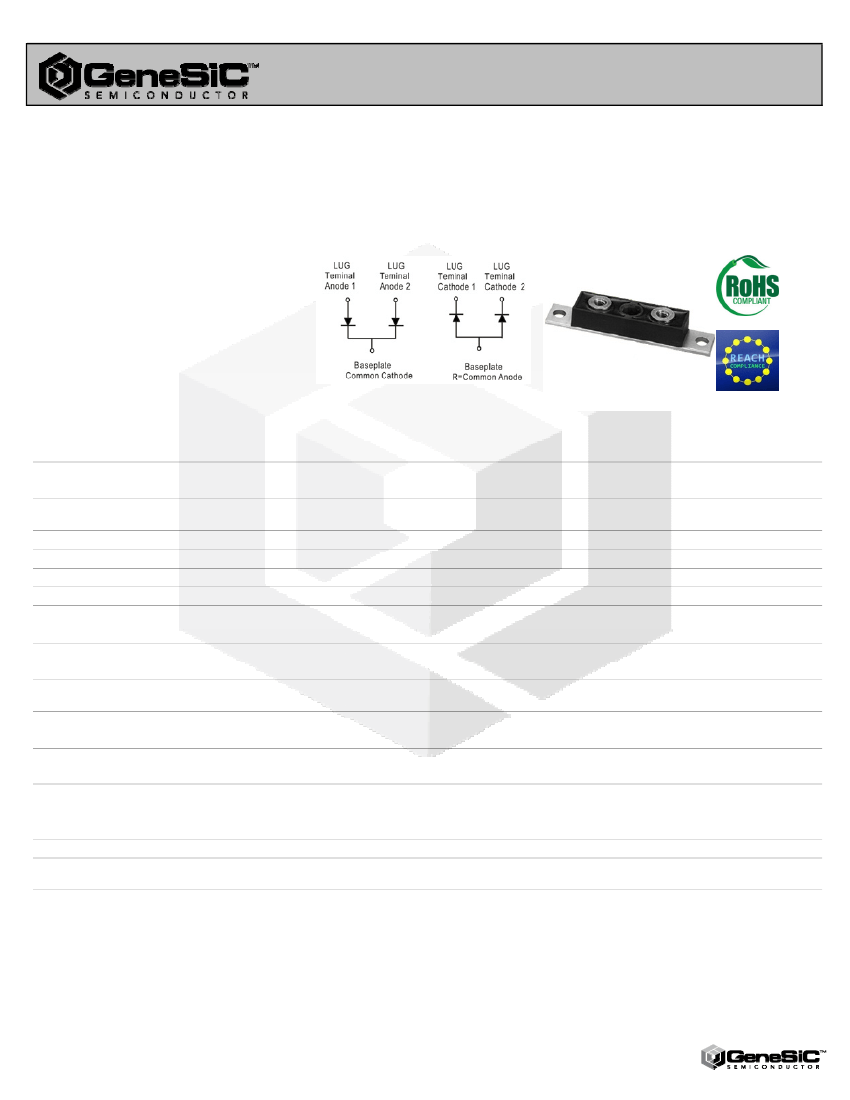

MBRF40045 thru MBRF400100R
Silicon Power
Schottky Diode
Features
• High Surge Capability
• Types from 45 V to 100 V V
RRM
• Not ESD Sensitive

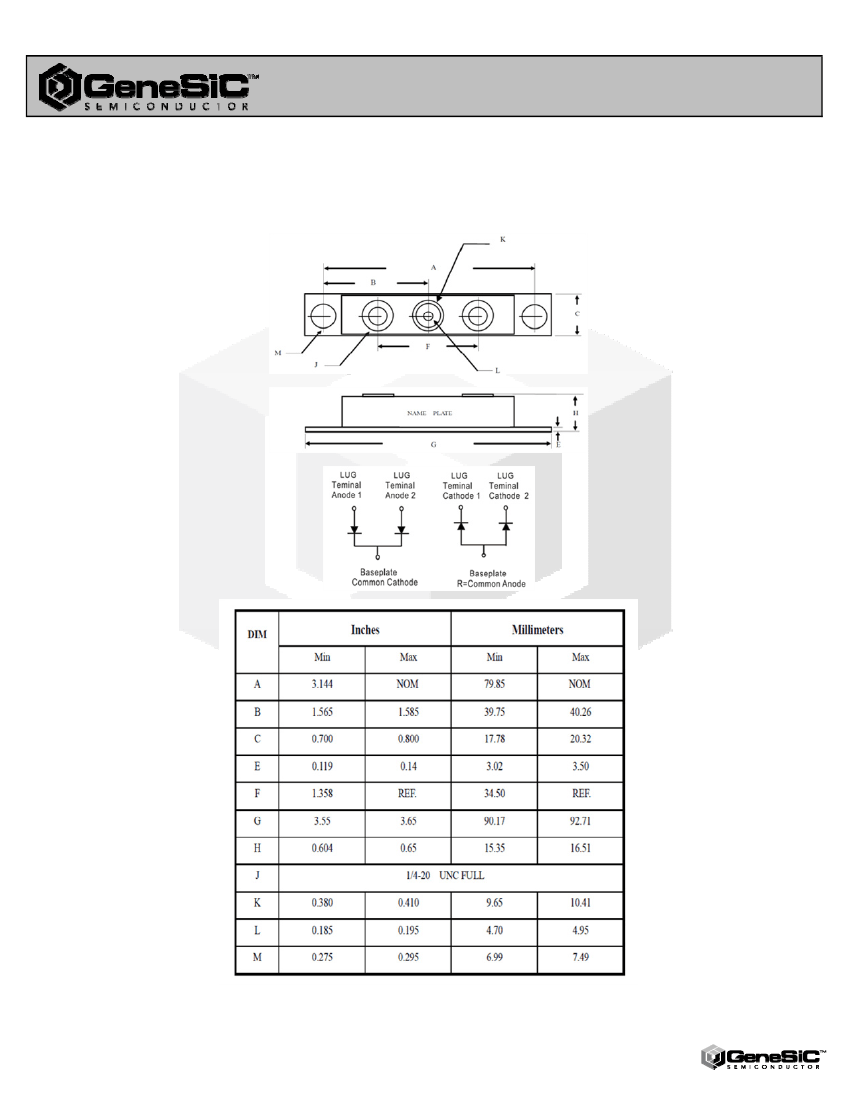

TO-244AB Package
V
RRM
= 45 V - 100 V
I
F(AV)
= 400 A
Maximum ratings, at T
j
= 25 °C, unless otherwise specified ("R" devices have leads reversed)
Parameter
Repetitive peak reverse
voltage
RMS reverse voltage
DC blocking voltage
Operating temperature
Storage temperature
Symbol
V
RRM
V
RMS
V
DC
T
j
T
stg
Conditions
MBRF40045(R) MBRF40060(R) MBRF40080(R) MBRF400100(R)
45
32
45
-55 to 150
-55 to 150
60
42
60
-55 to 150
-55 to 150
80
57
80
-55 to 150
-55 to 150
100
70
100
-55 to 150
-55 to 150
Unit
V
V
V
°C
°C
Electrical characteristics, at Tj = 25 °C, unless otherwise specified
Parameter
Average forward current
(per pkg)
Peak forward surge current
(per leg)
Maximum forward voltage
(per leg)
Reverse current at rated DC
blocking voltage (per leg)
Symbol
I
F(AV)
I
FSM
V
F
I
R
Conditions
T
C
= 125 °C
t
p
= 8.3 ms, half sine
I
FM
= 200 A, T
j
= 25 °C
T
j
= 25 °C
T
j
= 100 °C
T
j
= 150 °C
MBRF40045(R) MBRF40060(R) MBRF40080(R) MBRF400100(R)
400
3000
0.70
1
10
50
0.35
400
3000
0.75
1
10
50
0.35
400
3000
0.84
1
10
50
0.35
400
3000
0.84
1
10
50
0.35
Unit
A
A
V
mA
Thermal characteristics
Thermal resistance, junction-
case (per leg)
R
ΘJC
°C/W
www.genesicsemi.com/silicon-products/schottky-rectifiers/
1

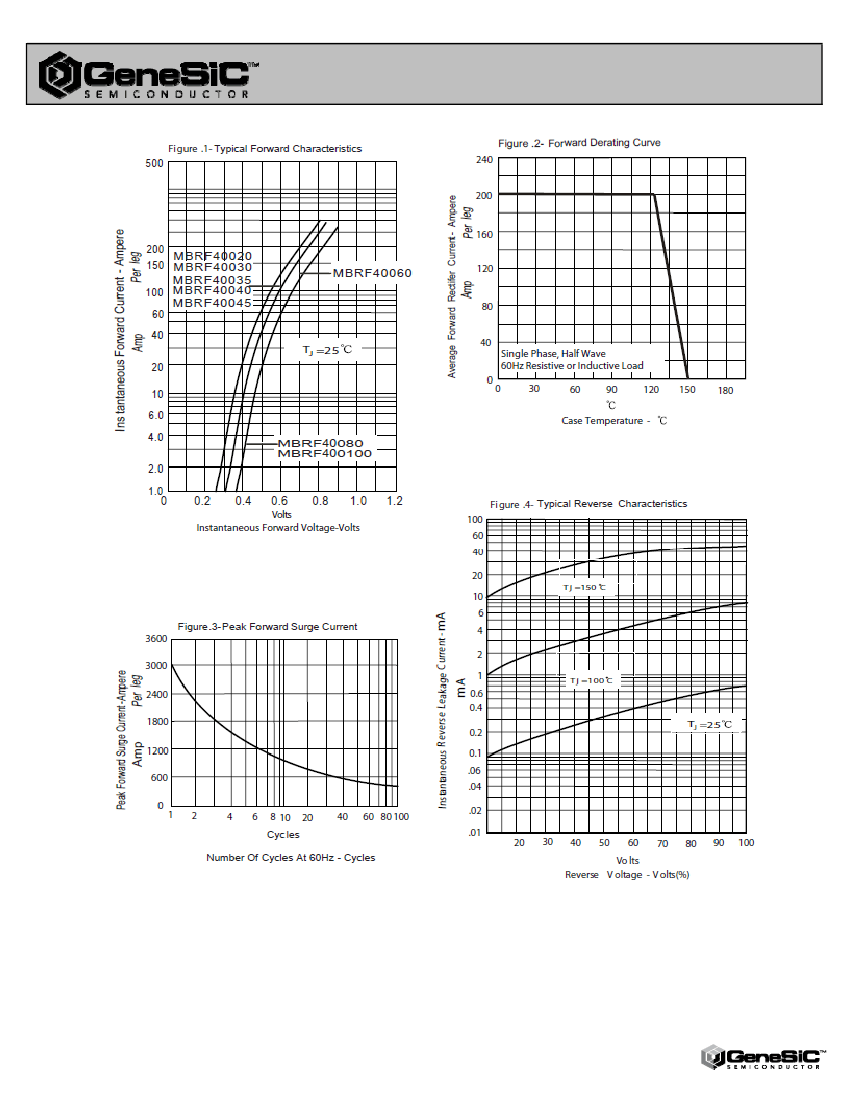

MBRF40045 Related Products
