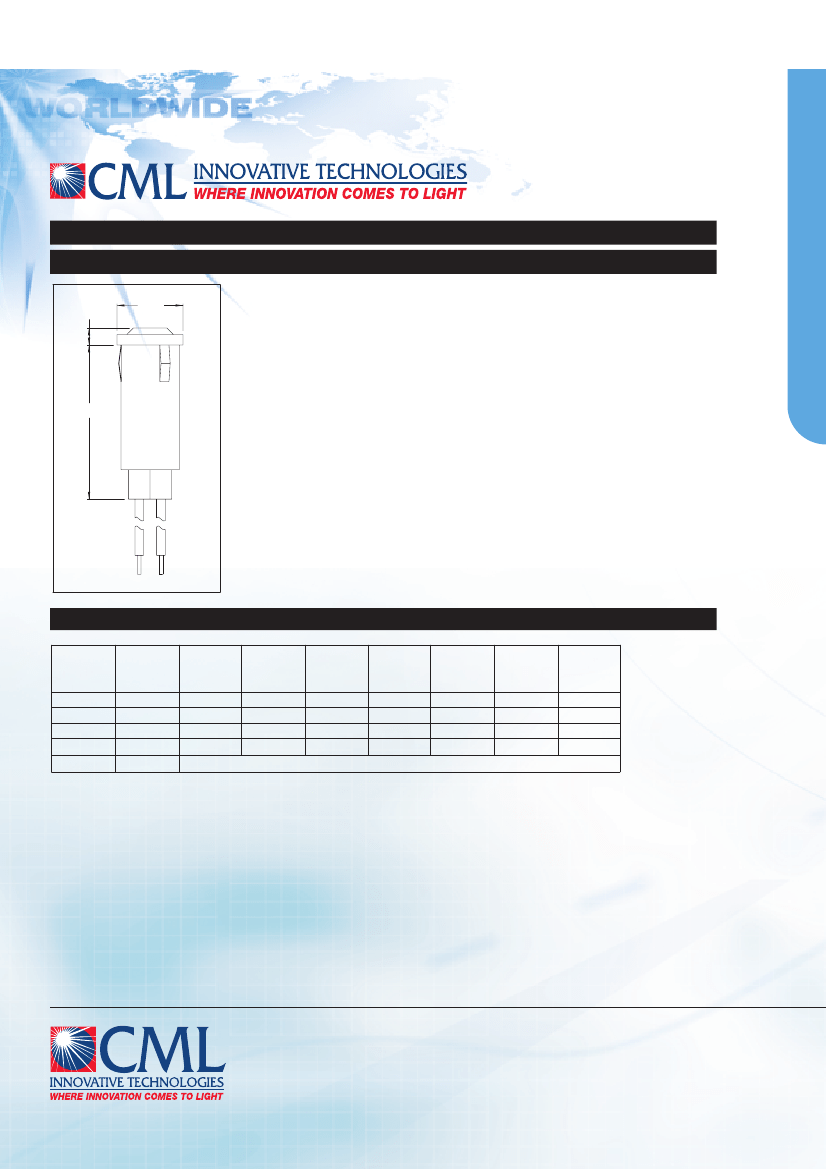

3990A Series Panel Mounted LED Indicator

DESCRIPTION AND FEATURES

Features

.080

Ø.250

Mounting: Will snap-fit in Ø.217/.221 hole in panels .031/.062 thick.

Wire Leads: No.24 AWG, 4.4/4.8 long, stripped .430/.570

Anode(+): Red lead

Housing: White nylon

.770

Lens: Polycarbonate

All dimensions

in inches.

ELECTRO-OPTICAL CHARACTERISTICS

Typ.

Intensity

(mcd)

10

7

16

6.3

Part

Number

3990A1

3990A3

3990A5

3990A7

3991A6-5V

Color

Red

Amber

Green

Yellow

Blue

Rated

Current

(mA)

10

Continuous

Forward

Peak Forward

Forward

Voltage Typ. Voltage Max.

Current @1ms-

Current Max.

(V)

300pps (A)

(mA)

30

1.0

2.0

3.0

30

2.2

2.1

3.0

.09

1.0

Reverse

Break-down

Voltage Min.

(V)

5

Use #680 Incandescent Lamp-5V , .06A, 200,000 Hours

America:

CML Innovative Technologies,Inc.

147 Central Avenue

Hackensack, NJ 07601 -USA

Tel:1-201-489 -8989

Fax:1-201-489 -6911

e-mail:americas@cml-it.com

Europe:

CML Technologies GmbH &Co.KG

Robert-Bunsen-Str.1

67098 Bad Dürkheim -GERMANY

Tel:+49 (0)6322 9567-0

Fax:+49 (0)6322 9567-88

e-mail:europe@cml-it.com

Asia:

CML Innovative Technologies,Inc.

61 Aida Street

Singapore 459975

Tel:(65)9630 -5003

e-mail:asia@cml-it.com

CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product

3990A Series Panel Mounted LED Indicator
