855394: DescriptionSAW Filter, 1 Function(s), 167.1MHz,; CategoryAnalog mixed-signal IC filter; File Size43KB，1 Pages; ManufacturerSawtek Inc.

Download Datasheet Parametric View All

855394 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	855394	-	-	View	Buy Now

855394 Overview

SAW Filter, 1 Function(s), 167.1MHz,

855394 Parametric

Parameter Name	Attribute value
Maker	Sawtek Inc.
Reach Compliance Code	unknown
Maximum attenuation frequency (+/- delta f)	1000 kHz
Attenuation frequency (+/-Δf) - minimum value	590 kHz
Attenuation at maximum frequency	15 dB
Center frequency or cutoff frequency (fo/fc)	167.1 MHz
filter type	SAW FILTER
high	1.96 mm
input resistance	50 OHM
Maximum insertion loss	15 dB
length	19.2 mm
Manufacturer's serial number	855394
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature
Output impedance	50 OHM Ω
physical size	L19.2XB6.63XH1.96 (mm)/L0.754XB0.261XH0.077 (inch)
width	6.63 mm
Base Number Matches	1

Preview

Download Datasheet

View All

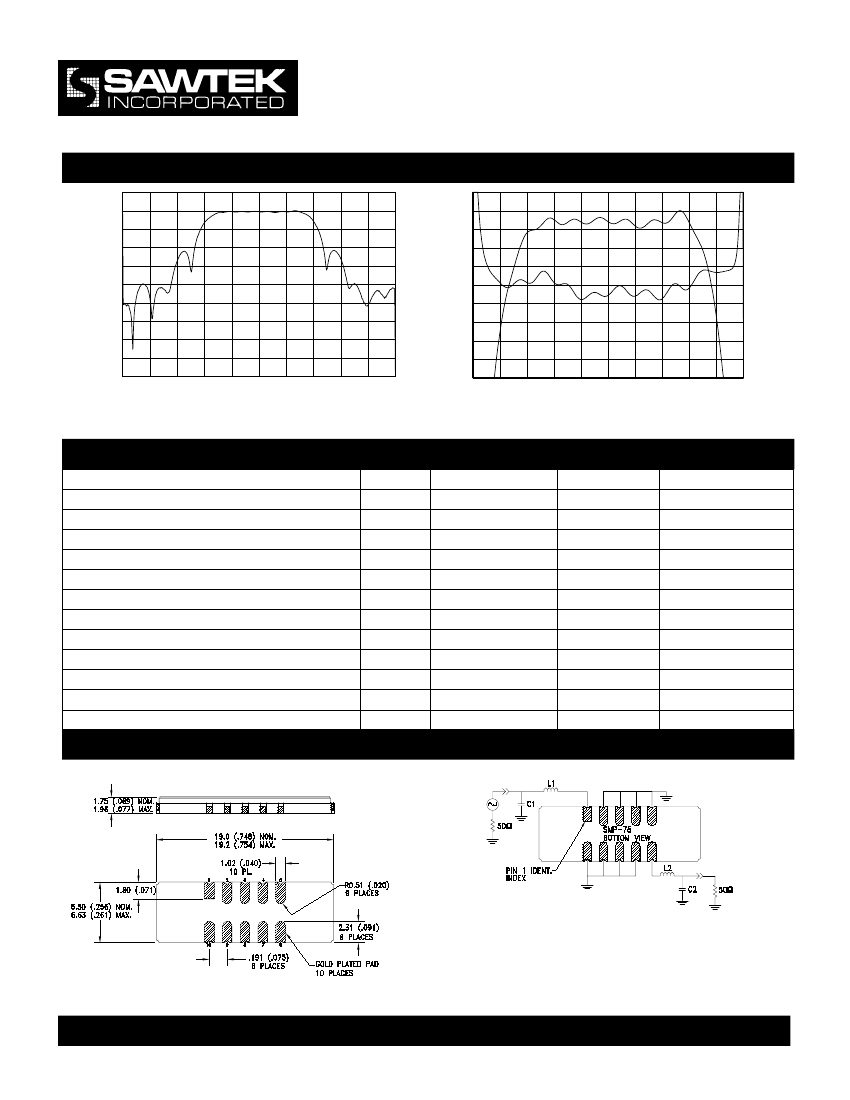

167.100 MHz Bandpass Filter

Data Sheet

Typical Performance

10

0

-10

-20

-30

-40

-50

-60

-70

-80

-90

165.1

165.5

165.9

1

0

-1

-2

-3

-4

-5

-6

-7

-8

-9

168.3

168.7

169.1

166.1

166.3

166.5

25

20

15

10

5

0

-5

-10

-15

-20

-25

167.7

167.9

-

15

166.51

-

168.1

1.5

2.64

500

4

85

168.1

1.180 MHz Bandwidth

Part Number 855394

166.3

166.7

167.1

167.5

167.9

166.7

166.9

167.1

167.3

Parameter

Center Frequency

Insertion Loss @167.1 MHz (REF)

5 dB Lower Frequency

5 dB Upper Frequency

15 dB Lower Frequency

15 dB Upper Frequency

Amplitude Variation ( 166.575 to 167.625 ) MHz

Group Delay ( 166.575 to 167.625 ) MHz

Group Delay Ripple (166.575 to 167.625) MHz

Phase Linearity ( 166.47 to 167.73 ) MHz

Substrate Material

Operating Temperature Range

Specifications

Unit

Minimum

MHz

dB

MHz

dB p-p

µsec

nsec

deg RMS

°C

-

167.69

166.1

-

2.44

-

0

Typical

167.1

10.9

166.338

167.909

166.203

168.032

0.79

2.545

320

1.4

Quartz

25

167.5

Horizontal: 400 kHz/Div

Vertical: 10 dB/Div

Horizontal: 200 kHz/Div

Vertical: 1 dB/Div

Vertical: 5 deg/Div

Maximum

Package Outline

Specifications subject to change or obsolescence without notice

Matching Configuration

L1 = 60 nH , L2 = 82 nH

C1 = 47pF , C2 = 47 pF

Nominal Source/Load Impedance = 50Ω

Package Style SMP-28

3/01/01

Sawtek Inc.

Telephone: (407) 886-8860

Fax: (407) 886-7061
