854675 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 854675

Preview

854675: DescriptionSAW Filter, 1 Function(s), 70MHz, SMP-53, 12 PIN; CategoryAnalog mixed-signal IC filter; File Size42KB，1 Pages; ManufacturerSawtek Inc.

Download Datasheet Parametric View All

854675 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	854675	-	-	View	Buy Now

854675 Overview

SAW Filter, 1 Function(s), 70MHz, SMP-53, 12 PIN

854675 Parametric

Parameter Name	Attribute value
Maker	Sawtek Inc.
package instruction	SMP-53, 12 PIN
Reach Compliance Code	unknown
Center frequency or cutoff frequency (fo/fc)	70 MHz
filter type	SAW FILTER
high	2 mm
input resistance	50 OHM
Maximum insertion loss	18.5 dB
length	13.3 mm
Manufacturer's serial number	854675
Installation type	SURFACE MOUNT
Number of functions	1
Output impedance	50 OHM Ω
physical size	L13.3XB6.5XH2.0 (mm)/L0.524XB0.256XH0.079 (inch)
Base Number Matches	1

Preview

Download Datasheet

View All

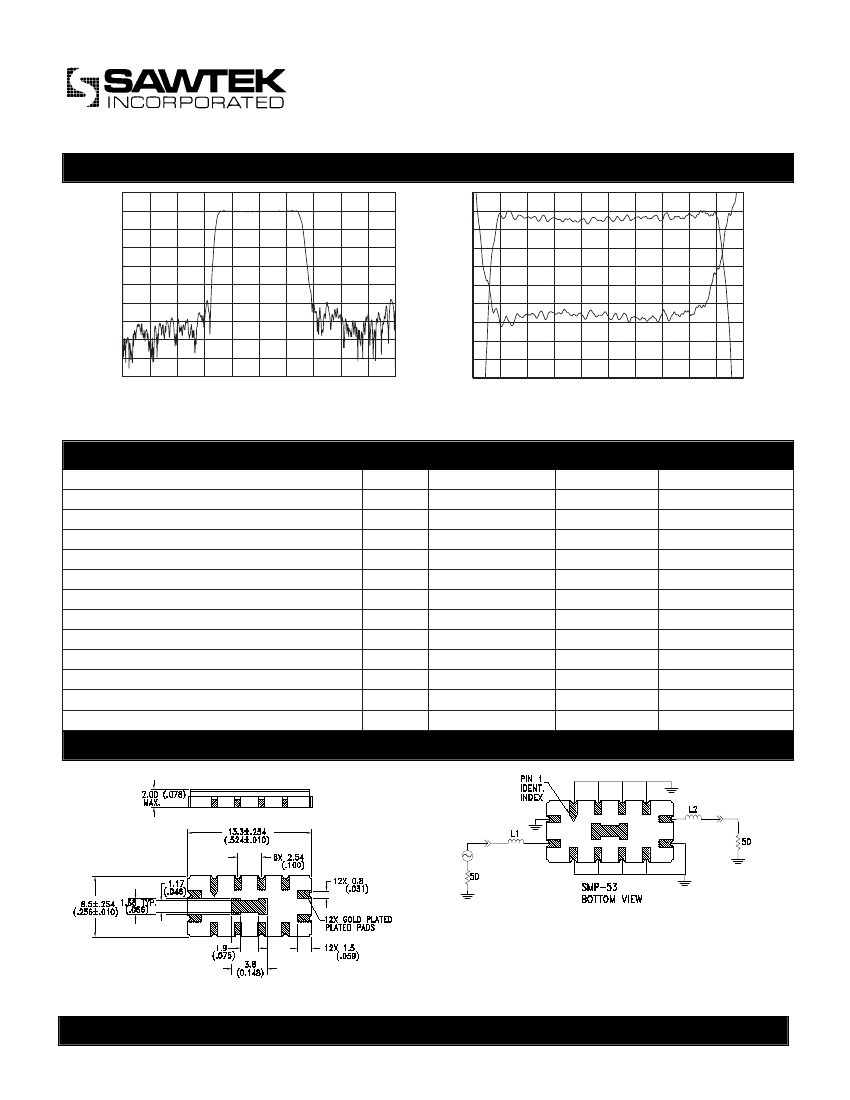

70 MHz Low-Loss Filter

Data Sheet

Typical Performance

10

0

-10

-20

-30

-40

-50

-60

-70

-80

-90

20 30 40

Horizontal: 10

80 90 100 110 120

50 60 70

MHz/Div

Vertical: 10 dB/Div

1

25

0

20

-1

15

-2

10

-3

5

-4

0

-5

-6

-10

-7

-15

-8

-20

-9

-25

52.5 56 59.5

Horizontal: 3.5 MHz/Div

63 66.5 70 73.5 77 80.5 84 87.5

Vertical: 1 dB/Div

Vertical: 5 deg/Div

30 MHz Bandwidth

Part Number 854675

Parameter

Center Frequency

Insertion Loss at F

o

1 dB Bandwidth

3 dB Bandwidth

40 dB Bandwidth

Passband Ripple

Phase Linearity (90% of 3dB Bandwidth)

Group Delay Variation (90% of 3dB Bandwidth)

Absolute Delay

Substrate Material

Temperature Coefficient

Ambient Temperature

Specifications

Unit

Minimum

MHz

dB

MHz

dB

deg

nsec

µsec

-

ppm/°C

°C.

69.8

-

28.75

30

-

Typical

70

17.5

29.15

30.3

37

0.8

9.7

50

1.07

YZ LiNbO

3

-94

25

Maximum

70.2

18.5

-

38.1

1

13

90

-

Package Outline

Matching Configuration

Ω

L1 = 180nH, L2 = 120nH

Nominal Source/Load Impedance = 50Ω

Package Style SMP-53

11/29/99

Sawtek Inc.

Telephone: (407) 886-8860

Fax: (407) 886-7061
