48233-1411 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 48233-1411

48233-1411: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Guide Slot, White Insulator, Receptacle; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

48233-1411 Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Guide Slot, White Insulator, Receptacle

48233-1411 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	ELV AND ROHS COMPLIANT
Board mount options	PEG
body width	0.185 inch
subject depth	0.191 inch
body length	0.386 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Dielectric withstand voltage	250VAC V
Durability	50 Cycles
maximum insertion force	.695 N
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	48233
Plug contact pitch	0.031 inch
Installation option 1	GUIDE SLOT
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.6896 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	14
Evacuation force-minimum value	.1112 N
Base Number Matches	1

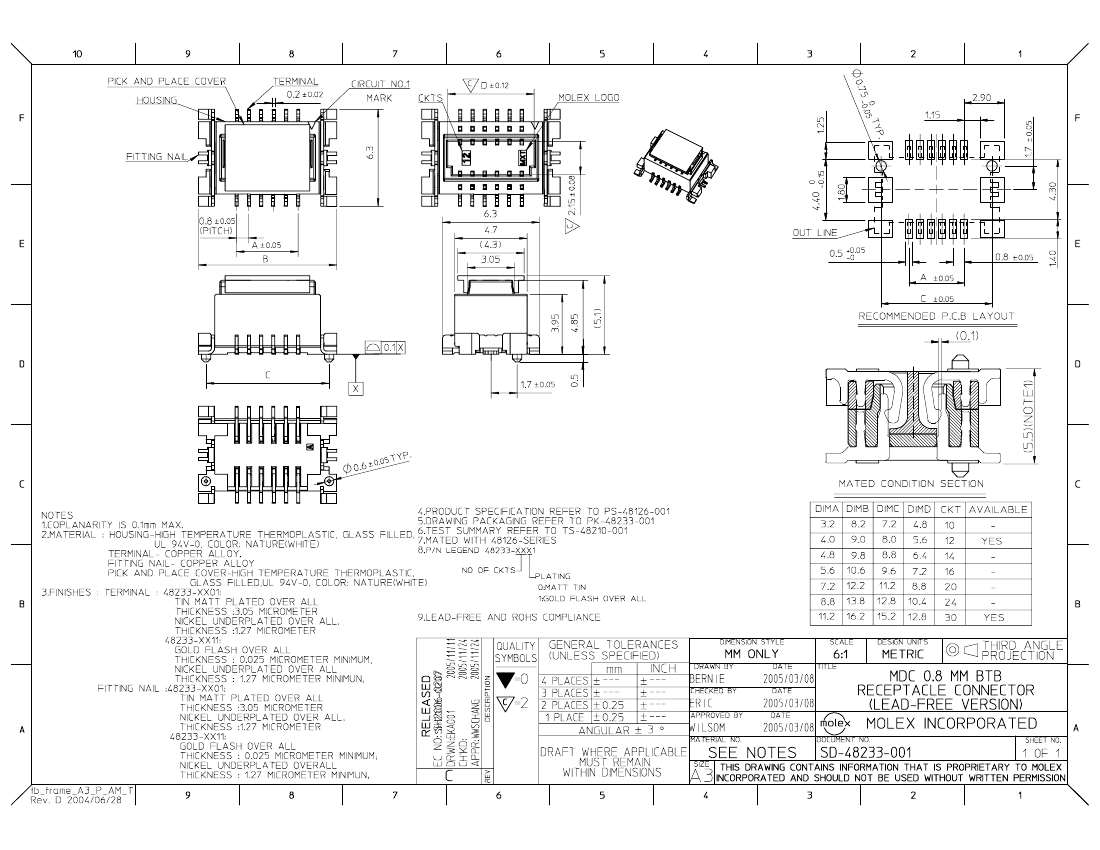

Preview

Download Datasheet

View All

48233-1411 Related Products

	48233-1411	48233-1611	48233-2401	48233-2411
Description	Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Guide Slot, White Insulator, Receptacle	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Guide Slot, White Insulator, Receptacle	Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Guide Slot, White Insulator, Receptacle	Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Guide Slot, White Insulator, Receptacle
Maker	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	ELV AND ROHS COMPLIANT	ELV AND ROHS COMPLIANT	ELV AND ROHS COMPLIANT	ELV AND ROHS COMPLIANT
Board mount options	PEG	PEG	PEG	PEG
body width	0.185 inch	0.185 inch	0.185 inch	0.185 inch
subject depth	0.191 inch	0.191 inch	0.191 inch	0.191 inch
body length	0.386 inch	0.417 inch	0.543 inch	0.543 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	SN ON NI	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	TIN OVER NICKEL	GOLD OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	40 mΩ	40 mΩ
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V
Durability	50 Cycles	50 Cycles	50 Cycles	50 Cycles
maximum insertion force	.695 N	.695 N	.695 N	.695 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	WHITE	WHITE	WHITE	WHITE
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	48233	48233	48233	48233
Plug contact pitch	0.031 inch	0.031 inch	0.031 inch	0.031 inch
Installation option 1	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT
Installation option 2	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2
Number of rows loaded	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.6896 mm	5.6896 mm	5.6896 mm	5.6896 mm
Plating thickness	FLASH inch	FLASH inch	120u inch	FLASH inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.7874 mm	0.7874 mm	0.7874 mm	0.7874 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	14	16	24	24
Evacuation force-minimum value	.1112 N	.1112 N	.1112 N	.1112 N
