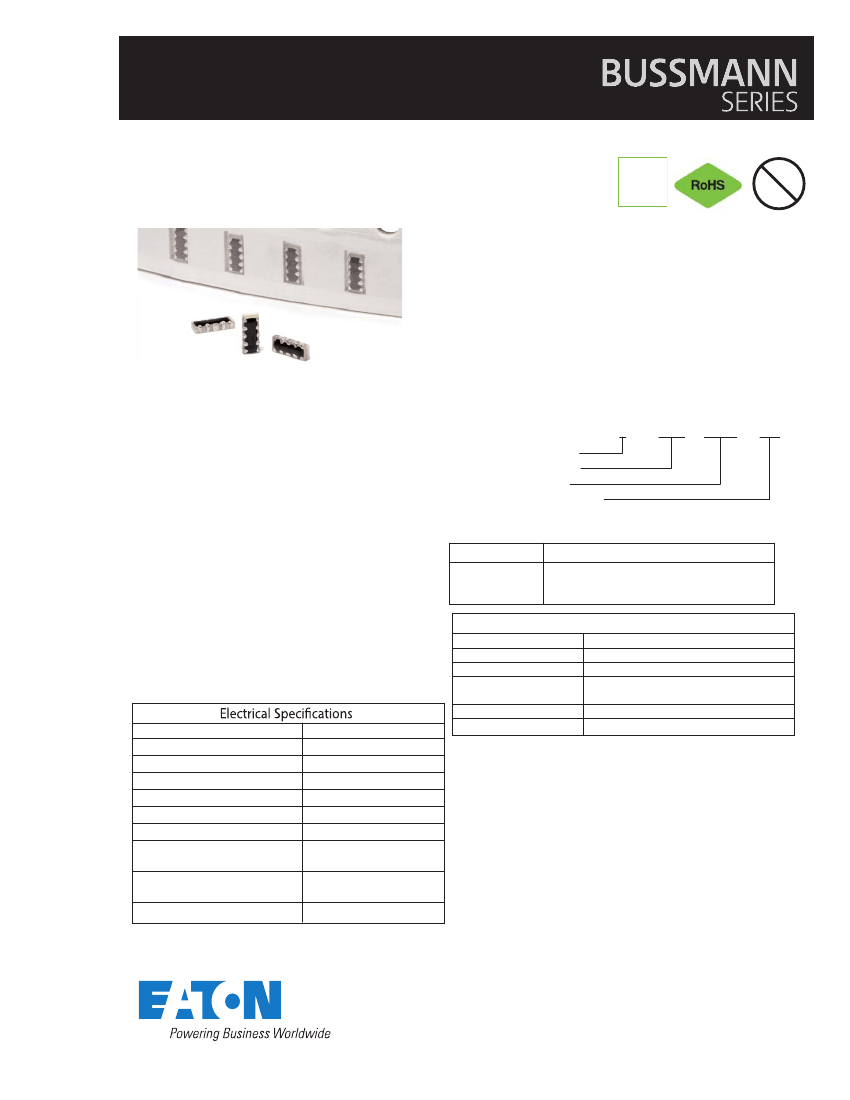

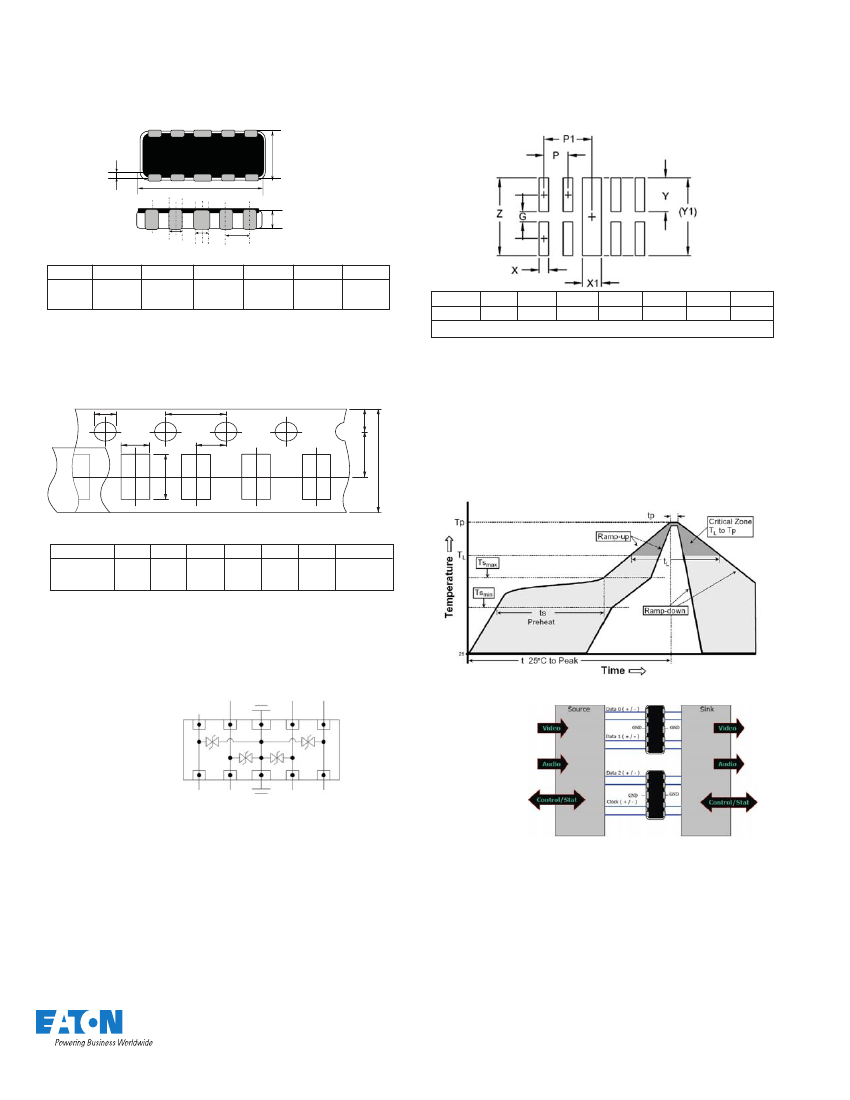

Technical Data
4378
Effective
May
2017
Supersedes
August
2010
42510ESDA-TR1
ESD suppressor four-channel
Design considerations
HF
FREE
HALOGEN
Pb
Surface Mount Device
Product features
•
Halogen free, lead free and RoHS compliant for
global applications
•
Ultra-low capacitance (0.1pF typical) ideally suited
for protecting high speed data applications
•
Provides ESD protection with fast response time
(<1ns) allowing equipment to pass the IEC
61000-4-2 Level 4 test
•
Four (4) channel array
•
Zero signal distortion
•
Low leakage current (<0.01µA typical)
•
Follow the soldering recommendations to avoid deforming
product
•
Do not use high temperature, high humidity or corrosive
atmospheres (sulfide and chloride gas) that could damage the
solderability
•
Moisture Sensitivity Level (MSL) according to J-STD-020
standard: Level 2 (Floor Life 1 year under <30°C/65%RH
conditions) Solderability requirement according to IPC/JEDEC J-
STD-002C, Test D, Test B1
•
Use Sn/Ag/Cu (96.5/3.0/0.5) or equivalent solder and activated
flux #5 or equivalent.
Part Numbering System:
• Four channel SIN 1 chip
• 2.5x1.0mm footprint size
• ESDA ESD Suppressor
• Tape and reel packaging code
Ordering
Part
Number
4
2510
ESDA-
TR1
Applications
•
•
•
•
•
•
•
Digital video equipment
Mobile phone
GPS Antenna
Bluetooth communication equipment antenna circuit
IEEE-1394
DVI
HDMI
Description
5000 suppressors in paper tape on a 7 inch
(178 mm) reel
42510ESDA-TR1
Environmental Specifications
Value
+85 °C/90% RH with rated voltage for 1000 hrs
-40 °C to +85 °C, 30 minute cycle, 5 cycles
J-STD-020 Standard: Level 2
Moisture Resistance Test
(1 year floor life under 30 °C/65% RH conditions
Operating Temperature Range -40 °C to +85 °C (-40 °F to 185 °F)
Storage Temperature Range -55 °C to +125 °C (-67 °F to +257 °F)
Characteristic
Load Humidity
Thermal Shock
Characteristic
Rated Voltage (max)
Leakage Current (max @ 12Vdc)
Trigger Voltage (V
t
)
Clamping Voltage (V
c
)
Capacitance (Cp) @1MHz*
Response Time
Value/Range
12 V
0.01
µA
300 V Typical
30 V Typical
0.1 pF Typical
<1 ns
ESD Voltage Capability, IEC 61000-4-2 8 kV
Contact Discharge Mode
ESD Voltage Capability, IEC 61000-4-2 15 kV
Air Discharge Mode
ESD Withstand Pulses
100 Times Minimal
* Note, Capacitance measured with 1 Vrms
Technical Data
4378
Effective
May
2017
42510ESDA-TR1
ESD suppressor four-channel
Recommended Pad Layout - mm
W
Dimensions - mm
B
L
T
D
C
E
B
C
D
E
L
T
W
0.2
±0.1
0.3
±0.05
0.2
±0.05
0.5
±0.05
2.5
±0.1
0.5
±0.1
1.0
±0.1
G
P
P1
X
X1
Y
Y1
Z
0.2
0.5
1
0.2
0.3
Note: Print solder 0.01~0.015mm thick.
0.6
1.4
1.4
Packaging-mm
Supplied in tape and reel packaging, 5000 parts per seven inch
(178 mm) reel per EIA Standard 481-1
Soldering recommendations
•
Compatible with lead and lead-free solder reflow
processes
•
Hand soldering - soldering tip should not directly
touch part +280 °C max for 3 sec. max
•
Peak reflow temperatures and durations:
o
IR Reflow = 260°C max for 20 sec. max
o
Wave Solder = 260°C max for 10 sec. max
Recommended IR Reflow Profile
Unit: mm
A
B
C
D
E
F
L
W
8.00 3.50 1.75 2.00 4.00 1.50 2.90 1.40
±0.30 ±0.05 ±0.10 ±0.05 ±0.10 ±0.10 ±0.20 ±0.20
Circuit Schematic
HDMI Application
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
Eaton
Electronics Division
1000 Eaton Boulevard
Cleveland, OH 44122
United States
www.eaton.com/electronics
© 2017 Eaton
All Rights Reserved
Printed in USA
Publication No.
4378 BU-SB10816
May
2017
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
