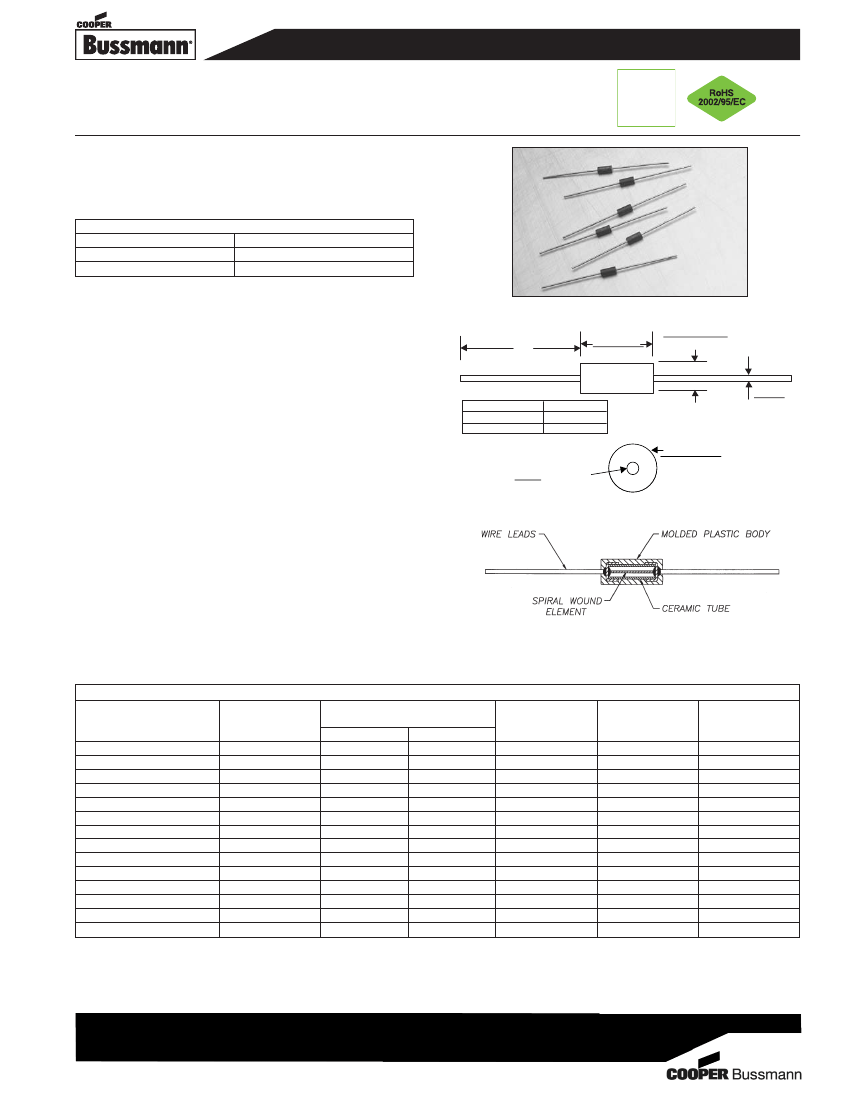

Subminiature Microtron Fuses
®
MCRS Series, Time-Delay, Wire-in-Air
Description
• Axial-leaded time-delay thru-hole fuse
• Matte tin-plated copper lead wires
• High temperature epoxy plastic body, UL 94V0
Electrical Characteristics
% of Amp Rating
Opening Time
100%
4 hours minimum
200%
30 seconds maximum
HF
FREE
HALOGEN
Agency Information
• UL Recognition Guide & File numbers: JDYX2 &
E19180.
• CSA Certification Record No: LR 701159 & Class No:
1422 30 and 1422 01.
Environmental Data
• Shock resistance: MIL-STD-202, Method 213B, Test
Condition I (Sawtooth)
• Vibration resistance: MIL-STD-202, Method 201
(10-55Hz x 3 axis/ no load)
• Moisture resistance: MIL-STD-202F, Method 106
• Soldering heat resistance: MIL-STD-202, Method 210
Top side (260ºC, 20 sec)
• Salt spray: MIL-STD-202, Method 101, Test Condition
B (48 Hours)
• Solderability MIL-STD-202, Method 208H
• Operating Temperating: -55ºC to 125ºC
Ordering
Specify packaging
• Insert packaging code prefix before part number.
E.g., TR1 (or BK1)/MCRS5A
Packaging Code
BK1
TR1
“A” Length
1.5"
1.13"
0.81 dia.
(0.032)
Dimensions - mm (in)
"A"
7.1
±
0.5
(0.280
±
0.020)
3.18
±
0.1__ _
(0.125
±
0.004)
End View
3.18
±
0.1
diameter
(0.125
±
0.004)
0.81
diameter
(0.032)
Construction
Specifications
Part Number
MCRS250mA
MCRS300mA
MCRS375mA
MCRS500mA
MCRS750mA
MCRS1A
MCRS1.25A
MCRS1.5A
MCRS2A
MCRS2.5A
MCRS3A
MCRS4A
MCRS5A
MCRS7A
Voltage
Rating
Vac/dc
125
125
125
125
125
125
125
125
125
125
125
125
125
125
Interrupting
Rating* (amps)
Vac
Vdc
50
300
50
300
50
300
50
300
50
300
50
300
50
300
50
300
50
300
50
300
50
300
50
300
50
300
50
300
Resistance
Ω
(Ω)**
Typical
3.20
2.57
1.66
1.07
0.55
0.36
0.23
0.18
0.12
0.08
0.06
0.04
0.02
0.01
Typical
Melt
I
2
t†
0.042
0.056
0.101
0.18
0.44
0.78
1.41
1.9
3.4
6.1
8.1
15
35
63
Typical
Voltage
Drop‡
2.20
2.02
1.69
1.42
1.09
0.91
0.77
0.7
0.59
0.5
0.45
0.38
0.29
0.25
* AC Interrupting Rating (Measured at designated voltage, 100%) DC Interrupting Rating (Measured at
designated voltage, rise time of less than 50 microseconds, battery source)
** DC Cold Resistance (Measured at 10% of rated current)
† Typical Melting I
2
t (Measured with a battery bank at rated DC voltage, 10x-rated current, rise time of
calibrated circuit less than 50 microseconds)
‡ Typical Voltage Drop (Measured at rated current after temperature stabilizes)
0709
BU-SB09025
Page 1 of 2
Data Sheet 4075

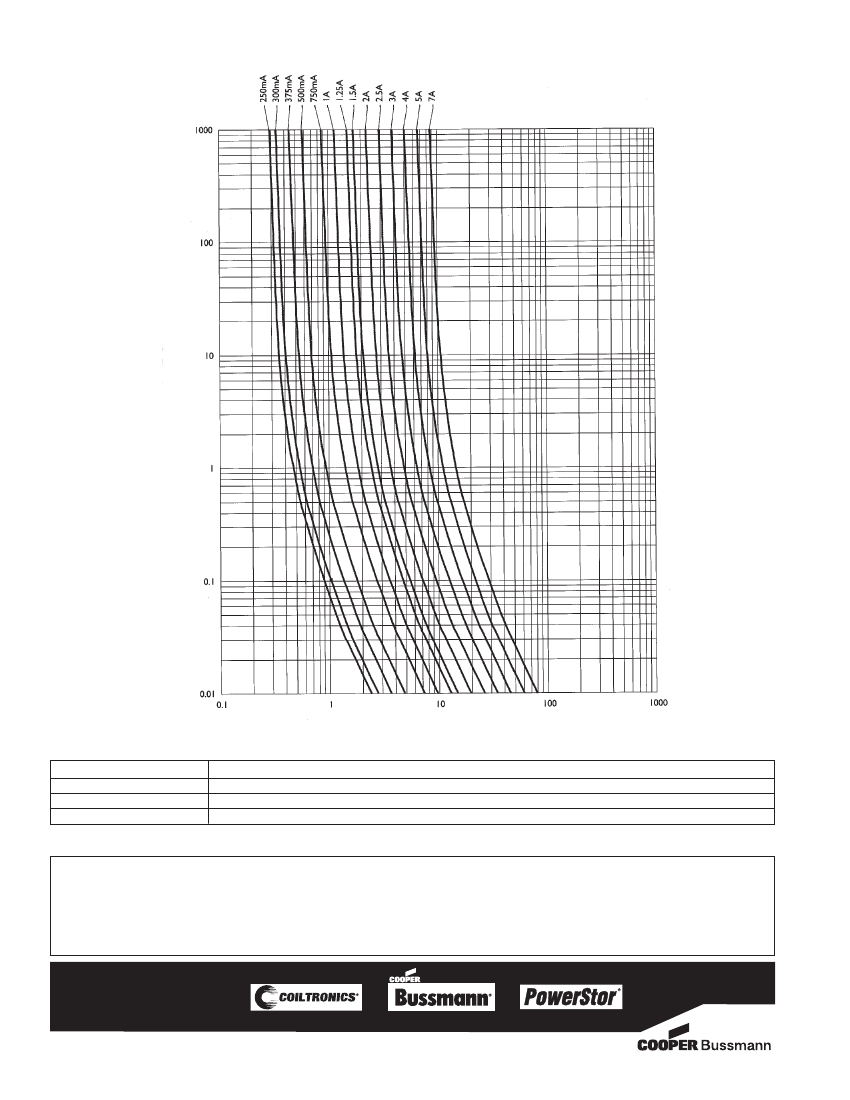

Time-Current Curve
Time in Seconds
Current in Amps
Packaging Code
Packaging Code Prefix
BK1
TR1
Description
1,000 fuses in bulk
2,500 fuses on tape-and-reel per EIA-296-F @ 5 mm pitch and 52.4mm inside tape spacing
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information contained
in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life support
systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in
significant injury to the user.
© 2009 Cooper Bussmann
St. Louis, MO 63178
www.cooperbussmann.com
0709
BU-SB09025
Page 2 of 2
Data Sheet 4075
