MAX177CWG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> MAX177CWG

MAX177CWG: DescriptionAnalog to Digital Converters - ADC CMOS, 10-Bit A/D Converter with Track and Hold; CategoryAnalog mixed-signal IC converter; File Size132KB，4 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

MAX177CWG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MAX177CWG	-	-	View	Buy Now

MAX177CWG Overview

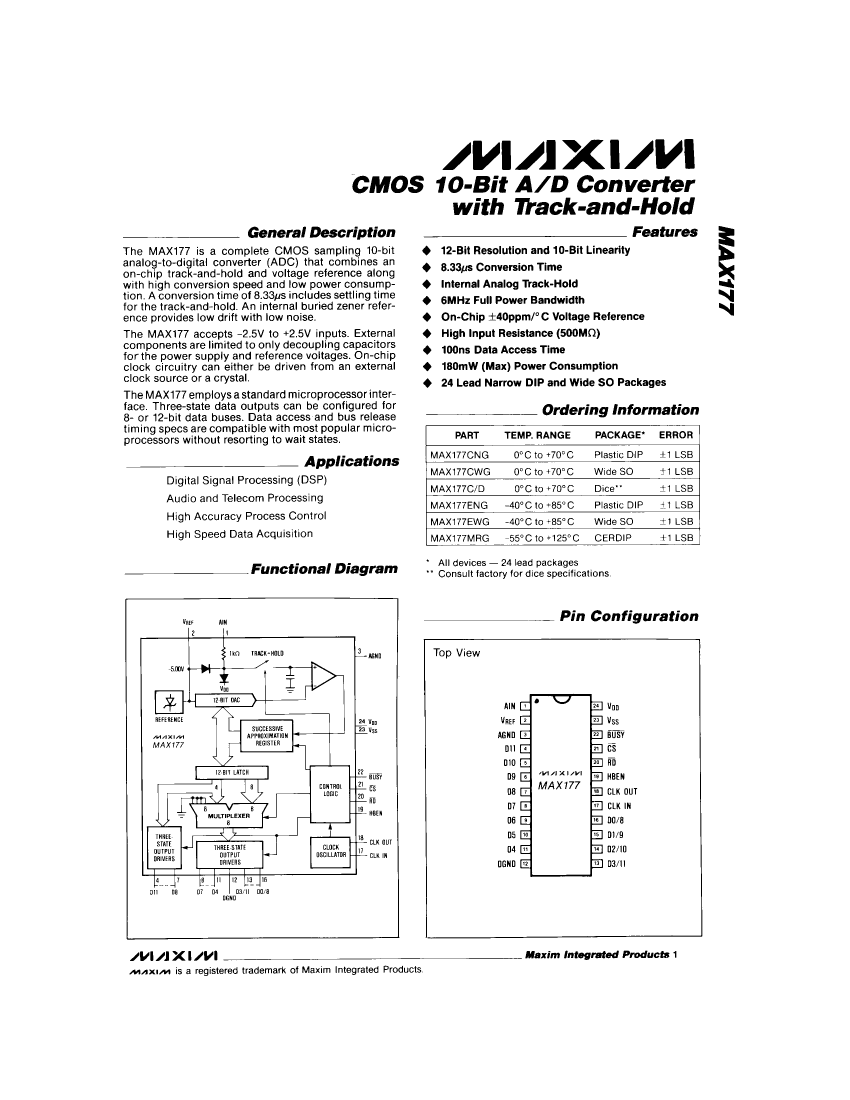

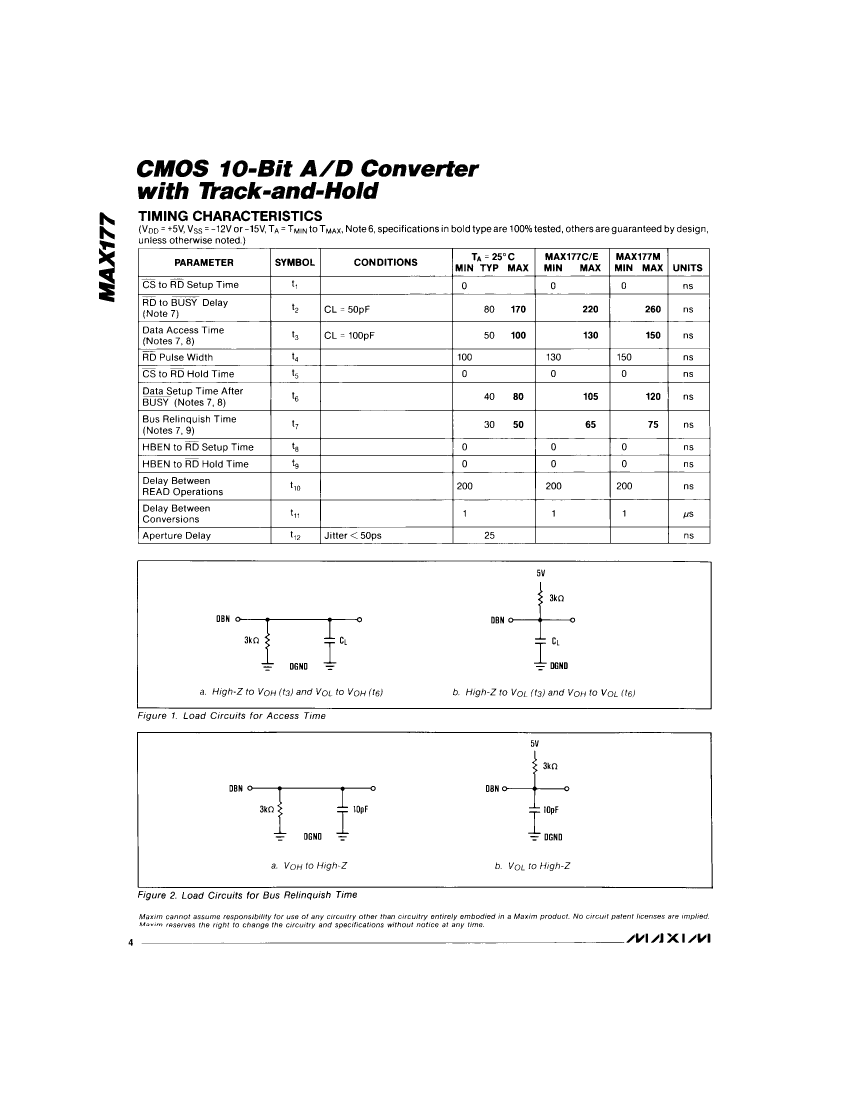

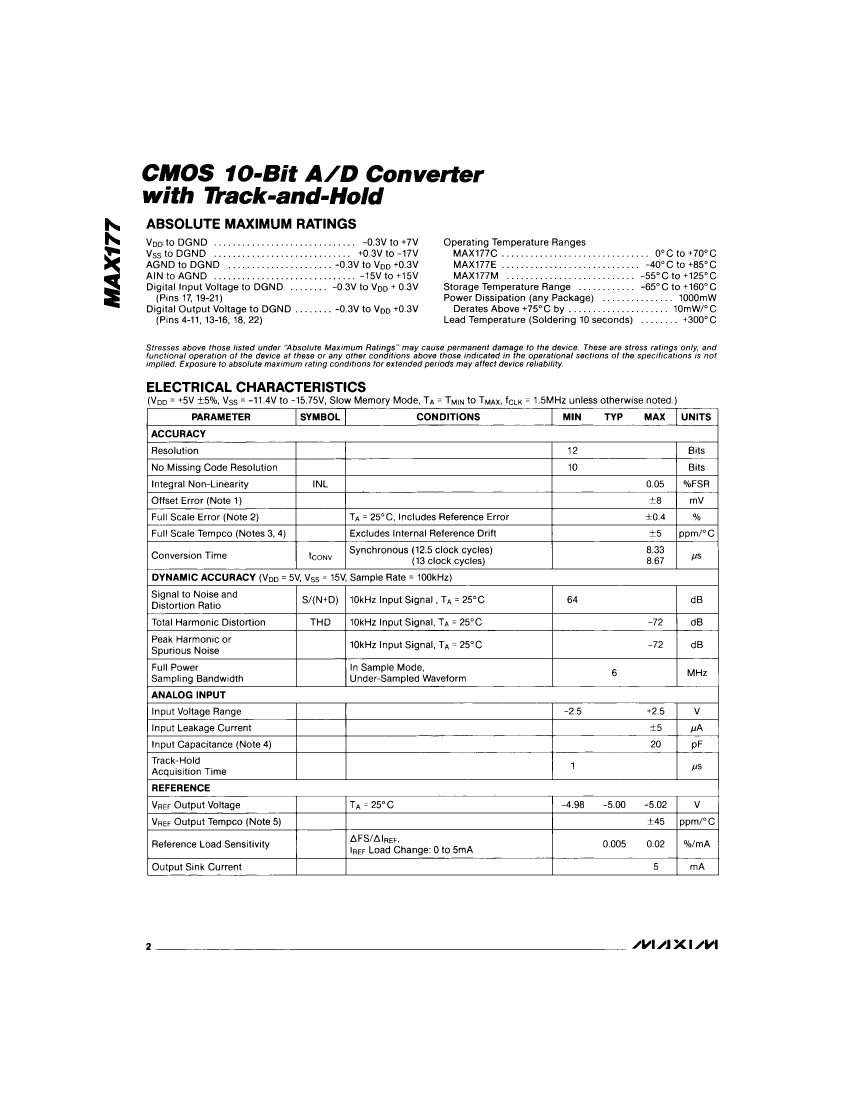

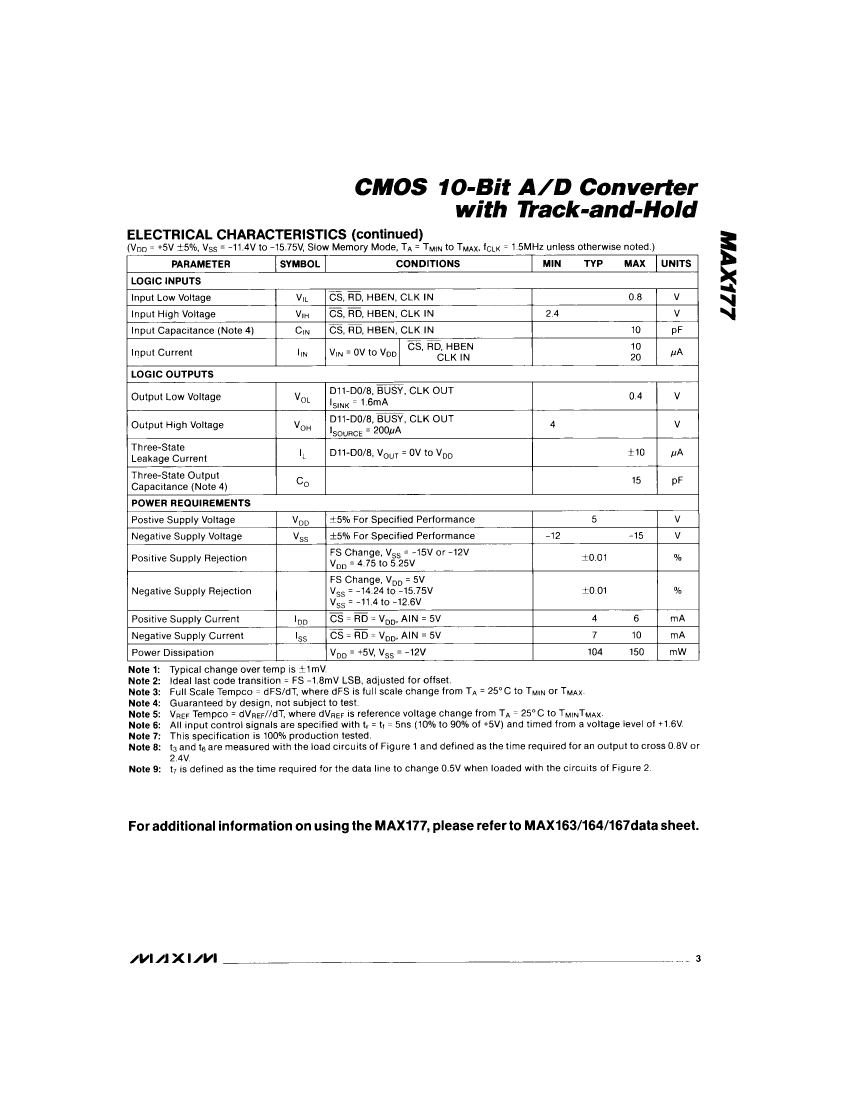

Analog to Digital Converters - ADC CMOS, 10-Bit A/D Converter with Track and Hold

MAX177CWG Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP-24
Contacts	24
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum analog input voltage	2.5 V
Minimum analog input voltage	-2.5 V
Maximum conversion time	8.57 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
length	15.4 mm
Maximum linear error (EL)	0.05%
Humidity sensitivity level	1
Number of analog input channels	1
Number of digits	10
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	BINARY
Output format	PARALLEL, WORD
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP24,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
power supply	5,-12/-15 V
Certification status	Not Qualified
Sample and hold/Track and hold	TRACK
Maximum seat height	2.65 mm
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
width	7.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

MAX177CWG Related Products

	MAX177CWG	MAX177EWG-T	MAX177EWG	MAX177ENG	MAX177CWG-T	MAX177MRG	MAX177CNG
Description	Analog to Digital Converters - ADC CMOS, 10-Bit A/D Converter with Track and Hold	Analog to Digital Converters - ADC CMOS 10-Bit ADC	Analog to Digital Converters - ADC CMOS 10-Bit ADC	Analog to Digital Converters - ADC CMOS 10-Bit ADC	Analog to Digital Converters - ADC CMOS 10-Bit ADC	Analog to Digital Converters - ADC	Analog to Digital Converters - ADC CMOS, 10-Bit A/D Converter with Track and Hold
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SOIC	SOIC	SOIC	DIP	SOIC	DIP	DIP
package instruction	SOP-24	SOP-24	SOP-24	PLASTIC, DIP-24	SOP-24	CERDIP-24	PLASTIC, DIP-24
Contacts	24	24	24	24	24	24	24
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	3A001.A.2.C	EAR99
Maximum analog input voltage	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
Minimum analog input voltage	-2.5 V	-2.5 V	-2.5 V	-2.5 V	-2.5 V	-2.5 V	-2.5 V
Maximum conversion time	8.57 µs	8.57 µs	8.57 µs	8.57 µs	8.57 µs	8.57 µs	8.57 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDIP-T24	R-PDSO-G24	R-GDIP-T24	R-PDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.05%	0.05%	0.05%	0.05%	0.05%	0.05%	0.05%
Humidity sensitivity level	1	1	1	1	1	1	1
Number of analog input channels	1	1	1	1	1	1	1
Number of digits	10	10	10	10	10	10	10
Number of functions	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24
Maximum operating temperature	70 °C	85 °C	85 °C	85 °C	70 °C	125 °C	70 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-	-55 °C	-
Output bit code	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	DIP	SOP	DIP	DIP
Encapsulate equivalent code	SOP24,.4	SOP24,.4	SOP24,.4	DIP24,.6	SOP24,.4	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	240	240	240	240	240	240	240
power supply	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sample and hold/Track and hold	TRACK	TRACK	TRACK	TRACK	TRACK	TRACK	TRACK
Maximum seat height	2.65 mm	2.65 mm	2.65 mm	4.572 mm	2.65 mm	5.08 mm	4.572 mm
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	20	NOT SPECIFIED	20	20	NOT SPECIFIED	20	20
width	7.5 mm	7.5 mm	7.5 mm	7.62 mm	7.5 mm	7.62 mm	7.62 mm
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	-	Contains lead
length	15.4 mm	15.4 mm	15.4 mm	30.545 mm	15.4 mm	-	30.545 mm
Maker	-	Maxim	Maxim	Maxim	Maxim	Maxim	-
