BC
Typical Applications
Telecommunication
VCXO
Features
5x7 Ceramic Oscillator
Frequency range
Frequency stabilities
Parameter
Code I
2 MHz – 45 MHz
Frequency stability
Operating temp range
54
55
56
±
100 ppm
±
50 ppm
±
25 ppm
0....70 °C
Frequency tuning
Parameter
Code II
Value
Condition
Electrical frequency control
Voltage range
Pulling slope
60
61
> 50ppm
>100 ppm
0.5V to 4.5V
0.15V to 3.15V
Positive
@ V
S
=5V
@ V
S
=3.3V
RF output
Parameter
Value
Condition
Signal
Load
Duty cycle
CMOS
15pF
40/60%
Note 1
@ Vs/2
Supply Voltage
Parameter
Code III
Value
Condition
Supply voltage (Vs)
Power consumption steady state
Supply voltage (Vs)
Power consumption steady state
05
33
5V ± 5%
< 25 mA
< 40 mA
3.3V ± 5%
< 15 mA
< 20 mA
< 20 MHz
< 40 MHz
< 20 MHz
< 40 MHz
Additional parameters
Parameter
Frame Specification
Value
Condition
TQA 9000
Corning Frequency Control • Worldwide Data Book 2001
v1.0. 2000-10-20
Corning Frequency Control Inc.
• 100 Watts Street • Mt. Holly Springs, PA 17065 • Tel 1-717-486-3411 • Fax 1-717-486-5920 • www.corningfrequency.com
Tele Quarz GmbH & Co. KG
• Landstrasse • D-74924 Neckarbischofsheim, Germany • Tel +49-7268-801-0 • Fax +49-07268-801-281 • www.telequarz.de
1/2
BC

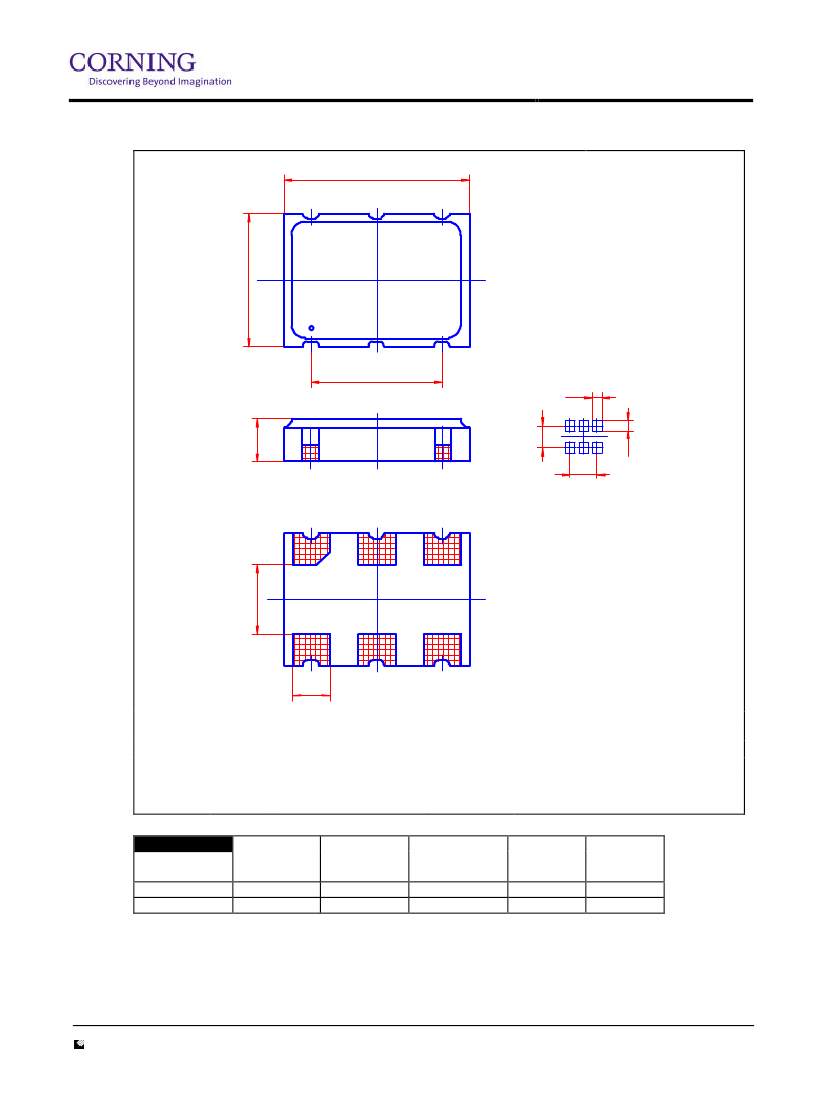

Enclosure
Drawing
7,5max.
6
5
4
VCXO
all Units in mm
5,2max
1
2
5,08
±0,3
3
1,8
2,0max.
4,2
5,08
Padvorschlag
PCB Layout
2,6
1,4
Pin Connections
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Ordering Code
Model
Example:
Order:
Notes
1
BC
BC
Control Voltage (V
C
)
Enable (Tri-State)
GND
RF output
I.C.
Supply Voltage (V
s
)
Code I
Frequency
Stability
44
Code II
Frequency
tuning
60
Code III
Supply
Voltage
05
Frequency
10M00000
can drive TTL, ACMOS and CMOS
Unless otherwise stated all values are valid after warm-up time and refer to typical conditions for supply voltage,
frequency control voltage, load, temperature (25°C)
Subject to technical modification; Not all options are available at all Frequencies
Corning Frequency Control • Worldwide Data Book 2001
2,0
v1.0. 2000-10-20
Corning Frequency Control Inc.
• 100 Watts Street • Mt. Holly Springs, PA 17065 • Tel 1-717-486-3411 • Fax 1-717-486-5920 • www.corningfrequency.com
Tele Quarz GmbH & Co. KG
• Landstrasse • D-74924 Neckarbischofsheim, Germany • Tel +49-7268-801-0 • Fax +49-07268-801-281 • www.telequarz.de
2/2
