AN8221FB datasheet, PDF - EEWORLD Datasheet

AN8221FB: DescriptionHDD Sensor-less Motor Driver IC; CategoryOther integrated circuit (IC) The signal circuit; File Size507KB，13 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric View All

AN8221FB Overview

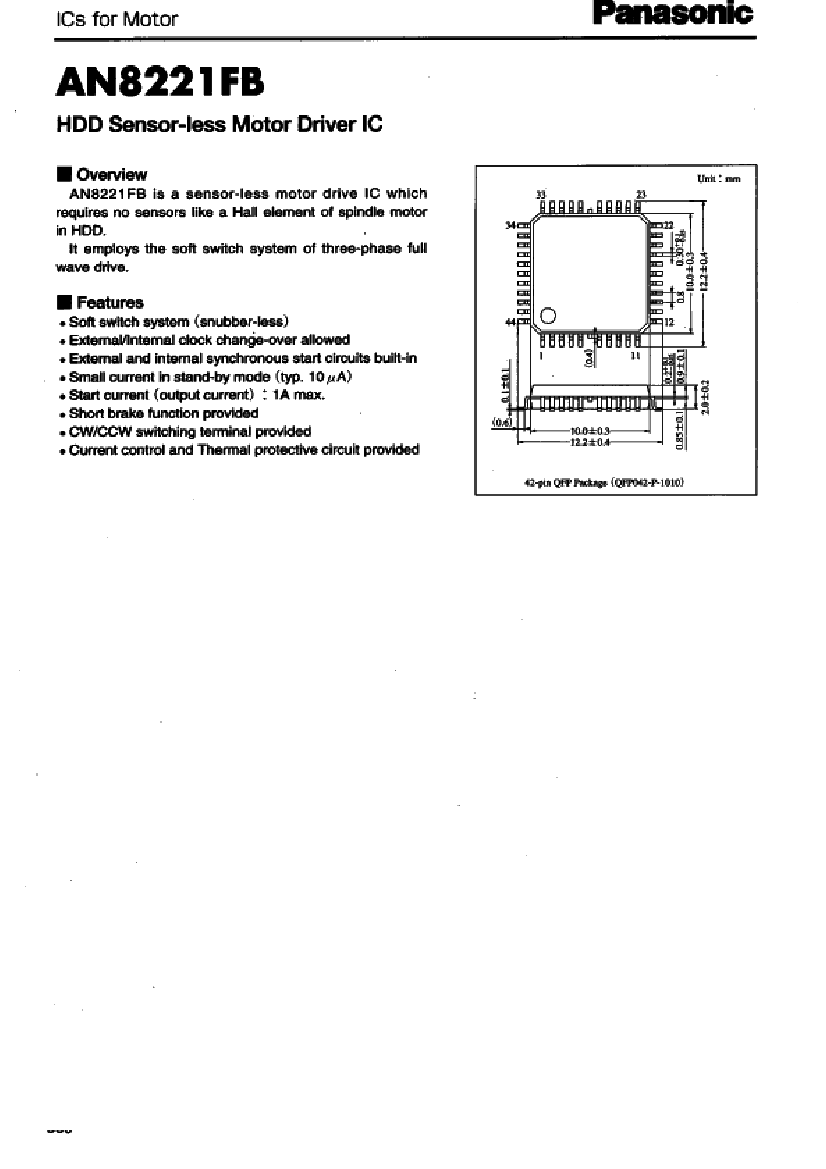

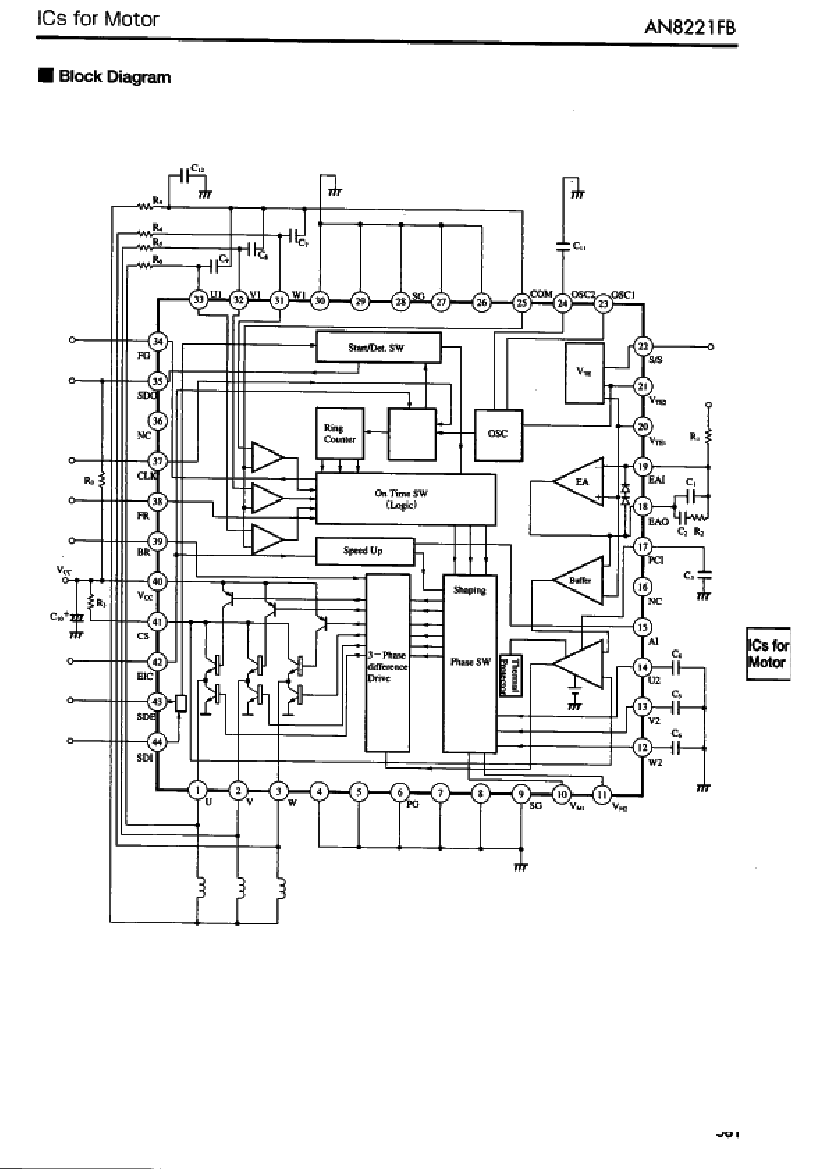

HDD Sensor-less Motor Driver IC

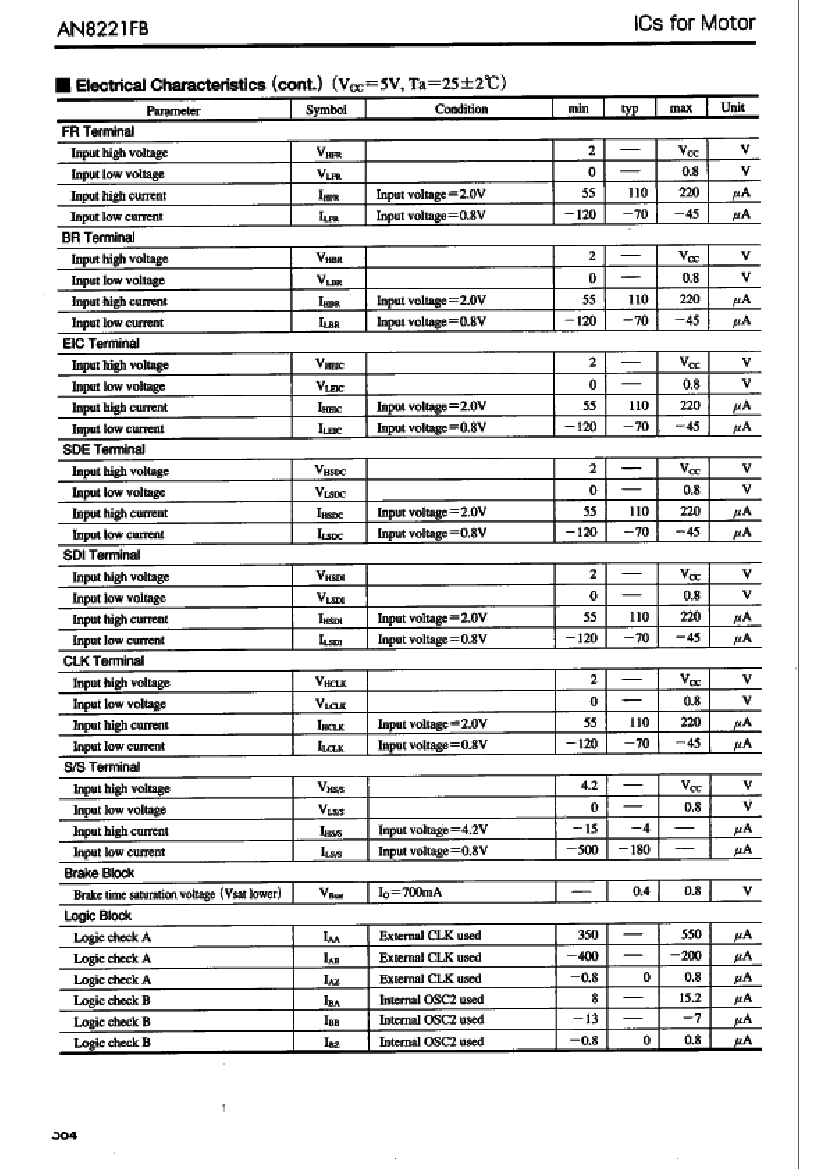

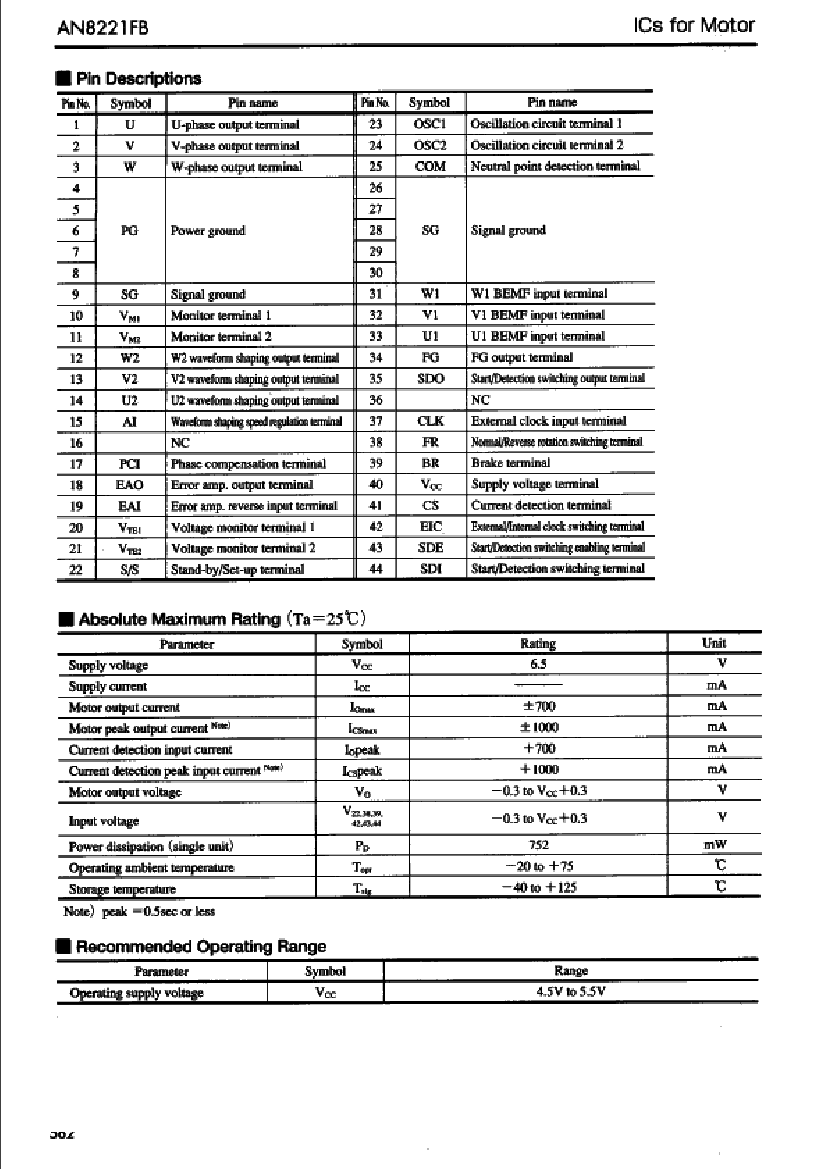

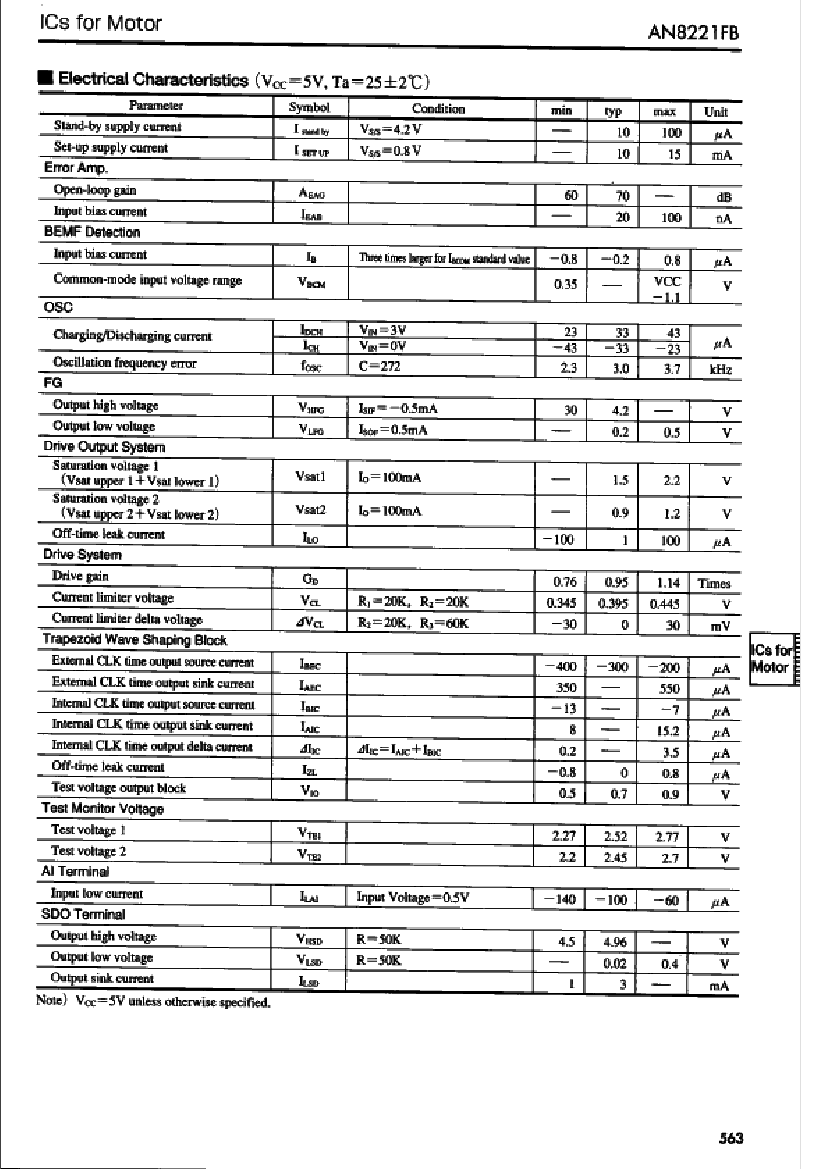

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QFP
package instruction	QFP, QFP44,.5SQ,32
Contacts	44
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DISK DRIVE MOTOR CONTROLLER
JESD-30 code	S-PQFP-G44
JESD-609 code	e0
length	10 mm
Number of functions	1
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP44,.5SQ,32
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	2.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10 mm
Base Number Matches	1
