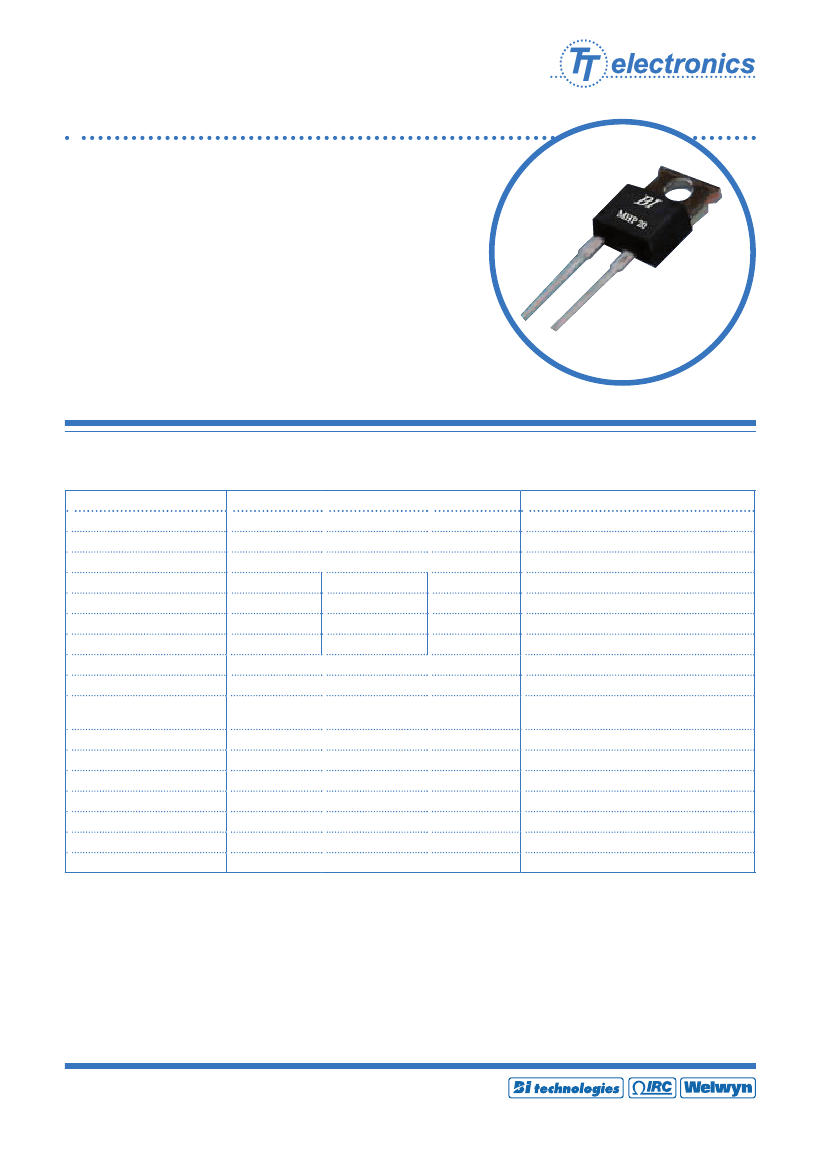

20W TO220
OBSOLETE
High Power Resistors
MHP 20
(Combined BI & IRC Datasheets)
·
·
·
·
·
·
·
·
·
·
·
·
Non-inductive.
Thermally enhanced Industry standard TO220 package.
RoHS compliant.
Low thermal resistance, 5.9 °C/W resistor hot spot to metal tab.
Complete thermal flow design available for easy implementation.
Superior vibration durability.
Small thin package for high density PCB installation.
Applications
High frequency circuits and high speed pulse designs.
Switch mode power supplies.
Motor control and drive circuits.
Automotive.
Industrial computing and measurement systems.
Specifications
Items
Power Rating
Power Rating
Thermal Resistance
Resistance Range
Nominal Resistance Series
TCR
Tolerance
Operation Temp. Range
Max. Operating Volt.
Dielectric Withstanding Volt-
age
Load Life
Humidity
Temp. Cycle
Soldering Heat
Solder ability
Insulation Resistance
Vibration
0.01-0.09
E6
250 ppm/°C
+/- 5% (J)
Specification
20 Watts
1.0 Watts
5.9 °C/W
0.1-9.1
E24
100 ppm/°C
5% (J)
-55°C to+155°C
500V or
P.R
60 seconds.
)
)
)
)
25 °C, 90 min. ON, 30 min. OFF, 1000 hours.
40°C, 90-95% RH, DC 0.1 W, 1000 hours.
-55 °C,30 min.,+155 °C,30 min., 5 cycles
250+/-5 °C, 3 seconds,
230+/-5 °C, 3 seconds.
Between terminals and tab.
)
10-220
E24
50 ppm/°C
+/-1% (F)
Conditions
-55 to 25 °C flange temperature
Free air.
Hot spot to Tab
Up to 51 K
2.5
also available
also available
and 5.0
-55 to +155 °C
2000 Volts AC
R +/-(1.0 %+0.05
R +/- (1.0 %+0.05
R +/- (0.25 %+0.05
R +/- (0.1 %+0.05
Over 95% of surface
Over 1,000 M
R +/- (0.25 %+0.05
General Note
TT electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT electronics’ own data and is considered accurate at time of going to print.
www.bitechnologies.com www.irctt.com www.welwyn-tt.com
© TT electronics plc
04.12

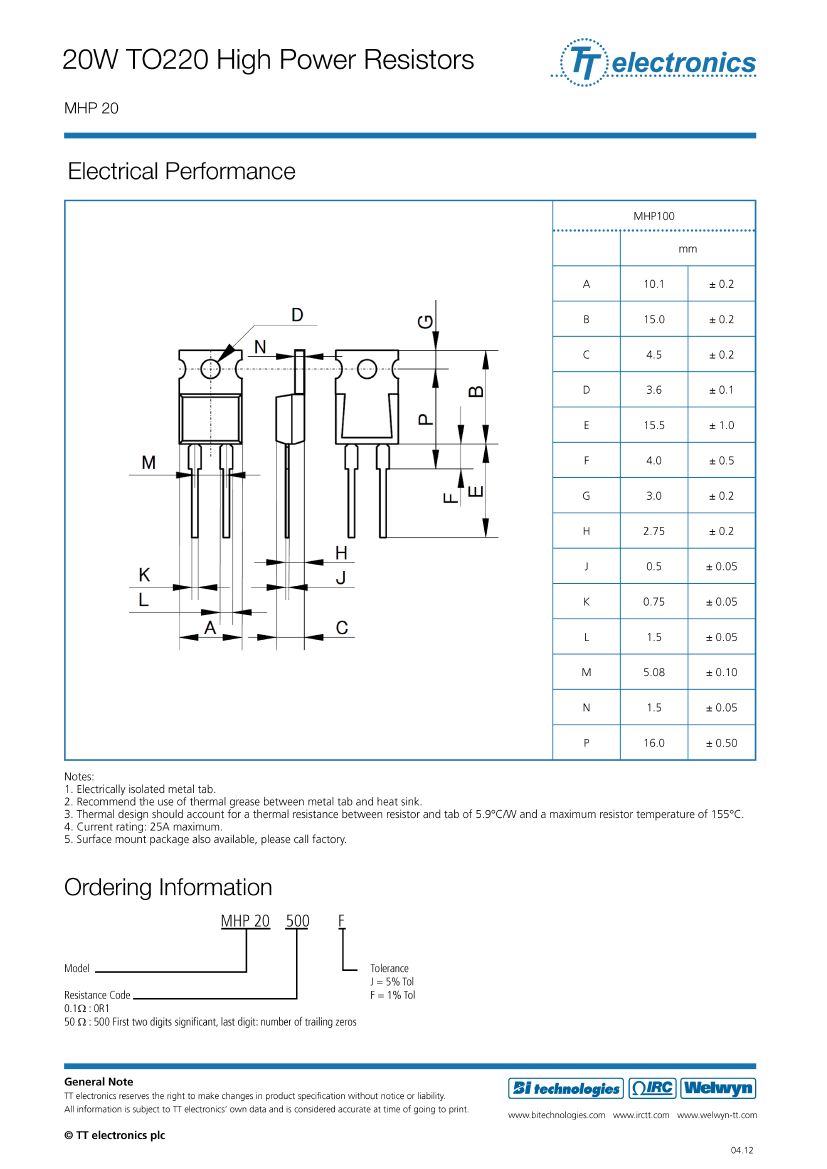

20W TO220 High Power Resistors
MHP 20
OBSOLETE
Electrical Performance
Derating Curve
Power (Watts)
Temperature Rise( C)
140
Temperature Rise
+25C
20
15
10
5
+155 C
0
-50
0
50
100
150
200
120
100
80
60
40
20
0
0
MHP 20 500 F
Flange Temperature (C )
10
20
Power (Watts)
Frequency Characteristics
Impedance (ohms)
10K
MHP 20 10K0 F
MHP20 100F
Pulse Energy Durability
Pulse peak power (W)
100K
Tentative continuous-pulse power allowance at duty 0.01
Load life test will be necessary in actual equipment.
Because curve will be changed by resistance, repetition,
duty and operating temperature.
MHP 20 1K0 F
1K
10K
1K
200W
100
20W
10
10n
MHP 20 101 F
100
MHP 20 500 F
10
100n 1 u
10u
100u
1m 10m 100m
Pulse width (seconds)
1
10
100
MHP 20 220F
10K
100K
1M
10M
100M
1G
General Note
TT electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT electronics’ own data and is considered accurate at time of going to print.
www.bitechnologies.com www.irctt.com www.welwyn-tt.com
© TT electronics plc
04.12

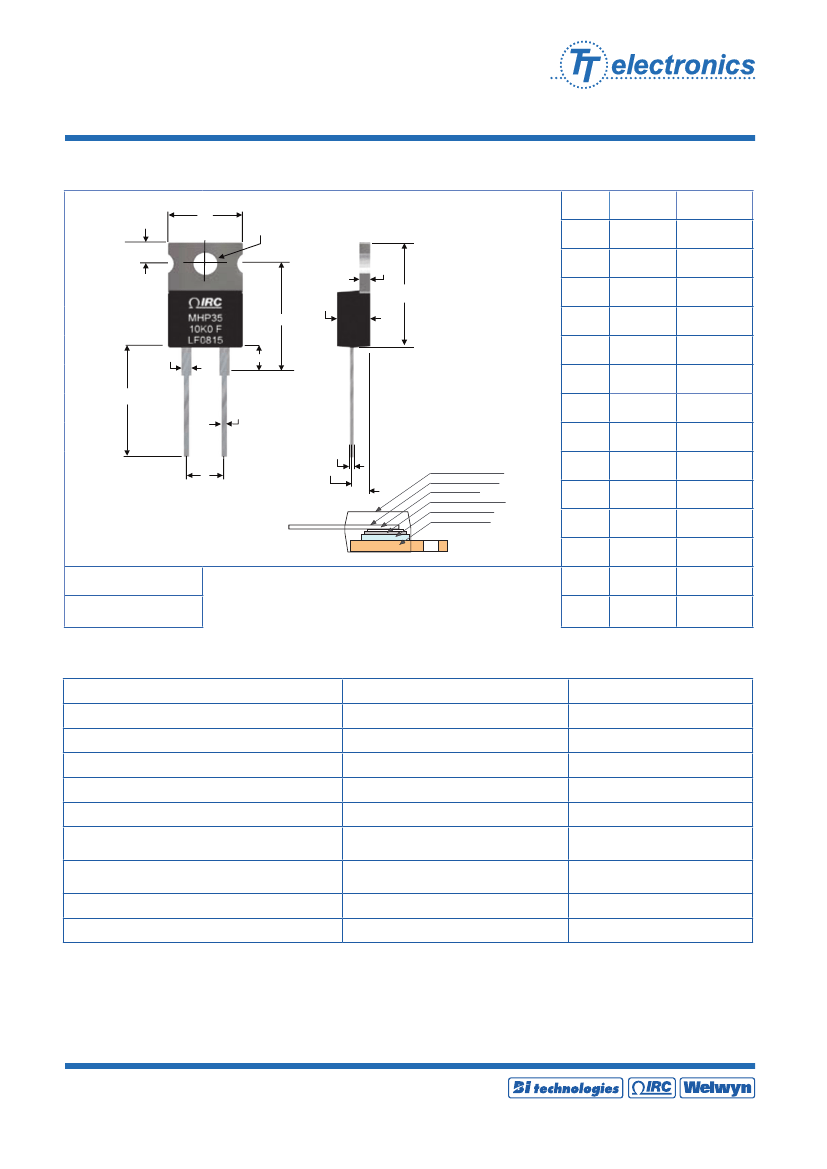

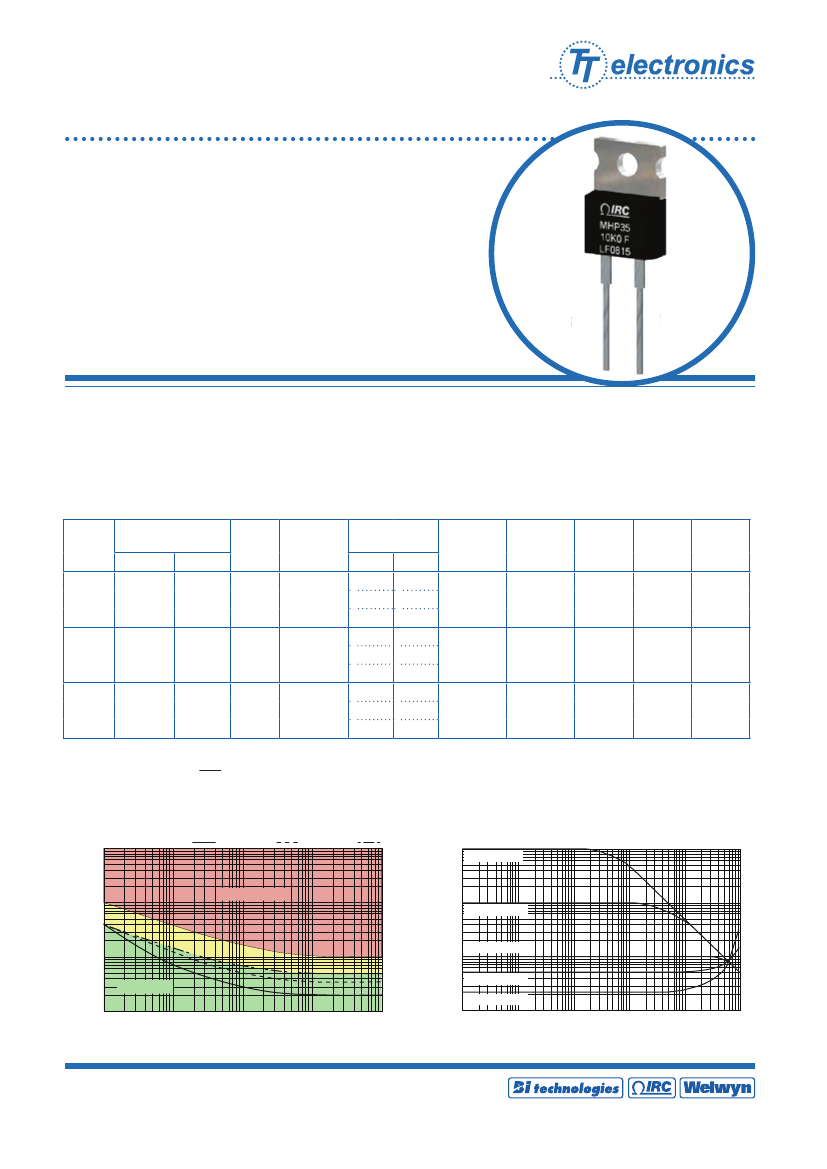

MHP TO-220 Series
Power Resistor
OBSOLETE
MHP Series
·
·
·
·
·
·
TO-220 housing
Low inductance and capacitance for
high frequency circuits
Available in 20W, 35W, or 50W
High stability film resistance elements
RoHS compliant
Approved to DSCC drawings 07017 and 07018
IRC’s MHP series resistors satisfy demanding applications for accurate
and stable power resistors housed in the convenient TO-220 case. The
resistance element is isolated from the mounting tab by an alumina ceramic layer, providing very low ther-
mal resistance and ensuring high insulation resistance between terminals and tab. The non-inductive design
makes these products especially useful in high frequency and high speed pulse applications.
Electrical Data
Type
Power Rating
1
Heatsink
2
Free Air
3
Voltage
Rating
4
Thermal
Resistance
Resistance
Range
Min
0.01Ω
MHP-20
20W
2.25W
500V
5.9°C/W
0.1Ω
10Ω
0.01Ω
MHP-35
35W
2.25W
500V
3.3°C/W
0.1Ω
10Ω
0.01Ω
MHP-50
50W
2.25W
500V
2.3°C/W
0.1Ω
10Ω
1
2
Tolerances
Max
0.09Ω
9.1Ω
51KΩ
0.09Ω
9.1Ω
51KΩ
0.09Ω
9.1Ω
51KΩ
±1%, ±5%
±1%, ±5%
±1%, ±5%
Nominal
Resistance
Series
5
E24
Includes
2.5 & 5.0
multiplier
E24
Includes
2.5 & 5.0
multiplier
E24
Includes
2.5 & 5.0
multiplier
Typ. TCR
(ppm/°C)
Induc-
tance
Capaci-
tance
See Chart
<9nH
<2pF
See Chart
<9nH
<2pF
See Chart
<10nH
<2pF
Maximum current 25 amps
Power rating based on 25°C tab temperature
3
Power rating based on 25°C ambient temperature
4
Maximum voltage 500V or
√
P x R
5
Contact factory for availability of resistance or tolerance
values outside this range
Pulse Energy Durability
10K
Frequency Characteristics
10K
MHP20LF 10K
MHP20
MHP35
MHP50
Pulse Peak (Watts)
1K
Damage Level
Impedance (ohms)
1K
MHP20LF 1K00
MHP20LF 100R
100
Safety Zone
10
10µ
100
MHP20LF 50R0
MHP20LF 22R0
100µ
1m
10m
100m
10
10K
100K
1M
10M
100M
1G
Pulse Width (seconds)
Frequency(Hz)
General Note
TT electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT electronics’ own data and is considered accurate at time of going to print.
www.bitechnologies.com www.irctt.com www.welwyn-tt.com
© TT electronics plc
09. 11
MHP TO-220 Series
Power Resistor
MHP Series
OBSOLETE
Note: Metal tab is electrically isolated.
A
G
C
L
ØD
Physical Data
Dim
A
N
B
C
P
in (nom)
0.398
0.591
0.177
0.142
0.610
0.158
0.118
0.108
0.020
0.030
0.059
0.200
0.059
0.630
mm
10.1 ±.2
15.0 ±0.2
4.5 ±0.2
3.6 ±0.1
15.5 ±1.0
4.0 ±0.5
3.0 ±0.2
2.75 ±0.2
0.5 ±0.05
0.75 ±0.05
1.5 ±0.05
5.08 ±0.1
1.5 ±0.05
16.0 ±0.1
C
L
B
C
ØD
E
F
L
F
E
K
G
H
J
M
C
L
C
L
H
C
L
Case, Epoxy UL94-V0
Leads, Sn Plated Cu
Conductor, Cu
Resistor, Ni-Cr or RuO
Substrate, Alumina
Tab, Ni Plated Cu
J
K
L
M
N
P
Insulated Between Tab and Resistor
Lead Material
Tab Material
Tin Plated Copper
Nickel Plated Copper
Environmental Data
Test
Thermal Shock
Moisture Resistance
Vibration
Load Life
Resistance to Solder Heat
Dielectric Withstanding Voltage
Insulation Resistance (between terminal and
tab)
Solderability
Operating Temperature Range
*
During soldering, the soldering temperature profile must not cause the metal tab of this device to exceed 220°C.
Method
MIL-STD-202 Method 107 Condition F
MIL-STD-202 Method 106
MIL-STD-202 Method 204 Condition D
MIL-STD-202 Method 108 1,000 Hours
MIL-STD-202 Method 210 Condition B
MIL-STD-202 Method 301
MIL-STD-202 Method 302
MIL-STD-202 Method 208
Specification - Performance
±0.30% + 50mΩ
±1.0% + 50mΩ
±0.25% + 50mΩ
±1.0% + 50mΩ
±0.25% + 50mΩ
2200 volts DC or 1500 volts AC;
60 seconds
>1000MΩ
>95% coverage
-55°C to +155°C
General Note
TT electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT electronics’ own data and is considered accurate at time of going to print.
www.bitechnologies.com www.irctt.com www.welwyn-tt.com
© TT electronics plc
09. 11
