20.3mm (0.8INCH) DUAL DIGIT NUMERIC

DISPLAY

Part Number: DA08-11GWA

Green

Features

0.8 inch digit height.

Excellent character appearance.

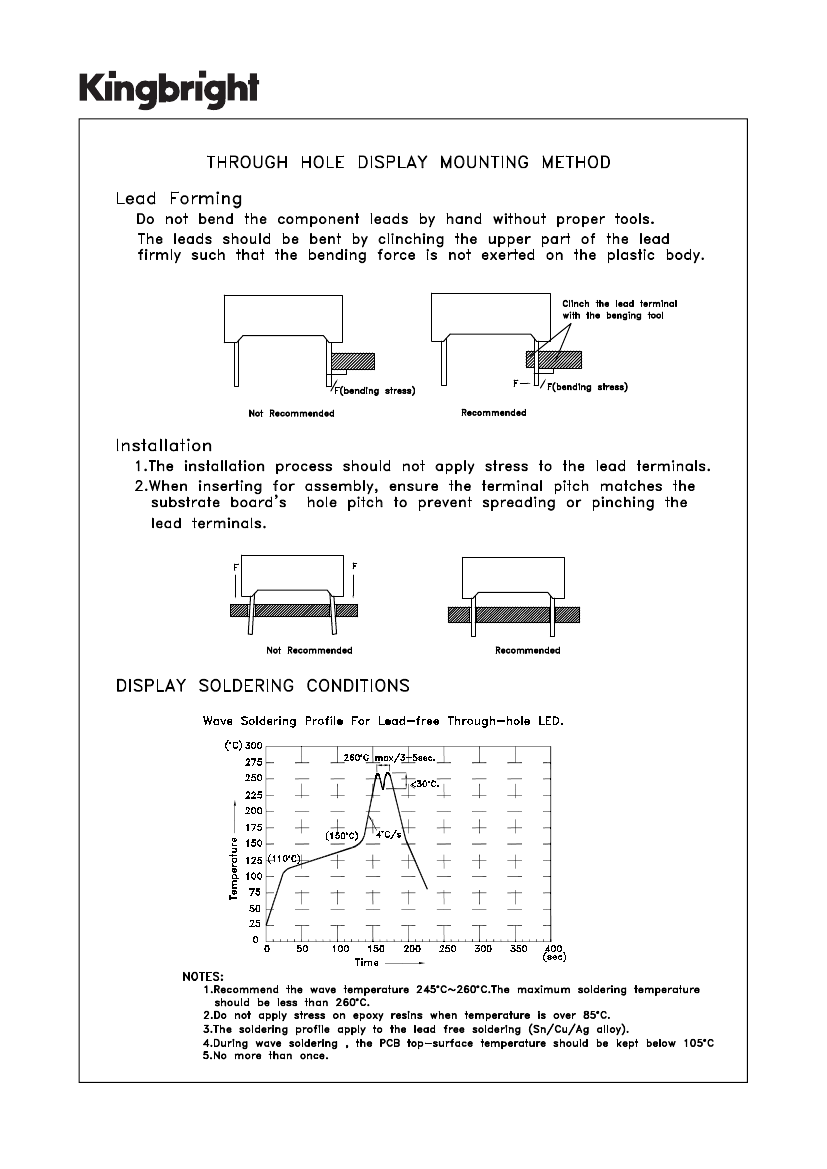

Easy mounting on P.C. boards or sockets.

Two digit package simplifies alignments & assembly.

Mechanically rugged.

Standard : gray face, white segment.

RoHS compliant.

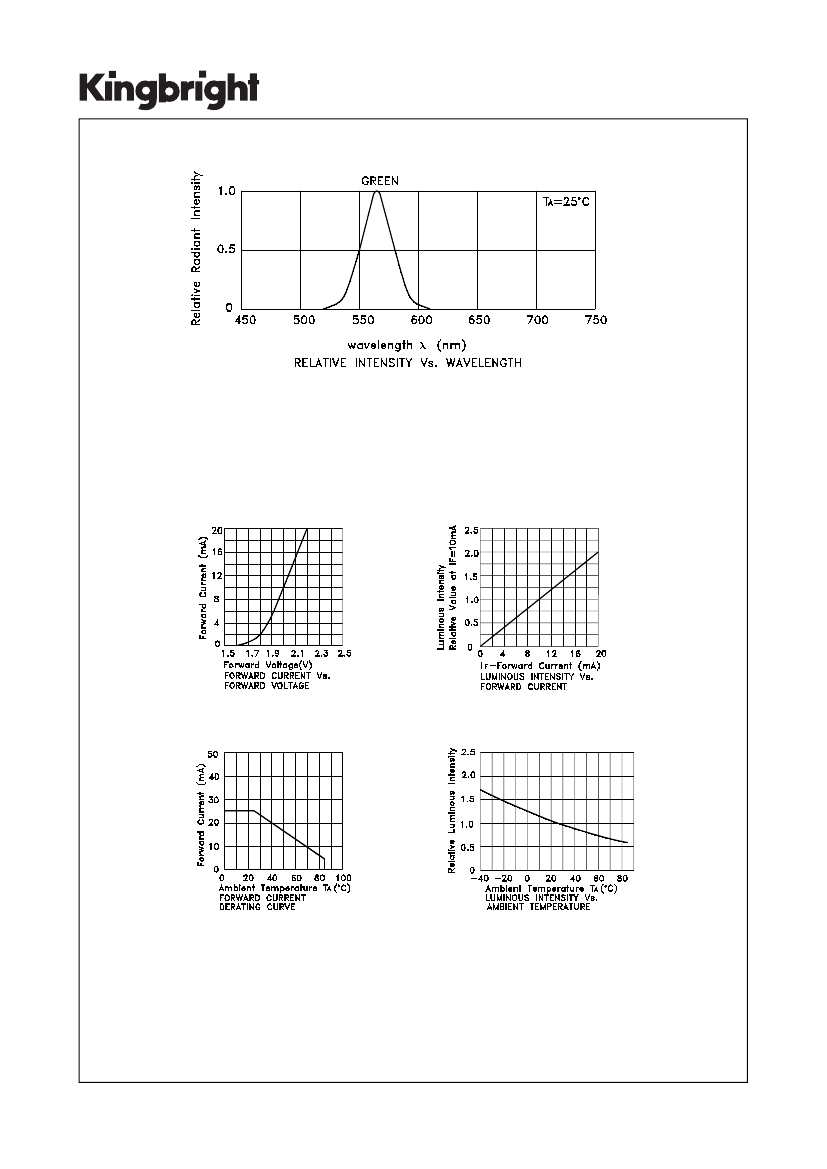

Description

The Green source color devices are made with Gallium

Phosphide Green Light Emitting Diode.

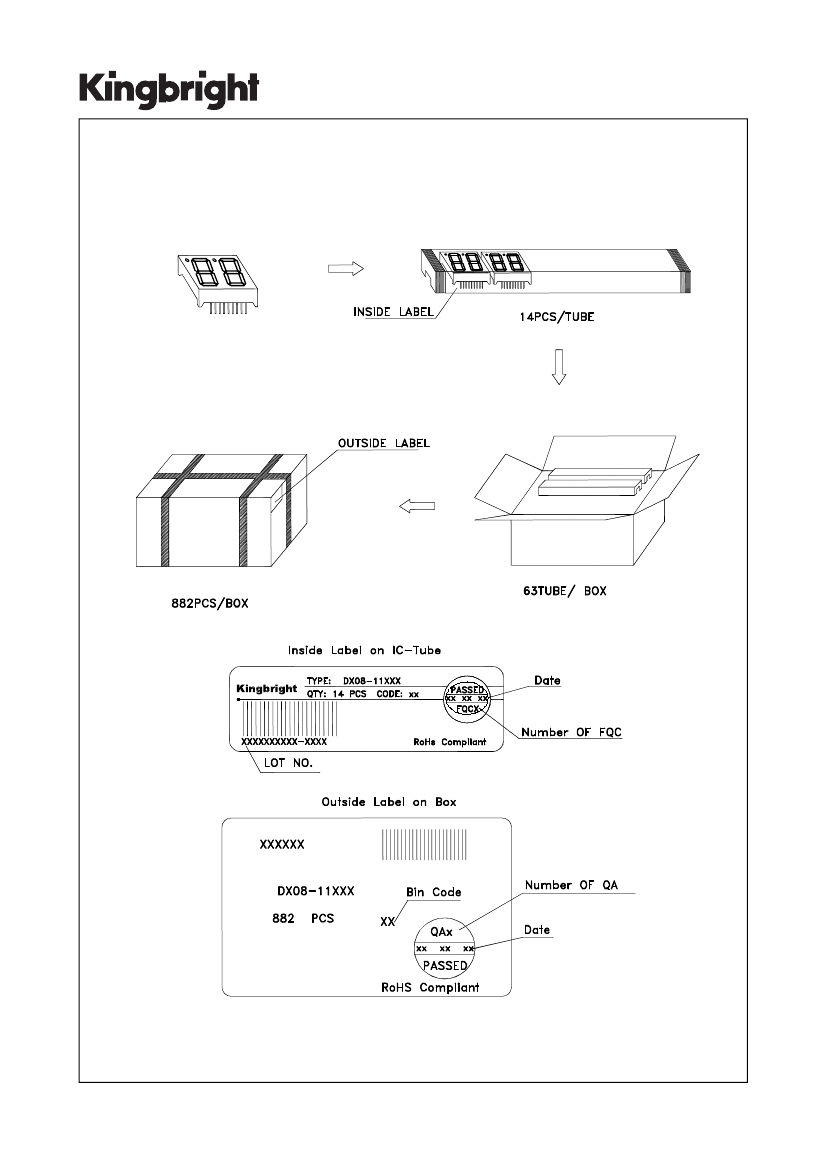

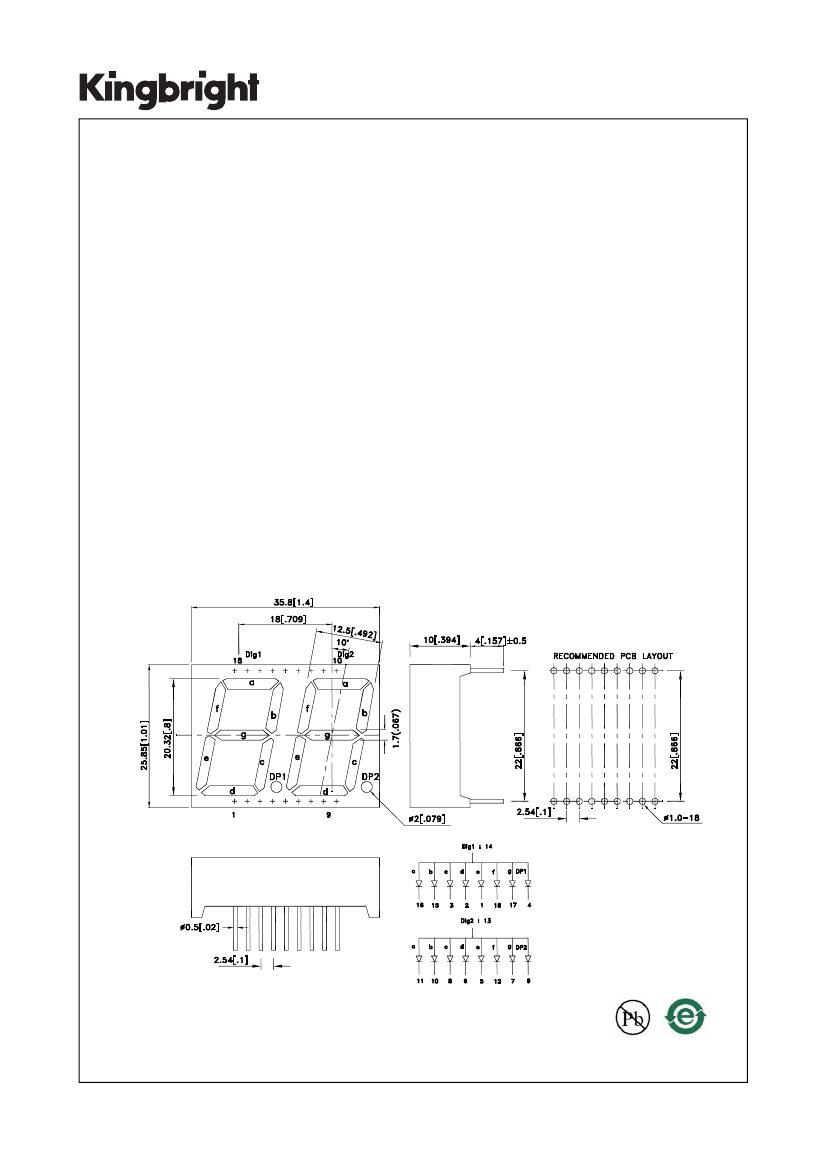

Package Dimensions& Internal Circuit Diagram

Notes:

1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.

2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

SPEC NO: DSAB5117

APPROVED: WYNEC

REV NO: V.11

CHECKED: Joe Lee

DATE: MAR/05/2011

DRAWN: J.Yu

PAGE: 1 OF 6

ERP: 1302000165
