H-133C-1-140 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> H-133C-1-140

H-133C-1-140: DescriptionLED Mounting Hardware LED Holder 3mm Single Level Black; CategoryLED optoelectronic/LED photoelectric; File Size42KB，1 Pages; ManufacturerBivar; Environmental Compliance

Download Datasheet Parametric View All

H-133C-1-140 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	H-133C-1-140	-	-	View	Buy Now

H-133C-1-140 Overview

LED Mounting Hardware LED Holder 3mm Single Level Black

H-133C-1-140 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bivar
Reach Compliance Code	unknown
Optoelectronic device types	LED MOUNTING HARDWARE

Preview

Download Datasheet

View All

REV.

DESCRIPTION

DATE

APPROVED

DIA

0.100 [2.5mm]

0.025 [0.6mm] SQ.

TYP.

C/L

0.240 [6.1mm]

0.200 [5.1mm]

0.085 [2.2mm]

Engineering Update w/o Changes

Removed Part Numbers

Removed Material Code

02/26/04

05/08/15

05/28/16

M. C.

J. C.

0.170 [4.3mm]

Cathode I.D. Mark

1 (H-13XC-1-XXX)

2 (H-13XC-2-XXX)

0.130 [3.3mm]

Holder Faces

0.210 [5.3mm]

Ø.032+.003

-.002

TYP.

0.172 [4.4mm] Holder Pitch

0.100 [2.5mm] LED Lead

Recommended Mounting Holes

PART NO.

H-130C SERIES

H-130C-1-120

H-130C-2-120

H-130C-1-140

H-131C SERIES

H-131C-1-120

H-131C-2-120

H-131C-1-140

H-131C-2-140

H-131C-1-160

H-131C-2-160

H-131C-1-180

H-131C-2-180

H-132C SERIES

H-132C-1-120

H-133C SERIES

H-133C-1-120

H-133C-2-120

H-133C-1-140

MARK

H-130C

H-131C

H-132C

H-133C

DIA

.128 [3.3mm]

.150 [3.8mm]

.128 [3.3mm]

.150 [3.8mm]

.128 [3.3mm]

.150 [3.8mm]

.128 [3.3mm]

.150 [3.8mm]

C/L

H-132C-1-140

.120 [3.0mm]

.250 [6.4mm]

H-130C-1-160

H-132C-1-180

H-133C-1-180

.140 [3.6mm]

.270 [6.9mm]

H-130C-1-180

.160 [4.1mm]

.290 [7.4mm]

.180 [4.6mm]

.310 [7.9mm]

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

.XX

.XXX

± .1

± .01

± .005

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

TITLE:

DATE:

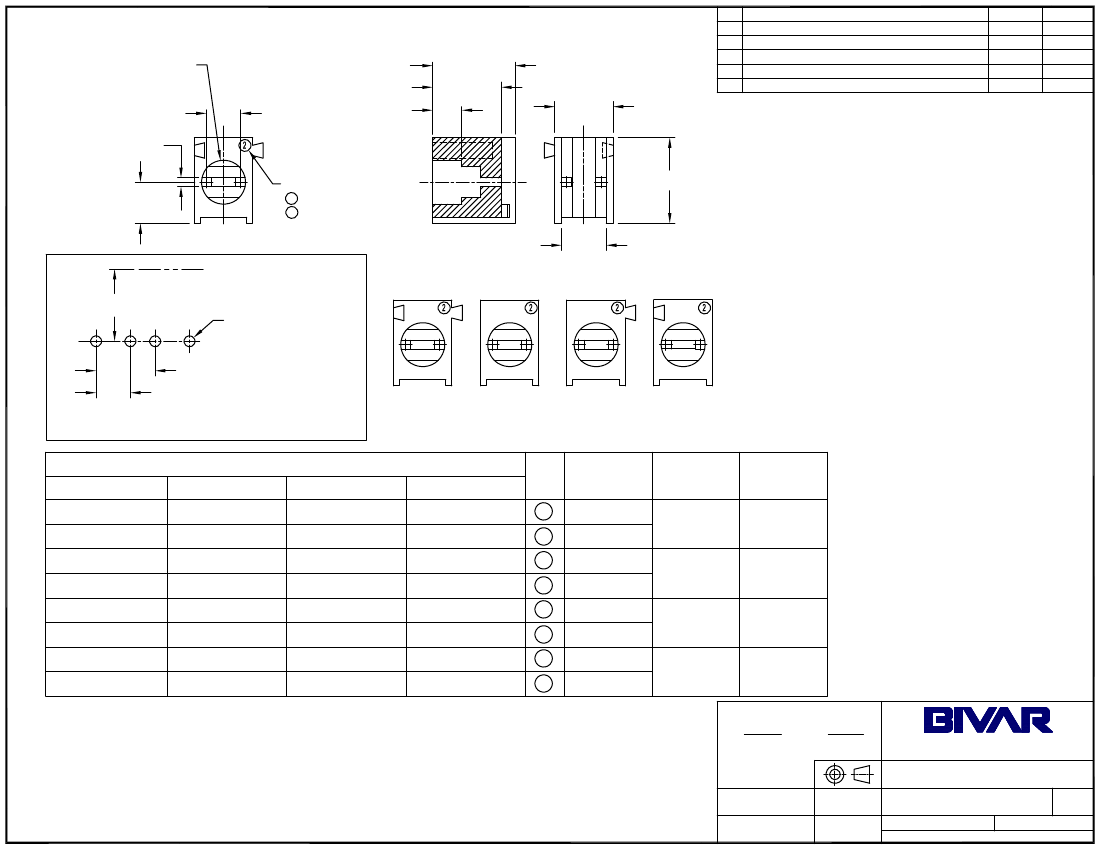

T-1 (3mm) LED HOLDER

INTERLOCKING VARIABLE CENTERLINE

REVISION:

2. MATERIAL: NYLON 6/6, 94V-0, BLACK.

1. GENERAL SPECIFICATIONS: BIVAR MOLDED COMPONENT SPECIFICATION BV00-E101.

DESIGNED:

PART NO:

M. Chen

CHECKED:

01/21/03

DATE:

H-13XC-X-XXX

D. Green

01/21/03

CAGE CODE : 32559

SHEET #

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
