1140-E211-P1M1-10A: DescriptionCircuit Breaker;Therm;Push;Cur-Rtg 12A;Panel;1 Pole;Vol-Rtg 240/48VAC/VDC; CategoryCircuit protection; File Size113KB，4 Pages; ManufacturerETC

Download Datasheet View All

1140-E211-P1M1-10A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1140-E211-P1M1-10A	-	-	View	Buy Now

1140-E211-P1M1-10A Overview

Circuit Breaker;Therm;Push;Cur-Rtg 12A;Panel;1 Pole;Vol-Rtg 240/48VAC/VDC

1140-E211-P1M1-10A Preview

Thermal Overcurrent Circuit Breaker 1140-...

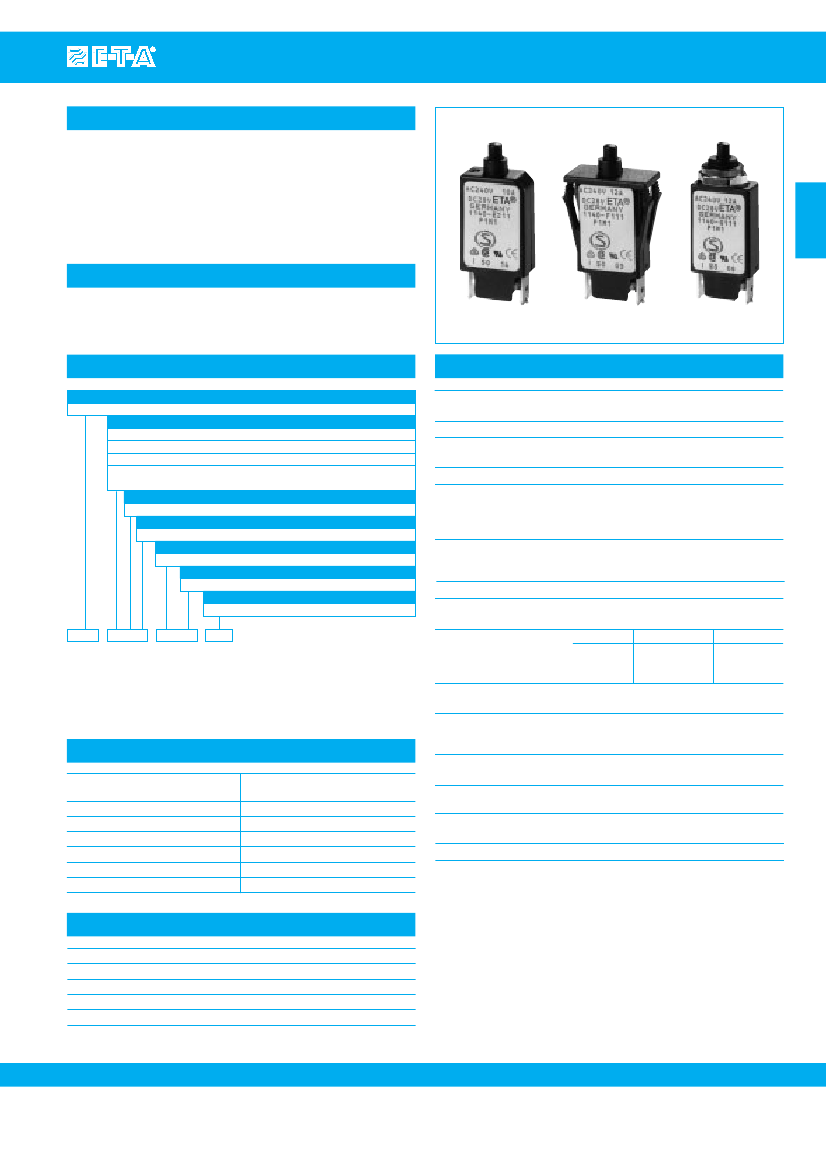

Description

Miniaturised single pole thermal circuit breaker with push-to-reset

tease-free, trip-free, snap action mechanism (R-type TO CBE to EN

60934). Available in versions for panel mounting, snap-in or threadneck,

or as an integral type. For lower current ratings see types 104, 105, 106.

Approved to CBE standard EN 60934 (IEC 60934).

Typical applications

Motors, transformers, solenoids, hand-held machines and appliances.

1140-E...

Ordering information

Type No.

1140

single pole thermal circuit breaker

Mounting

E2 integral mounting

F1 snap-in panel mounting

G1 threadneck panel mounting 3/8-27UNS with hex nut and knurled nut *

G2 threadneck panel mounting 3/8-27UNS for standard fuseholder cut-out*

with plastic knurled nut

Number of poles

1 1 pole protected

Actuator style

1 black push button (standard)

Terminal design

P1 blade terminals A6.3-0.8

(QC .250)

Characteristic curve

M1 medium delay

Current ratings

3.5...16 A

1140 - F1 1 1 - P1 M1 - 10 A

*mounting hardware bulk shipped

Packaging quantity: 125 pcs

ordering example

1140-F...

1140-G.1.

Technical data

Voltage rating

Current ratings

Typical life

Ambient temperature

Insulation co-ordination

(IEC 60664 and 60664A)

AC 240 V; DC 48 V

(AC 250 V; DC 50 V UL/CSA)

3.5...16 A

3.5...8 A 1000 operations at 2 x I

10...16 A 50 operations at 2 x I

-20...+60

°C

(-4...+140

°F)

T 60

Rated impulse

Pollution

withstand voltage degree

2.5 kV

reinforced insulation in operating area

Test voltage

AC 3,000 V

> 100 MΩ (DC 500 V)

3.5... 8 A 8 x I

10...16 A 120 A

3.5...16 A

3.5 ... 7A

8 ...16 A

DC 50 V

AC 250 V

200 A

1,000 A

2,000 A

Dielectric strength

(IEC 60664 and 60664A)

operating area

Insulation resistance

Interrupting capacity I

Interrupting capacity

(UL 1077)

Degree of protection

(IEC 60529/DIN 40 050)

Vibration

operating area IP 40

terminal area IP 00

10 g (57-500 Hz)

±0.76

mm (10-57 Hz),

to IEC 60068-2-6, Test Fc,

10 frequency cycles/axis

25 g (11 ms)

to IEC 60068-2-27, test Ea

96 hours at 5 % salt mist,

to IEC 60068-2-11, test Ka

240 hours at 95 % RH

to IEC 60068-2-3, test Ca

approx. 10 g

Standard current ratings and typical internal resistance values

Shock

Current

rating (A)

3.5

Internal

resistance (Ω)

0.06

0.04

0.03

0.02

< 0.02

Current

rating (A)

Internal

resistance (Ω)

< 0.02

Corrosion

Humidity

Mass

Approvals

Authority

VDE

UL / CSA

Semko

Kema (EN 60934)

Voltage ratings

AC 240 V; DC 28 V

AC 250 V; DC 50 V

AC 240 V

AC 240 V; DC 48 V

Current ratings

7 ...16 A

3.5...16 A

7 ...16 A

3.5...16 A

All dimensions without tolerances are for reference only. In the interest of improved design,

performance and cost effectiveness the right to make changes in these specifications without

notice is reserved.Product markings may not be exactly as the ordering codes. Errors and

omissions excepted.

Issue C

☎

USA (847) 827-7600 - CANADA (905) 764-9510

Thermal Overcurrent Circuit Breaker 1140-...

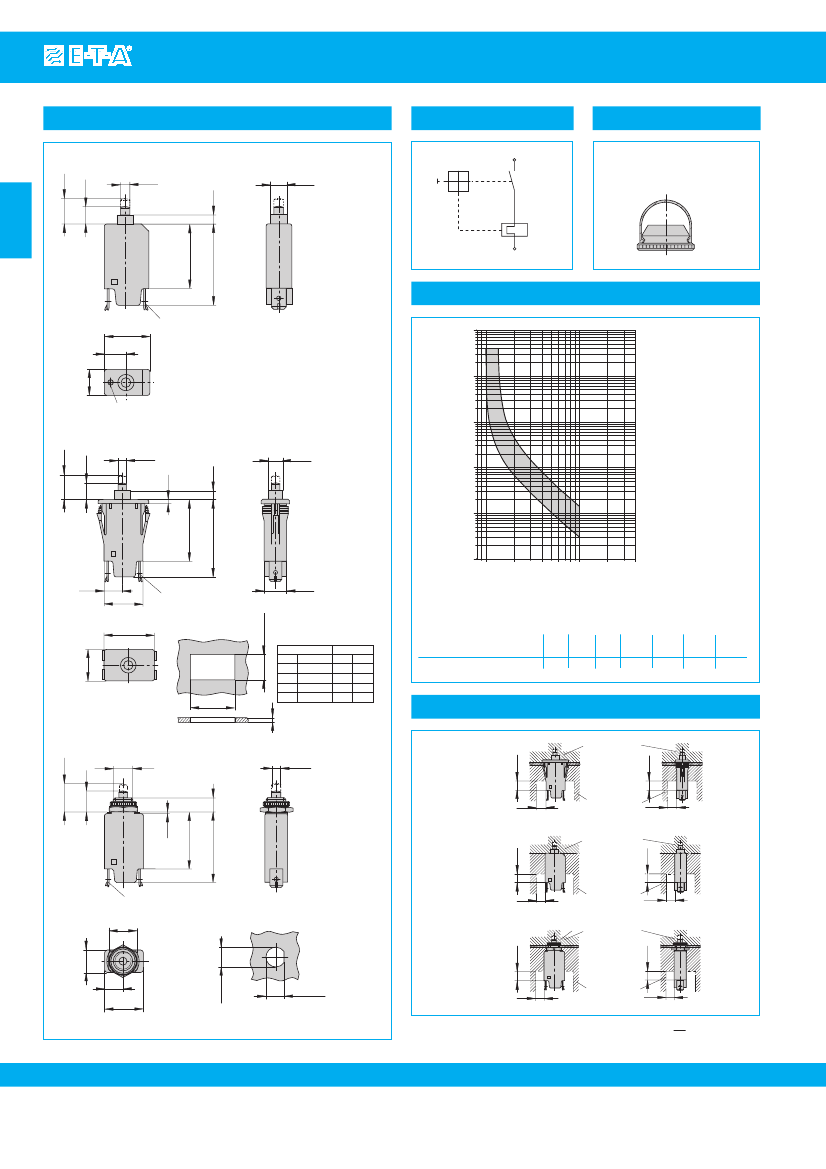

Dimensions

1140-E211-P1M1

OFF

.433

7.8

.307

ø4.2

.165

ø7

.276

Internal connection diagram

Accessory

Water splash cover/knurled

nut assembly, transparent

X 201 285 01

(IP 64)

27.5

1.08

.157

34.5

1.36

Typical time/current characteristics at +23°C/+73.4°F

.748

blade terminal

DIN 46244-A6.3-0.8 (QC .250)

10000

.354

.433

1000

Trip time in seconds

hole for

mounting screw M2x5

100

1140-F111-P1M1

OFF

.433

7.8

.307

.157

ø4.2

.165

ø7

.276

.079

27.5

1.08

34.5

1.36

0.1

.354

.748

.984

blade terminal

DIN 46244-A6.3-0.8

(QC .250)

panel cut-out

.433

4 6 8 10

… times rated current

11.3

+0.3

.445

+.012

The time/current characteristic curve depends on the ambient temperature

prevailing. In order to eliminate nuisance tripping, please multiply the circuit

breaker current ratings by the derating factor shown below. See also section 9

– Technical information.

Ambient temperature

°F

°C

Multiplication factor

-4

+14 +32 +73.4 +104 +122 +140

-20 -10 0

+23

+40

+50

+60

0.76 0.84 0.92 1

1.08 1.16

1.24

1140-G111-P1M1

.315

OFF

ø4.2

.165

0.8

1.0

1.5

2-3

inch

.031

21.9 .862

.039

22 .866

.059

22.1 .870

.079-.118 22.2 .874

.551

Installation drawings

1140-F...

operating area

.551

10.8

.425

.276

.315

mounting area

0.7

.028

27.5

1.08

34.5

1.36

1140-E...

.315

operating area

blade terminal

DIN 46244-A6.3-0.8 (QC .250)

mounting hole

SW 14

.551

.315

mounting area

1140-G...

operating area

.433

.354

.748

.378

-.004

ø9.6

-0.1

8.9

-0.1

.350

-.004

.315

mounting area

.315

This is a metric design and millimeter dimensions take precedence

(

inch

)

☎

USA (847) 827-7600 - CANADA (905) 764-9510

.315

tightening torque max. 1 Nm

3/8-27 UNS-2A

Issue C

Thermal Overcurrent Circuit Breaker 1140-... (2 pole)

Description

Miniaturised double pole thermal circuit breaker with push-to-reset tease-

free, trip-free, snap action mechanism (R-type TO CBE to EN 60934).

Threadneck panel mounting. Suitable for line and neutral switching - the

thermal actuator operating on one pole simultaneously opens both poles

under overload conditions. Approved to CBE standard EN 60934 (IEC

60934).

Typical applications

Motors, transformers, solenoids, hand-held machines and appliances.

Especially suited to AC duties where the correct orientation of line/

neutral is not known/cannot be guaranteed.

1140-G.5.

Technical data

Voltage rating

Current ratings

Typical life

AC 240 V; DC 48 V

(AC250 V; DC 50 V UL/CSA)

0.05...16 A

0.05...3 A 3,000 operations at 2 x I

3.5... 8 A 1,000 operations at 2 x I

10... 16 A

50 operations at 2 x I

-20...+60

°C

(-4...+140

°F)

T 60

Rated impulse

Pollution

withstand voltage degree

2.5 kV

reinforced insulation in operating area

Test voltage

AC 3,000 V

AC 1,500 V

> 100 MΩ (DC 500 V)

0.05...3 A

3.5... 8 A

10... 16 A

0.05...16 A

0.05...7 A

8...16 A

6 x I

8 x I

120 A

DC 50 V

AC 250 V

200 A

1,000 A

2,000 A

Ordering information

Type No.

1140 double pole threadneck panel mounting

Mounting

G1 threadneck panel mounting 3/8-27UNS, with hex nut and knurled nut *

G2 threadneck panel mounting 3/8-27UNS, with plastic knurled nut*

Number of poles

5 double pole, 1 pole protected

Actuator style

1 black push button (standard)

Terminal design

P7 blade terminals DIN 46244-C

(QC 2x.110)

Characteristic curve

M1 medium delay

Current ratings

0.05...16 A

1140 - G1 5 1 - P7 M1 - 16 A

*mounting hardware bulk shipped

Packaging quantity: 125 pcs

ordering example

Ambient temperature

Insulation co-ordination

(IEC 60664 and 60664A)

Dielectric strength

(IEC 60664 and 60664A)

operating area

pole/pole

Insulation resistance

Interrupting capacity I

Interrupting capacity

(UL 1077)

Standard current ratings and typical internal resistance values

Current

rating (A)

0.05

0.06

0.08

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

1.2

1.5

Internal

resistance (Ω)

345

240

142

9.9

5.9

3.7

2.2

1.9

1.4

0.9

0.6

0.5

Current

rating (A)

1.8

2.5

3.5

Internal

resistance (Ω)

0.3

0.2

0.1

0.06

0.04

0.03

0.02

< 0.02

Authority

All dimensions without tolerances are for reference only. In the interest of improved design,

performance and cost effectiveness the right to make changes in these specifications without

notice is reserved.Product markings may not be exactly as the ordering codes. Errors and

omissions excepted.

Degree of protection

(IEC 60529/DIN 40050)

Vibration

operating area IP 40

terminal area IP 00

10 g (57-500 Hz)

±0.76

mm (10-57 Hz),

to IEC 60068-2-6, Test Fc,

10 frequency cycles/axis

25 g (11 ms)

to IEC 60068-2-27, test Ea

96 hours at 5 % salt mist,

to IEC 60068-2-11, test Ka

240 hours at 95 % RH

to IEC 60068-2-3, test Ca

approx. 13 g

Shock

Corrosion

Humidity

Mass

Approvals

Voltage ratings

AC 240 V; DC 28 V

AC 250 V; DC 50 V

AC 240 V; DC 48 V

Current ratings

0.05...16 A

VDE

UL, CSA

Kema (EN 60934)

Issue C

☎

USA (847) 827-7600 - CANADA (905) 764-9510

Thermal Overcurrent Circuit Breaker 1140-... (2 pole)

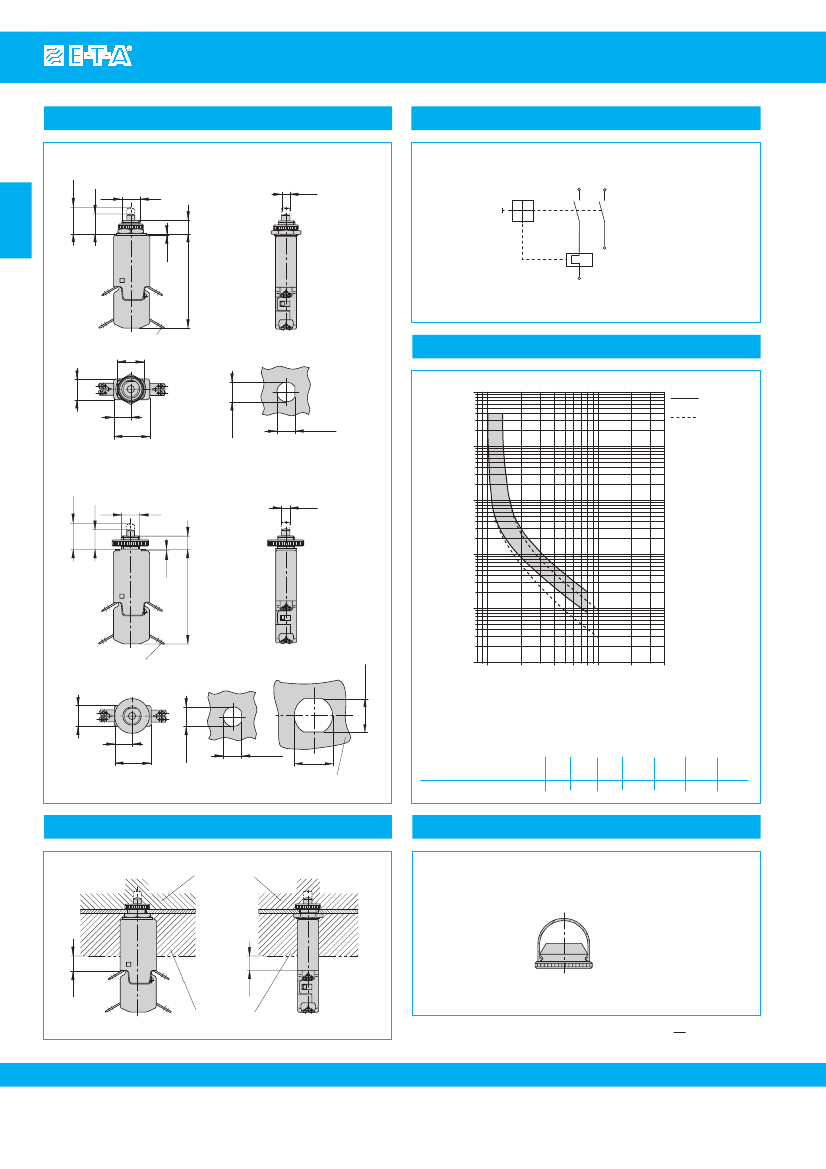

Dimensions

1140-G15...

Internal connection diagram

tightening moment max. 1 Nm

3/8-27 UNS-2A

OFF

ø4.2

.165

.551

10.8

.425

0.7

.028

.276

49.5

1.95

blade terminal

DIN 46244-A6.3-0.8 (QC .110)

SW 14

.551

.433

mounting hole

Typical time/current characteristics at +23°C/+73.4°F

10000

0.05 - 3 A

3.5 - 16 A

.354

.748

.378

-.004

ø9.6

8.9

-0.1

.350

-.004

1000

1140-G25...

tightening moment max. 1 Nm

3/8-27 UNS-2A

ø4.2

.165

Trip time in seconds

OFF

100

.551

10.8

.425

.276

0.7

.028

49.5

1.95

13.8

+0.15

-0.1

mounting holes

.543

+.006

- .004

blade terminal

DIN 46244-A6.3-0.8 (QC .110)

0.1

6 8 10

… times rated current

.433

.354

.748

ø9.6

.378

-.004

8.9

-0.1

.350

-.004

The time/current characteristic curve depends on the ambient temperature

prevailing. In order to eliminate nuisance tripping, please multiply the circuit

breaker current ratings by the derating factor shown below. See also section 9

– Technical information.

Ambient temperature

°F

°C

Multiplication factor

-4

+14 +32 +73.4 +104 +122 +140

-20 -10 0

+23

+40

+50

+60

0.76 0.84 0.92 1

1.08 1.16

1.24

ø16

0.1

.630

.004

panel thickness >0.8 mm (.031in.)

Installation drawing

Accessories

Water splash cover/knurled nut assembly, transparent

X 201 285 01

(IP 64)

operating area

.315

mounting area

.315

This is a metric design and millimeter dimensions take precedence

(

inch

)

☎

USA (847) 827-7600 - CANADA (905) 764-9510

Issue C

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Simple pre-frequency crossover amplifier

Audio frequency multiplier circuit diagram

Single-phase AC motor switching control circuit

Power amplifier circuit made with three-terminal voltage regulator LM317

Xiadi KYT-25 turning fan circuit diagram

Digital power amplifier circuit

TI microcontroller I8669/I44445 (MCU) MSP430 combines low power consumption with high performance: Home security sensors can give residents a sense of security by detecting events such as doors and windows being opened. Data from sensors on industrial pumps can help plant owners detect warning sign...; fish001 Microcontroller MCU

New to 430: I just came into contact with 430. Now I need to use 430 model for a project. The project needs to read the data of the other party's instrument once every 15 minutes, and save it in E2PROM with the d...; lyzjhzdz Microcontroller MCU

Please help me take a look!!: STC89C52 chip, I want to collect DS18B20 temperature and display it on the digital tube DIY, the program has no syntax errors, and the HEX file cannot be generated during compilation. Considering that...; jialaoye 51mcu

I beg an expert to come in and solve this.: I tested the CPU power supply is 3.3v and 1.92. The emulator cannot be connected.Error connecting to the target:Error 0x00000204/-1156Error during: Register, OCS,Lost processor clock. Device may be op...; kyj17096 Microcontroller MCU

A small question about how to connect electronic components: [i=s] This post was last edited by liufengjing9 on 2014-8-22 19:00 [/i] Maybe it's because I just got started with some electronic components. I'm curious about some electronic components. Of course, ...; liufengjing9 PCB Design

Problems with MATLAB installation: I installed MATLAB 7.0 today. After the installation, it suddenly closed automatically after I opened the interface. What is the reason? I have installed it twice. What should I do?...; yly1985 Embedded System

Shortcut: A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components
