AMEO125 Series
Available
Soon
125 Watt (Open Frame) AC/DC Converter
•
•
•
•
OPEN FRAME SWITCHING POWER SUPPLY
UNIVERSAL INPUT RANGE 90…264 VAC,
47…63HZ OR 120…370VDC
ULTRA COMPACT SIZE
3000 VAC INPUT-OUTPUT ISOLATION
•
•
•
•
REGULATED OUTPUT
125W WITH 18CFM FAN
EFFICIENCY UP TO 75%
PFC FUNCTION
ELECTRICAL SPECIFICATIONS
All specifications valid at nominal Input voltage, full load and +25°C after warm-up time unless otherwise stated.
Model No. (Single Output)
Max. Output Wattage (Convection)
Max. Output Wattage (18CFM Fan)
AMEO125-3.3S AMEO125-5S
AMEO125-12S
AMEO125-15S AMEO125-24S
AMEO125-48S
66W
82.5W
100W
125W
100W
125W
100W
125W
100W
125W
100W
125W
Voltage
Frequency (Hz)
Input
Current (Full Load)
Inrush Current (<2ms)
Leakage Current
Power Factor
Voltage (VDC)
Voltage Accuracy
Max. Current
(Convection)
Max. Current
(18CFM Fan)
Line Regulation
(LL-HL) (typ.)
Output
Load Regulation
(5-100%) (typ.)
Minimum Load
Maximum Capacitive Load
Ripple & Noise
Efficiency
Hold-up Time
Switching Frequency
Over Power Protection
Protection
Over Voltage Protection
Short Circuit Protection
Input-Output (VAC)
Isolation
Input-FG (VAC)
Output-FG (VAC)
Operating Temperature
(Conv)
Operating Temperature
(Fan)
Environment Storage Temperature
Temperature Coefficient
Humidity
MTBF
Physical
Dimensions (LxWxH)
Weight
Cooling Method
EMI
(Conducted & Radiated Emission)
EMC
EMS
(Noise Immunity)
90-260 VAC or 120-370 VDC
47-63 Hz
3A Max. (115VAC) / 1.5A Max. (230VAC)
30A Max. (115VAC) / 60A Max. (230VAC)
3.5mA Max.
PF>0.97 (115VAC) / PF>0.93 (230 VAC) at Full Load
3.3V
5V
12V
15V
24V
48V
±2%
20A
20A
8.33A
6.66A
4.16A
2.08A
25A
25A
10.4A
8.33A
5.2A
2.6A
±1%
±1%
0%
470-23,000µF Depending on model.
100mV Max.
1% Max.
68%
70%
75%
75%
75%
75%
18ms Min.
67kHz
Auto Recovery
Zener Diode Clamp
Auto Recovery
3000V
1500V
500V
-25°C - +40°C (without derating)
-25°C - +50°C (without derating)
-40°C - +85°C
0.02% / °C (0-50°C)
95% RH
> 100,000 hrs @ 25°C (MIL-HDBK-217F)
5.00x3.00x1.40 Inches (127.0x76.2x35.5mm) Tolerance ±0.5mm
365g
Free Air Convection / 18CFM Forced Air
EN55022 Class B
EN55024
Continued on next page
Specifications are subject to change without notification.
VISIT US AT WWW.AIMTEC.CA
AC-DC CONVERTERS
AMEO125 Series

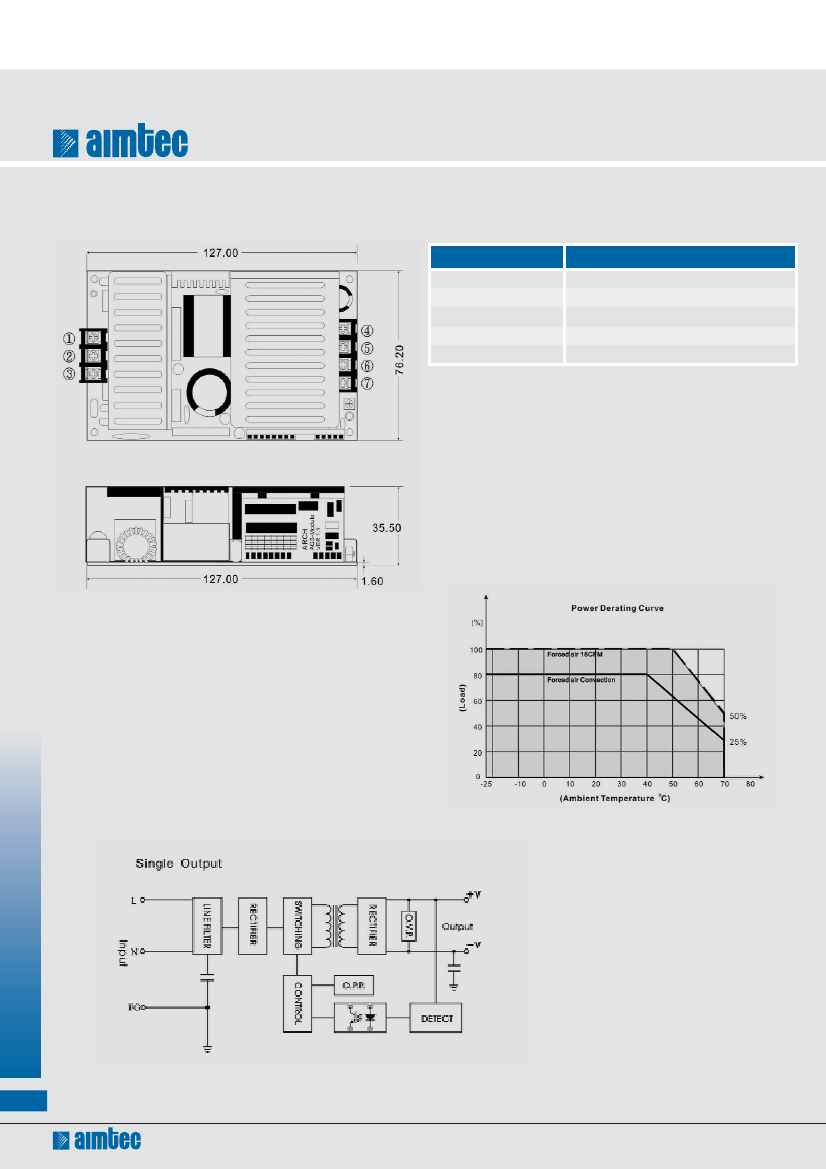

OUTLINE DIMENSIONS & PIN CONNECTIONS
MECHANICAL DIMENSION (Top View)
Pin
1
2
3
4, 5
6, 7
Single
FG
AC Input (N)
AC Input (L)
+DC Output
-DC Output
DERATING
BLOCK DIAGRAM
AC-DC CONVERTERS
TO ORDER CALL 1-888-9-AIMTEC
