DLS1XPAG04X Overview

D Type Connector, 9 Contact(s), Male, IDC Terminal, #4-40, Plug

DLS1XPAG04X Parametric

Parameter Name	Attribute value
Objectid	304808468
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS, W/ STRAIN RELIEF
body width	0.494 inch
subject depth	0.374 inch
body length	1.213 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	DLS
Installation option 1	#4-40
Installation option 2	THREADED INSERT
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Rated current (signal)	7.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Termination type	IDC
Total number of contacts	9
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	3.336 N

Preview

Download Datasheet

View All

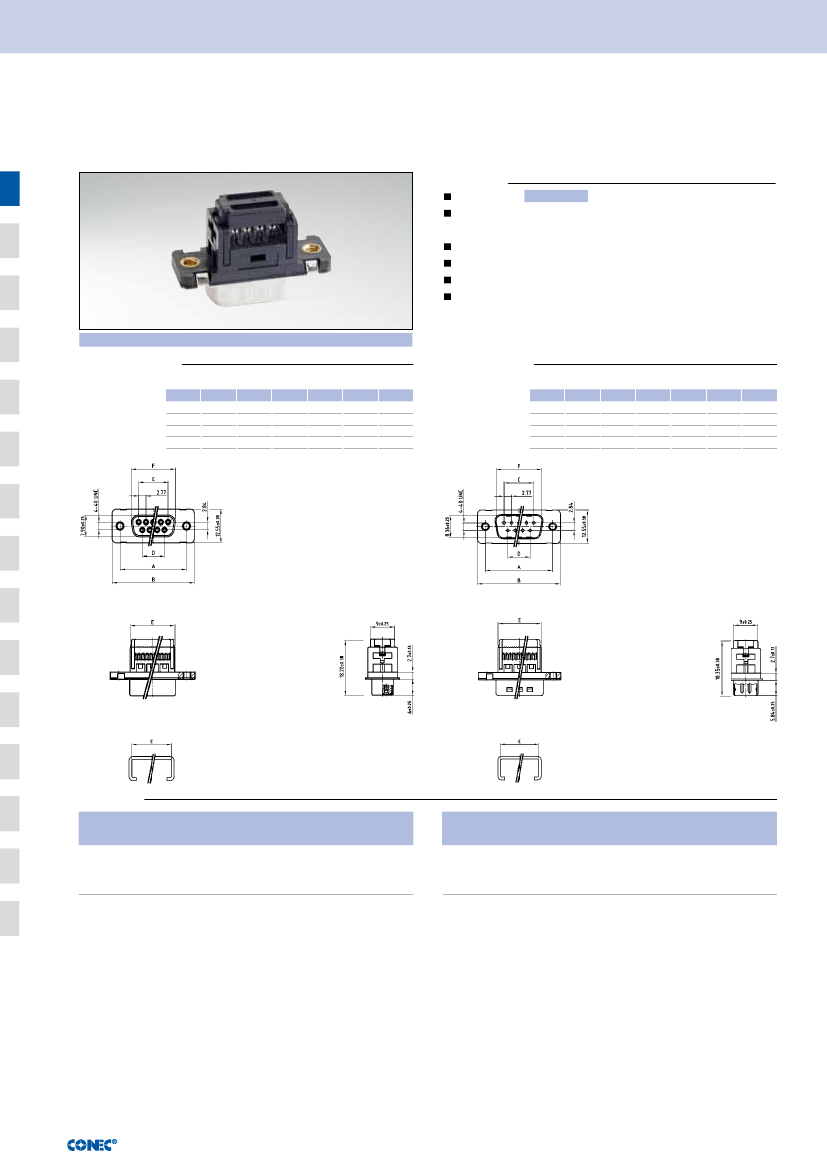

D -S U B Co n n ec to rs

D-SUB Standard

IDC for flat cable – Stamped contacts – For wire size AWG 26…28

Description

For wire size AWG 26...28 flat cable

Mounting style:

with 4-40 UNC threaded insert

Connector includes strain relief

Quality class 3 (other quality classes on request)

Not suitable for hood assembly

Shell: Steel tin plated

RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784

Socket connector

No. of pos.

09

15

25

37

Plug connector

A

±0.13

24.99

33.32

47.04

63.50

B

±0.25

30.80

39.10

53.09

69.40

C

±0.13

11.08

19.39

33.24

49.86

D

±0.13

8.31

16.62

30.47

47.09

E

±0.25

16.10

24.00

38.14

54.60

F

±0.25

16.33

24.66

38.38

54.84

No. of pos.

09

15

25

37

A

±0.13

24.99

33.32

47.04

63.50

B

±0.25

30.80

39.10

53.09

69.40

C

±0.13

11.08

19.39

33.24

49.86

D

±0.13

8.31

16.62

30.47

47.09

E

±0.25

16.10

24.00

38.14

54.60

F

±0.25

16.92

25.25

38.96

55.45

Strain relief

Order data

Socket connector

No. of pos. Mounting style 4-40 UNC

09

15

25

37

Threaded insert

Plug connector

Part Number

DLS 1XSSAG04 X

DLS 2XSSAG04 X

DLS 3XSSAG04 X

DLS 4XSSAG04 X

No. of pos. Mounting style 4-40 UNC

09

15

25

37

Threaded insert

Part Number

DLS 1XPSAG04 X

DLS 2XPSAG04 X

DLS 3XPSAG04 X

DLS 4XPSAG04 X

1| 32
