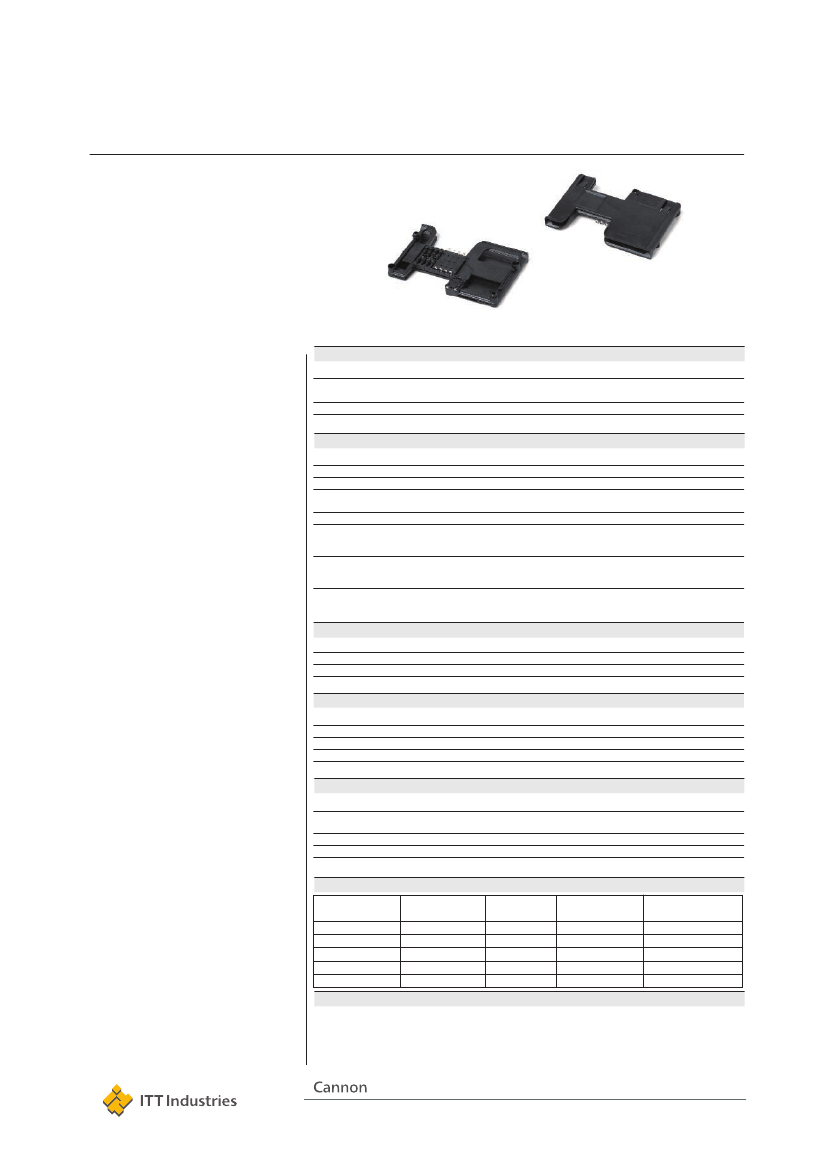

CCM01 MK II
EMV
TM
compatible
The CCM01 MK II connectors with fixed
contacts have been developed for
applications where a landing contact
mechanism is not required but
performance and reliability are still key
considerations.
Features
• Available with 8 contacts which are
designed to give a consistently reliable
normal force over the life of the
connector.
• For added reliability, the card detection
switch (which is normally open) is sealed
against dust and debris.
• Available with through-hole or surface
mount contact termination and its light-
weight design means that the connector
can be automatically pick-and-placed.
• The moldings are made from high
temperature thermoplastics suited
for infrared and convection soldering
processes.
• Plastic springs in the cover give a
positive feel as the card is fully inserted.
In case of special version with low card
insertions and withdrawal, then the
CCM connector is supplied without this
spring effect.
• The reduced size of the contact base
saves PCB space, making the
connector more stable during soldering.
This creates an air gap between the
contacts and card entry slot which
reduces the risk of an electrostatic
transfer to the PCB.
• By using an inlay finish in the contact
area, the life of the precious metal is
extended by more than 10 times that of
standard gold plating.
• A chamfered opening to the card entry
slot improves the card guidance into the
connector.
• The contact area is spooned to reduce
the risk of accidental (or deliberate)
damage and to optimize the electrical
connection with the card.
• Robustly formed printed circuit tails
allow a coplanarity of ± 0.05 mm to be
maintained.
EMV
TM
is a trademark owned by EMVCoLLC.
Construction
Contacts
Plating
Moldings
Card detection switch
Mechanical Data
Number of Contacts
Mechanical life
Card insertion force
Card extraction force
Contact force
Card detection switch
actuation force
Vibration
Shock
8
100,000 cycles min
10 N max
1 N min /10 N max (4N max for
CCM01-2253, 2255)
0.25 N min / 0.50 N max
0.8 N max for actuation (end travel switch
actuates when card is 0,9 mm from card stop);
1.8 N max for complete depression
Frequency 10 to 500 Hz. Acceleration 50m/s
2
Duration 6 hours - amplitude 0,35 mm;
Max electrical discontinuity 1µs
Peak value 500 m/s
2
– Duration 11 ms
3 shocks in each direction of each axis;
Max electrical discontinuity 1 µs
1,000 MΩ min
100 mΩ max
10 µA min / 1 A max
750 Vrms min
Copper alloy
Contact area : Gold alloy inlay
Terminals : Tin lead (2µ min)
High temp. thermoplastic UL 94V-0 rated
Stainless steel and copper alloy
Contact Electrical Data
Insulation resistance
Resistance
Current rating
Dielectric strength
Switch Electrical Data
Card detection switch
Contact resistance
Dielectric strength
Current rating
Maximum power
Environmental Data
Operating temperature
Soldering temperature
Damp heat
Salt mist
Card detection switch
Ordering Code
Part Number
CCM01-2064
CCM01-2065
CCM01-2251
CCM01-2253
CCM01-2255
Packaging
30 per tray, 10 trays per box.
Number
of Contacts
8
8
8
8
8
Normally open
100 mΩ max
250 Vrms min
1 mA min / 10 mA max
0.2 VA
-40°C to +85°C
Temperature/time profile acc. to CECC00802
para. 6.1, Fig. 3 with peak temperature 250°C
IEC 512 test number 11c (10 days)
IEC 512 test number 11f (96 hours)
Sealed against dust
Termination
Tail Design
THT
w/board lock
SMT
w/board lock
SMT
SMT
Through-hole
Retention
Force
<10N
<10N
<10N
<4N
<4N
Packaging
Multiple
300
300
300
300
300
www.ittcannon.com
8
CCM01 MK II

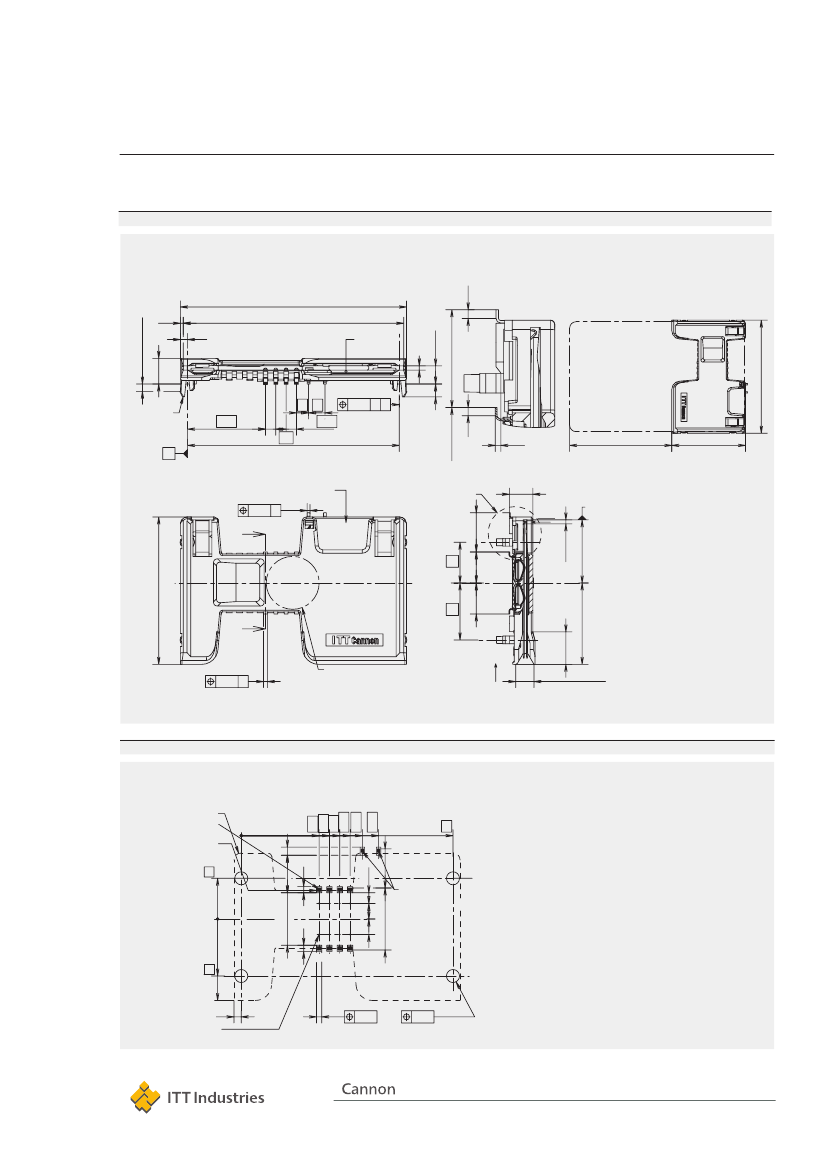

Dimensional Drawings
CCM01-2065
0,85
55,6
±0,2
1,6 PCB Thickness
0,65
1,8
54,3
9,6 (REF.)
Embossed
Channel
1
4,4±0,2
DETAIL A
4x
3
4 Snap
Feet
19,12
52
A
4
3x 2,54
ø0,2 A B
3,15
7,6 (REF.)
0,8
0
0,1 -0,1
50,2 (REF.)
36,2 (REF.)
A-A
Designation & Date-Code area
2x
0,7
0,3 A
A
CCM01- 2065
XX-XXX
10
SEE DETAIL A
5,8
Card stop
9,6
±0,1
0,9±0,25
36,2
14
7,6
7,6
8x
0,3
A
1
Pick and place area
ø13
Card insertion
direction
4,15±0,3 Card entry
PCB Layout
CCM01-2065 (8 contacts SMT with board lock)
(Component side)
Plastic outline
Contact foot area
0,8 x 1
Pad
19,12
21,66
24,2
26,74
33,74
29,74
0
SW SW
2
9,2
9,6
1,5
10
2,64
52
C1 C2 C3 C4
12,9
1,5
C5 C6 C7 C8
14
20
1,8
Contact location according to
ISO 7816-2
1,3
10x
0,2
4x
ø0,1
+0,1
ø3,2 0
15,2
0
3,81 3,81
Card end travel
switch terminals
0,85 x 0,7
Drawings shown for reference only. For other part
numbers please consult your local
Cannon Customer Service Center.
Unless otherwise stated, tolerances are ± 0,10 mm
8±0,3
A
20
15,5
Dimensions are shown in mm
Dimensions subject to change
www.ittcannon.com
9
55,6 (REF.)
6,3
