BAS3005A...
Low VF Schottky Diode
•
Forward current: 0.5 A
•
Reverse voltage: 30 V
•
Very low forward voltage
(typ. 0.45 V @
I
F
= 0.5 A)
•
For low loss, fast-recovery protecting
and clamping applications
•
Pb-free (RoHS compliant) package
•
Qualified according AEC Q101
BAS3005A-02V
Type
BAS3005A-02V
Parameter
Package
SC79
Configuration
single
Symbol
V
R
I
F
Value
Marking
2
Unit
Maximum Ratings
at
T
A
= 25 °C, unless otherwise specified
Diode reverse voltage
1)
Forward current
1)
,
T
S
≤
126 °C, BAS3005A-02V
30
500
500
3.5
5
150
-55 ...125
-65 ...150
V
mA
A
Average rectified forward current (50/60Hz, sinus)
I
FAV
Repetitive peak forward current
I
FRM
(
t
p
≤
1 ms,
D
≤
0.25), BAS3005A-02V
Non-repetitive peak surge forward current
(t
≤
10 ms), BAS3005A-02V
I
FSM
T
j
T
op
T
stg
Junction temperature
Operating temperature range
Storage temperature
1
For
°C
T
A
> 25 °C the derating of VR and IF has to be considered.
1
2008-02-11
BAS3005A...
Thermal Resistance
Parameter
Symbol
R
thJS
Value
≤
80
Unit
Junction - soldering point
1)
K/W
Unit
Electrical Characteristics
at
T
A
= 25°C, unless otherwise specified
Parameter
Symbol
Values
min.
typ. max.
DC Characteristics
Reverse current
2)
I
R
V
R
= 5 V
V
R
= 10 V
V
R
= 30 V
µA
-
-
-
V
F
-
-
-
200
260
340
370
450
15
30
300
mV
260
310
390
420
500
Forward voltage
2)
I
F
= 1 mA
I
F
= 10 mA
I
F
= 100 mA
I
F
= 200 mA
I
F
= 500 mA
-
-
-
-
-
Electrical Characteristics
at
T
A
= 25°C, unless otherwise specified
Symbol
Values
Unit
Parameter
min.
typ. max.
AC Characteristics
-
10
15
pF

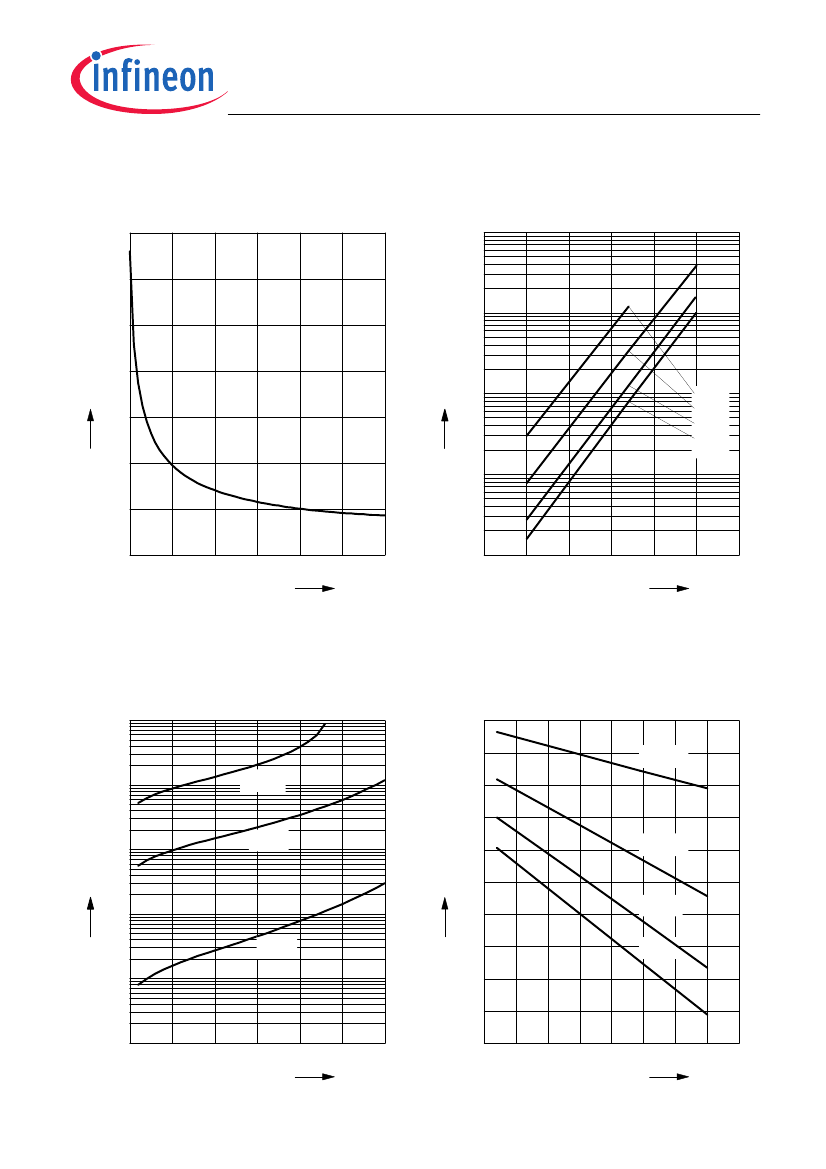

Diode capacitance
C
T
V
R
= 5 V,
f
= 1 MHz
1
For
calculation of
R
thJA
please refer to Application Note Thermal Resistance
test:
t
p
= 300 µs; D = 0.01
2
Pulsed
2
2008-02-11
BAS3005A...
Diode capacitance
C
T
=
ƒ
(V
R
)
f
= 1MHz
35
pF
Reverse current
I
R
=
ƒ
(T
A
)
V
R
= Parameter
10
-2
A
10
-3
25
C
T
20
10
-4
15
I
R
30 V
20 V
10 V
5V
10
10
-5
5
0
0
5
10
15
20
V
30
10
-6
0
25
50
75
100
°C
150
V
R
T
A
Reverse current
I
R
=
ƒ
(V
R
)
T
A
= Parameter
10
-2
A
Forward Voltage
V
F
=
ƒ
(T
A
)
I
F
= Parameter
0.5
V
500 mA
10
-3
125 °C
0.4
0.35
V
F
I
R
10
-4
85 °C
0.3
0.25
100 mA
10
-5
25 °C
0.2
0.15
0.1
0.05
10 mA
1 mA
10
-6
10
-7
0
5
10
15
20
V
30
0
-50
-25
0
25
50
75
100
°C
150
V
R
T
A
3
2008-02-11
BAS3005A...

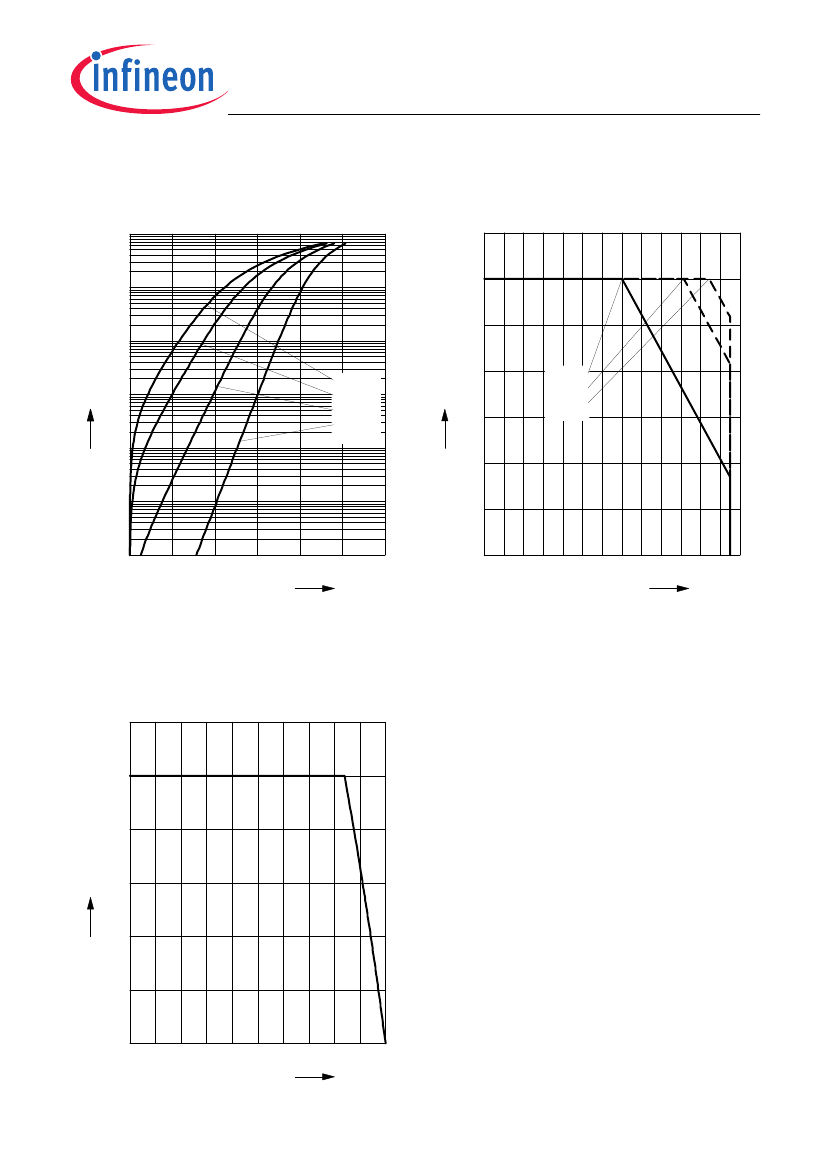

Forward current
I
F
=
ƒ
(V
F
)
T
A
= Parameter
10
0
A
-1
Permissible Reverse voltage
V
R
=
ƒ
(T
A
)
t
p
= Paramter, Duty cycle < 0.01
Device mounted on PCB with
R
th
= 160 K/W
35
V
10
10
-2
V
Rmax
25
I
F
10
-3
125 °C
85 °C
25 °C
- 40 °C
20
DC
20 ms
1 ms
15
10
-4
10
10
-5
5
10
-6
0
0.1
0.2
0.3
0.4
V
0.6
0
0
20
40
60
80
100
°C
130
V
F
T
A
Forward current
I
F
=
ƒ
(T
S
)
BAS3005A-02V
600
mA
400
I
F
300
200
100
0
0
15
30
45
60
75
90 105 120
°C
150
T
S
4
2008-02-11
Package SC79
BAS3005A...
Package Outline
0.2
0.8
±0.1
10˚MAX.
M
A
0.13
-0.03
+0.05
2
1.6
±0.1
0.55
±0.04
Foot Print
1.35
0.35
Marking Layout (Example)
2005, June
Date code
0.35
BAR63-02V
Type code
Cathode marking
Laser marking
Standard Packing
Reel ø180 mm = 3.000 Pieces/Reel
Reel ø180 mm = 8.000 Pieces/Reel (2 mm Pitch)
Reel ø330 mm = 10.000 Pieces/Reel
Standard
4
Reel with 2 mm Pitch
2
0.2
1.33
1.96
Cathode
marking
0.4
0.93
8
0.2
±0.05
0.66
Cathode
marking
1
0.3
±0.05
Cathode
marking
10˚MAX.
1.2
±0.1
A
5
2008-02-11
