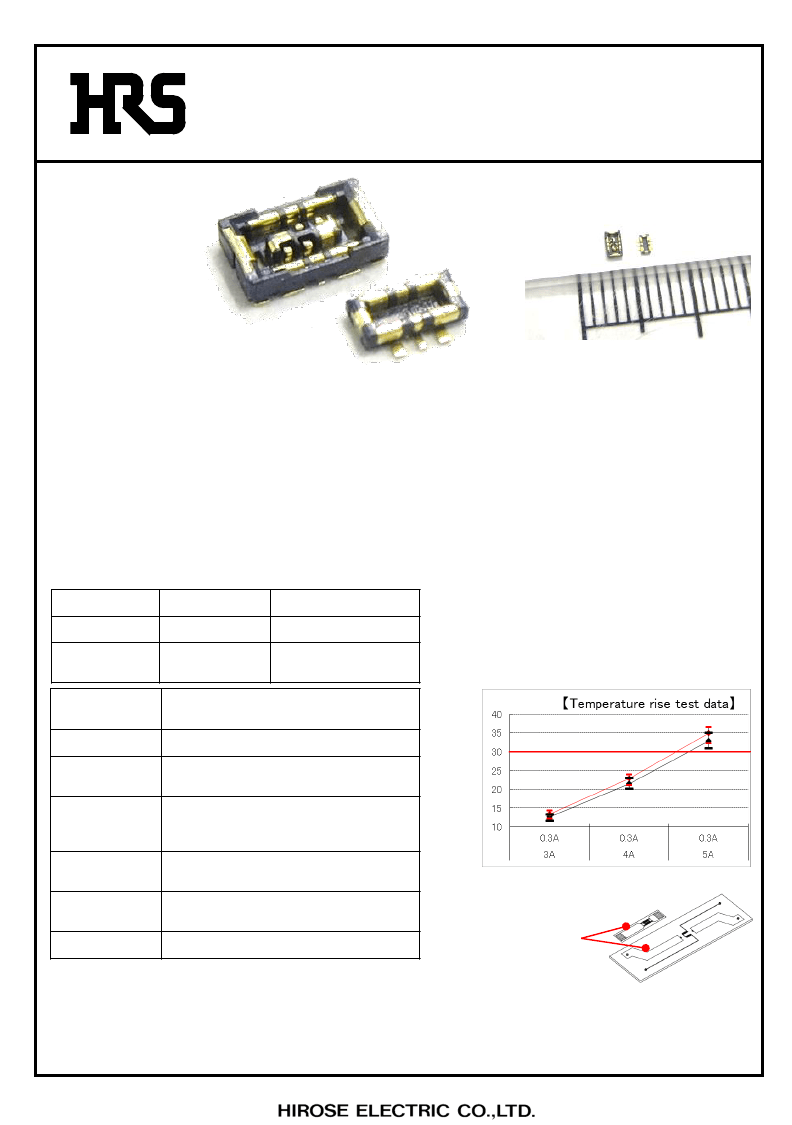

MKT-E-15022F
BM29 Series
Ultra Compact Hybrid Board to FPC Connectors
Receptacle
Features
Plug
1. The world smallest size
*1
contributes to downsizing
and flexible design of mobile devices.
- Pitch: 0.35 mm, Depth: 1.5 mm, Stacking Height: 0.6 mm
2. Features power contacts combination and enables 3 Amps power delivery.
- Rated current: 3 Amps for power, 0.3 Amps for signal
3. Unique metal guides prevent the housing damage due to offset mating.
*1: As of Jul. 2015
4. Secure mating with clear tactile click
*2: This product satisfies halogen free requirements
6. RoHS compliant, Halogen-free product
*2
defined as 900 ppm maximum chlorine, 900 ppm
◆
Specifications
COMPONRNT
Housing
Contact
MATERIAL
LCP
Copper Alloy
FINISH, REMARKS
UL94V-0, Black
Gold plated over
Nickel under plating
maximum bromine, and 1500 ppm maximum total
of chlorine and bromine.
◆Up
to 3 Amps/
Power Contact
Temperature rising with 3 Amps
current carrying is less than 30
℃
Temperature Rise (C)
Rated Current
Rated Voltage
Operating
Temperature
Contact
Resistance
Withstanding
Voltage
Insulation
Resistance
Durability
Power Contact: 3 Amps,
Signal Contact: 0.3 Amps
*
30 V AC/DC
-40 to +85
℃
*
Power Contact: 30 mΩ,
Signal Contact: 100 mΩ
(Measured at 20 mV AC, 1 kHz, 1 mA)
150 V AC for 1 minute
1000 MΩ MIN. (100 V DC)
10 times
*Include the temperature rising by current flow.
Signal
Power
[Current]
(Test Board Specifications):
Pattern Width: 3 mm
PCB FR-4: 70 x 20 x 0.8
Copper Foil: 35 µm
◆
Variations
Mass Production: 2 pos.
(2 pos. for signal+2pos. for power)
Under Development: 6 pos., 10 pos.
Specifications herein are subject to change without notice. Contact Hirose for latest specifications, drawings or availabilities.
© 2015 HIROSE ELECTRIC CO., LTD. All rights reserved.
Issued: Aug. 21, 2015
