1-1419168-2: Description6 CONTACT(S), FEMALE, COMBINATION LINE CONNECTOR; CategoryThe connector The connector; File Size592KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1-1419168-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1419168-2	-	-	View	Buy Now

1-1419168-2 Overview

6 CONTACT(S), FEMALE, COMBINATION LINE CONNECTOR

1-1419168-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1979672076
Reach Compliance Code	compliant
Factory Lead Time	4 weeks 5 days
Samacsys Description	MARKET 1X6 FEMALE SEALED
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-10 19:58:25
body width	0.965 inch
subject depth	0.772 inch
body length	1.236 inch
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYAMIDE
MIL compliance	NO
Power Connector Ratings	115/230VAC
Mixed contacts	NO
Installation type	CABLE
Number of connectors	ONE
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Panel mounting	NO
polarization key	POLARIZED
Shell material	GLASS FILLED POLYAMIDE66
Terminal pitch	2.54 mm
Total number of contacts	5

Preview

Download Datasheet

View All

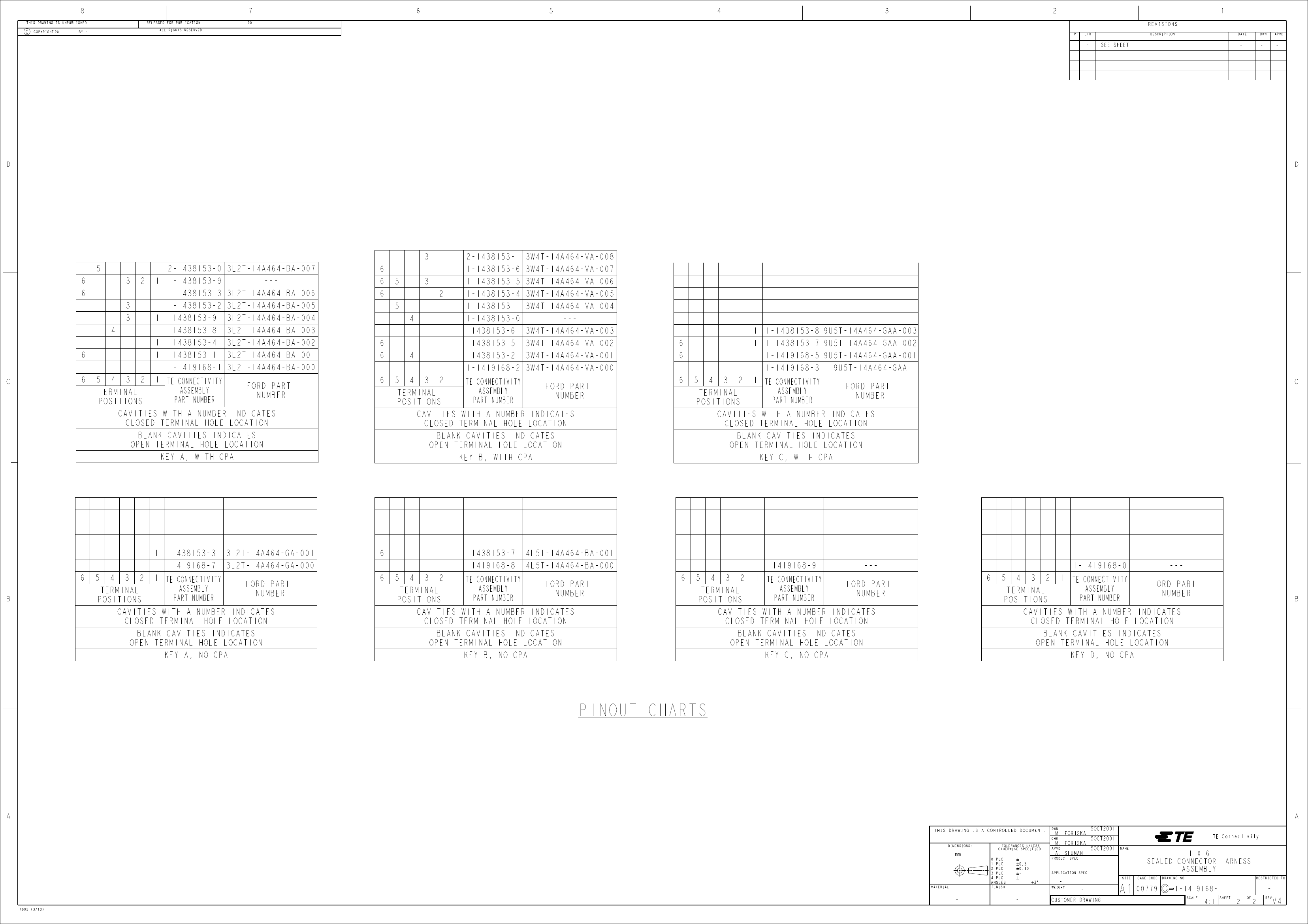

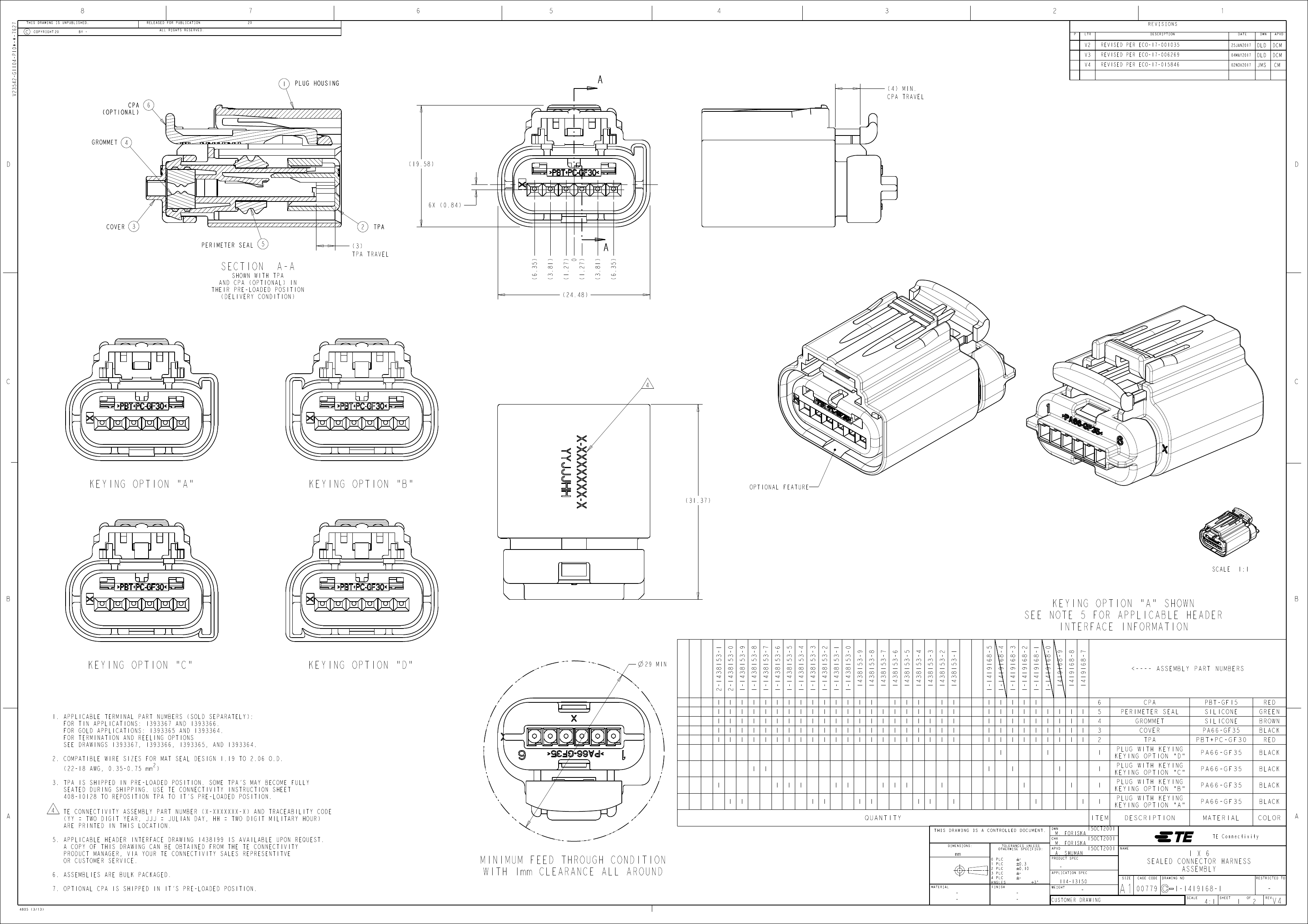

8

V23542-G1104-P10*-*-7627

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

7

20

6

5

4

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT 20

BY -

V2

V3

V4

REVISED PER ECO-17-001035

REVISED PER ECO-17-006269

REVISED PER ECO-17-015846

25JAN2017

04MAY2017

02NOV2017

DLD

JMS

DCM

CM

1

CPA

(OPTIONAL)

6

PLUG HOUSING

(4) MIN.

CPA TRAVEL

GROMMET

4

(19.58 )

D

6X (0.84 )

COVER

3

PERIMETER SEAL

5

2

TPA

(1.27 )

0

(1.27 )

(6.35 )

(3.81 )

SHOWN WITH TPA

AND CPA (OPTIONAL) IN

THEIR PRE-LOADED POSITION

(DELIVERY CONDITION)

SECTION

A-A

(24.48 )

C

(6.35 )

(3)

TPA TRAVEL

4

C

KEYING OPTION "A"

KEYING OPTION "B"

(31.37 )

OPTIONAL FEATURE

SCALE

1:1

B

KEYING OPTION "A" SHOWN

SEE NOTE 5 FOR APPLICABLE HEADER

INTERFACE INFORMATION

1-1419168-4

1-1419168-3

1-1419168-2

1-1419168-1

2-1438153-1

2-1438153-0

1-1438153-9

1-1438153-8

1-1438153-7

1-1438153-6

1-1438153-5

1-1438153-4

1-1438153-3

1-1438153-2

1-1438153-1

1-1438153-0

1-1419168-5

1-1419168-0

1438153-9

1438153-8

1438153-7

1438153-6

1438153-5

1438153-4

1438153-3

1438153-2

1438153-1

1419168-9

1419168-8

B

KEYING OPTION "C"

KEYING OPTION "D"

29 MIN

1419168-7

<---- ASSEMBLY PART NUMBERS

1

1. APPLICABLE TERMINAL PART NUMBERS (SOLD SEPARATELY):

FOR TIN APPLICATIONS: 1393367 AND 1393366.

FOR GOLD APPLICATIONS: 1393365 AND 1393364.

FOR TERMINATION AND REELING OPTIONS

SEE DRAWINGS 1393367, 1393366, 1393365, AND 1393364.

2. COMPATIBLE WIRE SIZES FOR MAT SEAL DESIGN 1.19 TO 2.06 O.D.

(22-18 AWG, 0.35-0.75 mm )

2

1

6

5

4

3

2

1

PERIMETER SEAL

GROMMET

COVER

TPA

CPA

PBT-GF15

SILICONE

PA66-GF35

SILICONE

GREEN

BROWN

BLACK

RED

BLACK

COLOR

RED

PLUG WITH KEYING

KEYING OPTION "D"

PBT+PC-GF30

PA66-GF35

MATERIAL

TE Connectivity

1

QUANTITY

1

ITEM

3. TPA IS SHIPPED IN PRE-LOADED POSITION. SOME TPA'S MAY BECOME FULLY

SEATED DURING SHIPPING. USE TE CONNECTIVITY INSTRUCTION SHEET

408-10128 TO REPOSITION TPA TO IT'S PRE-LOADED POSITION.

PLUG WITH KEYING

KEYING OPTION "C"

PLUG WITH KEYING

KEYING OPTION "B"

PLUG WITH KEYING

KEYING OPTION "A"

DESCRIPTION

A

4

TE CONNECTIVITY ASSEMBLY PART NUMBER (X-XXXXXXX-X) AND TRACEABILITY CODE

(YY = TWO DIGIT YEAR, JJJ = JULIAN DAY, HH = TWO DIGIT MILITARY HOUR)

ARE PRINTED IN THIS LOCATION.

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

5. APPLICABLE HEADER INTERFACE DRAWING 1438199 IS AVAILABLE UPON REQUEST.

A COPY OF THIS DRAWING CAN BE OBTAINED FROM THE TE CONNECTIVITY

PRODUCT MANAGER, VIA YOUR TE CONNECTIVITY SALES REPRESENTITVE

OR CUSTOMER SERVICE.

6. ASSEMBLIES ARE BULK PACKAGED.

7. OPTIONAL CPA IS SHIPPED IN IT'S PRE-LOADED POSITION.

4805 (3/13)

M. FORISKA

A. SHUMAN

-

15OCT2001

NAME

MINIMUM FEED THROUGH CONDITION

WITH 1mm CLEARANCE ALL AROUND

MATERIAL

mm

APVD

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.3

0.10

-

PRODUCT SPEC

APPLICATION SPEC

3°

-

WEIGHT

114-13150

-

CUSTOMER DRAWING

A1

00779

SIZE

CAGE CODE

1 X 6

SEALED CONNECTOR HARNESS

ASSEMBLY

DRAWING NO

RESTRICTED TO

1-1419168-1

SCALE

4:1

SHEET

1

OF

2

REV

-

V4
