254703 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 254703

Preview

254703: DescriptionHeaders & Wire Housings SRCBUG A 54 1 6 CSI 112 E1 ADV J 2 224; CategoryThe connector; File Size67KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

254703 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	254703	-	-	View	Buy Now

254703 Overview

Headers & Wire Housings SRCBUG A 54 1 6 CSI 112 E1 ADV J 2 224

254703 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ERNI
Product Category	Headers & Wire Housings
RoHS	Details
Product	Wire Housings
Number of Positions	6 Position
Pitch	2.54 mm
Number of Rows	1 Row
Mounting Style	-
Termination Style	-
Mounting Angle	-
Contact Gender	-
Contact Plating	-
Mating Post Length	-
Termination Post Length	-
Accessory Type	-
Application	Wire-to-Wire
Contact Type	-
Housing Material	Polyamide (PA)
Contact Material	-
Flammability Rating	UL 94 V-0
Row Spacing	-
Housing Gender	Female
Maximum Operating Temperature	+ 150 C
Minimum Operating Temperature	- 55 C
NumOfPackaging	1
Unit Weight	0.042329 oz

Preview

Download Datasheet

View All

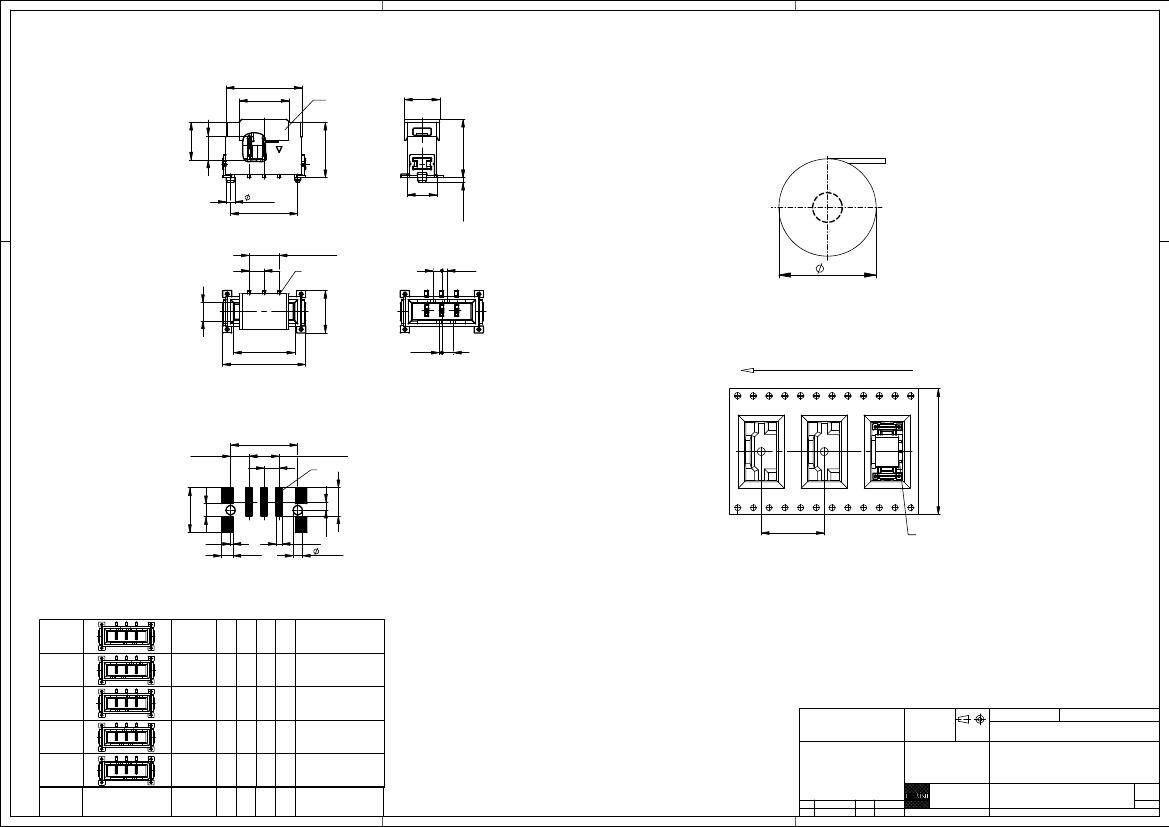

12,88

8,4

Ansaughaube

6

hood

Verpackt in Gurtverpackung

Tape on Reel Packaging

6,4

+0,2

4,1

-0,1

Verpackungseinheit: 320 Stück

9,4

9,9

Packaging unit: 320 pcs

11,38

±0,05

ohne Ansaughaube

2 x 2,54 = 5,08

2,54

a1

without hood

D

0,75

-0,1

1,5

-0,06

5

C

330

10,38

14,08

7,2

3,1

A

B

Abspulrichtung -

Reel off Direction

Leiterplatten-Layout Vorschlag für SMT

PCB-Layout Proposal for SMT

11,38

±0,05

3,15

±0,03

2,54

2 x 2,54 = 5,08

a1

Anforderungsstufe 1

Performance Level 1

4,8

Kontaktbereich vergoldet

7,6

2,2

Mating Area gold plating

1,4

Anschlussbereich verzinnt 4-6 µm

0,4

1,95

1,02

1,6

-0,03

Terminal Area 4-6 µm tin plating

16

a1

Koplanarität der Anschlüsse

≤

0,1 mm

Coplanarity Area of Termination

≤

0,1 mm

454201

284659

284658

284657

284656

Ident-Nr.

white

red

green

blue

schwarz

blau

grün

rot

weiß

0,45

1,95

0,9

1,5

Codierung wie Variante schwarz

Encoding such variant black

3,15

0,75

3,6

1,2

2,25

0,15

2,7

0,3

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

32

Information:

Tolerances

All Dimensions

in mm

Scale

3:1

1,35

1,05

1,8

0,6

black

color

0,45

1,95

0,9

1,5

part-no.

Codierung

coding

Farbe

A

B

C

D

Bemerkung

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

g

Index

24.04.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

M 2,54 SRC-P, 3-polig

www.ERNI.com

Class

note

224984

SRCP

I

A2
