XL93LC46BP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> XL93LC46BP

XL93LC46BP: DescriptionEEPROM, 128X8, Serial, CMOS, PDIP8,; Categorystorage storage; File Size217KB，9 Pages; ManufacturerExel Microelectronics Inc

Download Datasheet Parametric Compare View All

XL93LC46BP Overview

EEPROM, 128X8, Serial, CMOS, PDIP8,

XL93LC46BP Parametric

Parameter Name	Attribute value
Maker	Exel Microelectronics Inc
package instruction	,
Reach Compliance Code	unknown
Other features	AUTOMATIC WRITE
Spare memory width	16
Maximum clock frequency (fCLK)	1 MHz
JESD-30 code	R-PDIP-T8
memory density	1024 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	128 words
character code	128
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	128X8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	SERIAL
Certification status	Not Qualified
Serial bus type	MICROWIRE
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Maximum write cycle time (tWC)	5 ms
Base Number Matches	1

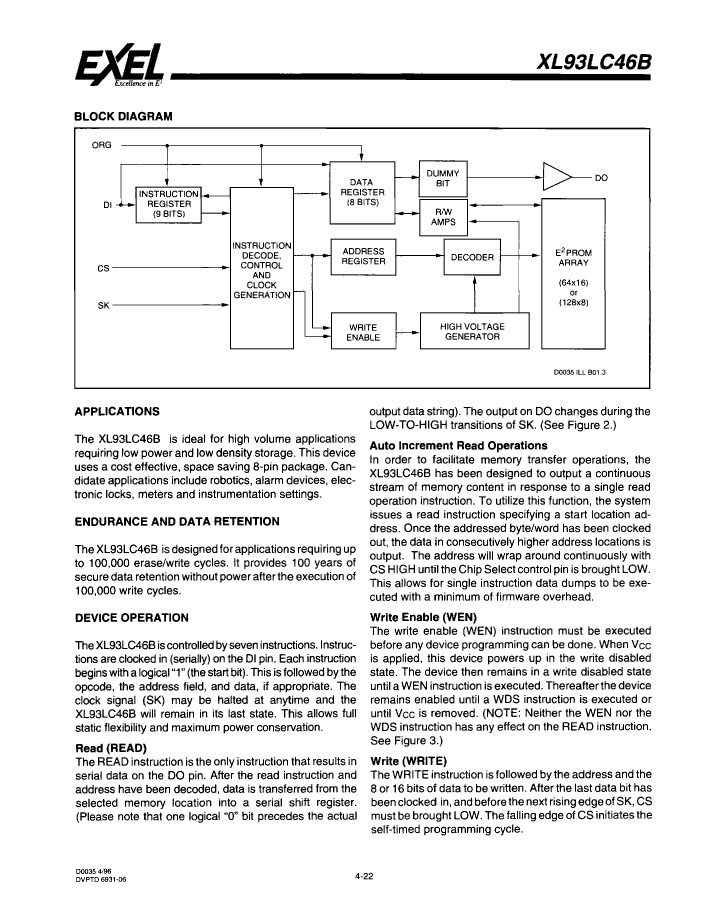

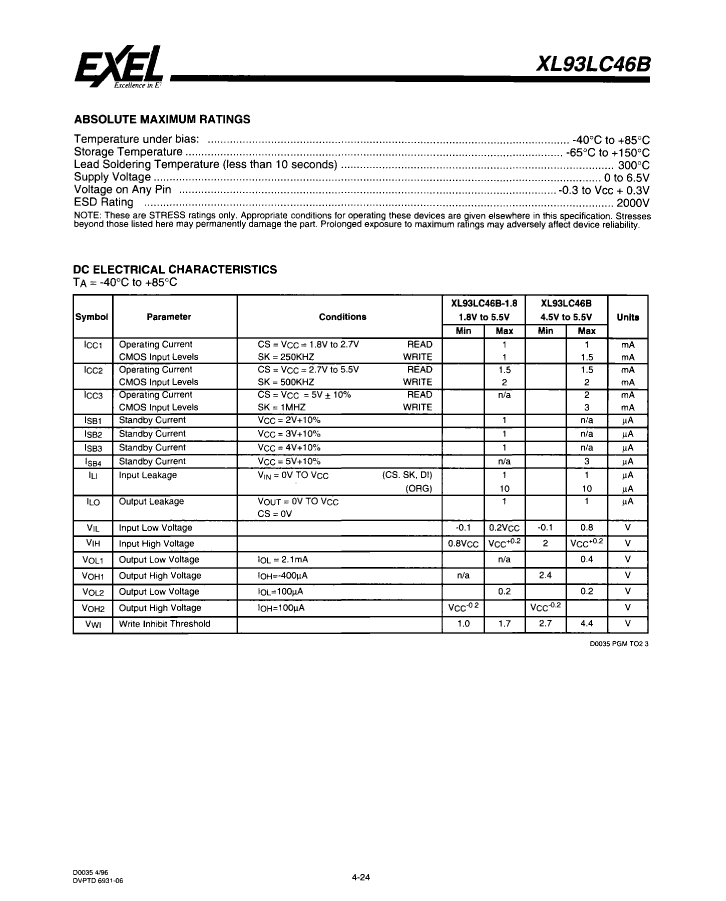

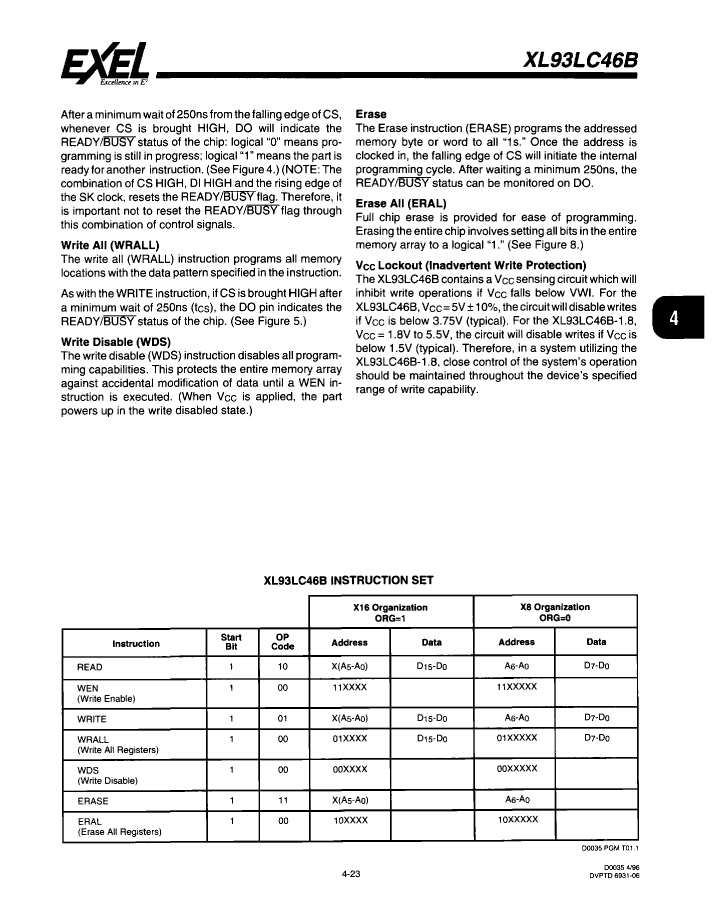

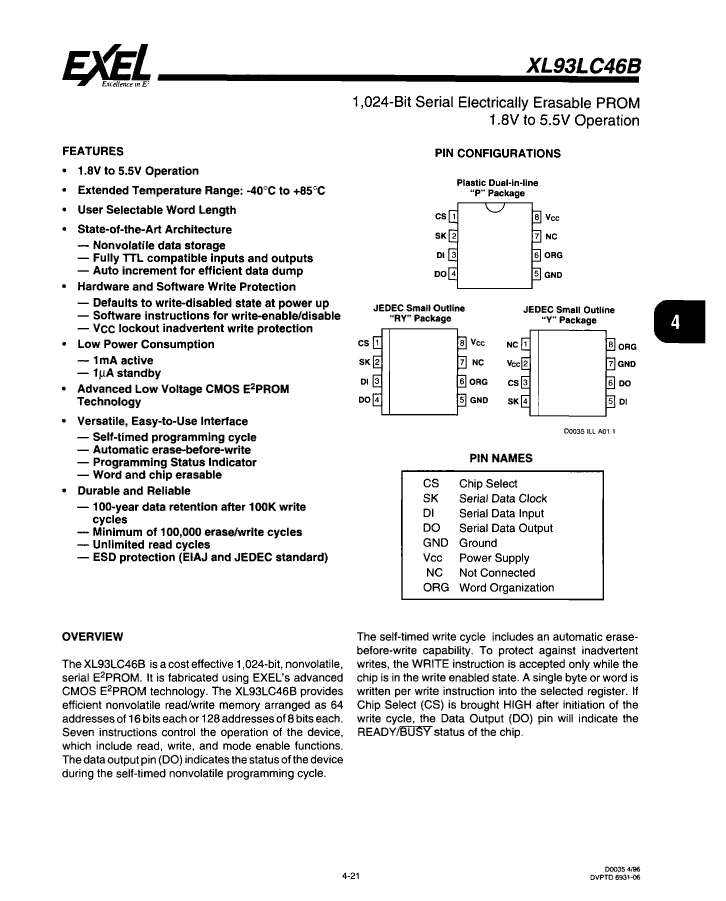

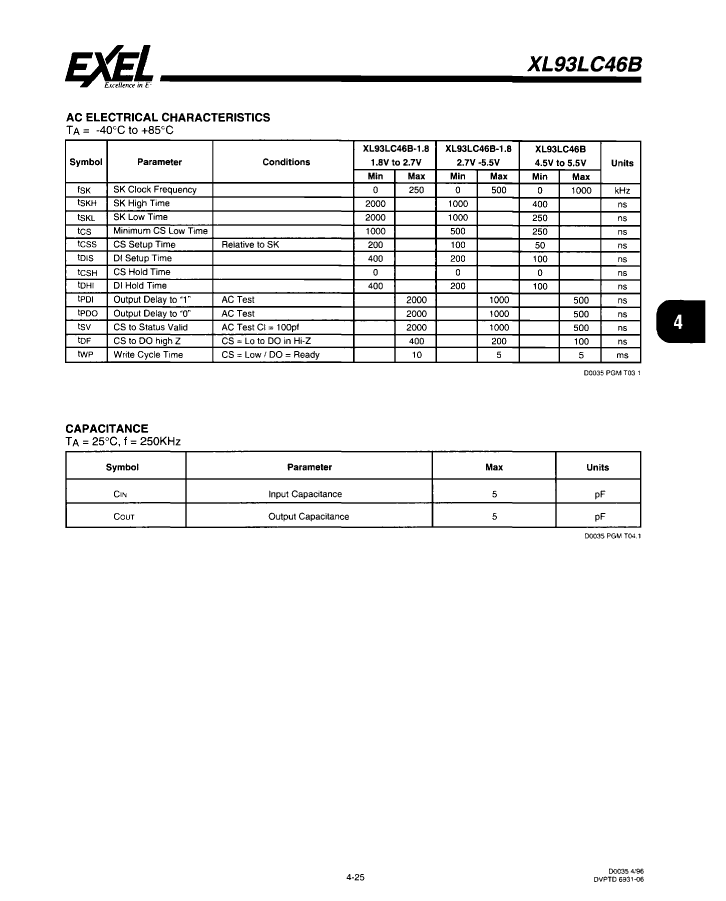

Preview

Download Datasheet

View All

XL93LC46BP Related Products

	XL93LC46BP	XL93LC46BY	XL93LC46B-1.8P	XL93LC46B-1.8RY	XL93LC46BRY	XL93LC46B-1.8Y
Description	EEPROM, 128X8, Serial, CMOS, PDIP8,	EEPROM, 128X8, Serial, CMOS, PDSO8,	EEPROM, 128X8, Serial, CMOS, PDIP8,	EEPROM, 128X8, Serial, CMOS, PDSO8,	EEPROM, 128X8, Serial, CMOS, PDSO8,	EEPROM, 128X8, Serial, CMOS, PDSO8,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
Other features	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE
Spare memory width	16	16	16	16	16	16
Maximum clock frequency (fCLK)	1 MHz	1 MHz	0.25 MHz	0.25 MHz	1 MHz	0.25 MHz
JESD-30 code	R-PDIP-T8	R-PDSO-G8	R-PDIP-T8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
memory density	1024 bit	1024 bit	1024 bit	1024 bit	1024 bit	1024 bi
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8
word count	128 words	128 words	128 words	128 words	128 words	128 words
character code	128	128	128	128	128	128
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	128X8	128X8	128X8	128X8	128X8	128X8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Serial bus type	MICROWIRE	MICROWIRE	MICROWIRE	MICROWIRE	MICROWIRE	MICROWIRE
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	1.8 V	1.8 V	4.5 V	1.8 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum write cycle time (tWC)	5 ms	5 ms	10 ms	10 ms	5 ms	10 ms
Maker	Exel Microelectronics Inc	-	Exel Microelectronics Inc	Exel Microelectronics Inc	Exel Microelectronics Inc	Exel Microelectronics Inc
encapsulated code	-	SOP	-	SOP	SOP	SOP
