86092326114745000E1 datasheet, PDF

86092326114745000E1: Description32 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER, RECEPTACLE; Categorysemiconductor Other integrated circuit (IC); File Size111KB，1 Pages; ManufacturerFCI connector

Download Datasheet View All

86092326114745000E1 Overview

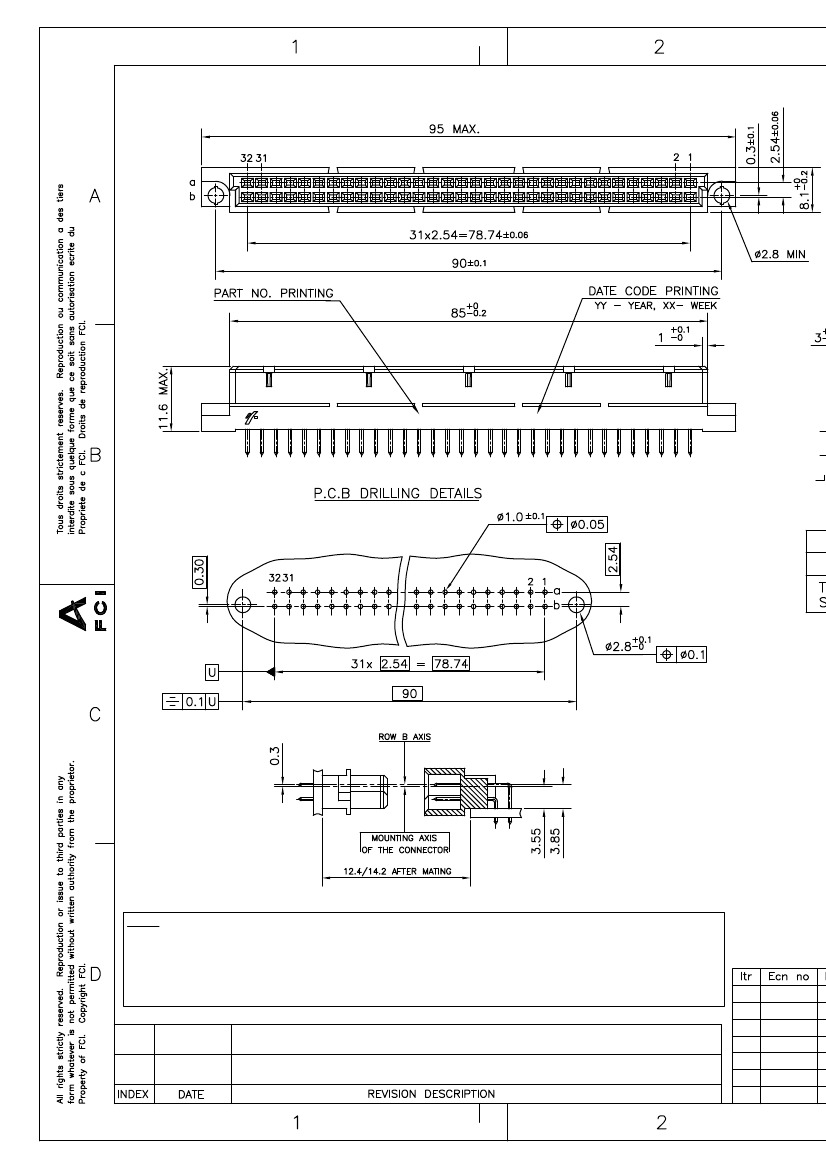

32 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER, RECEPTACLE

8609 XXX XX XX XXX XXXXX YY XX

NOTES:-

1. THE ''LF'' PRODUCTS MEET EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008

2. THE HOUSING WILL WITHSTAND EXPOSURE TO 260°C PEAK TEMPERATURE FOR 3.5 SECONDS IN A WAVE SOLDER APPLICATION

WITH A 1.6 MM MINIMUM THICK CIRCUIT BOARD

3. LEAD FREE OR RoHS DIRECTIVE LABELING TO BE PROVIDED AS PER GS-14-920 FOR LEAD FREE VERSION.

b

a

19/05/2005

22/09/2004

TECHNICAL SPECIFICATION MODIFIED AND LEAD FREE NOTE ADDED.

DRAWING NO. WAS C-8609-0107 REV.c

b

a

I05-0042

I04-0100

M
