8648V15S565MT datasheet, PDF - EEWORLD Datasheet

8648V15S565MT: DescriptionD Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Socket; CategoryThe connector The connector; File Size86KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

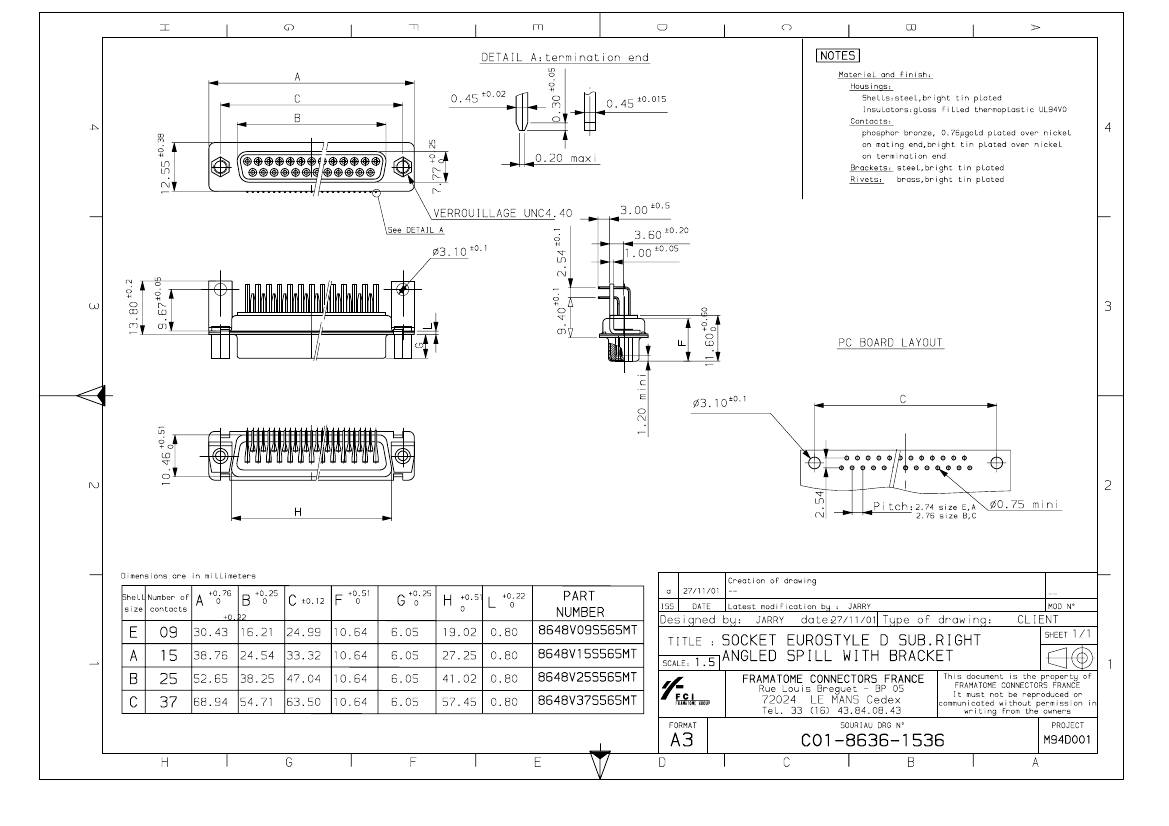

8648V15S565MT Overview

D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Socket

PDM: Rev:A

STATUS:

Released

Printed: Aug 31, 2004

	8648V15S565MT	8648V09S565MT	8648V25S565MT	8648V37S565MT
Description	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, Socket
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL
Housing size	2/A	1/E	3/B	4/C
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	9	25	37
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Manufacturer's serial number	-	8648	8648	8648
