39-01-3103 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39-01-3103

39-01-3103: DescriptionHeaders & Wire Housings 10 CKT PLUG HOUSING; CategoryThe connector The connector; File Size41KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

39-01-3103 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39-01-3103	-	-	View	Buy Now

39-01-3103 Overview

Headers & Wire Housings 10 CKT PLUG HOUSING

39-01-3103 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	MINI-FIT
body width	0.378 inch
subject depth	0.941 inch
body length	0.874 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	5 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	30 Cycles
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Minimum insulation diameter	0.035 inch
Insulation resistance	1000000000 Ω
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	CENTER
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	NYLON66
Termination type	CRIMP
Total number of contacts	10
UL Flammability Code	94V-2
Maximum wire diameter	16 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	3.1136 N
Base Number Matches	1

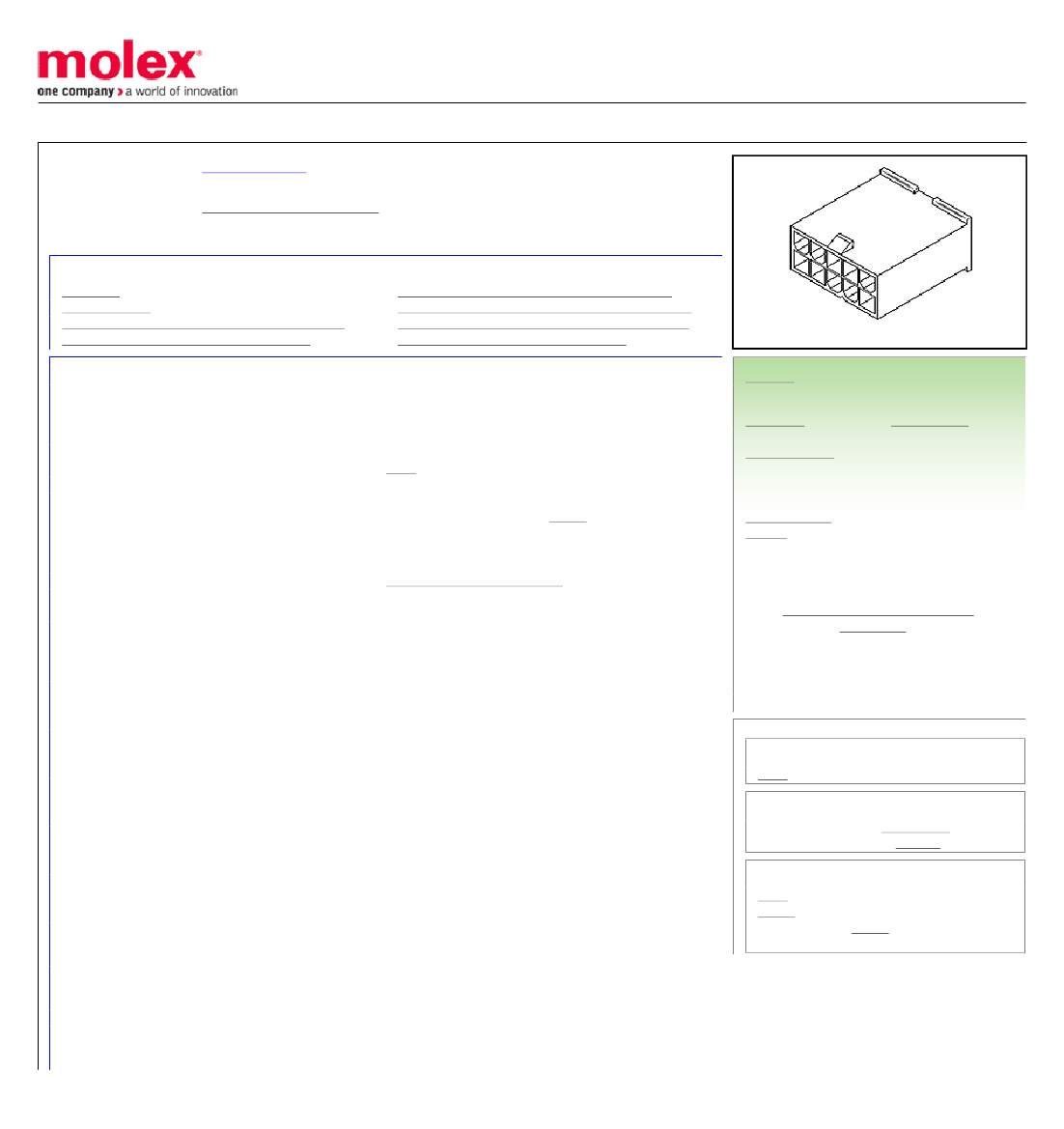

Preview

Download Datasheet

View All

This document was generated on 02/20/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0039013103

Active

Mini-Fit Jr. Power Connectors

Mini-Fit Jr. Plug Housing, Dual Row, 10 Circuits, UL 94V-2, without Panel Mounting

Ears, Natural

Documents:

3D Model

Drawing (PDF)

Product Specification PS-45750-001-001 (PDF)

Product Specification PS-5556-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Product Specification TS-5556-002-001 (PDF)

Application Specification AS-5557-001-001 (PDF)

Packaging Specification PK-5559-002-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

Crimp Housings

5559

Power, Wire-to-Board, Wire-to-Wire

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 series terminals

crimped to 16 AWG wire. . See Molex product

specification PS-45750-001 for additional current

derating information.

Mini-Fit Jr. Power Connectors

Mini-Fit Jr.

800755527995

Natural

94V-2

Plug

None

Yes

Nylon

2.830/g

Bag

4.20mm

Yes

-40°C to +105°C

13.0A

N/A

5559-10P1

Overview

Product Name

UPC

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Capable

Keying to Mating Part

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Electrical

Current - Maximum per Contact

Solder Process Data

Lead-freeProcess Capability

Material Info

Engineering Number

Search Parts in this Series

5559 Series

Mates With

Receptacle Housing 39-01-2100 <br>Mini-

Fit Jr. Cable Assembly 245135

Use With

5558 Mini-Fit Jr. Male Crimp Terminals.

30490 Mini-Fit Male Grounding Crimp

Terminals <br> 46012 Mini-Fit Plus Crimp

Terminal

39-01-3103 Related Products

	39-01-3103	0039013103
Description	Headers & Wire Housings 10 CKT PLUG HOUSING	Headers & Wire Housings MINI-FIT JR PLG 10P 94V-2 FREE
