DMR14C3-A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> DMR14C3-A

DMR14C3-A: DescriptionSmart/Normal 7 Seg Numeric LED Display, Red, 14.2mm, ROHS COMPLIANT PACKAGE-28; CategoryLED optoelectronic/LED photoelectric; File Size179KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

DMR14C3-A Overview

Smart/Normal 7 Seg Numeric LED Display, Red, 14.2mm, ROHS COMPLIANT PACKAGE-28

DMR14C3-A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUNLED
package instruction	ROHS COMPLIANT PACKAGE-28
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IC COMPATIBLE
color	RED
Configuration	COMMON CATHODE, 3 DIGITS WITH DECIMAL POINT
Display height	14.2 mm
Maximum forward current	0.03 A
Number of functions	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

www.SunLED.com

Part Number:

DMR14C3-A

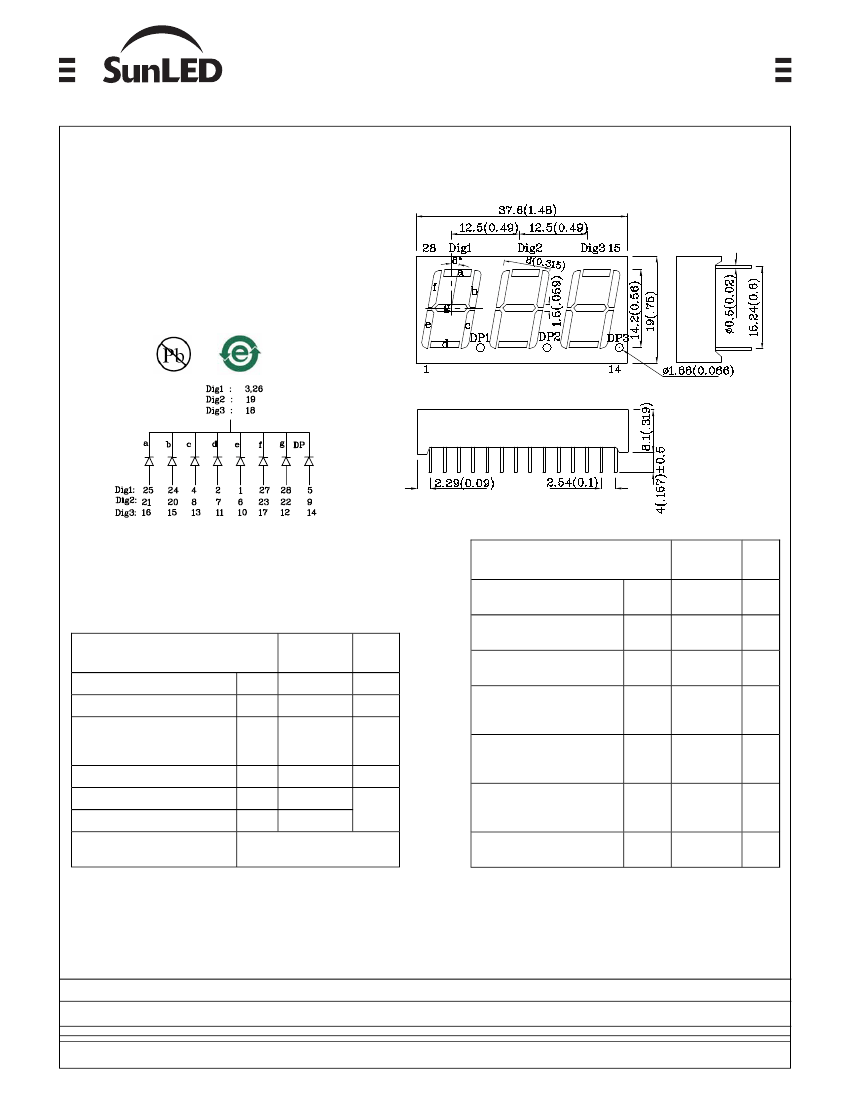

14.22mm (0.56") THREE DIGIT NUMERIC DISPLAY

Features

0.56 INCH DIGIT HEIGHT.

LOW CURRENT OPERATION.

EXCELLENT CHARACTER APPEARANCE.

EASY MOUNTING ON P.C. BOARDS OR SOCKETS.

I.C. COMPATIBLE.

MECHANICALLY RUGGED.

STANDARD: GRAY FACE, WHITE SEGMENT.

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3.Specifications are subject to change without notice.

Absolute Maximum Ratings

(TA=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Lead Solder Temperature

[2mm Below Package Base]

Tstg

(GaAlAs)

155

-40 ~ +85

Unit

°C

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=10mA)

Forward Voltage (Max.)

=10mA)

Reverse Current (Max.)

=5V)

Wavelength of Peak

Emission (Typ.)

=10mA)

Wavelength of Dominant

Emission (Typ.)

=10mA)

Spectral Line Full Width At

Half-Maximum (Typ.)

=10mA)

Capacitance (Typ.)

=0V, f=1MHz)

(GaAlAs)

1.8

2.5

Unit

660

640

Δλ

260°C For 3 –5 Seconds

Part

Number

Emitting

Color

Emitting

Material

Luminous

Intensity

(IF=10mA)

ucd

min.

typ.

44990

Wavelength

Description

DMR14C3-A

Red

GaAlAs

12000

660

Common Cathode, Rt. Hand Decimal

Checked : Shin Chi

P.1/4

Published Date : FEB 29,2008

Drawing No:SDSA2266
