SC-605
Speech And Music Processor
Data sheet
Features
Advanced, integrated speech synthesizer for
high-quality sound.
Operates up to 12.32 MHz (performs up to 12
MIPS).
Single chip solution for up to 37 minutes of
speech (using 2.36 Mb of onboard program
plus data ROM).
Supports high-quality synthesis algorithms
Such as: MX, CX, Simple CX, LX, ADPCM, and
Polyphonic Music.
Simultaneous speech plus music capabilities.
Very low-power operation, ideal for hand-held
devices.
Low-voltage operation, sustainable by three
batteries.
Reduced power stand-by modes, less than 10
µA
in Deep-Sleep mode.
640-word RAM.
32 I/O pins consisting of: 24 general-purpose bit
configurable I/O, 8 inputs with programmable
pullup resistors and a dedicated interrupt (key-
scan).
Direct speaker driver, 32
Ω (PDM).
One-bit comparator with edge-detection
interrupt service.
Resistor-trimmed oscillator or 32.768 kHz
crystal reference oscillator.
Serial scan port for in-circuit emulation and
diagnostics.
The SC-605 is sold in die form or 100-pin LQFP
package.
An emulator device is available in a ceramic
package for development (SC-614-P).
Description
The SC-605 is a low-cost, mixed-signal
processor that combines a speech synthesizer,
general-purpose I/O, onboard ROM, and direct
speaker drive in a single package. The
computational unit utilizes a powerful new DSP
which gives the SC-605 unprecedented speed
and computational flexibility compared with
previous devices of its type. The SC-605
supports a variety of speech and audio coding
algorithms, providing a range of options with
respect to speech duration and sound quality.
16-Bit
Microprocessor
SC-605 Block Diagram
10-Bit
DAC
640-words
RAM
TIMER 1
TIMER 2
PLLM
288 KBytes
ROM
COMPARATOR
32 I/O
The device consists of a micro-DSP core,
embedded program, and data memory, and a self-contained clock generation system. General-purpose
periphery is comprised of 32 bits of partially configurable I/O. The core processor is a general-purpose 16-bit
microcontroller with DSP capability. The basic core block includes computational unit (CU), data address unit,
program address unit, two timers, eight level interrupt processor, and several system and control registers. The
core processor gives the SC-605 break-point capability in emulation.
The processor is Harvard type for efficient DSP algorithm execution. It requires separate program and data
memory blocks to permit simultaneous access. The ROM has a protection scheme to prevent third-party
pirating. It is configured in 32K 17-bit words.
The total ROM space is divided into three areas:
1) The lower 2K words are reserved by Sensory, Inc. for the purposes of a built-in self-test
2) The upper 30K words are for user program/data
3) Additional 1.83 Mb data ROM provides data for up to 37 minutes of speech.
© 2002 Sensory Inc.
P/N 80-0209-A
1
SC-605
Data sheet
The data memory is internal static RAM. The RAM is configured in 640 17-bit words. All memories are designed
to consume minimum power at a given system clock and algorithm acquisition frequency.
A flexible clock generation system enables the software to control the clock over a wide frequency range. The
implementation uses a phase-locked loop (PLL) circuit that drives the processor clock at a selectable frequency
between the minimum and maximum achievable. Selectable frequencies for the processor clock are spaced
apart in 65.536 kHz steps. The PLL clock-reference is also selectable; either a resistor-trimmed oscillator or a
crystal-referenced oscillator may be used. Internal and external clock sources are controlled separately to
provide different levels of power management.
The periphery consists of five 8-bit wide general-purpose I/O ports, one 8-bit wide dedicated input port, and one
16-bit wide dedicated output port. The bidirectional I/O can be configured under software control as either high-
impedance inputs or as totem-pole outputs. They are controlled via addressable I/O registers. The input-only
port has a programmable pullup option (70k minimum resistance) and a dedicated service interrupt. These
features make the input port especially useful as a key-scan interface.
A simple one-bit comparator is also included in the periphery. The comparator is enabled by a control register,
and its pin access is shared with two pins in one of the general-purpose I/O ports. Rounding out the SC-605
periphery is a built-in pulse-density-modulated DAC (digital-to-analog converter) with direct speaker-drive

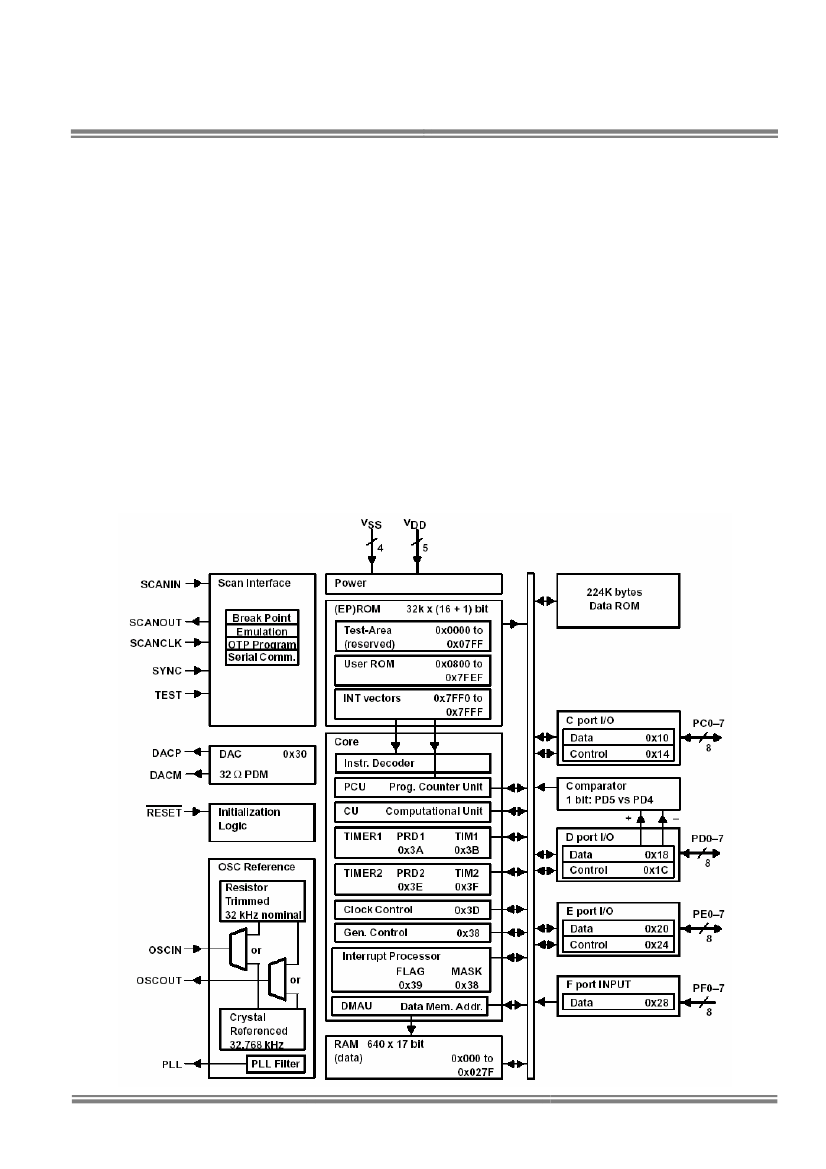

capability. The functional block diagram gives an overview of the SC-605 functionality.
Functional Block Diagram
2
P/N 80-0209-A
© 2002 Sensory Inc.
Data Sheet
SC-605
Pin/Pad Assignment
PD6
PD7
VDD
VSS
PD0
VSS
PC0
PD1
PD2
PD3
PD4
PD5
PC1
PC2
PC3
PC4
PC5
PC6
PC7
NC
NC
NC
NC
79
78
NC
NC
77
76
75
74
73
72
71
70
69
68
67
66
65
100
99
98
97
96
95
94
93
92
91
90
89
NC
NC
NC
NC
DACM
VDD
DAVP
VDD
PF7
PF6
PF5
PF4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
81
80
88
87
86
85
84
83
82
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
19
20
1
SC-605
32
(top view of the die)
PF3
PF2
PF1
PF0
VSS
NC
NC
NC
NC
NC
NC
NC
NC
SC-605
(100-lead TQFP)
64
63
62
61
60
59
58
57
56
55
54
53
52
51
33
52
SCANOUT
TEST
SYNC
SYNCLK
SCANIN
RESET_
NAME
PIN NO.
Input/Output Ports
PC0 – PC7
89
→
82
PD0 – PD7
99
→
92
PE0 – PE7
46
→
39
PF0 – PF7
16
→
9
Scan Port Control Signals
SCANIN
37
SCANOUT
33
SCANCLK
36
SYNC
35
TEST
34
PAD NO.
8
→
1
18
→
11
48
→
41
31
→
24
I/O DESCRIPTION
I/O
I/O
I/O
I
Port C general-purpose I/O (1 Byte)
Port D general-purpose I/O (1 Byte)
Port E general-purpose I/O (1 Byte)
Port F key-scan input (1 Byte)
Pins PD4 and PD5 may be dedicated to the comparator function, if the comparator enable bit is set.
39
35
38
37
36
I
O
I
I
I
Scan port data input
Scan port data output
Scan port clock
Scan port synchronization
C605: test modes
The scan port pins must be bonded out on any SC-605 production board.
Reference Oscillator Signals
OSCOUT
49
51
OSCIN
48
50
PLL
47
49
Digital-to-Analog Sound Output
DACP
7
22
DACM
5
20
Initialization
RESET
38
40
Power Signals
V
SS
17, 50, 90, 100
†
32, 52, 9, 19
†
V
DD
6
†
, 8, 31, 32, 91 21
†
, 23, 33, 34, 10
O Resistor/crystal reference out
I Resistor/crystal reference in
O Phase-lock-loop filter
O Digital-to-analog plus output (+)
O Digital-to-analog minus output (–)
I
-
-
Initialization
Ground
Processor power (+)
† The V
SS
and V
DD
connections service the DAC circuitry. Their pins tend to sustain a higher current draw. A dedicated decoupling capacitor
across these pins is therefore required.
© 2002 Sensory Inc.
OSCOUT
VSS
PLL
OSCIN
NC
VDD
VDD
NC
NC
NC
NC
PE1
PE0
PE7
PE6
PE5
PE4
PE3
PE2
P/N 80-0209-A
3
SC-605
Data sheet
Absolute Maximum Ratings
Absolute maximum ratings over operating free-air temperature range (unless otherwise noted)†
Supply voltage, V
DD
(see Note 1)
Supply current, I
DD
(see Note 2)
Input voltage range, V
I
(see Note 1)
Output voltage range, V
O
(see Note 1)
Storage temperature range, T
A
–0.3 to 7 V
35 mA
–0.3 to V
DD
+ 0.3 V
–0.3 to V
DD
+ 0.3 V
–30
°
C to 125
°
C
WARNING:
Stressing the SC-605 beyond the “Absolute Maximum
Ratings” may cause permanent damage. These are
stress ratings only. Operation beyond the “Operating
Conditions” is not recommended and extended
exposure beyond the “Operating Conditions” may
affect device reliability.
NOTES: 1. Unless otherwise noted, all voltages are measured with respect to V
SS
.
2. The total supply current includes the current out of all the I/O pins as well as the operating current of the device.
Recommended Operating Conditions
Supply voltage (with respect to V
SS
), V
DD
CPU clock rate (as programmed), f
(CPU)
Load resistance between DAC
P
and DAC
M,
R
(DAC)
Operating free-air temperature, T
A
MIN
3
64
32
0
MAX
5.2
12,320
70
UNIT
V
kHz
Ω
°C
Device functionality
Timing Requirements
t
(RESET)
t1
(WIDTH)
t2
(WIDTH)
Reset low pulse width, while V
DD
is within specified limits
Pulse width required prior to a negative transition at pin PD3, PD5, or PF0
→
PF7
‡
Pulse width required prior to a positive transition at pin PD2 or PD4
†
MIN
100
2
2
MAX
UNIT
ns
1/F
CPU
1/F
CPU
‡ While these pins are being used as interrupt inputs.
t
(RESET)
t
(RESET)
Figure 1:
Initialization Timing Diagram
t1
(WIDTH (PD3, PD5, or F port))
t2
(WIDTH (PD2, or PD4))
t1
(WIDTH)
t2
(WIDTH)
Figure 2:
External Interrupt Pin Pulse Width Requirements t1
WIDTH
and t2
WIDTH
4
P/N 80-0209-A
© 2002 Sensory Inc.
Data Sheet
SC-605
DC Electrical Characteristics, TA = 0 to 70°C
PARAMETER
TEST CONDITIONS
MIN TYP
§
MAX UNIT
Positive going threshold
2.4
V
DD
= 3 V
V
Negative going threshold
1.8
Hysteresis
0.6
Threshold changes
Positive going threshold
3.3
V
DD
= 5.2 V
V
Negative going threshold
2.9
Hysteresis
0.4
V
DD
= 3 V
2
3
High-level input voltage
V
V
DD
= 4.5 V
3
4.5
V
DD
= 5.2 V
3.5
5.2
V
DD
= 3 V
0
1
V
Low-level input voltage
V
DD
= 4.5 V
0
1.5
0
1.7
V
DD
= 5.2 V
High-level output current per pin of I/O port
V
OH
= 4 V
–2
mA
Low-level output current per pin of I/O port
V
OL
= 0.5 V
5
mA
V
DD
= 4.5 V
High-level output DAC current
V
OH
= 4 V
–10
mA
Low-level output DAC current
20
mA
V
OL
= 0.5 V
Input leakage current
Excludes OSC
IN
1
µA
Standby current
RESET is low
0.05
10
µA
Operating current
V
DD
= 4.5 V, F
CLOCK
= 12.32 MHz
15
mA
V
DD
= 4.5 V, DAC off, ARM set, OSC disabled
0.05
10
Supply current
V
DD
= 4.5 V, DAC off, ARM set, OSC enabled
40
60
µA
V
DD
= 4.5 V, DAC off, ARM clear, OSC enabled
60
100
Input offset voltage
V
DD
= 4.5 V, V
ref
= 1 to 4.25 V
25
50
mV
F port pullup resistance
V
DD
= 5 V
70 150
KΩ
R
RTO
= 470 kΩ, V
DD
= 4.5 V, T
A
= 25°C,
±1% ±3%
Trim deviation
f
RTO
= 8.192 MHz (PLL setting = 7 Ch)
‡
R
RTO
= 470 kΩ, V
DD
= 3.5 to 5.2 V, T
A
= 25°C,
±1.5%
Voltage deviation
f
RTO
= 8.192 MHz (PLL setting = 7 Ch)
‡
R
RTO
= 470 kΩ, V
DD
= 4.5 V, T
A
= 0 to 70°C,
Temperature deviation
±0.03
%/°C
f
RTO
= 8.192 MHz (PLL setting = 7 Ch)
‡
V
DD
= 4.5 V, T
A
= 25°C, R
(OSC)
= 470 kΩ at ±1%,
±1%
Resistance deviation
f
RTO
= 8.192 MHz (PLL setting = 7 Ch)
‡
RESET_
V
IH
V
IL
I
OH¶
I
OL¶
I
OH (DAC)
I
OL (DAC)
I
lkg
I
(STANDBY)
I
DD†
I
(SLEEP-deep)
I
(SLEEP-mid)
I
(SLEEP-light)
V
IO
R
(PULLUP)
∆f
(RTO-trim)
∆f
(RTO-volt)
∆f
(RTO-temp)
∆f
(RTO-res)
† Operating current assumes all inputs are tied to either V
SS
or V
DD
with no input currents due to programmed pullup resistors. The DAC
output and other outputs are open circuited.
‡ The best trim value is selected at nominal temperature and voltage but the deviation due to the trim error is ignored.
§ Typical voltage and current measurement taken at 25°C
¶ Cannot exceed 15 mA total per internal V
DD
pin. Port A, B share 1 internal V
DD
pin; Port C, D share 1 internal V
DD
.
External Component Absolute Values
PARAMETER
R
(RTO)
RTO external resistance
C
(PLL)
PLL external capacitance
TEST CONDITIONS
T
A
= 25°C, 1% tolerance
T
A
= 25°C, 10% tolerance
MIN
MAX
470
3300
UNIT
k
pF
© 2002 Sensory Inc.
P/N 80-0209-A
5
京公网安备 11010802033920号
EEWORLD
