PL-2507 Product Brochure
V1.0 08/05/02
1
PL-2507
Hi-Speed USB to IDE Bridge Controller
OVERVIEW
The PL-2507 is a single chip USB2.0-IDE bridge controller, which is designed to perform a seamless protocol transfer
between the USB and ATA interfaces.
It will work with full function at full speed or high speed USB transfer mode. The operating speed mode is determined by
the capability of the host/hub to which it is connected. The PIO mode 0 to mode 5, Multi Word DMA mode 0 to mode 2,
and Ultra DMA mode 0 to mode 4 are implemented to support difference IDE devices. The chip will communicate with the
connected device to select the proper mode to obtain the best performance,
The chip is implemented according to the USB Bulk-Only Mass Storage Class specification ver 1.0. Since the default
driver is supported by most the OS, no additional driver is needed.
FEATURES
Universal Serial Bus Specification 2.0 Compliant
USB Mass Storage Class Bulk-Only Transport
Specification Compliant
AT Attachment with Packet Interface
Extension(ATA/ATAPI) Compliant
ATA interface support PIO mode 0 ~ 4, Multiword
DMA mode 0 ~ 2, and UltraDMA mode 0 ~ 4 to work
with ATA/ATAPI devices
Integrate full speed and high speed transceiver
5 V tolerant inputs, 3.3 V output drive
Sufficient 4K bytes data buffer for both the
downstream and upstream data transfer in optimized
performance
Support external serial EEPROM to customize
vender/product related information
Support multiple LUN (optional)
Additional General Purpose IO pins for further
customization
On-chip 3.3v to 2.5v regulator to supply the power of
0.25 process core circuit
Inexpensive LQ100 and LQ64 packaging available

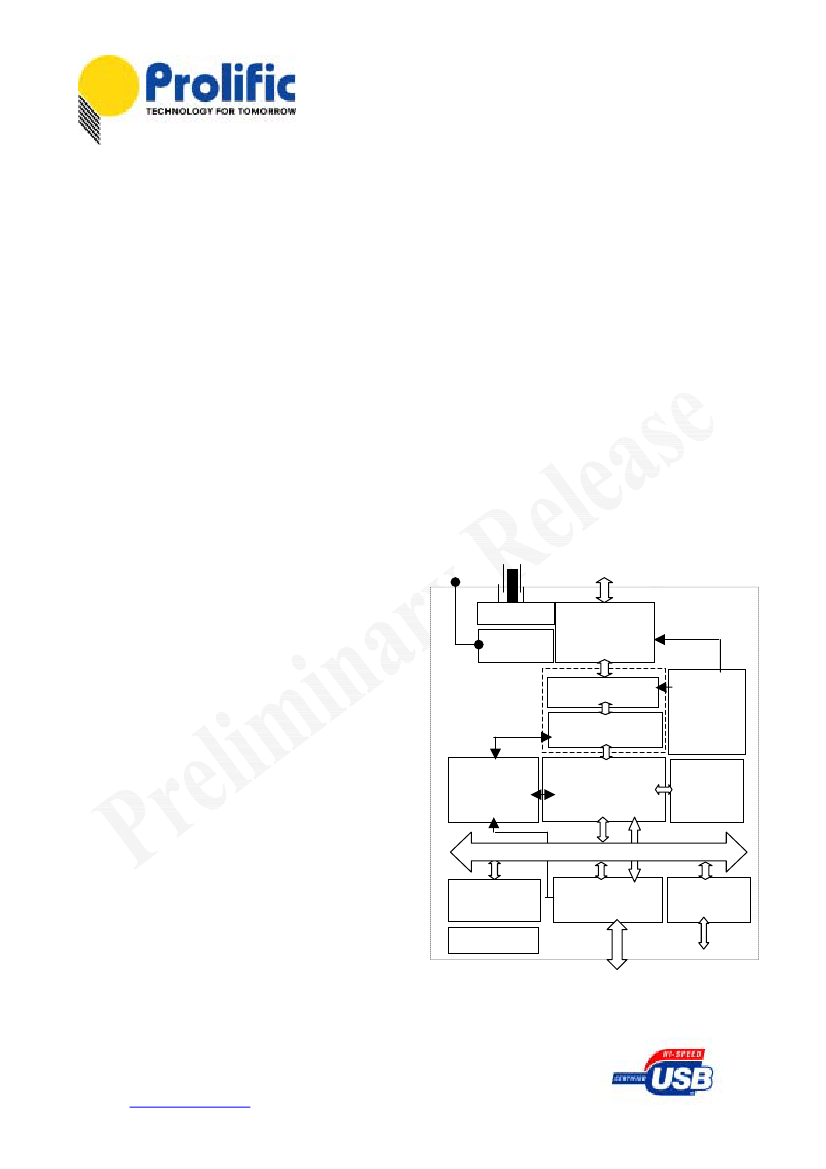

BLOCK DIAGRAM
3.3V
P
OWER
12MH
Z
C
RYSTAL
USB2.0 H
OST
PLL
R
EGULATOR
3.3/2.5
V
USB 2.0 P
HY
(UTMI)
B
ACKEND
SIE
L
OGIC
D
EVICE
P
OWER
M
ANAGE
MENT
I
NTERRUPT
C
ONTROLLER
M
EMORY
M
ANAGEMENT
U
NIT
(MMU)
U
NIFIED
RAM 4KB
T
URBO
8032
C
ONTROLLER
IDE
C
ONTROLLER
GPIO
16KB ROM
HDD,CD-ROM,CD-RW,DVD,DVD+RW,MO
