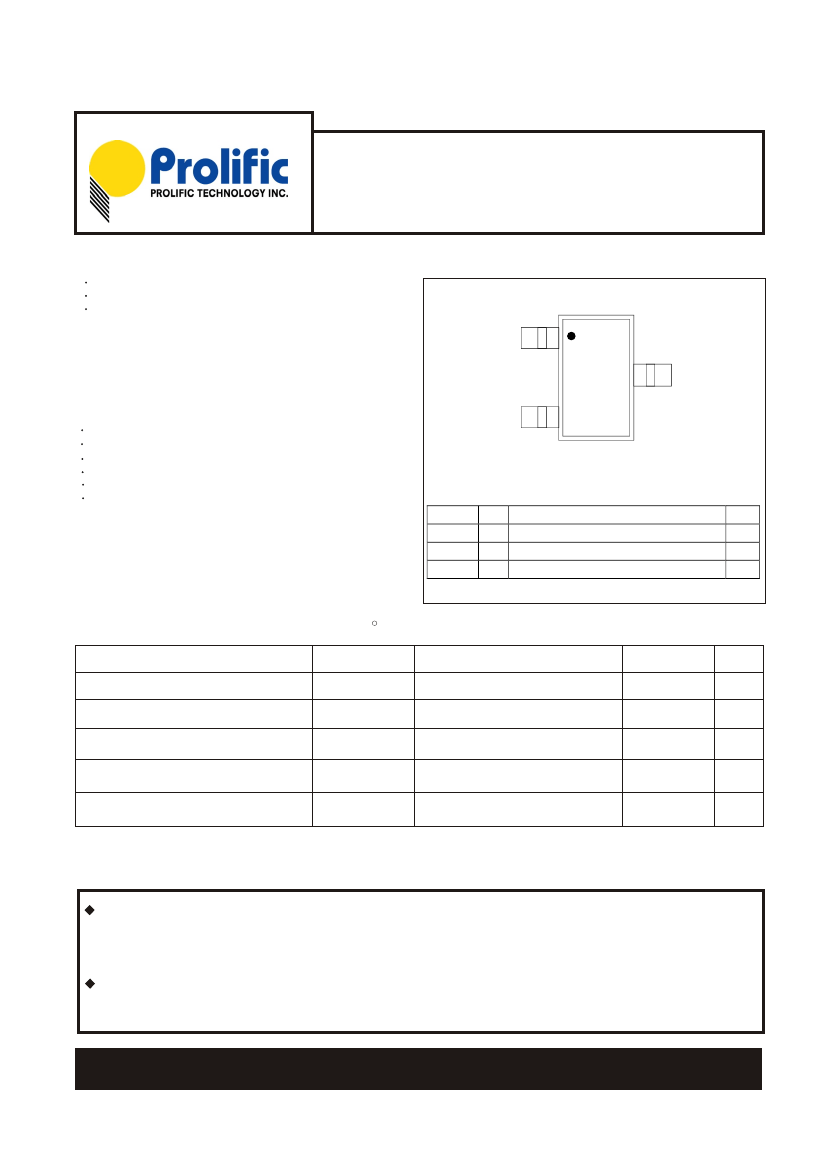

Micro Power Hall IC
PT-3661
Micropower
Hi-Sensitivity Hall Effect Switch
Applications
Cover detector.
Battery-Operated.
Hand-Held Equipment.
Package Type
SOT-23
VDD
1
3
661
xxx
GND
Features
2.4V to 5.5V operating range
Built-in dynamic offset cancellation
Small Size
High balance and low thermal drift magnetic sensing
Micro power Operation
ESD protected to 5kV(HBM)
OUT
2
***: Date code
Pin Description
Name
VDD
OUT
GND
Pin Description
1
2
3
DC power supply
Output pin
DC ground
Type
P
O
P
Specifications
Absolute Maximum Ratings (Ta = 25 C)
Parameter
Maximum supply voltage
Allowable power dissipation
Operating temperature
Storage temperature
Output current
Symbol
V
DD
max
Pd
Ta
Ts
I
0ut
Conditions
Ratings
7
300
Units
V
*
mW
O
-40 ~ +85
-55 ~ +150
5
C
C
O
mA
*
On 50mm x 50mm x 1.6mm glass epoxy board
Any and all PROLIFIC products described or contained herein do not have specifications that can handle applications that
require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications
whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your
PROLIFIC representative nearest you before using any PROLIFIC products described or contained herein in such
applications.
PROLIFIC assumes no responsibility for equipment failures that result from using products at values that exceed, even
momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products
specifications of any and all PROLIFIC products described or contained herein.
PROLIFIC TECHNOLOGY INC.
7F, No.48, Sec.3, Nan Kang Rd., Nan Kang, Taipei, 115, Taiwan
Ver. 1 .2
-1-
Date:Mar 2004
