PJ-AA209-FREQ: DescriptionFrequency Range: 10.0 MHz to 52.0 MHz; File Size180KB，2 Pages; ManufacturerNEL; Websitehttp://www.nelfc.com

Download Datasheet View All

PJ-AA209-FREQ Overview

Frequency Range: 10.0 MHz to 52.0 MHz

Preview

Download Datasheet

View All

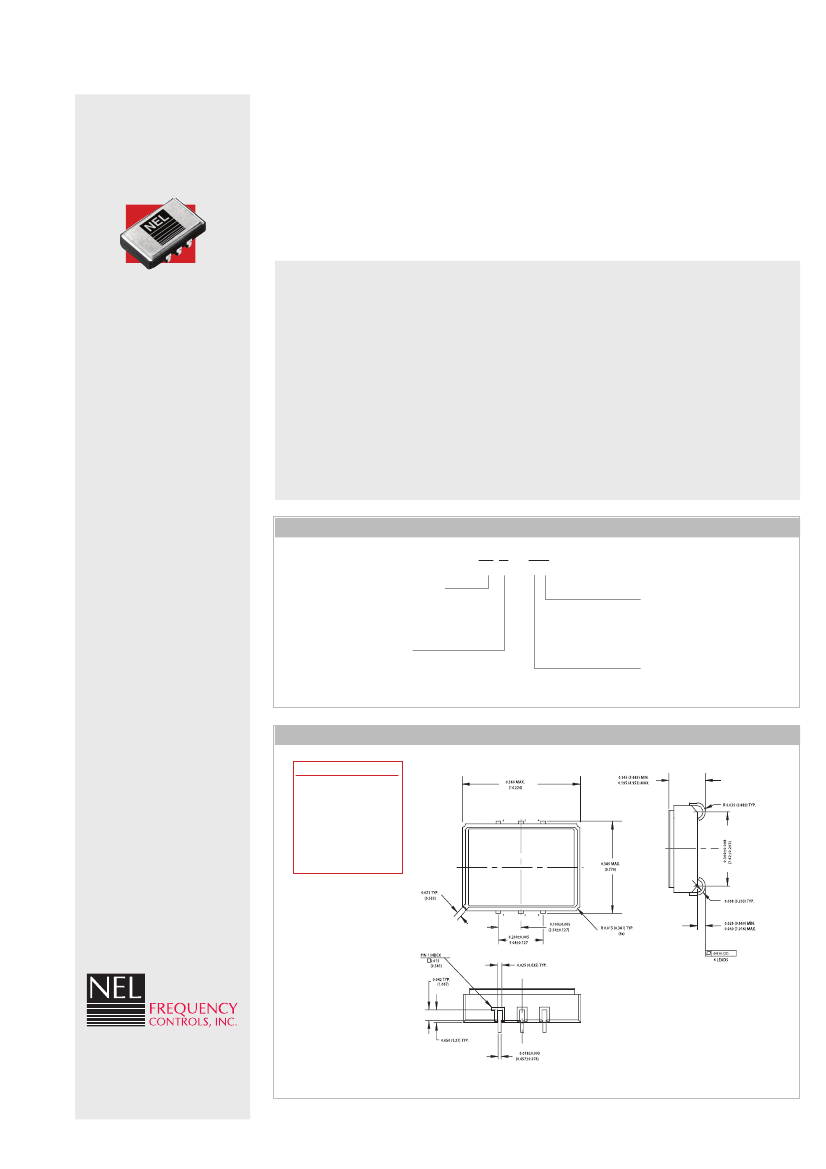

PJ-0A20X

Series

compatible signals.

CMOS TCXO

PJ-0A20X Series

Rev C

Frequency Range: 10.0 MHz to 52.0 MHz

Description

The PJ-0A20X Series

of temperature compensated quartz crystal oscillators provide CMOS

Features

Size, mm

9 x 14

I/O

6J Lead

Supply Voltage

5.0 V / 3.3 V

• Frequency range–10.0MHz to 52.0MHz

• User speciﬁed tolerance

• Will withstand SMD reﬂow temperatures of

253°C for 4 minutes maximum

• Space-saving alternative to discrete

component oscillators

• High shock resistance, to 3000g

• Metal lid electrically connected to ground to

reduce EMI

• Double Sealed Case

• High Reliability - NEL HALT/HASS

qualiﬁed for crystal oscillator start-up

conditions

• Low Jitter - Wavecrest jitter characterization

available

• High Q Crystal actively tuned oscillator

circuit

• Power supply decoupling internal

• No internal PLL avoids cascading

PLL problems

• Low power consumption

• Gold plated leads

• RoHS Compliant, Lead Free Construction

Creating a Part Number

Package Code

PJ 6 J Lead 9x14 mm SMD

Input Voltage

Code

Speciﬁcation

5.0 V

3.3 V

PJ-0A2XX-FREQ

Performance

9 Customer Speciﬁc

D ±10 ppm -40°C to 85

E ±2.5 ppm -40°C to 85

F ±1 ppm 0°C to 70

Trim Adjustment

0 Pin1=NC

1 Pin1=V

Drawing Speciﬁcations

Electrical Connections

Pad

Connection

or NC

Ground

Output

For the most up to date

speciﬁcations on each NEL

product, log on to our

website—www.nelfc.com

Dimension shown in inches and (mm).

357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A.

Phone: 262-763-3591 Fax: 262-763-2881 Email: nelsales@nelfc.com www.nelfc.com
