146 CTI
www.vishay.com
Vishay BCcomponents
Aluminum Electrolytic Capacitors
SMD (Chip), High Temperature, Low Impedance

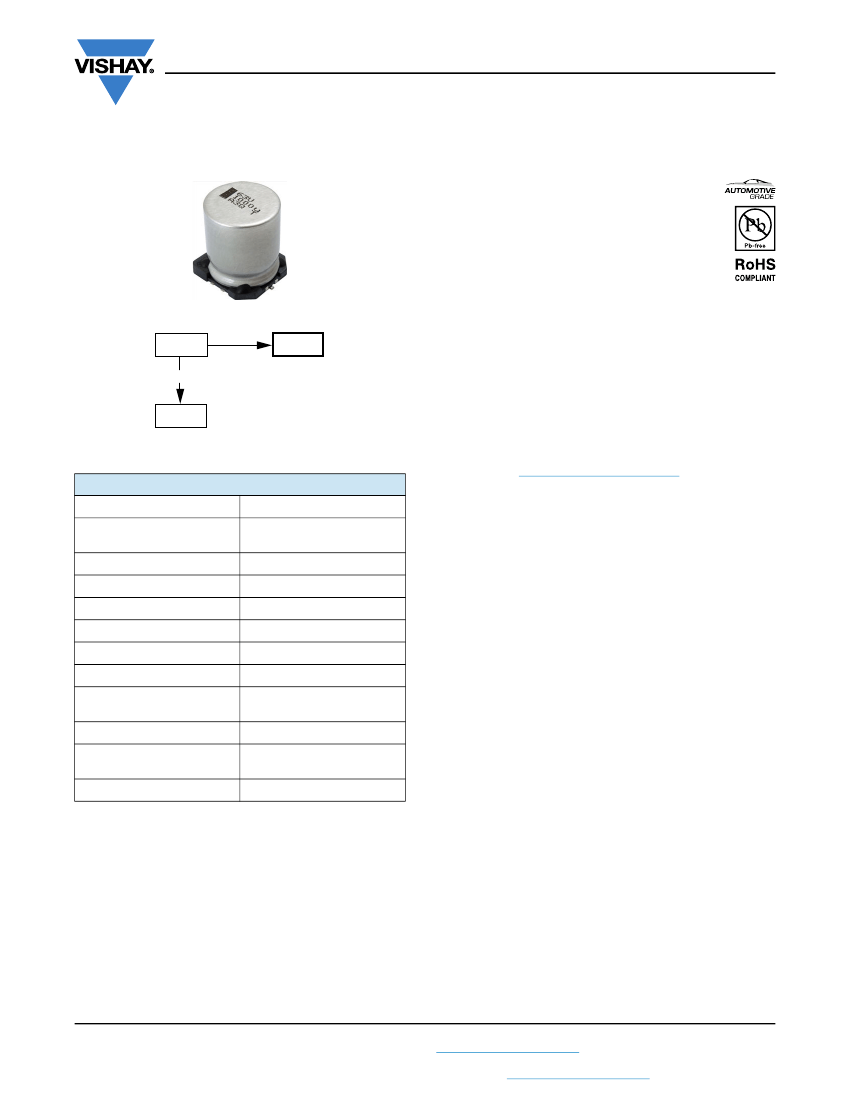

FEATURES
• Extended useful life: up to 6000 h at 125 °C
• Polarized aluminum electrolytic capacitors,
non-solid electrolyte, self healing
• SMD-version with base plate, lead (Pb)-free
reflow solderable
• Charge and discharge proof, no peak current limitation
140 CRH
125 °C
lower Z
lower Z
higher I
R
146 CTI
125 °C
• Advanced temperature reflow soldering according to
JEDEC
®
J-STD-020
• Vibration proof, 4-pin version and 6-pin version
• AEC-Q200 qualified
150 CRZ
105 °C
• High reliability
Fig. 1
• Low ESR
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
QUICK REFERENCE DATA
DESCRIPTION
Nominal case sizes
(L x W x H in mm)
Rated capacitance range, C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 125 °C
Useful life at 125 °C
Useful life at 40 °C
1.8 x l
R
applied
Shelf life at 0 V, 125 °C
Based on sectional
specification
Climatic category IEC 60068
VALUE
8 x 8 x 10
to 18 x 18 x 21
10 μF to 4700 μF
± 20 %
16 V to 100 V
-55 °C to +125 °C
1000 h to 5000 h
1500 h to 6000 h
150 000 h to 400 000 h
1000 h
IEC 60384-18 / CECC 32300
APPLICATIONS
• SMD technology, for high temperature reflow soldering
• Industrial and professional applications
• Automotive, general industrial, telecom
• Smoothing, filtering, buffering
MARKING
• Rated capacitance (in μF)
• Rated voltage (in V)
• Date code, in accordance with IEC 60062
• Black mark or “-” sign indicating the cathode (the anode is
identified by bevelled edges)
• Code indicating group number (T)
PACKAGING
55 / 125 / 56
Supplied in blister tape on reel
Revision: 05-Dec-16
Document Number: 28403
1
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
146 CTI
www.vishay.com
Vishay BCcomponents
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES
(L x W x H in mm)
C
R
(μF)
10
22
33
47
68
100
150
220
330
470
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
U
R
(V)
16
8 x 8 x 10
10 x 10 x 10
10 x 10 x 12
12.5 x 12.5 x 16
16 x 16 x 16
16 x 16 x 16
16 x 16 x 21
18 x 18 x 16
18 x 18 x 21
18 x 18 x 21
25
8 x 8 x 10
10 x 10 x 10
10 x 10 x 12
35
8 x 8 x 10
10 x 10 x 10
10 x 10 x 10
10 x 10 x 10
10 x 10 x 12
50
10 x 10 x 10
10 x 10 x 10
10 x 10 x 10
10 x 10 x 12
10 x 10 x 12
63
10 x 10 x 10
10 x 10 x 10
10 x 10 x 10
10 x 10 x 10
10 x 10 x 12
12.5 x 12.5 x 13
80
10 x 10 x 10
10 x 10 x 10
10 x 10 x 10
10 x 10 x 12
10 x 10 x 12
100
10 x 10 x 10
10 x 10 x 10
10 x 10 x 12
10 x 10 x 12
12.5 x 12.5 x 13
12.5 x 12.5 x 13 12.5 x 12.5 x 16
16 x 16 x 16
16 x 16 x 21
18 x 18 x 16
18 x 18 x 21
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
12.5 x 12.5 x 13 12.5 x 12.5 x 16
16 x 16 x 16
16 x 16 x 21
18 x 18 x 16
18 x 18 x 21
-
-
-
-
-
-
-
-
-
-
-
-
-
-
12.5 x 12.5 x 13 12.5 x 12.5 x 16
16 x 16 x 16
16 x 16 x 16
18 x 18 x 16
16 x 16 x 21
18 x 18 x 21
-
-
-
-
-
-
-
-
-
-
12.5 x 12.5 x 13 12.5 x 12.5 x 16
16 x 16 x 16
16 x 16 x 16
16 x 16 x 21
18 x 18 x 16
18 x 18 x 21
-
-
-
-
-
-
-
-
-
12.5 x 12.5 x 13 12.5 x 12.5 x 16
16 x 16 x 16
16 x 16 x 16
18 x 18 x 16
16 x 16 x 21
18 x 18 x 21
-
-
-
-
-
-
-
16 x 16 x 16
16 x 16 x 16
16 x 16 x 21
18 x 18 x 16
18 x 18 x 21
-
-
-
-
12.5 x 12.5 x 13 12.5 x 12.5 x 16
min. 0.4/max. 1.0 (2 x)
D
D
min. 0.4/max. 1.0 (2 x)
H
MAX.
MAX. 0.3
min. 0.4/max. 1.0 (2 x)
2-pin:
≤ Ø 10 mm
4-pin:
Ø 12.5 mm
6-pin:
≥
Ø
16 mm
H
MAX.
MAX. 0.3
H
MAX.
MAX. 0.3
25V
220 u
A4-H
W
MAX.
B
L1
MAX.
S
25V
2200u
L4-H
W
MAX.
B
35V
1000u
3R-H
W
MAX.
B
D
L
MAX.
L1
MAX.
S
L
MAX.
L1
MAX.
S
L
MAX.

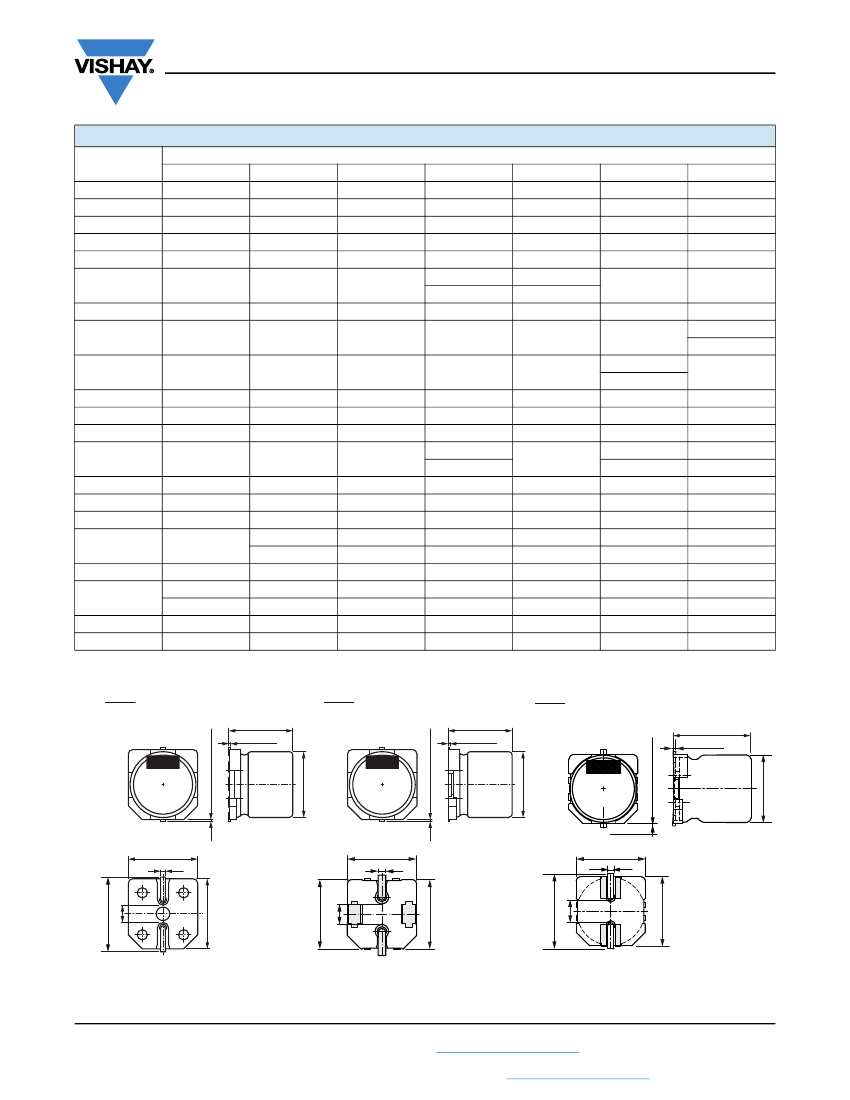

Fig. 2 - Dimensional outline
Revision: 05-Dec-16
Document Number: 28403
2
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
146 CTI
www.vishay.com
Table 1
Vishay BCcomponents
DIMENSIONS
in millimeters
AND MASS
NOMINAL
CASE SIZE
LxWxH
8 x 8 x 10
10 x 10 x 10
10 x 10 x 12
12.5 x 12.5 x 13
12.5 x 12.5 x 16
16 x 16 x 16
16 x 16 x 21
18 x 18 x 16
18 x 18 x 21
CASE
CODE
0810
1010
1012
1213
1216
1616
1621
1816
1821
L
MAX.
8.5
10.5
10.5
12.9
12.9
16.6
16.6
19.0
19.0
W
MAX.
8.5
10.5
10.5
12.9
12.9
16.6
16.6
19.0
19.0
H
MAX.
10.5
10.5
12.5
14.0
16.5
17.5
22.0
17.5
22.0
ØD
B
MAX.
1.0
1.0
1.0
1.3
1.3
1.3
1.3
1.3
1.3
S
L1
MAX.
10.2
12.1
12.1
14.9
14.9
18.6
18.6
21.0
21.0
MASS
(g)
1.0
1.3
1.5
2.6
2.8
5.5
6.0
8.0
8.3
8.0
10.0
10.0
12.5
12.5
16.0
16.0
18.0
18.0
2.2
3.5
3.5
3.6
3.6
6.5
6.5
6.5
6.5
Table 2
TAPE AND REEL DIMENSIONS
in millimeters,
PACKAGING QUANTITIES
NOMINAL
CASE SIZE
LxWxH
8 x 8 x 10
10 x 10 x 10
10 x 10 x 12
12.5 x 12.5 x 13
12.5 x 12.5 x 16
16 x 16 x 16
16 x 16 x 21
18 x 18 x 16
18 x 18 x 21
CASE
CODE
0810
1010
1012
1213
1216
1616
1621
1816
1821
PITCH
P
1
16
16
16
20
24
28
28
32
32
TAPE WIDTH
W
24
24
24
24
32
44
44
44
44
TAPE
THICKNESS
T
2
11.6
11.6
12.8
16.2
18.5
18.9
23.4
18.9
23.4
REEL DIAMETER
PACKAGING
QUANTITY
PER REEL
500
500
250
250
200
150
100
125
100
380
380
330
380
380
380
380
380
380
Note
• Detailed tape dimensions see section “PACKAGING”
Revision: 05-Dec-16
Document Number: 28403
3
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
146 CTI
www.vishay.com
MOUNTING
The capacitors are designed for automatic placement on to
printed-circuit boards.
Optimum dimensions of soldering pads depend amongst
others on soldering method, mounting accuracy, print
layout and / or adjacent components.
For recommended soldering pad dimensions, refer to Fig. 3
and Table 3.
Vishay BCcomponents
SOLDERING
Soldering conditions are defined by the curve, temperature
versus time, where the temperature is that measured on the
component during processing.
For maximum conditions refer to Fig. 4.
Any temperature versus time curve which does not exceed
the specified maximum curves may be applied.
As a general principle, temperature and duration shall be the
minimum
necessary required to ensure good soldering
connections. However, the specified maximum curves
should never be exceeded.
e
d
b
b
f
b
d
a
c
a
a
c
a
a
c
a
Case size Ø D
≤
10 mm
Case size Ø D = 12.5 mm
Fig. 3 - Recommended soldering pad dimensions
Case size Ø D
≥
16 mm
Table 3
RECOMMENDED SOLDERING PAD DIMENSIONS
in millimeters
CASE CODE
0810
1010
1012
1213
1216
1616
1621
1816
1821
a
4.4
4.4
4.4
6.3
6.3
7.8
7.8
8.8
8.8
b
2.5
2.5
2.5
2.5
2.5
9.6
9.6
9.6
9.6
c
3.0
4.0
4.0
4.0
4.0
4.7
4.7
4.7
4.7
d
-
-
-
4.2
4.2
-
-
-
-
e
-
-
-
5.0
5.0
-
-
-
-
f
-
-
-
5.6
5.6
-
-
-
-
Revision: 05-Dec-16
Document Number: 28403
4
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
146 CTI
www.vishay.com
Vishay BCcomponents
ADVANCED SOLDERING PROFILE FOR LEAD (Pb)-FREE REFLOW PROCESS
ACCORDING TO JEDEC J-STD-020
T (°C)
T
Peak
230
217
200
190
t
2
150
t
1
t
4
t
3
25
time (s)
Fig. 4 - Maximum temperature load during reflow soldering
Table 4
REFLOW SOLDERING CONDITIONS
for MAL214699xxxE3
PROFILE FEATURES
Max. time from 25 °C to T
Peak
Max. ramp-up rate to 150 °C
Max. time from 150 °C to 200 °C (t
1
)
Max. time from 190 °C to 200 °C (t
2
)
Ramp up rate from 200 °C to T
Peak
Max. time above T
Liquidus
(217 °C) (t
3
)
Max. time above 230 °C (t
4
)
Peak temperature T
Peak
Max. time above T
Peak
minus 5 °C
Ramp-down rate from T
Liquidus
CASE CODE
0810 TO 1012
300 s
3 K/s
150 s
110 s
0.5 K/s to 3 K/s
90 s
70 s
260 °C
40 s
3 K/s to 6 K/s
CASE CODE
1213 TO 1216
300 s
3 K/s
150 s
110 s
0.5 K/s to 3 K/s
90 s
65 s
250 °C
30 s
3 K/s to 6 K/s
CASE CODE
1616 TO 1821
300 s
3 K/s
150 s
110 s
0.5 K/s to 3 K/s
90 s
60 s
245 °C
30 s
3 K/s to 6 K/s
Notes
• Temperature measuring point on top of the case and on terminals.
• Max. 2 runs with pause of min. 30 min in between.
Revision: 05-Dec-16
Document Number: 28403
5
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
