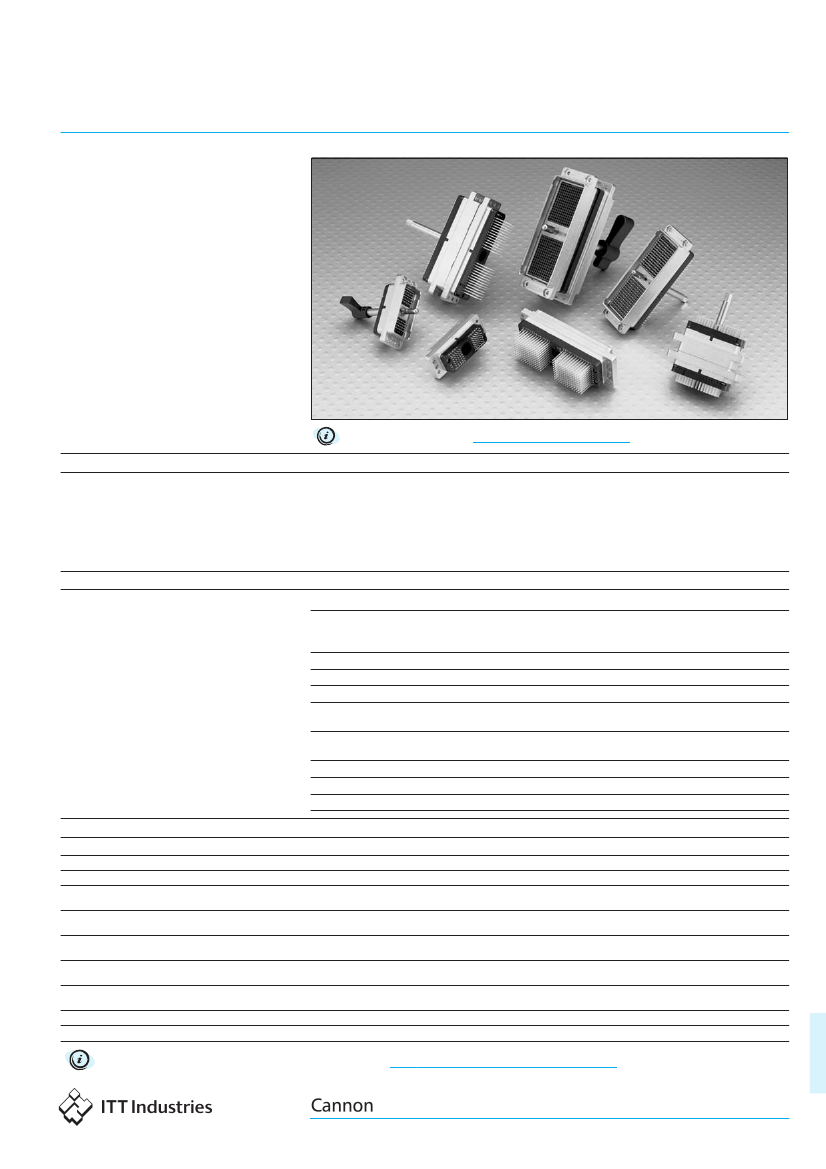

Zero Insertion Force
DLM
C
annon has expanded the DL-ZIF Series
offering with the addition of the DLM
(Metal Shell) versions. The DLM uses a
rugged nickel plated aluminum housing. A
Shield-Locking Mechanism feature ensures
uniform mating pressure around the
perimeter of the mated connector to create an
EMI/RFI shield. Facilitates compliance of
equipment to CE EMC directives.
Applications:
•
Commercial/Industrial Manufacturing
•
Entertainment
•
Medical
•
Telecommunication
•
Test & Instrumentation
For more information: www.ittcannon.com/cat167
Product Features
•
High pin count:
•
Metal housing.
60, 96, 156, 260, 360,
contact positions.
•
Variety of contacts:
– Crimp
– Square PCB Post
– Square Wrap Post
– Buss
– PC/RC
•
Wide range of accessories.
•
Easy actuation by actuating handle.
Performance Specifications
Connector Durability
Contact Resistance
10,000 mating cycles min.
15 mΩ max. - Crimp; PC/RC; Square Post
20 mΩ max. - Crimp #32 AWG to #30 AWG Contact
30 mΩ max. - Crimp #42 AWG to #36 AWG Contact
35,585 N (8 lbs) min.
2,54 (.100) Square Grid
Buss; Crimp; PC/RC; Square PCB Post; Square Wrap Post
5A max. - Crimp/Square Post Contact; 4 A max. - PC/RC Contact
10 A, 20 A, 30 A, 40 A, 50 A, 60 A max. - Buss Contact
1200 V ac rms - M1-156, M2-96, M3-60
1000 V ac rms - M6-360, M5-260
5000 MΩ min.
–55°C to 105°C (–67°F to 221°F)
#42 AWG to #20 AWG
Contact Retention
Contact Spacing
Contact Termination
Current Rating
DWV
Insulation Resistance
Operating Temperature
Wire Accommodation
Materials and Finishes
Description
DLM1/2/3/5/6 Housing
DLM1/2/3/5/6 Insulator
Crimp Contact
✧
Crimp Contact
✧
Square Post Contact
Square Post Contact
PC/RC Contact
Insulator Retainer (Plug Only)
Actuating Camshaft
Material
Aluminum Alloy
Glass-filled Thermoplastic, UL 94V-0
Copper Alloy
Copper Alloy
Copper Alloy
Copper Alloy
Copper Alloy
Stainless Steel
Stainless Steel
Finish/Treatment
Nickel
Color: Black
Engaging Area: 50 µ in. Gold over 50 µ in. Nickel
Terminating End: Gold Flash
Engaging Area: 20 µ in. Gold over 50 µ in. Nickel
Terminating End: Tin-Lead
Engaging Area: 50 µ in. Gold over 50 µ in. Nickel
Terminating End: Gold Flash
Engaging Area: 20 µ in. Gold over 50 µ in. Nickel
Terminating End: Gold Flash
Engaging Area: 20 µ in. Gold over Nickel
Terminating End: Tin-Lead
Passivated
Passivated
Please contact your local Cannon representative: www.ittcannon.com/support/ContactUs
✧
Order crimp contacts separately.
Dimensions are shown in mm (inch)
Dimensions subject to change
Z-05
Version 05.01.03
www.ittcannon.com
