KMX111G: DescriptionKEYPAD SWITCH, SPST, MOMENTARY-TACTILE, 0.016A, 32VDC, 1.9 N, SURFACE MOUNT-STRAIGHT; CategoryMechanical and electronic products switch; File Size162KB，2 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

KMX111G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KMX111G	-	-	View	Buy Now

KMX111G Overview

KEYPAD SWITCH, SPST, MOMENTARY-TACTILE, 0.016A, 32VDC, 1.9 N, SURFACE MOUNT-STRAIGHT

KMX111G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ITT
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Is Samacsys	N
body width	4.1 mm
body height	0.52 mm
Body length or diameter	4.1 mm
Circuit configuration	1X1
Maximum contact bounce time	6 ms
Maximum contact current (DC)	0.016 A
Contact (DC) maximum rated R load	.016A@32VDC
Maximum contact voltage (DC)	32 V
Electrical life	250000 Cycle(s)
Manufacturer's serial number	KMX
Installation features	SURFACE MOUNT-STRAIGHT
Number of switches	1
Maximum operating force	1.9 N
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE AND REEL
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPST
Switch type	KEYPAD SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

KMX Series

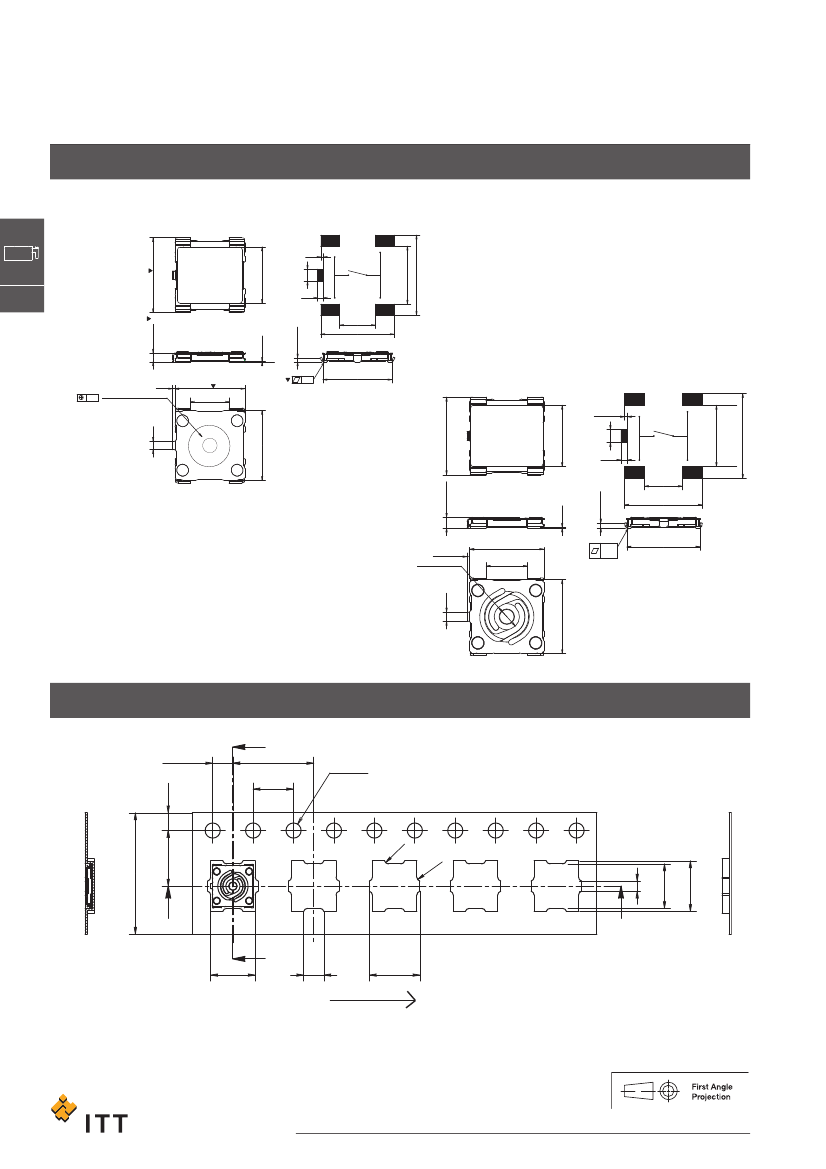

Microminiature Tact Switch for SMT

Features

•

Ultra low profile 0.58mm

Compact switch body; 4.5x4.5mm

1.6 and 2.2N sharp tactile feel

250k cycles

ø 1.4mm actuator grounded

RoHS compliant and compatible

Typical Applications

•

Allows higher board density with

compact SMT switch for ultra low

profile environment: cell phones

keypads, key fob, white goods,

medical and military

Tactile Switches

Specification

FUNCTION: Snap action push-on type SPST/shielded

CONTACT TYPE: Normally open

TERMINALS: Gullwing type for SMT

Electrical

Silver

Gold

0.5 VA

32 VDC

20 mA

1 mA

Mechanical

MAXIMUM ACTUATING FORCE/LIFE: 20 N for 1,000 cycles

Operating force

Type

Newtons (grams)

KMX211G/213G 1.6 (160) ± 30%

KMX221G/223G 2.2 (220)

30%

Operating life

(operations)

Travel

250,000

0,20

0,10

250,000

0,20

0,10

MAXIMUM POWER:

0.5 VA

MAXIMUM VOLTAGE:

32 VDC

MAXIMUM CURRENT DC:

50 mA

MINIMUM CURRENT DC:

1 mA

CONTACT RESISTANCE:

≤

100 mΩ

INSULATION RESISTANCE:

≥

50 MΩ

BOUNCE TIME:

≤

6 ms

Environmental

OPERATING TEMPERATURE:

STORAGE TEMPERATURE:

RELATIVE HUMIDITY

Silver

-40˚C to 85˚C

-55˚C to 85˚C

90 to 96%

Gold

-40˚C to 125˚C

-55˚C to 125˚C

Packaging

Switches are delivered in tape and reels of 10,000 pieces. The reel

diameter is 380 (14.961). The tape dimensions conform to the

EIA-RS-481 and EC-286-6 norms.

Process

Compatible with infrared reflow, lead free soldering and pick and

place SMT machines.

How To Order

Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select

desired option from each category and place it in the appropriate box.

Termination

Gullwing

Contact Material

Silver

Gold

Actuator

Without actuator

With actuator 1.4mm ø

Actuation Force

1.6 N (160 grams)

2.2 N (220 grams)

Dimensions shown in: mm (inch)

Specifications and dimensions subject to change

B–5

www.ittcannon.com

KMX111G Related Products
