B5740-107-F-D-2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> B5740-107-F-D-2

B5740-107-F-D-2: DescriptionHeaders & Wire Housings 7 PIN FEMALE LARGE BORE; CategoryThe connector The connector; File Size91KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

B5740-107-F-D-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B5740-107-F-D-2	-	-	View	Buy Now

B5740-107-F-D-2 Overview

Headers & Wire Housings 7 PIN FEMALE LARGE BORE

B5740-107-F-D-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
body width	0.136 inch
subject depth	0.321 inch
body length	0.675 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	12u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
Termination type	CRIMP
Total number of contacts	7
UL Flammability Code	94V-0
Maximum wire diameter	22 AWG
Minimum wire diameter	22 AWG
Evacuation force-minimum value	.1946 N

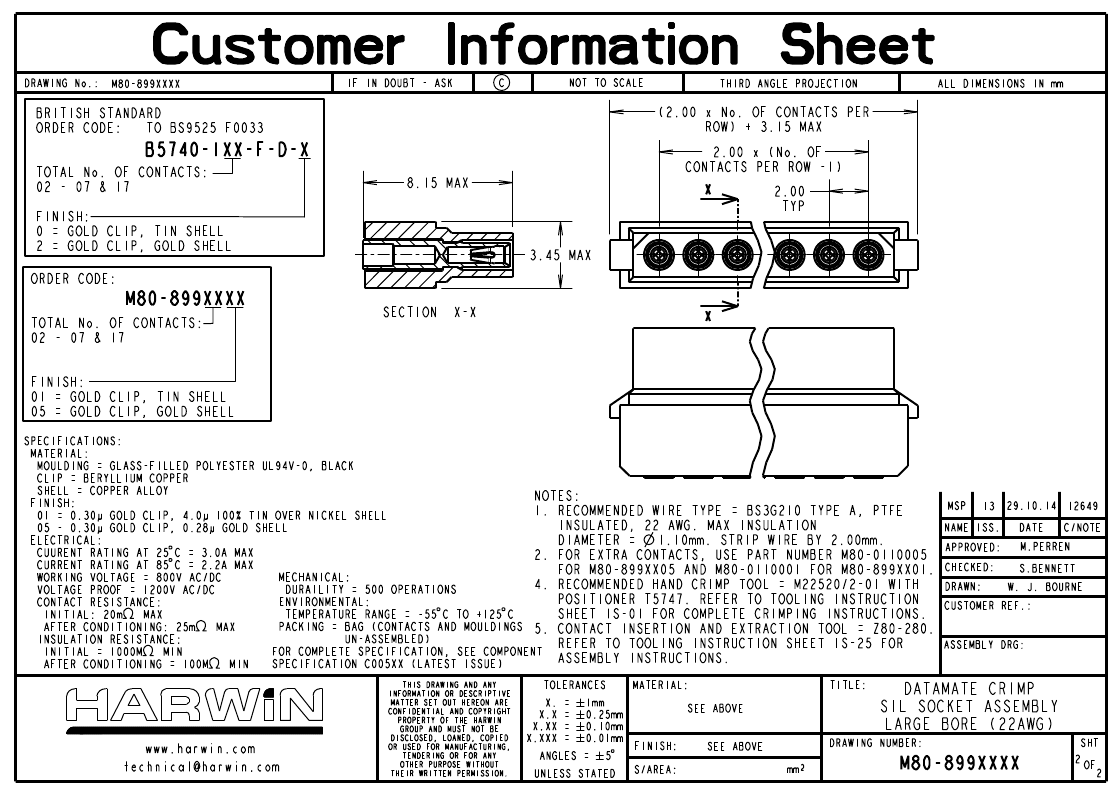

Preview

Download Datasheet

View All

B5740-107-F-D-2 Related Products

	B5740-107-F-D-2	B5740-117-F-D-2	M80-8991705	M80-8990205	M80-8990305	B5740-103-F-D-2	M80-8990605	B5740-102-F-D-2	M80-8990705	B5740-104-F-D-2
Description	Headers & Wire Housings 7 PIN FEMALE LARGE BORE	Headers & Wire Housings 17 PIN FEMALE LARGE BORE	Headers & Wire Housings 17 SIL F/CRMP CONN SELL X 10	Headers & Wire Housings 2 SIL F/CRMP CONN SELL X 10	Headers & Wire Housings 3 SIL F/CRMP CONN SELL X 10	Headers & Wire Housings 3 PIN FEMALE LARGE BORE	Headers & Wire Housings 6 SIL F/CRMP CONN SELL X 10	Headers & Wire Housings 2 PIN FEMALE LARGE BORE	Headers & Wire Housings 7 SIL F/CRMP CONN SELL X 10	Headers & Wire Housings 4 PIN FEMALE LARGE BORE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	LEAD FREE	LEAD FREE	LEAD FREE	ROHS COMPLIANT	LEAD FREE	ROHS COMPLIANT	LEAD FREE	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	not_compliant	not_compliant	not_compliant	compliant	not_compliant	compliant	not_compliant	compliant
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	GOLD (12)	NOT SPECIFIED	GOLD	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	GOLD
Contact completed and terminated	Gold (Au)	GOLD	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au)	Gold (Au) - with Nickel (Ni) barrier	Gold (Au)	Gold (Au) - with Nickel (Ni) barrier	Gold (Au)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	COPPER ALLOY	BERYLLIUM COPPER	COPPER ALLOY	BERYLLIUM COPPER	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY	BERYLLIUM COPPER
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	7	17	17	2	3	3	6	2	7	4
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Harwin	Harwin	Harwin	-	Harwin	-	Harwin	Harwin	Harwin	-
body width	0.136 inch	-	0.136 inch	0.136 inch	0.136 inch	0.136 inch	0.136 inch	0.136 inch	0.136 inch	0.136 inch
subject depth	0.321 inch	-	0.321 inch	0.321 inch	0.321 inch	0.321 inch	0.321 inch	0.321 inch	0.321 inch	0.321 inch
body length	0.675 inch	-	1.463 inch	0.281 inch	0.36 inch	0.36 inch	0.596 inch	0.281 inch	0.675 inch	0.439 inch
Contactor design	PREASSEM CONN	-	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	-	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Durability	500 Cycles	-	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles
maximum insertion force	2.78 N	-	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N
Insulation resistance	100000000 Ω	-	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	-	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	-	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Plug contact pitch	0.079 inch	-	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation option 1	LOCKING	-	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Number of connectors	ONE	-	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	12u inch	-	12u inch	12u inch	12u inch	12u inch	12u inch	12u inch	12u inch	12u inch
polarization key	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	-	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	-	UL	UL	UL	UL	UL	UL	UL	UL
Maximum wire diameter	22 AWG	-	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG
Minimum wire diameter	22 AWG	-	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG
Evacuation force-minimum value	.1946 N	-	.1946 N	.1946 N	.1946 N	.1946 N	.1946 N	.1946 N	.1946 N	.1946 N
