L2C5-22801208E1500 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L2C5-22801208E1500

L2C5-22801208E1500: DescriptionHigh Power LEDs - White Warm White 2200K 80 CRI; CategoryLED optoelectronic/LED photoelectric; File Size3MB，25 Pages; ManufacturerLumileds; Websitehttps://www.lumileds.com/; Environmental Compliance

Download Datasheet Parametric View All

L2C5-22801208E1500 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	L2C5-22801208E1500	-	-	View	Buy Now

L2C5-22801208E1500 Overview

High Power LEDs - White Warm White 2200K 80 CRI

L2C5-22801208E1500 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Lumileds
Reach Compliance Code	compliant
Date Of Intro	2016-09-11
Samacsys Description	Lumileds L2C5-22801208E1500, LUXEON COB Gen3 White CoB LED, 2200K 80CRI

Preview

Download Datasheet

View All

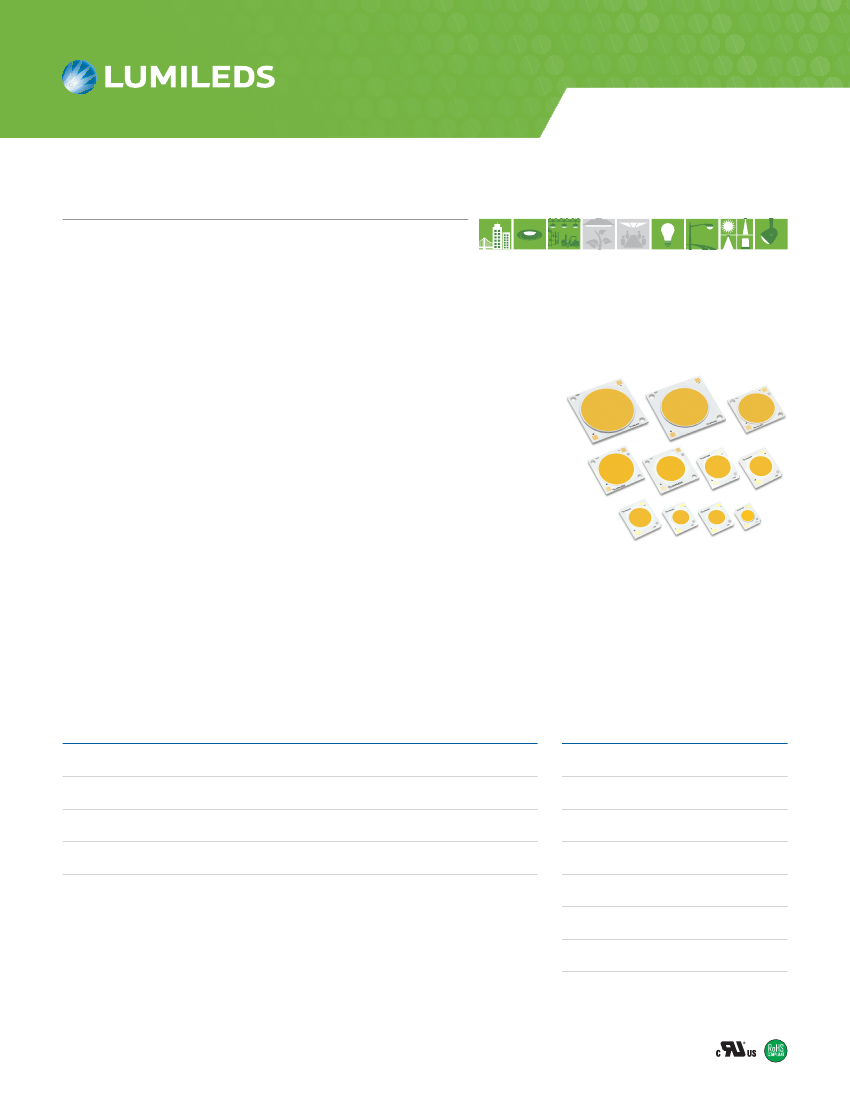

IllumInatIon

luXeon coB core range (Gen 3)

Uniform, high efficacy and easy to design array

The third generation of LUXEON CoB represents a new breakthrough

for arrays. The efficacies will be >160 lm/W for 70CRI and 80CRI

products. Due to its small Light Emitting Surface (LES) and industry-

leading thermal resistance, LUXEON CoB is easy to work with, enabling

simplified and less expensive luminaire designs. LUXEON CoBs are

hot-tested at 85°C—real world operating conditions—which means

additional testing can be minimized. LUXEON CoB LEDs are available

in 3-step MacAdam ellipse, ensuring uniform optical performance in

a wide range of applications.

Features and BeneFIts

Highest flux densities with industry’s smallest LES

3-step MacAdam ellipse color definition:

Freedom from Binning

for color

consistency from luminaire to luminaire

Up to 4x lower thermal resistance than competition, enabling smaller

heatsinks and higher lumens

Supported by a comprehensive optical, mechanical and electrical ecosystem

PrImary aPPlIcatIons

Architectural

Downlights

High Bay & Low Bay

Lamps

Outdoor

Specialty Lighting

Spotlights

No. E352519

Table of Contents

General Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Product Test Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Part Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Lumen Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Environmental Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Product Selection Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Optical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electrical and Thermal Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Characteristic Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Spectral Power Distribution Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Light Output Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Forward Current Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Radiation Pattern Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Color Bin Definitions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Packaging and Labeling Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Inner Box.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Outer Box

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
