TECHNICAL DATA SHEET
1/4

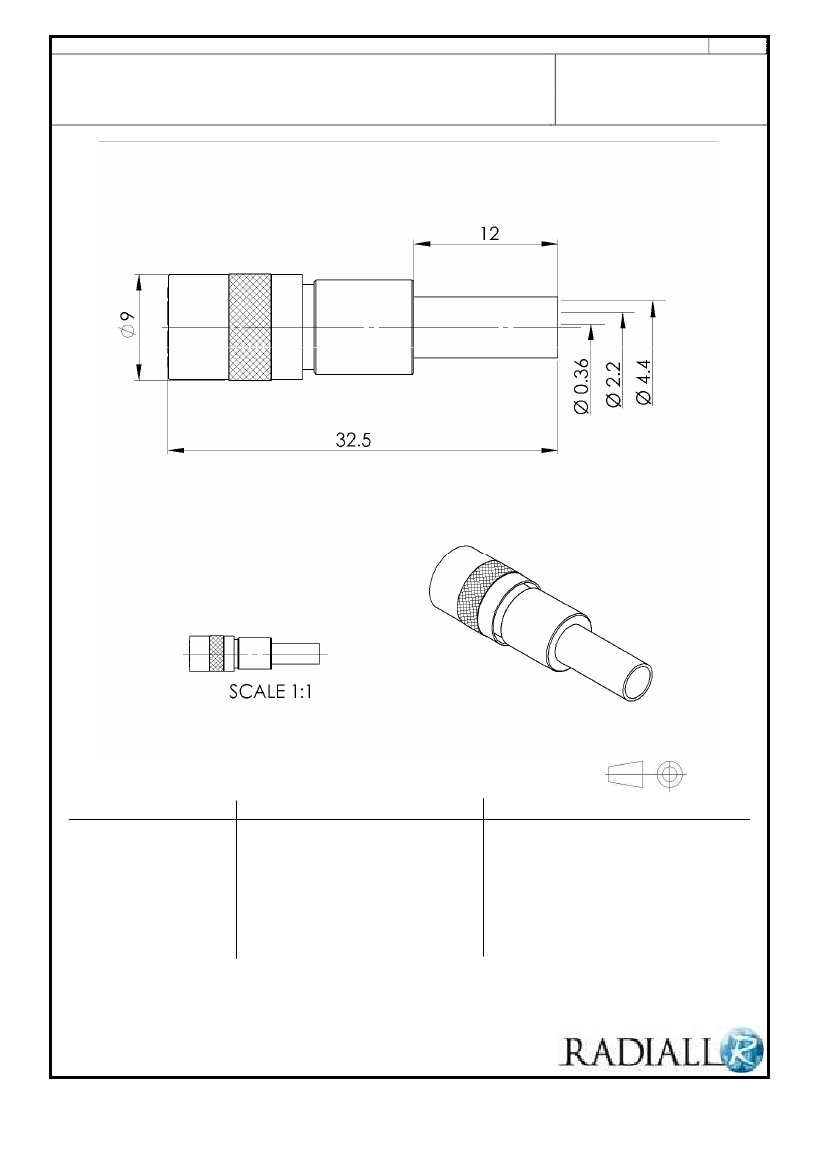

STRAIGHT HDC CONNECTOR C-C FEMALE CRIMP
CABLE 3.6/75 DOUBLE SCREEN PACK 20
R214.088.922
Series :
HDC 43
All dimensions are in mm.
.
pn
.
ao
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
MATERIALS
BRASS
BERYLLIUM COPPER
BRONZE
PTFE
-
BRASS
-
-
PLATING
(µm)
NICKEL
GOLD OVER NICKEL
GOLD OVER NICKEL
NICKEL
-
-
Issue : 1040 G
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
TECHNICAL DATA SHEET
2/4
STRAIGHT HDC CONNECTOR C-C FEMALE CRIMP
CABLE 3.6/75 DOUBLE SCREEN PACK 20
R214.088.922
Series :
HDC 43
PACKAGING
SPECIFICATION
Standard
20
Unit
-
Other
Contact us
ELECTRICAL CHARACTERISTICS
Impedance
75
Ω
Frequency
0-3
GHz
VSWR
1.25* + 0,0000
x F(GHz) Maxi
Insertion loss
NA
√F(GHz)
dB Maxi
RF leakage
-(
NA
- F(GHz)) dB Maxi
Voltage rating
500
Veff Maxi
Dielectric withstanding voltage
1500
Veff mini
Insulation resistance
500
MΩ mini
Stripping
CABLE ASSEMBLY
a
4,50
b
8,00
c
21,0
d
0,00
e
16,5
f
0,00
mm
Assembly instruction
:
Recommended cable(s)
POPE 46431
TZC 750 24
BT3002
Characteristics indicated on this data sheet are those that can be
achieved with the highest performance cable. Intrinsic limitations of
the cable may diminish the performance of the assembly
MECHANICAL CHARACTERISTICS
Center contact retention
Axial force – Mating end
Axial force – Opposite end
Torque
22
N mini
NA
N mini
NA
N.cm mini
Cable retention
- pull off
- torque
150
N mini
NA
N.cm
TOOLING
Part Number Description
.
.
R282.265.002 CRIMPING DIES
Q92435
R282.281.010 CRIMPING TOOL
MH800
R282.287.000 CRIMPING TOOL
Q92316
Hexagon
.
4.52
Recommended torque
Mating
Panel nut
Clamp nut
A/F clamp nut
Mating life
Weight
NA
NA
NA
0,0000
N.cm
N.cm
N.cm
mm
250
Cycles mini
7,0000
g
OTHER CHARACTERISTICS
ENVIRONMENTAL
Operating temperature
Hermetic seal
Panel leakage
-40/+100
° C
NA
Atm.cm3/s
NA
TRL REF. Q96154Z
* 0~1GHz
Issue : 1040 G
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
TECHNICAL DATA SHEET
3/4
STRAIGHT HDC CONNECTOR C-C FEMALE CRIMP
CABLE 3.6/75 DOUBLE SCREEN PACK 20
Contact central
Center contact
R214.088.922
Series :
HDC 43
COMPOSA
Ferrule
COTES DE
e
a
b
Corps
Body
Fig – 1

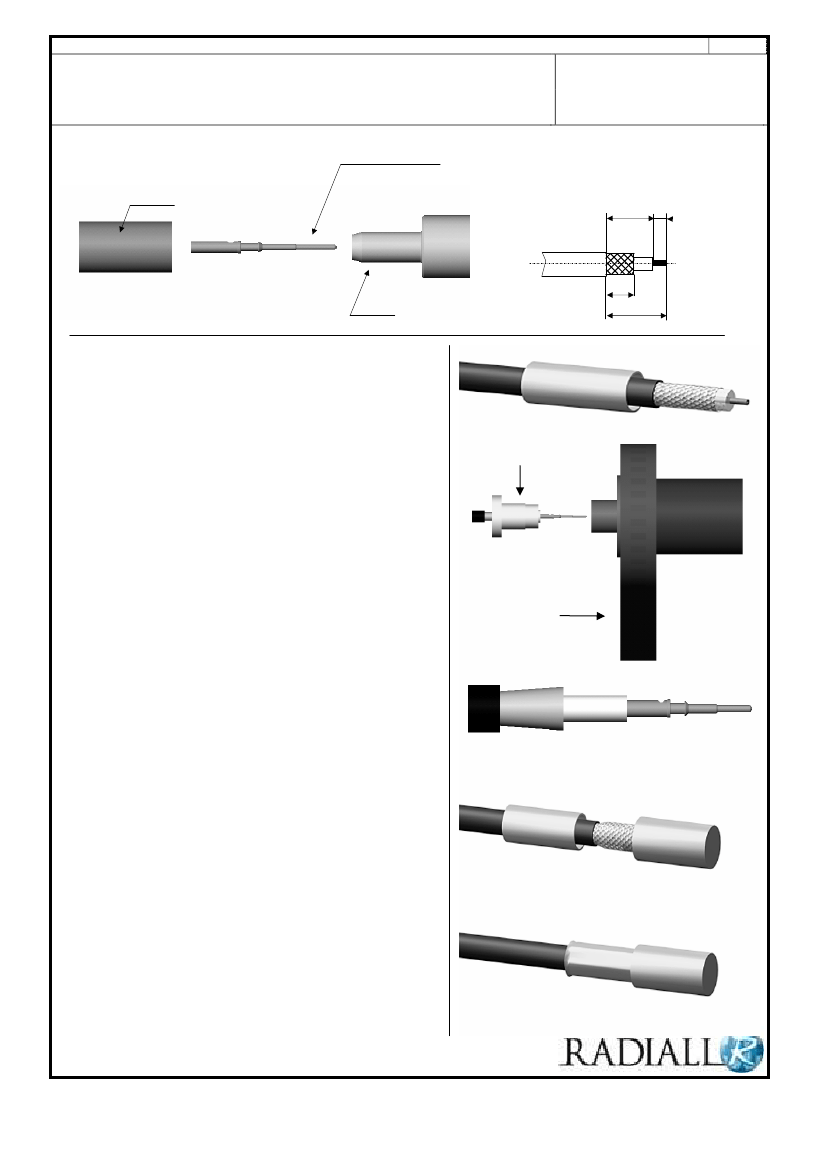

Slide the ferrule onto the cable.
Strip the cable.
Glisser la ferrule sur le câble.
Dénuder le câble suivant les cotes ci dessus.
c
Figure 1
Adaptor
/Adaptateur
Figure 2
Fig – 2
Place adaptor onto the cable until it bottoms against
dielectric.
Slide the centre contact into the adaptor until it bottoms against the
cable dielectric.
Crimp the centre contact with crimping tool ( see connector TDS ).
Placer l’adaptateur sur le cable en buté contre le dielectrique
Monter le contact central dans l’adaptateur en butée contre le
diélectrique du câble.
Sertir le contact central avec la pince ( voir fiche technique du
connecteur ).
Crimping tool
/Pince a sertir
Fig – 3
Fan the braid.
Figure 3
Epanouir la tresse .
Fig – 4
Slide the cable into the body until it bottoms against insulator
(push home until a click is felt)
and slide the ferrule onto the braid .
Monter le câble dans le corps en butée contre l’isolant jusqu'à
encliquetage du contact central.
Glisser la ferrule sur la tresse.
Figure 4
Fig – 5
Slide the ferrule over the braid.
Crimp the ferrule with crimping tool ( see connector TDS ).
Cut the excess of braid if necessary.
Sertir la ferrule avec la pince ( voir fiche technique du
connecteur ).
Enlever le surplus de tresse.
Figure 5
Issue : 1040 G
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
TECHNICAL DATA SHEET
4/4
STRAIGHT HDC CONNECTOR C-C FEMALE CRIMP
CABLE 3.6/75 DOUBLE SCREEN PACK 20
R214.088.922
Series :
HDC 43
PACKAGING – BLK ( BULK )
Blister
Adaptor for crimping tool
Issue : 1040 G
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
