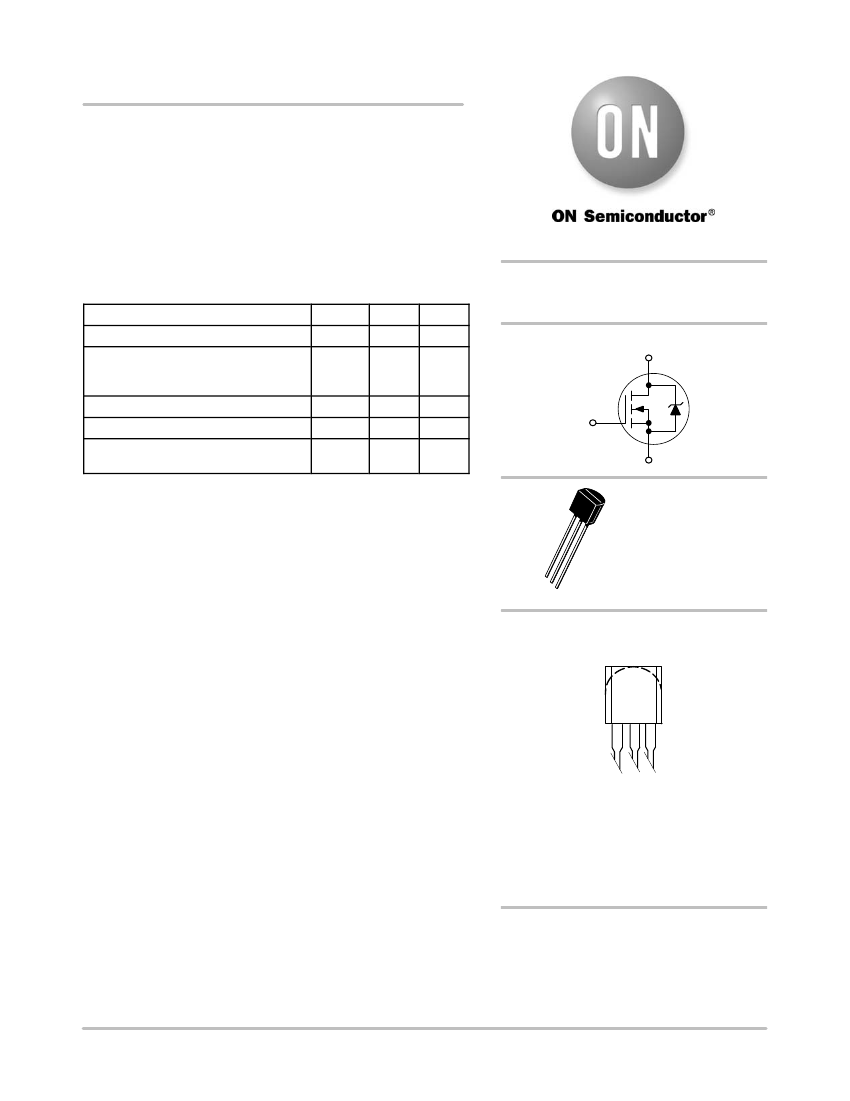

BS170G
Small Signal MOSFET
500 mA, 60 Volts
N−Channel TO−92 (TO−226)
Features
http://onsemi.com
•
This is a Pb−Free Device*
MAXIMUM RATINGS
Rating
Drain
−Source
Voltage
Gate−Source Voltage
−
Continuous
−
Non−repetitive (t
p
≤
50
ms)
Drain Current (Note)
Total Device Dissipation @ T
A
= 25°C
Operating and Storage Junction
Temperature Range
Symbol
V
DS
V
GS
V
GSM
I
D
P
D
T
J
, T
stg
Value
60
±
20
±
40
0.5
350
−55
to
+150
Unit
Vdc
Vdc
Vpk
Adc
mW
°C
500 mA, 60 Volts
R
DS(on)
= 5.0
W
N−Channel
D
G
S
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
NOTE: The Power Dissipation of the package may result in a lower continuous
drain current.
12
TO−92 (TO−226)
CASE 29
STYLE 30
3
MARKING DIAGRAM
& PIN ASSIGNMENT
BS170
AYWWG
G
1
Drain
2
Gate
3
Source
A
= Assembly Location
Y
= Year
WW
= Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
©
Semiconductor Components Industries, LLC, 2011
April, 2011
−
Rev. 6
1
Publication Order Number:
BS170/D
BS170G
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted)
Characteristic
OFF CHARACTERISTICS
Gate Reverse Current
(V
GS
= 15 Vdc, V
DS
= 0)
Drain−Source Breakdown Voltage
(V
GS
= 0, I
D
= 100
mAdc)
ON CHARACTERISTICS
(Note 1)
Gate Threshold Voltage
(V
DS
= V
GS
, I
D
= 1.0 mAdc)
Static Drain−Source On Resistance
(V
GS
= 10 Vdc, I
D
= 200 mAdc)
Drain Cutoff Current
(V
DS
= 25 Vdc, V
GS
= 0 Vdc)
Forward Transconductance
(V
DS
= 10 Vdc, I
D
= 250 mAdc)
SMALL−SIGNAL CHARACTERISTICS
Input Capacitance
(V
DS
= 10 Vdc, V
GS
= 0, f = 1.0 MHz)
SWITCHING CHARACTERISTICS
Turn−On Time
(I
D
= 0.2 Adc) See Figure 1
Turn−Off Time
(I
D
= 0.2 Adc) See Figure 1
1. Pulse Test: Pulse Width
v
300
ms,
Duty Cycle
v
2.0%.
t
on
t
off
−
−
4.0
4.0
10
10
ns
ns
C
iss
−
−
60
pF
V
GS(Th)
r
DS(on)
I
D(off)
g
fs
0.8
−
−
−
2.0
1.8
−
200
3.0
5.0
0.5
−
Vdc
W
mA
mmhos
I
GSS
V
(BR)DSS
−
60
0.01
90
10
−
nAdc
Vdc
Symbol
Min
Typ
Max
Unit
ORDERING INFORMATION
Device
BS170G
BS170RLRAG
Package
TO−92 (TO−226)
(Pb−Free)
TO−92 (TO−226)
(Pb−Free)
Shipping
†
1000 Unit/Tube
2000 Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.
http://onsemi.com
2
BS170G

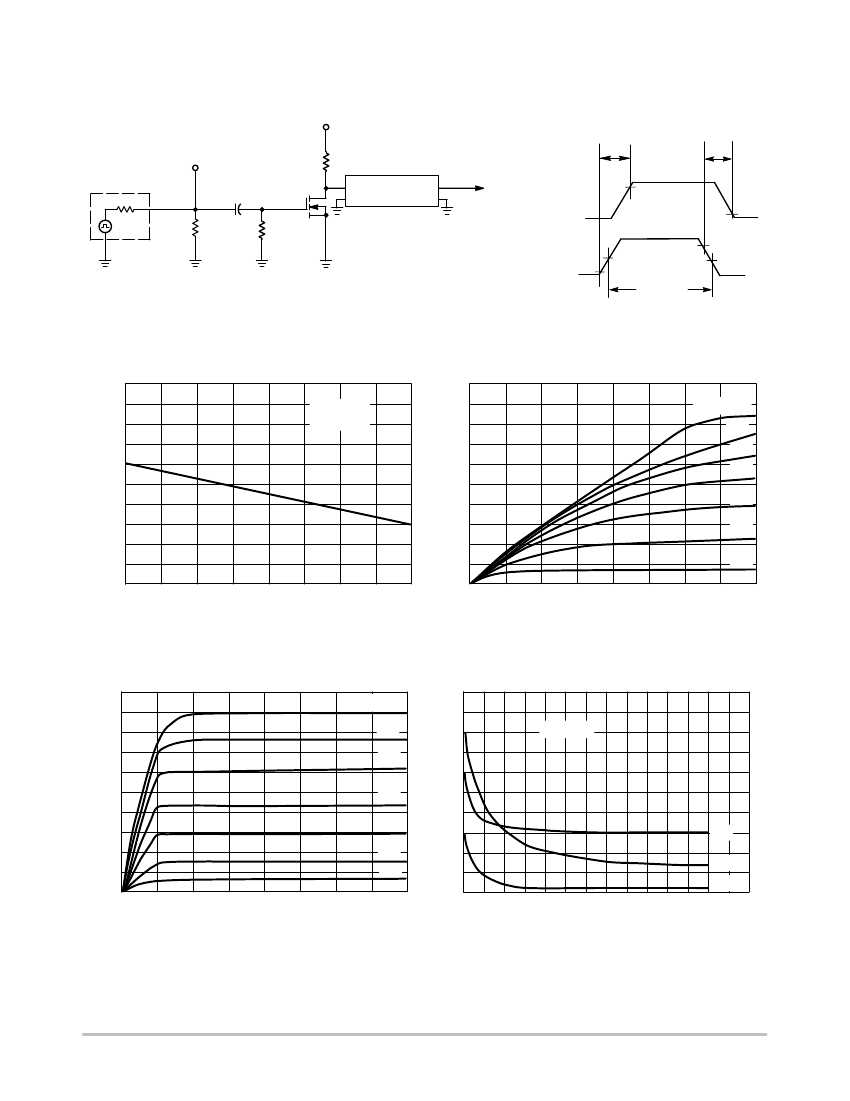

RESISTIVE SWITCHING
+25 V
t
on
125
W
40 pF
50
W
1.0 MW
20 dB
50
W
ATTENUATOR
TO SAMPLING SCOPE
50
W
INPUT
V
out
OUTPUT
V
INVERTED
out
10%
INPUT
(V
in
Amplitude 10 Volts)
V
in
PULSE
WIDTH
t
off
V
in
PULSE GENERATOR
50
W
90%
10%
90%
50%
Figure 1. Switching Test Circuit
Figure 2. Switching Waveforms
2.0
VGS(th), THRESHOLD VOLTAGE
I D(on) , DRAIN CURRENT (AMPS)
V
DS
= V
GS
I
D
= 1.0 mA
2.0
V
GS
= 10 V
1.6
9.0 V
8.0 V
1.2
7.0 V
6.0 V
5.0 V
0.4
4.0 V
1.6
1.2
0.8
0.8
0.4
0
50
100
0
50
T
J
, JUNCTION TEMPERATURE (°C)
150
0
1.0
2.0
3.0
V
DS
, DRAIN - TO-SOURCE VOLTAGE (VOLTS)
4.0
Figure 3. V
GS(th)
Normalized versus Temperature
Figure 4. On−Region Characteristics
2.0
I D(on) , DRAIN CURRENT (AMPS)
V
GS
= 10 V
9.0 V
8.0 V
C, CAPACITANCE (pF)
100
V
GS
= 0 V
1.6
80
1.2
7.0 V
0.8
6.0 V
0.4
5.0 V
4.0 V
0
20
10
30
V
DS
, DRAIN - TO-SOURCE VOLTAGE (VOLTS)
40
60
40
C
iss
20
C
oss
C
rss
0
10
20
30
40
50
60
V
DS
, DRAIN - TO-SOURCE VOLTAGE (VOLTS)
Figure 5. Output Characteristics
Figure 6. Capacitance versus
Drain−To−Source Voltage
http://onsemi.com
3
BS170G
PACKAGE DIMENSIONS
TO−92 (TO−226)
CASE 29−11
ISSUE AM
A
R
P
L
SEATING
PLANE
B
STRAIGHT LEAD
BULK PACK
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. CONTOUR OF PACKAGE BEYOND DIMENSION R
IS UNCONTROLLED.
4. LEAD DIMENSION IS UNCONTROLLED IN P AND
BEYOND DIMENSION K MINIMUM.
INCHES
MIN
MAX
0.175
0.205
0.170
0.210
0.125
0.165
0.016
0.021
0.045
0.055
0.095
0.105
0.015
0.020
0.500
---
0.250
---
0.080
0.105
---
0.100
0.115
---
0.135
---
MILLIMETERS
MIN
MAX
4.45
5.20
4.32
5.33
3.18
4.19
0.407
0.533
1.15
1.39
2.42
2.66
0.39
0.50
12.70
---
6.35
---
2.04
2.66
---
2.54
2.93
---
3.43
---
K
X X
H
V
1
D
G
J
C
N
N
SECTION X−X
DIM
A
B
C
D
G
H
J
K
L
N
P
R
V
R
A
B
BENT LEAD
TAPE & REEL
AMMO PACK
P
T
SEATING
PLANE
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. CONTOUR OF PACKAGE BEYOND
DIMENSION R IS UNCONTROLLED.
4. LEAD DIMENSION IS UNCONTROLLED IN P
AND BEYOND DIMENSION K MINIMUM.
MILLIMETERS
MIN
MAX
4.45
5.20
4.32
5.33
3.18
4.19
0.40
0.54
2.40
2.80
0.39
0.50
12.70
---
2.04
2.66
1.50
4.00
2.93
---
3.43
---
K
G
X X
V
1
D
J
C
N
SECTION X−X
DIM
A
B
C
D
G
J
K
N
P
R
V
STYLE 30:
PIN 1. DRAIN
2. GATE
3. SOURCE
ON Semiconductor
and
are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice
to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.
“Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All
operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights
nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications
intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should
Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates,
and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death
associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal
Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Literature Distribution Center for ON Semiconductor
P.O. Box 5163, Denver, Colorado 80217 USA
Phone:
303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax:
303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email:
orderlit@onsemi.com
N. American Technical Support:
800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5773−3850
ON Semiconductor Website: www.onsemi.com
Order Literature:
http://www.onsemi.com/orderlit
For additional information, please contact your local
Sales Representative
http://onsemi.com
4
BS170/D
