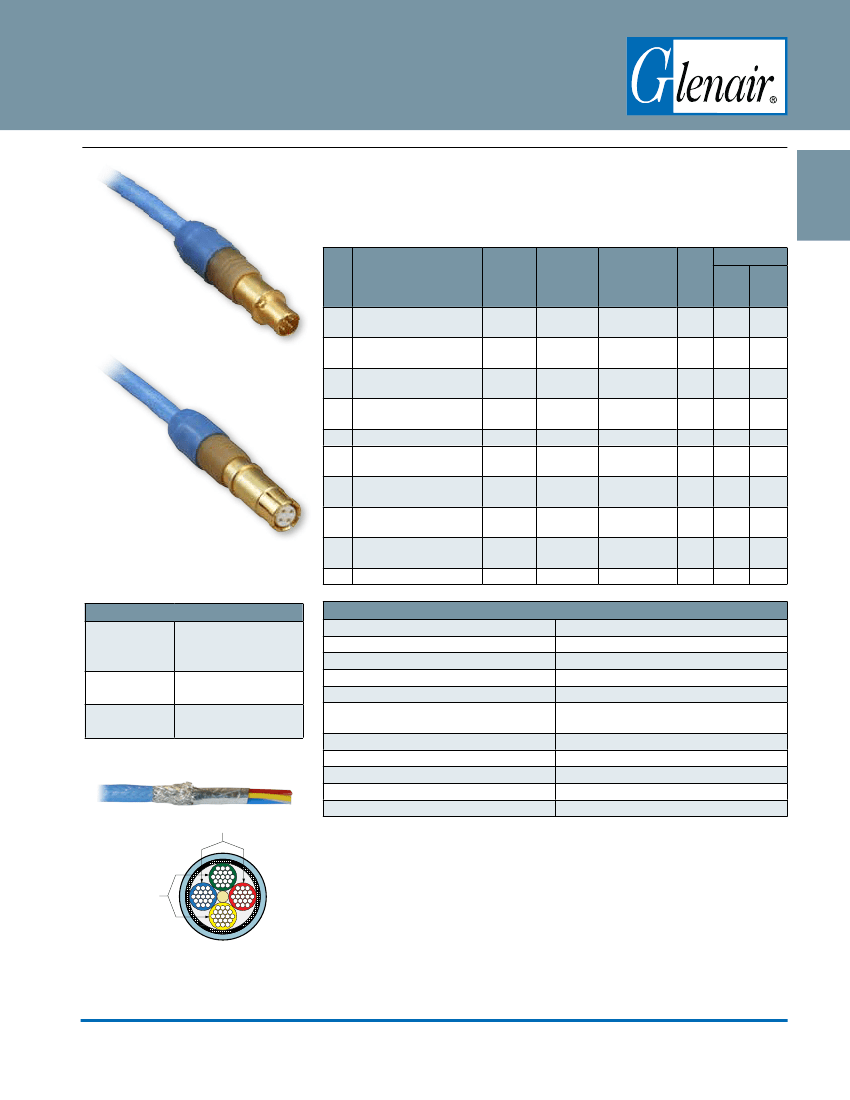

Size #8 100 Ohm Quadrax Contacts 854-001 and 854-002
Size #8 quadrax contacts
100 ohm quadrax contacts accept standard flight-grade star quad cable. These snap-
in, rear release contacts fit Glenair Series 80 Mighty Mouse connectors and Glenair
MIL-DTL-38999 Series III type connectors with size #8 keyed insulators to properly
align contact. Crimp termination. Contact has in-line key for alignment in connector.
Gold-plated copper alloy , thermoplastic insulators. Supplied as unassembled kit.
Fig.
Cable
Accommodation
Tensolite NF22Q100
Draka F-4704-7
PIC E51424
Tensolite NF24Q100
PIC E50424
Draka F 4704-4
PIC E51426
Tensolite NF26Q100
Draka F 4704-6
Tensolite NF22Q100
Draka F-4704-7
PIC E51424
Tensolite NF24Q100
PIC E50424
Draka F 4704-4
PIC E51426
Tensolite NF26Q100
Draka F 4704-6
Contact
Type
Pin
Pin
Pin
Pin
Pin
Socket
Socket
Socket
Socket
Socket
Fig. 1
Pin Contact
854-001
Part
Number
Contact
Only
854-001-05
854-001-02
854-001-04
854-001-01
854-001-03
854-002-05
854-002-02
854-002-04
854-002-01
854-002-03
P/N Contact
Wire
and Sealing
AWG
Boot
854-001-05F
854-001-02F
854-001-04F
854-001-01F
854-001-03F
854-002-05F
854-002-02F
854-002-04F
854-002-01F
854-002-03F
22
24
24
26
26
22
24
24
26
26
Cable OD
in.
.190
.163
.175
.137
.153
.190
.163
.175
.137
.153
mm.
4.83
4.14
4.45
3.48
3.89
4.83
4.14
4.45
3.48
3.89
1
1
1
1
1
2
Fig. 2
Socket Contact
854-002
2
2
2
2
Material And Finish
Inner and Outer
Contact, Crimp
Ferrule
Insulator, Sealing
Boot
Sealing Boot
Grommet
Copper alloy, 50
microinches gold over
nickel
High grade engineering
thermoplastic
Fluorosilicone
Characteristic Impedance
Frequency Range
Specifications
100 Ohms ± 10 ohms
DC – 3 GHz
5000 megohms minimum
15.0 milliohms maximum initial @ 1ampere
3.0 milliohms maximum initial @ 12 amperes
1000 Vac RMS between contacts, 500 Vac RMS
between contacts and shell
-65°C to +200°C
500 mating cycles
EIA-364-26, condition B, 48 hours
EIA-364-28, condition VI, letter J, 43g's
EIA-364-27, condition D, 300g's
Insulation Resistance, Ambient Temperature
Contact Resistance – Inner Contact
Contact Resistance – Outer Contact
Dielectric Withstanding Voltage
Temperature Range
Durability
Corrosion (salt Fog)
Vibration
Shock
Arinc 664 Star Quad Cable
PAIR 1
PAIR 2
About Quadrax Contacts and Star Quad Cable
Quadrax contacts are size 8 multi-pin contacts with four signal pins and an outer
contact body. These contacts are used for ARINC 664 100BASE-T Ethernet. Each
quadrax contact yields one Ethernet port. The outer contact body provides a
360-degree EMI shield around the signal contacts. Star quad cables have four
parallel wires uniformly twisted around a center filler. These 100 ohm high
performance 100BASE-T cables are designed for use in aircraft systems. The cable
has two shields– a flat tinned copper braid inner shield and an outer tinned copper
overbraid. The FEP jacket meets FAA flammability requirements.
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
K-25
E-Mail: sales@glenair.com
Mighty Mouse
with #8 Contacts
Mighty Mouse Connectors with Size #8 Quadrax, Twinax,
Coax or Power Contacts
K
Mighty Mouse Connectors with Size #8 Quadrax, Twinax,
Coax or Power Contacts
Size #8 100 Ohm Quadrax Contacts 854-001 and 854-002

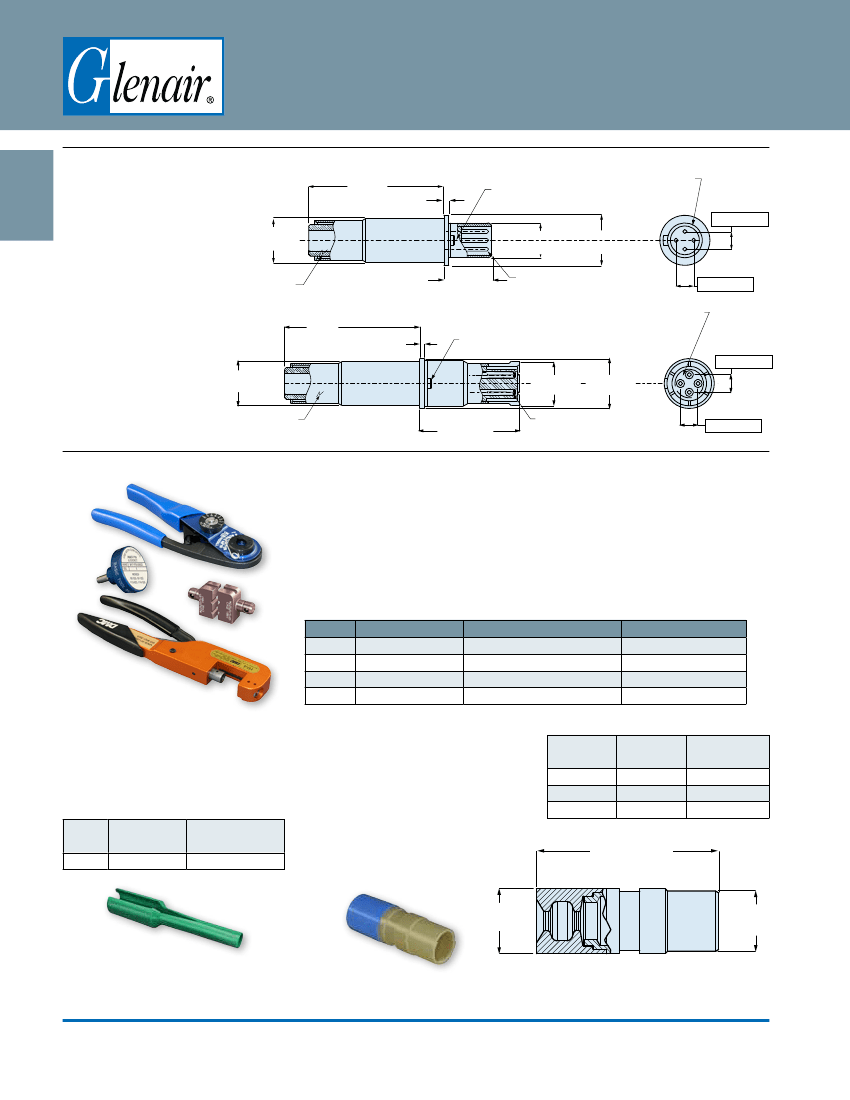

Dimensions for size #8 quadrax contacts
Ø .219/.217
(5.56/5.51)
.305/.295
(7.75/7.49)
.770
(19.56)
Ø .316/.313
(8.03/7.95)
1
HEX CRIMP
ø .0250 ± .0005 TYP
(0.64 ± 0.013)
4
3
2
4
1
HEX CRIMP
.631/.625
(16.02/15.88)
SOCKET TO ACCEPT
Ø.025 (0.64) PIN
2
3
Mighty Mouse
with #8 Contacts
K
854-001 Pin
Ø .276/.271
(7.01/6.88)
.920
(23.37)
.031
(0.79)
PIN NO. DESIGNATION
(NOT MARKED ON
POLARIZATION
PART)
KEY
.111 (2.82)
.111 (2.82)
PIN NO DESIGNATION
REF ONLY, NOT MARKED ON PART
.033 (0.84)
.029 (0.74)
POLARIZATION KEY
.111 (2.82)
Ø .288/.284 Ø .316/.313
(7.32/7.21) (8.03/7.95)
854-002 Socket
Ø .276/.271
(7.01/6.88)
.111 (2.82)
Termination tools for size #8 quadrax contacts
A
B
D
M22520/2-01 crimper for inner contacts.
Requires
B
positioner, ordered separately.
Length is 6.75 inches, weight is approx. 10 oz.
A
C
Positioner. Use with
A
crimper, ordered
separately. Positioner holds contact at proper
depth.
B
Parallel action tool terminates cable shield.
Use with
D
hex crimp dies. 11 inches OAL,
2.0 pounds. Anodized aluminum frame, steel
mechanism, plastic handles. Accepts all M22520/5
die sets.
D
Hex die set for terminating cable shield.
Hardened steel, black oxide finish. Closure A
is .231 (5.87), closure B is .218 (5.54).
Figure
A
B
C
D
Part Number
809-015
809-240
809-129
859-047
Military Part Number
M22520/2-01
M22520/2-37
M22520/5-01
M22520/5-45
Daniels Part Number
AFM8
K709
HX4
Y143
C
Contact Removal Tool
Plastic tool extracts wired contact from
connector. First, remove sealing boot,
then insert tool from rear of connector.
Size
#8
Part Number
859-049
Military Part
Number
M81969/14-12
Sealing Boot
Optional sealing boot is recommended.
Slide boot onto wire before terminating
contact. After contact is installed in
connector, slide boot forward into
connector grommet to seal the contact
cavity. "F" suffix on contact part number
specifies contact supplied with 859-
042-02 sealing boot.
.350
(8.89)
Wire Dia. (in.)
.090 - .130
.130 - .170
.170 - .205
Wire Dia.
(mm.)
2.3 - 3.3
3.3 - 4.3
4.3 - 5.2
Part Number
859-042-01
859-042-02
859-042-03
.985 (25.02)
MAX
.326
(8.28)
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
K-26
E-Mail: sales@glenair.com
